Oktava MKL-5000 Manuale utente
PROFESSIONAL
MICROPHONE
МКL-5000
OPERATION MANUAL
3
CONTENT
4
6
8
SAFETY INFORMATION
9
10
13
14
17
delivery INCLUDES
ABOUT factory
SETUP
installation
OPERATION AND STORAGE
trouble and countermeasure
19
18
MANUFACTURER WARRANTy
20
notes
technical data
overview
4
let’s go
ABOUT
factory
The Public Joint Stock Company Oktava is the leading Russian
manufacturer of studio microphones, telephone and microphone
capsules, headsets and hearing aids. The company has long-term
experience and has taken a leading position in the field of
development and manufacturing of acoustic equipment in Russia.
Being established at the dawn of development of broadcast
networks in 1927 in the city of Tula, Oktava became an iconic brand
known throughout the world. Gagarin said his famous “Let's go!” in
the Oktava microphone. The products are popular all over the world,
and even such masters as U2, Sting, Iron Maiden and Radiohead use
Oktava microphone products in their work.
6
SAFETY
INFORMATION
Before using the microphone, carefully read the operation manual.
Keep the manual in a safe place, accessible for all users.
Always handover the operation manual to third parties together
with the microphone.
Use the microphone only for its intended purpose in accordance
with this manual.
The liquid can get into the microphone, cause a short circuit
in the electronic components or damage the mechanical components.
Clean the microphone only with a soft, slightly moistened cloth.
Solvents or cleaning agents may damage the surface or enter
the product.
Do not expose the microphone to extremely low and extremely high
temperatures.
Do not open the microphone body by yourself. The warranty does
not apply to microphones, opened by customers themselves.
7
CAUTION!
Before switching on the power supply unit, please, ensure that the
power supply unit switch 110 V/220 V is switched to the position
corresponding to the mains supply voltage!
It is prohibited to open the microphone and the power supply unit!
The warranty does not apply to items, opened by customers
themselves.
It is prohibited to connect or disconnect the microphone to/from the
power supply if it is energized!
It is prohibited to handle the powered power supply unit by wet
hands!
overview
features
APPLICATION

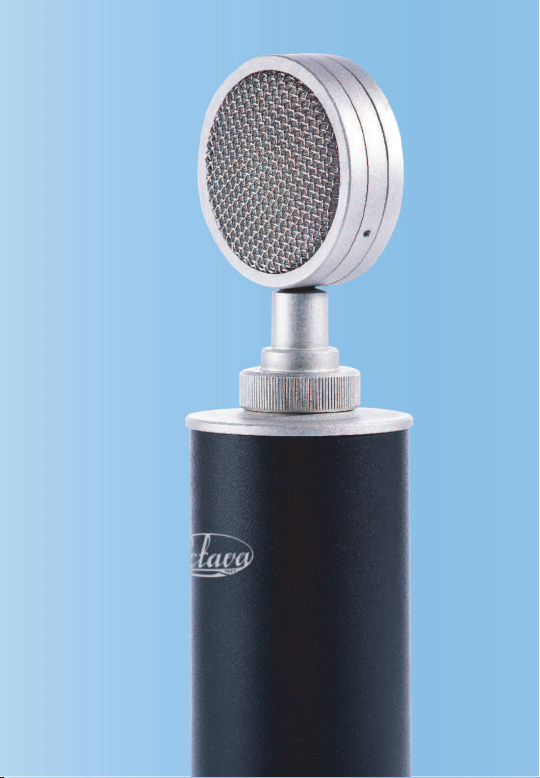

Microphone МКL-5000 is wide-diaphragm capacitor
microphone with lamp preamplifier designed for
professional studio recordings.
1” large-diaphragm condenser capsule:
2 gold-plateds diaphragms;
microphone pre-amplifier, made on the radio tube;
variable stepped polar response curve; type "circle",
"cardioid", "figure-eight";
robust metal body;
external power supply included in delivery;
made in Russia.
voice/vocal/chorus;
recording of solo instruments;
professional recording studios;
home recording studious.
8
Delivery INCLUDES
1. Microphone МКL-5000.
2. Power supply unit PSU-103.
3. Shock damper AM-65/27.
4. Cable (5 m).
5. Operetion manual.
6. Wooden box.
9
10
SETUP
Fig. 2Fig. 1
MICROPHONE INSTALLATION INTO SHOCK MOUNT
1. Screw the microphone shock absorber onto a sturdy, stable
stand (Fig. 1).
2. Insert the microphone from above in the inner shock absorber
ring and fasten it to the ring with a nut on bottom. To turn the
microphone, use the butterfly thumb screw (Fig. 2).
