Quick Start Guide
LED DUSK TO DAWN
WALL LIGHT
MODEL: BDB55D-3
1. Cover
2. LED Light Source
3. Lamp Bracket
4. Sensor head
1 2
3
4
2
COMPONENTS AND STRUCTURE
BDB55D-3
3
PARTS LIST
Wire Nuts
QTY: 3 FLong Machine Screw
QTY: 1 GSilicone Gasket
QTY: 1 HMachine Screw
QTY: 2
Machine Screw
QTY: 3
Expansion Rubber Plug
QTY: 3
EVA Gasket
QTY: 1
Mounting Bracket
QTY: 1
IMachine Screw
QTY: 2
4
SPECIFICATIONS
Model
Input Voltage
CCT
CRI
Power Factor
L
70
B
50
lifetime
Beam Angle
t
a
Luminaire Location
BDB55D-3
Input Current
Rated Power
Luminous Flux
0.5A
55W
5500lm
120°
-20-40°C/-4°F-104°F
SUITABLE FOR WET LOCATIONS
100-120V～60Hz
6500K
≥80
≥0.9
30000hours L
70
B
50
@25°
LED WALL LAMP
The testing standard of the product's
luminous flux:Place the three/two lights
on the same horizontal surface for
testing, and the tested luminous flux
is the accurate luminous flux.
Note:
Weight
Max Projected Area
Max. Lighting Coverage
Dimensions（LxHxW）
0.9 kg / 1.98 lb
0.0214m² / 0.23ft²
90m² / 968ft²
272x123x121mm /
10.71x4.84x4.76 in
DIMENSIONS
W
H
L
PREPARATION
5
Before beginning assembly of product,make sure all parts are present.Compare parts with
parts list.If any part is missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time:30-60 minutes.
Product appearance may vary from image shown.
Recommended to be installed on the ground above 2.5m (8.2 ft) and no higher
than 5 m (16.4 ft).

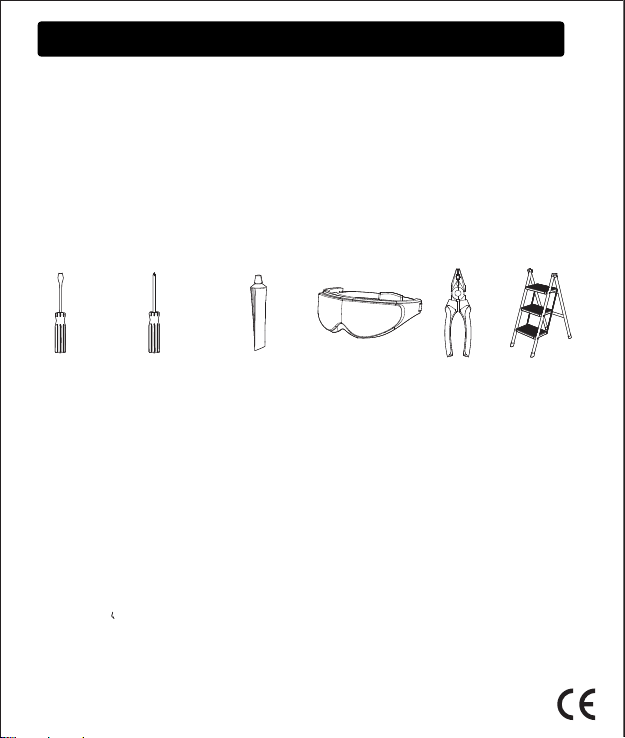

TOOLS REQUIRED（not included）
Flathead
screwdriver
screwdriver Silicone Sealant Eye Protection Pliers Step Ladder
WARNING:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH
THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF
THE PRODUCT AND THE HAZARDS INVOLVED.
NOTE:
CAUTION:
PLEASE MAKE SURE YOUR WALL SWITCH AND POWER AT
MAIN CIRCUIT BREAKER BOTH ARE OFF.
IF IN DOUBT ABOUT ELECTRICAL INSTALLATION, CONSULT
A LICENSED ELECTRICIAN.
RISK OF SHOCK:
BEFORE BEGINNING INSTALLATION,TURN OFF ELECTRICITY
AT THE CIRCUIT BREAKER BOX OR THE MAIN FUSE BOX.
PREPARATION
6
DO NOT CONNECT THIS LIGHT FIXTURE TO AN UNGROUNDED
ELECTRICAL SYSTEM. ATTACH GROUND FIXTURE WIRE TO
EITHER GREEN GROUND SCREW ON MOUNTING PLATE OR
THE GROUND WIRE IN THE OUTLET BOX.
WARNING:
INSTALLING THIS LIGHT IN AN UNGROUNDED ELECTRICAL
SYSTEM MAY CAUSE THE METAL PARTS OF THE LIGHT TO
CARRY CURRENT IF ANY WIRES OR WIRE CONNECTIONS ARE
DAMAGED OR LOOSE. IN THIS CASE, ANYONE WHO TOUCHES
THE LIGHT WILL RECEIVE AN ELECTRIC SHOCK, RESULTING IN
INJURY OR DEATH.
NOTE:
BE SURE TO USE WIRE NUTS/CONNECTORS RATED FOR
THE CORRECT GAUGE AND NUMBER OF WIRES USED.
MAKE SURE THERE ARE NO EXPOSED WIRE BUNDLES
OUTSIDE THE WIRE NUT/CONNECTOR (IF APPLICABLE).
BE CAREFUL NOT TO DAMAGE OR CUT THE WIRE INSULA-
TION (COVERING) DURING INSTALLATION. DO NOT LET THE
WIRES TOUCH ANY SHARP EDGES.
FOR WET LOCATION, MAKE SURE FILL FULL THE GAP OF EVA GASKET AND MOUNTING
SURFACE WITH SEALING COMPOUND OR SILICON GLUE.
7

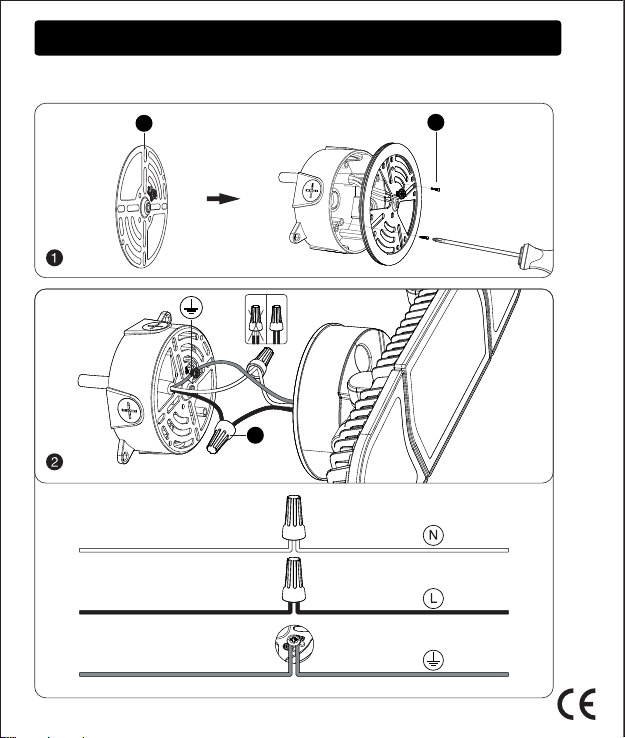

INSTALLATION STEPS
D
E
H
BLACK
LIVE WIRE
BLACK
LIVE WIRE
FROM FIXTURE
FROM HOUSE
GREED
GROUND WIRE
GREED
GROUND WIRE
FROM FIXTURE
FROM HOUSE
WHITE
NEUTRAL LINE
WHITE
NEUTRAL LINE
FROM FIXTURE
FROM HOUSE
NOK OK
8
GF
F
The raised part (RA) of the metal plate must be
engaged with the recessed part (RE) of the base,
otherwise it cannot be installed.
Note：
RA RE
TROUBLESHOOTING
LED senses a
movement, the light
does not light up
LED sensor light
illuminates during
the day
Cause RemedyMalfunction
1. The light is not energized
2. Other surrounding light
sources make the light
misjudge it as daytime
The shadows around the
sensor make it mistakenly
think it's night
1. Check power-on status
2. Turn off the nearby lights or
sensor head to other directions
Do not cover the sensor head
LED sensor light
flashing
1. Surrounded by other unstable
light sources shining onto the
induction
2. The light from the lamp itself
is reflected on the sensor
1. Avoid being exposed to such
light sources
2. Follow the instructions in
“LED DUSK TO DAWN WALL
LIGHT – Matters Needing
Attention” to readjust the
light sensor
OPERATION INSTRUCTIONS
9
NOTE:
Sensor head:
Do not cover the sensor head, otherwise it will affect the normal operation of
the lamp.
When the ambient brightness is less than
10~20LUX at night, the light will be on
automatically.
When the ambient brightness is more than
30~60LUX during the day, the light will be
off automatically.
Sensor head
Manufacturer/Hersteller:
Shen Zhen Shi Zhi Hui Duo Ke Ji You Xian Gong Si
qian wan yi lu 1 hao A dong 201 shi, qian hai shen gang he zuo qu, shen
zhen, guang dong, 518000, CN
[email protected] www.olafuslife.com
69 Aberdeen Avenue, Cambridge CB2 8DL,
Made in China
EU REP MDH LIGHTING LTD
Suite 302, 292 Strovolos Avenue, 2048 Strovolos
Nicosia, Cyprus | support@olafuslife.com
