Olivetti MY_WAY Plus Manuale utente

Edited/Published/Produced by:

Olivetti S.p.A.

Gruppo Telecom Italia

Via Jervis, 77

Ivrea (TO)

Italy

www.olivetti.com

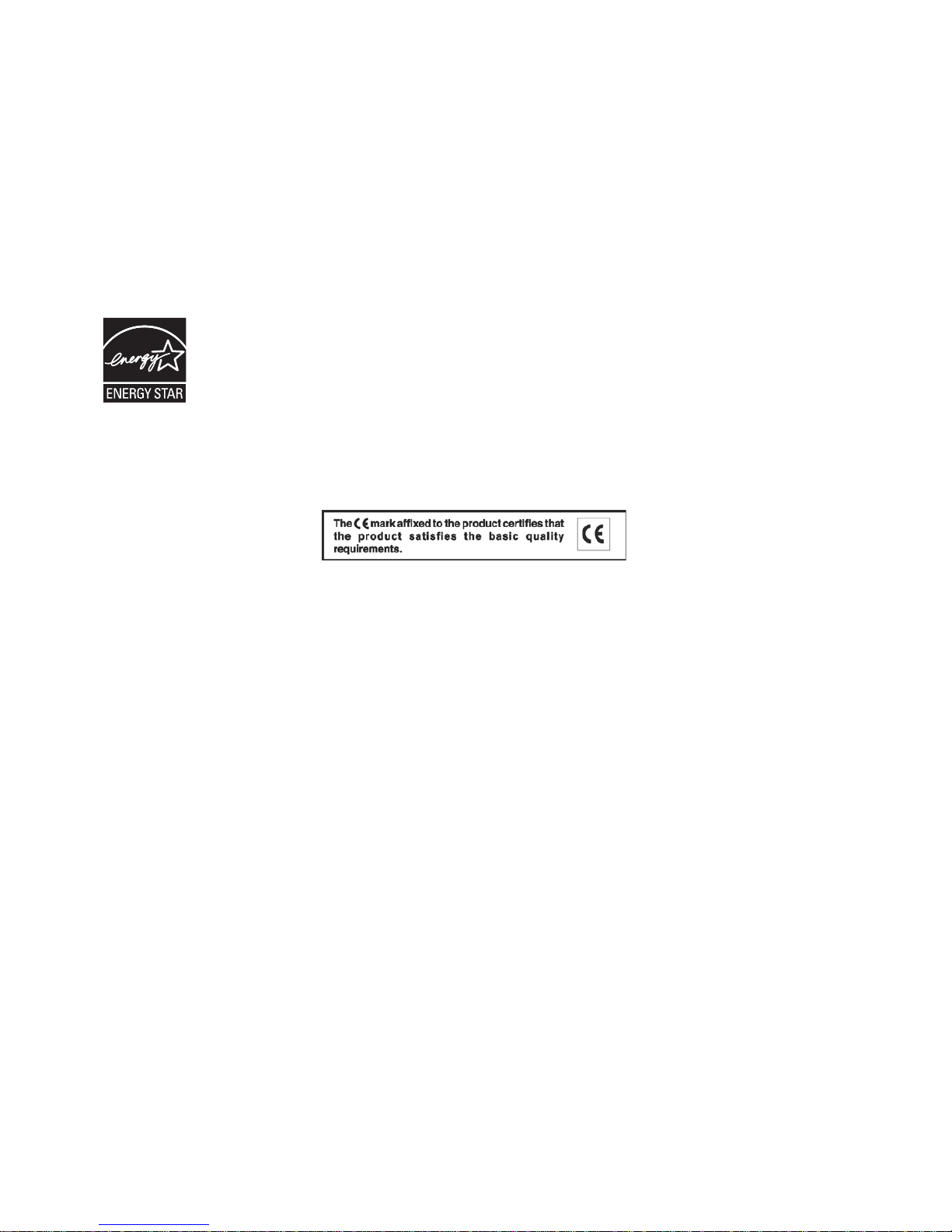

ENERGY STAR is a U.S. registered mark.

The ENERGY STAR program is an energy reduction plan introduced by the United States Environmental Protection Agency in response to

environmental issues and for the purpose of advancing the development and utilization of more efficient office equipment.

Ref: 527604gb

Date of publication: July 2006

Trademarks:

Microsoft and Windows are registered

trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this

document to refer to either the entities claiming the

marks and names or their products. Olivetti disclaims any

proprietary interest in trademarks and trade names other

than its own.

CONTENTS iii

CONTENTS

1 GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

INFORMATION ABOUT PRINT QUALITY AND THE WARRANTY . . . . . . . . . . 2

LOCATING YOUR PRINTER’S COMPONENTS . . . . . . . . . . . . . . . . . . . . . . .3

PRINTER CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

LOADING PAPER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Loading Paper in the Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . .7

Loading a Single Sheet of Plain A4 Paper

Folded Vertically in the Middle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

POWERING YOUR PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Choosing the Power Source For Your Printer . . . . . . . . . . . . . . . . . . .8

TURNING YOUR PRINTER ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Turning On Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Turning Off Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

CONNECTING A DIGITAL CAMERA TO YOUR PRINTER . . . . . . . . . . . . . .10

INSERTING AND REMOVING MEMORY CARDS . . . . . . . . . . . . . . . . . . . .10

Inserting a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Removing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

CARRYING YOUR PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

REMOVING THE PAPER CASSETTE FROM THE BOTTOM OF THE PRINTER .12

PRINT SETTINGS IN BLUETOOTH MODE . . . . . . . . . . . . . . . . . . . . . . . . . .13

2 USING YOUR PRINTER WITHOUT A COMPUTER . . . . . . . . . 15

VIEWING PHOTOS ON YOUR PRINTER’S DISPLAY . . . . . . . . . . . . . . . . . . .16

Full-Screen Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Thumbnail Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Improving the Photo’s Print Quality . . . . . . . . . . . . . . . . . . . . . . . . . .17

SELECTING AND PRINTING PHOTOS FROM YOUR MEMORY CARD . . . . .17

PRINTING PHOTOS FROM YOUR PICTBRIDGE-COMPLIANT

DIGITAL CAMERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

SELECTING AND PRINTING PHOTOS FROM YOUR DPOF

DIGITAL CAMERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

CONTENTS

SELECTING AND PRINTING PHOTOS FROM YOUR NON-PICTBRIDGE/DPOF

DIGITAL CAMERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

PRINTING PHOTOS FROM A BLUETOOTH PERIPHERAL . . . . . . . . . . . . . . . 20

3 USING YOUR PRINTER FROM A COMPUTER . . . . . . . . . . . . .21

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

THE TOOLBOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

THE PRINTER STATUS MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

PRINTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Printing From Your Application Using Print Properties . . . . . . . . . . . . 24

Printing with the Toolbox Print Photos Tool . . . . . . . . . . . . . . . . . . . . 25

TRANSFERRING FILES FROM A MEMORY CARD TO YOUR COMPUTER . . 26

SETTTING THE PARAMETERS TO IMPROVE PHOTO PRINT QUALITY . . . . . 26

4 THE INK CARTRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

CHECKING THE INK LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

REPLACING THE INK CARTRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

ALIGNING THE INK CARTRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Aligning the Ink Cartridge From the Toolbox . . . . . . . . . . . . . . . . . . 31

5 MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . .33

CLEANING YOUR PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Cleaning the Printer Casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

CLEANING THE INK CARTRIDGE NOZZLES . . . . . . . . . . . . . . . . . . . . . . . . 34

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Problems During Printer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Problems When Powering On the Printer . . . . . . . . . . . . . . . . . . . . . 38

Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Meaning of the Indicators on the Control Panel . . . . . . . . . . . . . . . . 39

CLEARING PAPER JAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

CONTENTS v

6 TECHNICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . . 41

GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

PRINTER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

PAPER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Supported Paper Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

MIPC (Mobile Imaging and Printing Consortium)

The MIPC is a non-profit industry association founded in 2004 by leading companies in photo

printing and the mobile phone industry. Its mission is to promote and support the

development of interoperability guidelines enabling printing of images and other content

between mobile phones and printing devices. The guidelines are promoted for use

internationally to ensure a broad spectrum of products and services for mobile phone

consumers. http://www.mobileprinting.org

MY_WAY plus: This Mobile Printing Ready product is designed to provide easy printing from

mobile phones. This product follows Mobile Imaging and Printing Consortium (MIPC)

Implementation Guidelines for Printing with Mobile Terminals, Version 1.0, for: Bluetooth,

PictBridge, Memory Card.

CONTENTS

GETTING STARTED 1

1GETTING STARTED

OVERVIEW

SAFETY INSTRUCTIONS

INFORMATION ABOUT PRINT QUALITY AND THE WARRANTY

LOCATING YOUR PRINTER’S COMPONENTS

PRINTER CONTROL PANEL

LOADING PAPER

POWERING YOUR PRINTER

TURNING YOUR PRINTER ON AND OFF

CONNECTING A DIGITAL CAMERA TO YOUR PRINTER

INSERTING AND REMOVING MEMORY CARDS

CARRYING YOUR PRINTER

REMOVING THE PAPER CASSETTE FROM THE BOTTOM OF THE PRINTER

PRINT SETTINGS IN BLUETOOTH MODE

CHAPTER 12

OVERVIEW

This product carries out the functions of a high quality ink-jet portable printer and is characterized by

reduced weight and wireless operating mode.

The printer is fitted with a 3-color head for high quality printing of photographs on photographic paper

or plain paper without borders.

The printer can be powered with rechargeable batteries and is equipped with a Bluetooth interface for

wireless connection from a mobile phone, to become an inseparable companion during your leisure

time.

It can be used in the handy PC-free or stand-alone mode in which it is possible to print 10x15 cm

(4”x6”) format photographs simply connecting a PictBridge-compatible, DPOF or non PictBridge/DPOF

digital camera to the USB interface, without having to connect the printer to a computer and therefore

without having to switch on the PC. It is also possible to insert memory cards in the related slots on the

side panel of the printer for selection and printing of the photos saved.

Photographs can be printed directly from a mobile phone via wireless technology using the Bluetooth

interface integrated in the printer.

The printer can be connected to a personal computer on the second USB interface.

In this case, as in PC-free mode, the Olivetti Toolbox application can be used for fast access to all

available capabilities, to use the document management software and the additional software available

on the "Installation" CD-ROM.

note: If you want to connect the printer to a personal computer, this must use the Microsoft Windows

98 SE, Me, 2000 or XP operating system, or MAC OS X 10.2 or higher version.

SAFETY INSTRUCTIONS

Carefully read and follow the information indicated below:

• Connect the power cord to an electrical outlet that is near the product and easily accessible.

• Do not use your printer near water or with wet hands.

• Do not expose your printer to rain or moisture.

• Do not attempt to disassemble your printer.

• Observe all warnings and instructions marked on your printer.

• Read and understand all the documentation that came with your printer.

note: This product works correctly and complies with safety norms when used with the CA power

supply unit provided by the manufacturer. When using different power sources than those provided in

the product packaging, it will be the user’s responsibility to guarantee compliance with safety norms

and with the correct power ratings that this product requires.

INFORMATION ABOUT PRINT QUALITY AND THE WARRANTY

To guarantee the correct operation of your printer and top quality printing, it is essential to use only

Olivetti original ink cartridges.

Olivetti declines any responsibility for damage to your printer caused by the tampering with, or refilling

of, the ink-jet cartridges. Such actions also imply forfeiture of the Warranty.

GETTING STARTED 3

LOCATING YOUR PRINTER’S COMPONENTS

CHAPTER 14

Reference Part Desccription

1Control panel Features the colour Liquid Crystal Display (LCD), the power

button, Bluetooth activity indicator, error LEDs and a number of

buttons that allow you to print and customize print jobs and

indicators that signal out of ink and out of paper conditions. See

"Printer Control Panel" for a description of the functions

available.

2USB interface Plug the USB cable from your digital camera to print photographs

directly from your camera.

3Power connector Connector into which you plug the printer’s external AC power

supply unit or car lighter AC adapter, both of which provided in

the product packaging.

note: Plug the external AC power supply unit into the printer first

and then into the electrical outlet.

4Carry handle Extract this handle to carry your printer wherever you go.

5High-speed USB

interface

Plug the USB cable (not included) used for connection to your

personal computer. Plug the other end of the cable to the

computer.

6Paper cassette

insertion slot

Insert here the paper cassette after sliding it off the rails on the

bottom of your printer.

7Memory card slots Insert your memory cards in these slots to read their contents and

select the pictures that you want to print. See "Inserting and

Removing Memory Cards". Can accommodate Compact Flash I,

II, Microdrive, SmartMedia, SecurDigital and MultiMedia cards,

Memory Sticks and xD-Picture cards.

8Ink cartridge carrier Holds the colour ink cartridge. For information on how to change

the ink cartridge, see "Replacing the Ink Cartridge".

9Paper exit slot and

paper jam clearing

area

Slot from where the printed sheet of paper exits the printer. Also

used for clearing paper jams inside the printer. For information on

how to clear paper jams, see "Clearing Paper Jams".

10 Right inner door Closes the paper exit slot and ink cartridge carrier. Opening this

door during a print job will interrupt the printing underway.

11 Battery compartment Holds six rechargeable AA size 1.2 V Nickel Metal Hydride (NiMH)

batteries, with a capacity of at least 2.2 to 2.5 Ah each, that

power the printer when the external AC power supply unit or car

lighter DC adapter is not used.

note: The batteries must be fully charged when inserted in the

printer. Make sure that you also have an appropriate battery

charger (sold separately) so that you can recharge the batteries

when they are discharged.

12 Paper cassette Holds up to 20 sheets of 280 gm2photo paper. When not used,

the paper cassette can be secured underneath the printer.

Indice

Altri manuali Olivetti Stampante tutto in uno

Olivetti

Olivetti d-COLOR MF3000 Manuale utente

Olivetti

Olivetti d-Copia 3501 Manuale utente

Olivetti

Olivetti MB-2 Manuale utente

Olivetti

Olivetti d-COLOR MF652 Manuale utente

Olivetti

Olivetti d-Copia 3001MF Manuale utente

Olivetti

Olivetti d-color MF451 Manuale utente

Olivetti

Olivetti Photo Wireless Any_Way Manuale utente

Olivetti

Olivetti d-COLOR P3100 Manuale utente

Olivetti

Olivetti SD-505 Manuale utente

Olivetti

Olivetti d-color MF451 Manuale utente

Olivetti

Olivetti d-Color MF552 Istruzioni di installazione e manutenzione

Olivetti

Olivetti d-Color MF360 Guida all'installazione

Olivetti

Olivetti d-Copia 2001 Manuale utente

Olivetti

Olivetti d-Copia 3002MF plus Manuale utente

Olivetti

Olivetti d-Copia 2301 Manuale utente

Olivetti

Olivetti d-Copia 3000MF Manuale utente

Olivetti

Olivetti d-color MF451 Manuale utente

Olivetti

Olivetti d-COLOR MF3300 Manuale di istruzioni

Olivetti

Olivetti d-COLOR MF3800 Manuale utente

Olivetti

Olivetti D-COPIA 300MF Operation Manuale utente

Olivetti

Olivetti d-Copia 283MF Manuale utente

Olivetti

Olivetti d-Copia 16W Manuale utente

Olivetti

Olivetti d-COLOR MF3300 Manuale utente

Olivetti

Olivetti d-COLOR MF254 Manuale per l'uso e la cura

Manuali Stampante tutto in uno popolari di altre marche

Triumph Adler

Triumph Adler DC 2016 Manuale

Epson

Epson WorkForce WF-2510 Guida utente

Epson

Epson Stylus Scan 2000 Manuale di installazione e funzionamento

Epson

Epson PictureMate Snap PM 240 Manuale di istruzioni

Konica Minolta

Konica Minolta bizhub C35 Manuale utente

Brother

Brother MFC-J430w Manuale utente

Konica Minolta

Konica Minolta BIZHUB 558 Manuale utente

Lexmark

Lexmark MX710 Series Manuale

Brother

Brother MFC-9760 Manuale utente

Lexmark

Lexmark XC8155 Manuale utente

Lexmark

Lexmark X642E Manuale utente

Sharp

Sharp MX-2310U Guida

Aficio

Aficio 200 Manuale utente

Canon

Canon ImageCLASS 2300 Manuale

Ricoh

Ricoh Pro C900 Manuale utente

Lexmark

Lexmark X925 Manuale utente

Brother

Brother Business Smart MFC-J4510dw Manuale utente

Epson

Epson Stylus CX8400 Series Manuale utente
