Olympus Camedia C-300 ZOOM Guida all'installazione

JBefore using your camera, read this manual carefully to ensure correct use.

JWe recommend that you take test shots to get accustomed to your camera before

taking important photographs.

JThese instructions are only a basic manual. For more details on the functions described

here, refer to the Reference Manual on the CD-ROM. For connection to the PC or

installation of provided software, refer to the Software Installation Guide included in the

CD-ROM package.

JAvant d’utiliser votre appareil photo, veuillez lire attentivement ce mode d’emploi, de

manière à obtenir les meilleurs résultats possibles.

JAvant d’effectuer des prises de vues importantes, nous vous conseillons par ailleurs de

faire quelques essais afin de vous familiariser avec le maniement de l’appareil photo.

JCes instructions ne sont qu’un manuel de base. Pour plus de détails sur les fonctions

décrites ici, se référer au manuel de référence du CD-ROM. Pour la connexion à

l’ordinateur ou l’installation du logiciel fourni, veuillez consulter le Guide d’installation de

logiciel livré avec le CD-ROM.

JBitte lesen Sie vor dem Gebrauch dieser Kamera sorgfältig diese Bedienungsanleitung,

um optimale Ergebnisse beim Fotografieren zu erzielen.

JWir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen, um sich mit

der Bedienung und den Funktionen der Kamera vertraut zu machen.

JDie vorliegende Broschüre stellt nur eine einfache Anleitung dar. Falls Sie

ausführlichere Angaben zu den hier beschriebenen Funktionen benötigen, steht Ihnen

das Referenzhandbuch auf der CD-ROM zur Verfügung. Für das Anschließen an einen

Personal Computer oder das Installieren der mitgelieferten Software lesen Sie bitte das

„Software-Installationsanleitung“(auf der CD-ROM enthalten).

JAntes de usar su cámara lea este manual detalladamente para asegurar el uso correcto.

JNosotros le recomendamos que tome fotografías de prueba para familiarizarse con su

cámara antes de tomar fotografías importantes.

JEstas instrucciones constituyen sólo un manual básico. Para más detalles de las

funciones descritas aquí, refiérase al manual de consulta del CD-ROM. Para la

conexión al ordenador o la instalación del software suministrado, consulte la Guía de

instalación del software incluida en el paquete del CD-ROM.

C-300 ZOOM

D-550 ZOOM

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

basic_e_p.fm Page 1 Monday, April 8, 2002 3:45 PM

2En

CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

CONTENTS

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

SELECTING THE IMAGE QUALITY (RECORD MODE) 28

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

DOWNLOADING PICTURES TO A COMPUTER . . . . . 37

OPTIONAL ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 39

ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

These instructions are only for quick reference. For more details

on the functions described here, refer to the “Reference Manual”

on CD-ROM.

basic_e_p.fm Page 2 Monday, April 8, 2002 3:45 PM

En 3

For customers in Europe

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : C-300 ZOOM/D-550 ZOOM

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference

that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• All other company and product names are registered trademarks and/or

trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design

Rule for Camera File System/DCF” standards stipulated by the Japan Electronics

and Information Technology Industries Association (JEITA).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection. “CE” mark cameras are intended for sales in Europe.

basic_e_p.fm Page 3 Monday, April 8, 2002 3:45 PM

4En

GETTING STARTED

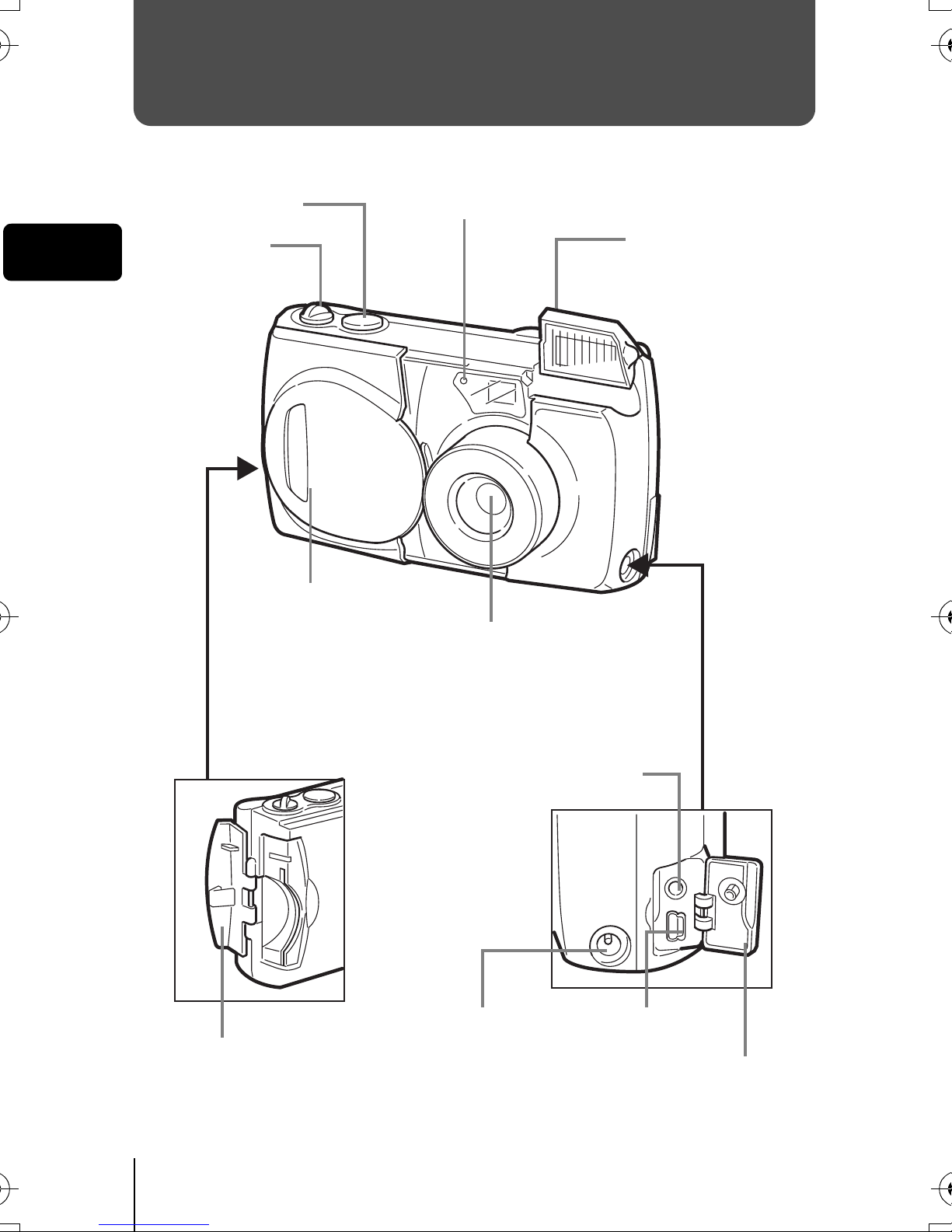

JNAMES OF PARTS

Lens barrier

Turns the camera on

and off in the shooting

mode.

Shutter button

Flash

Pops up when

you open the

lens barrier.

Self-timer lamp

Connector cover

USB connector

DC-IN jack

VIDEO OUT jack

Lens

Extends automatically

when you open the lens

barrier.

Zoom lever

Card cover

basic_e_p.fm Page 4 Monday, April 8, 2002 3:45 PM

En 5

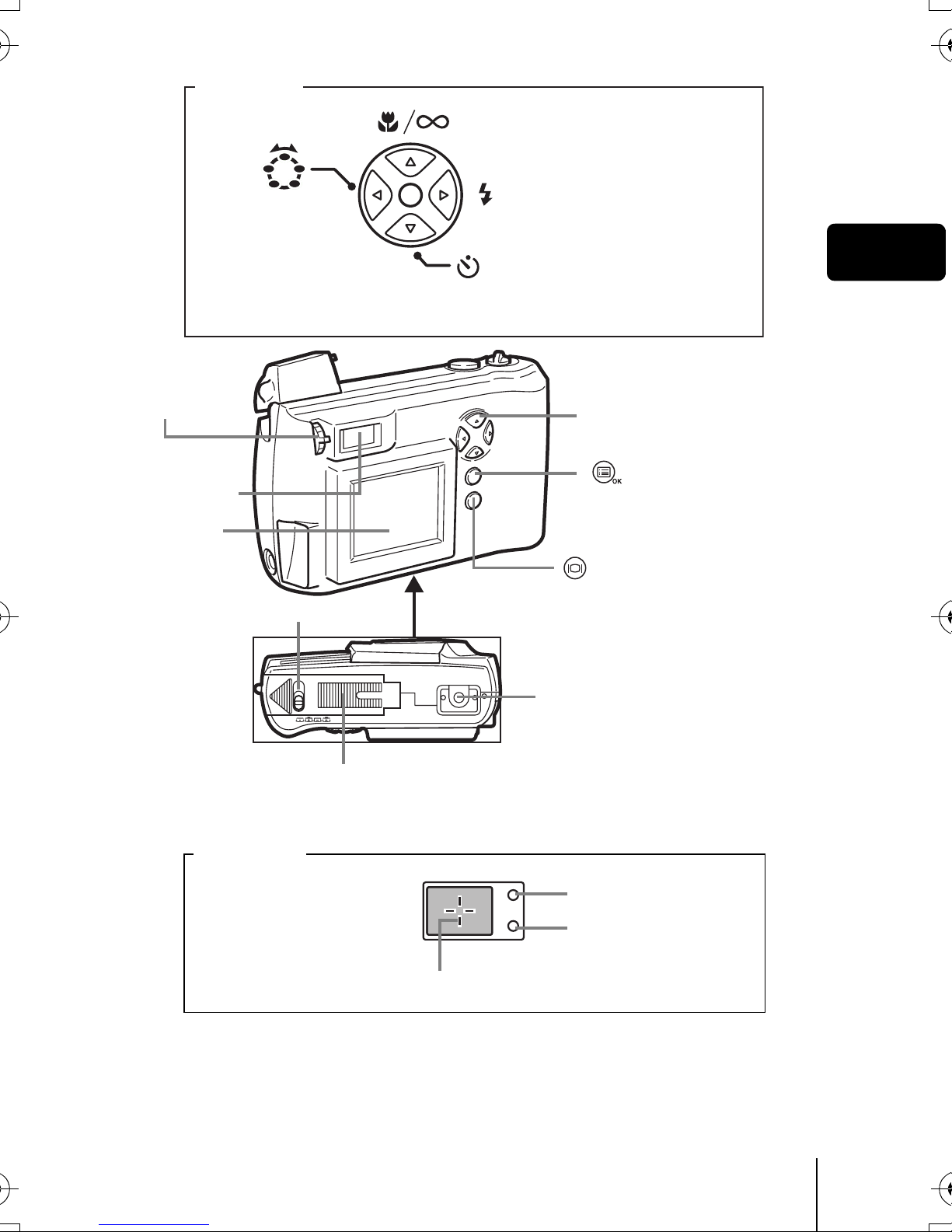

(Monitor) button

Turns the camera on and

off in the playback mode.

Turns the monitor on and

off in the shooting mode.

Self-timer button

Monitor

AF button

Battery

compartment cover

Orange lamp

Viewfinder (OK/Menu)

button

Green lamp

Tripod socket

Battery compartment

lock

Flash mode button

AF target mark

Shooting mode

button

Arrow pad

Viewfinder

rrow pa

Diopter

adjustment

dial

basic_e_p.fm Page 5 Monday, April 8, 2002 3:45 PM

6En

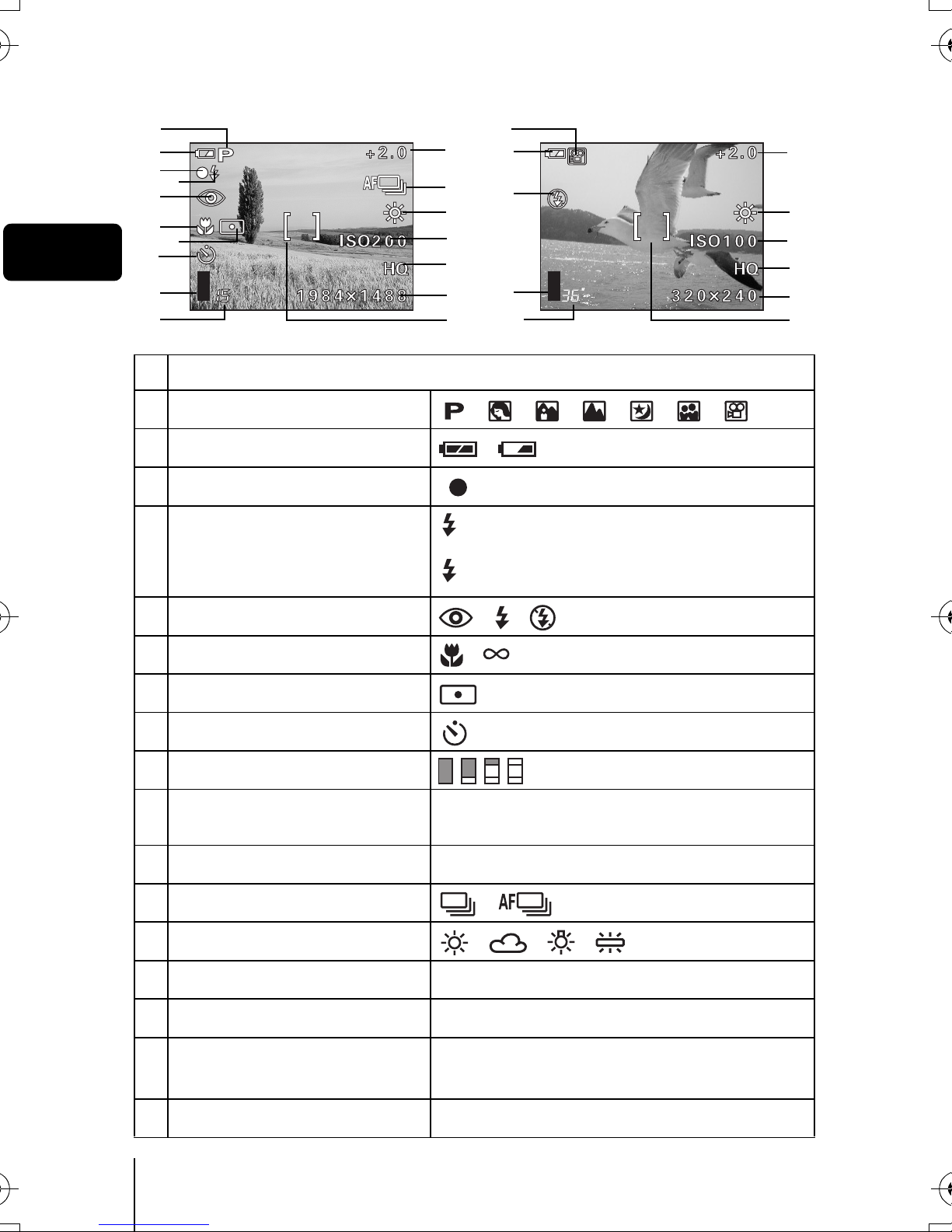

JMONITOR INDICATIONS

Shooting mode

Indication

1Shooting mode , , , , , ,

2Battery check ,

3Green lamp

Flash stand-by (Lights up)

Camera movement warning/Flash

charge (Blinks)

5Flash mode , ,

6AF ,

7Spot metering

8Self-timer

9Memory gauge

10 Number of storable still pictures/

Seconds remaining 16/16"

11 Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0

12 Sequential shooting ,

13 White balance , , ,

14 ISO ISO100, ISO200, ISO400

15 Record mode 3:2, SHQ, HQ, SQ, TIFF

16 Number of pixels 1984×1488, 1984×1312, 1600×1200, 1280×960,

1024×768, 640×480

17 AF target mark [ ]

Still picture Movie

36"

311

13 5

10 10

basic_e_p.fm Page 6 Monday, April 8, 2002 3:45 PM

En 7

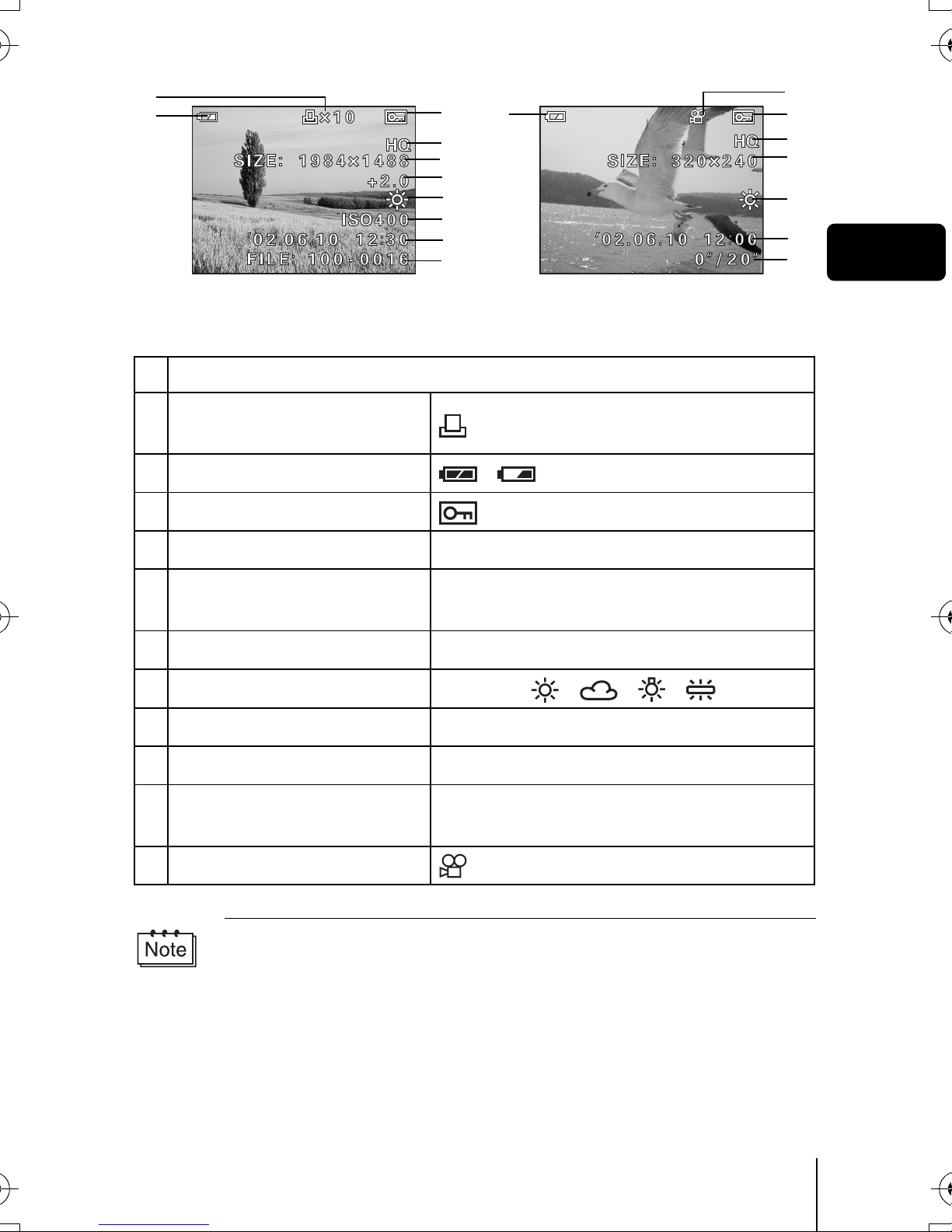

Playback mode

Indication

1Print reservation,

Number of prints ×2

2Battery check ,

3Protect

4Record mode 3:2, SHQ, HQ, SQ, TIFF

5Number of pixels 1984×1488, 1984×1312, 1600×1200, 1280×960,

1024×768, 640×480

6Exposure compensation -2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0

7White balance WB AUTO, , , ,

8ISO ISO100, ISO200, ISO400

9Date and time '02.06.10 12:30

10 File number,

Frame number/Playing time 100-0016

16/16"

11 Movie mode

You can view shooting information details of the recorded picture in the

playback mode.

Still picture Movie

basic_e_p.fm Page 7 Monday, April 8, 2002 3:45 PM

8En

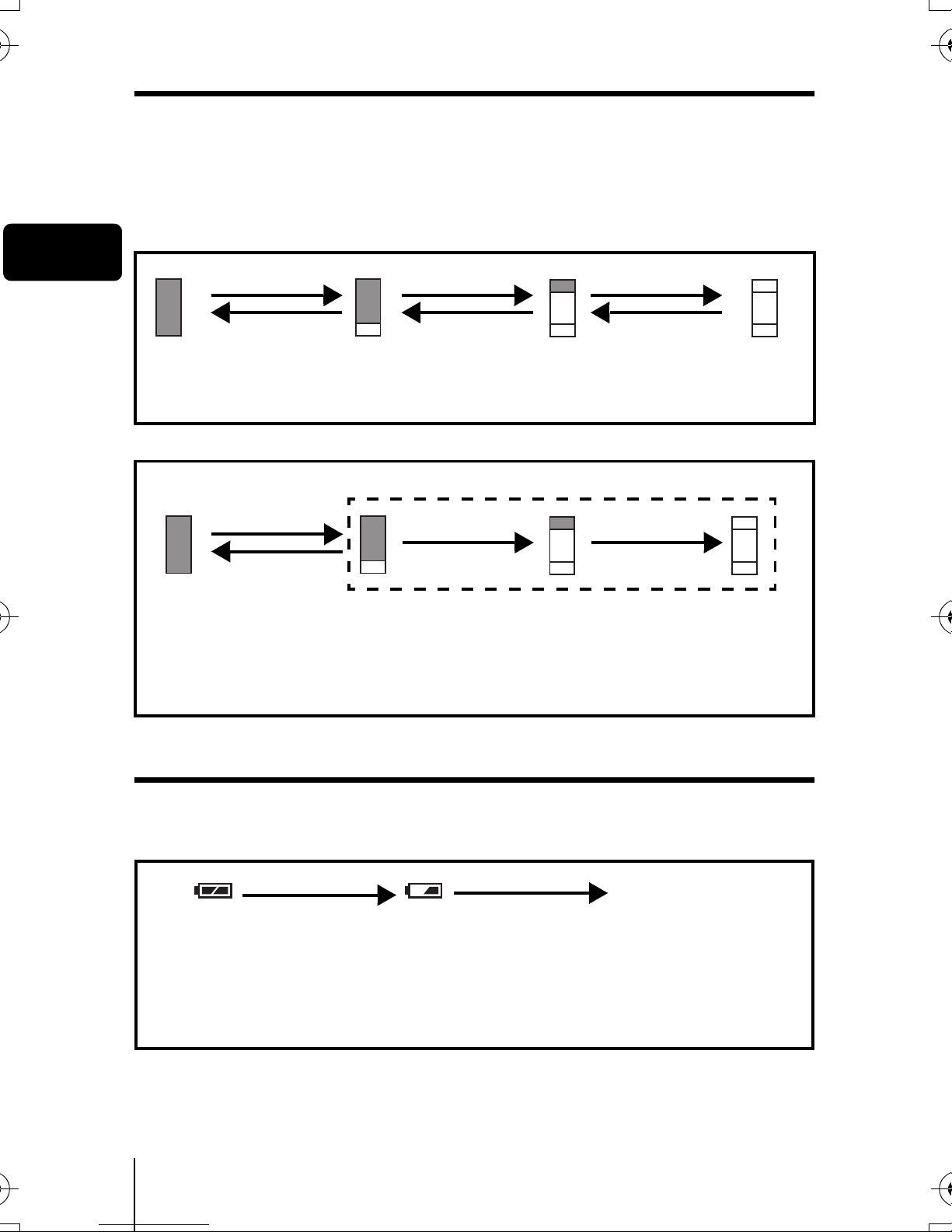

Memory gauge

The memory gauge lights up when you take a picture. While the gauge is lit,

the camera is storing the picture on the card. The memory gauge indication

changes as shown below depending on the shooting status. When the

memory gauge is full, wait a few moments before taking the next shot.

When taking still pictures

When recording movies

Battery check

If the remaining battery power is low, the battery check indication on the

monitor changes as follows while the camera is turned on.

Before

shooting

(Gauge is off)

No more

pictures can be

taken (Fully Lit)

One picture

taken

(Lit)

More than

two taken

(Lit)

Shoot Shoot Shoot

Wait

Before shooting

(Gauge is off)

Shoot

Wait

If you continue shooting

During shooting (Lit)

• Shooting is not possible until the lit area goes off

completely.

• Movie recording ends automatically when the memory

gauge is full.

Lights up (Green) Green lamp and orange

lamp on the right of the

viewfinder blink

Lights up (Red)

No indication

Remaining power level:

exhausted

Replace with a new battery.

Remaining power level: low

Replace with a new battery.

Remaining power

level: high

basic_e_p.fm Page 8 Monday, April 8, 2002 3:45 PM

En 9

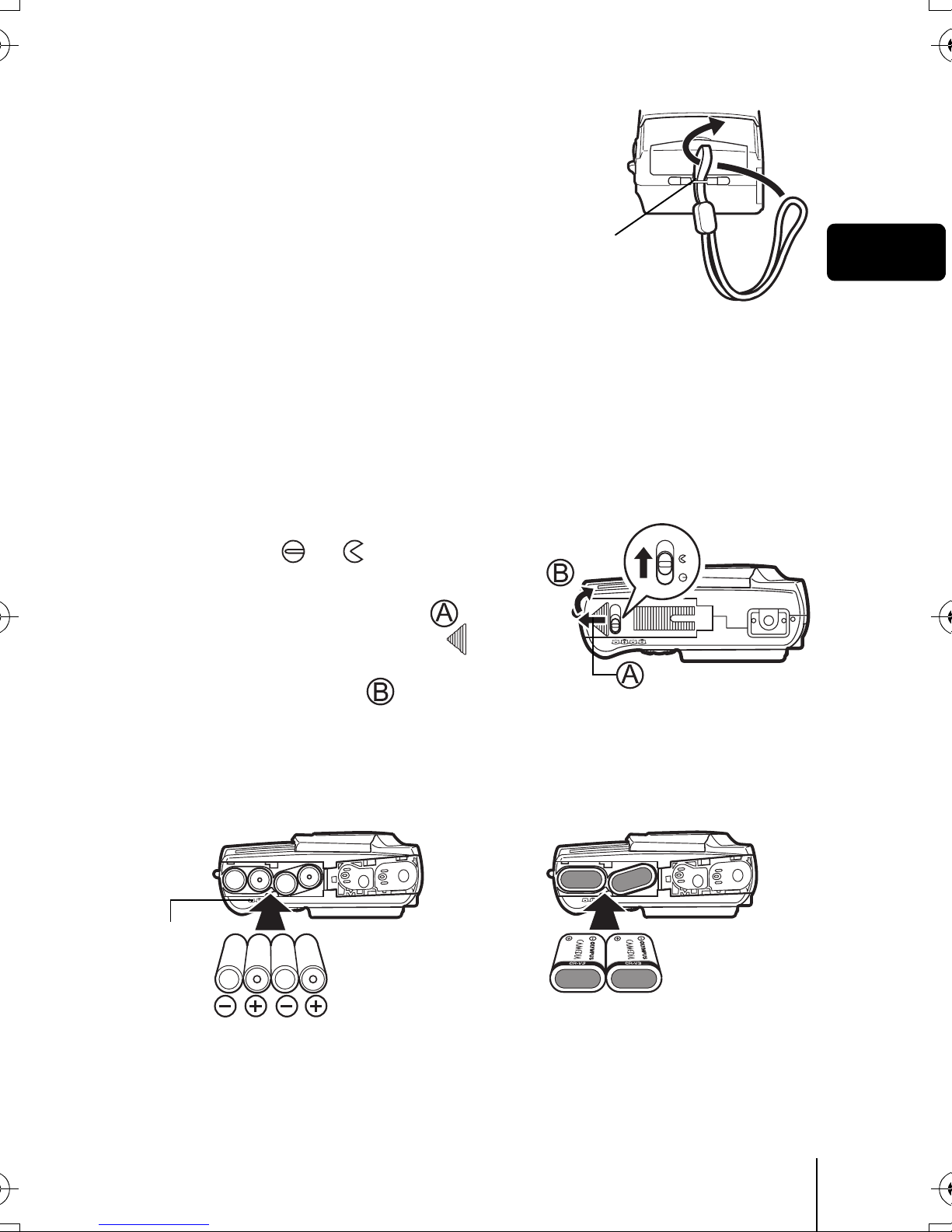

JATTACHING THE STRAP

1Thread the short end of the strap

through the strap eyelet.

2Thread the long end of the strap

through the loop that has already

gone through the eyelet.

3Pull the strap tight, making sure

that it is securely fastened and

does not come loose.

JLOADING THE BATTERIES

1Make sure that:

• The monitor is off.

• The lens barrier is closed.

• The lamp on the right of the viewfinder is off.

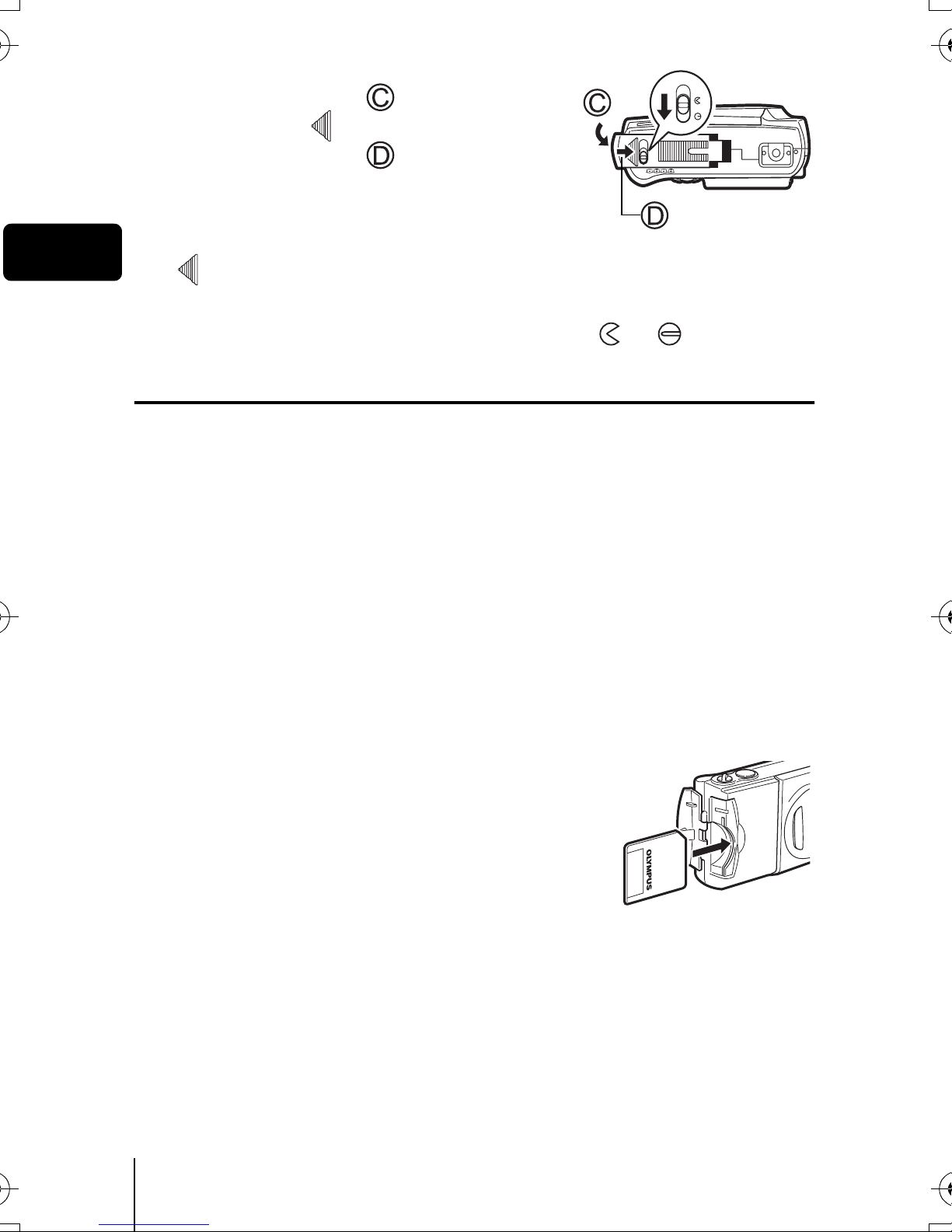

2Slide the battery compartment

lock from to .

3Slide the battery compartment

cover in the direction of (the

direction indicated by the

mark on the cover), and lift it up

in the direction of .

4Insert the batteries, making sure that they are correctly

oriented as shown in the illustration.

Strap eyelet

When using AA (R6) batteries When using CR-V3 lithium battery

packs

When using lithium battery

packs, insert them so that the

“CAMEDIA” label on each

battery is facing the lens side of

the camera.

There is a mark showing the

correct way to insert the AA

batteries on the bottom of the

camera.

Battery

insertion

direction

mark

basic_e_p.fm Page 9 Monday, April 8, 2002 3:45 PM

10 En

5Close the battery compartment cover

in the direction of . While

pressing the mark, slide the cover

in the direction of .

If the battery compartment cover seems

hard to close, do not force it. With the

battery compartment cover shut, press the

mark firmly and push in the direction shown in the illustration.

6Slide the battery compartment lock from to .

AA (R6) alkaline batteries

The number of pictures that you can store in the camera may vary

considerably with AA batteries, depending on the battery manufacturer,

camera shooting conditions, etc. Turn off the monitor whenever possible to

save power.

JINSERTING THE CARD (SmartMedia)

The pictures you have taken are stored on the card.

1Make sure that:

• The monitor is off.

• The lens barrier is closed.

• The lamp on the right of the viewfinder is off.

2Open the card cover.

3Insert the card as far as it will go in the

direction shown in the illustration.

There is an arrow inside the card cover,

indicating the direction in which the card should

be inserted.

4Close the card cover securely until it

clicks.

basic_e_p.fm Page 10 Monday, April 8, 2002 3:45 PM

Altri manuali per Camedia C-300 ZOOM

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus DP21-SAL Manuale utente

Olympus

Olympus FE-35/X-30 Manuale utente

Olympus

Olympus TG-860 Manuale utente

Olympus

Olympus CAMEDIA D-555 Zoom Guida all'installazione

Olympus

Olympus VH-510 Guida all'installazione

Olympus

Olympus TG-1 Manuale utente

Olympus

Olympus FE-150 Guida all'installazione

Olympus

Olympus C - 2 5 0 0 L Manuale utente

Olympus

Olympus SP-560 UZ - Compact Manuale utente

Olympus

Olympus SP-510UZ Guida all'installazione

Olympus

Olympus SP 550 - Ultra Zoom Digital Camera Guida alla configurazione

Olympus

Olympus FE220 - 7.1 MP Digital Camera Guida all'installazione

Olympus

Olympus 550WP - Stylus Digital Camera Manuale utente

Olympus

Olympus SP590UZ - 12MP Digital Camera Istruzioni per il montaggio

Olympus

Olympus E10 - CAMEDIA E 10 Digital Camera SLR Manuale utente

Olympus

Olympus IR 300 - Digital Camera - 5.0 Megapixel Guida all'installazione

Olympus

Olympus CAMEDIA C-160 Manuale utente

Olympus

Olympus CAMEDIA C-40 Zoom Manuale utente

Olympus

Olympus BondMaster 600 Manuale utente

Olympus

Olympus Stylus 5010 Istruzioni per il montaggio

Olympus

Olympus FE110 - 5 Megapixel Digital Camera Guida alla configurazione

Olympus

Olympus CAMEDIA C-160 Manuale utente

Olympus

Olympus E10 - CAMEDIA E 10 Digital Camera SLR Manuale utente

Olympus

Olympus CAMEDIA C-3000 Zoom Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
