Olympus Camedia C-450ZOOM Guida all'installazione

DIGITAL CAMERA

APPAREIL PHOTO NUM

ÉRIQUE

DIGITALKAMERA

CÁMERA DIGITAL

D-565ZOOM

C-450ZOOM

X-300

BASIC MANUAL

MANUEL DE BASE

EINFACHE ANLEITUNG

MANUAL BÁSICO

ENGLISH

FRANÇAIS

DEUTSCH

ESPAÑOL

2En

CONTENTS/TABLE DES MATIÉRES/INHALT/CONTENIDO

ENGLISH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FRANÇAIS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

DEUTSCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

CONTENTS

GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

MENU FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SHOOTING BASICS . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

ADVANCED SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 29

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

PRINT SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

DOWNLOADING PICTURES TO A COMPUTER . . . . . 37

ERROR CODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

These instructions are only for quick reference. For more details

on the functions described here, refer to the “Reference Manual”

on CD-ROM.

For connection to the PC or installation of provided software,

refer to the Software Installation Guide included in the CD-ROM

package.

En 3

JBefore using your camera, read this manual carefully to ensure correct use.

JWe recommend that you take test shots to get accustomed to your camera before

taking important photographs.

JThese instructions are only a basic manual. For more details on the functions described

here, refer to the Reference Manual on the CD-ROM.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : D-565ZOOM/C-450ZOOM/X-300

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference

that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

For customers in Europe

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• All other company and product names are registered trademarks and/or

trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design

Rule for Camera File System/DCF” standards stipulated by the Japan Electronics

and Information Technology Industries Association (JEITA).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer

protection. “CE” mark cameras are intended for sales in Europe.

4En

GETTING STARTED

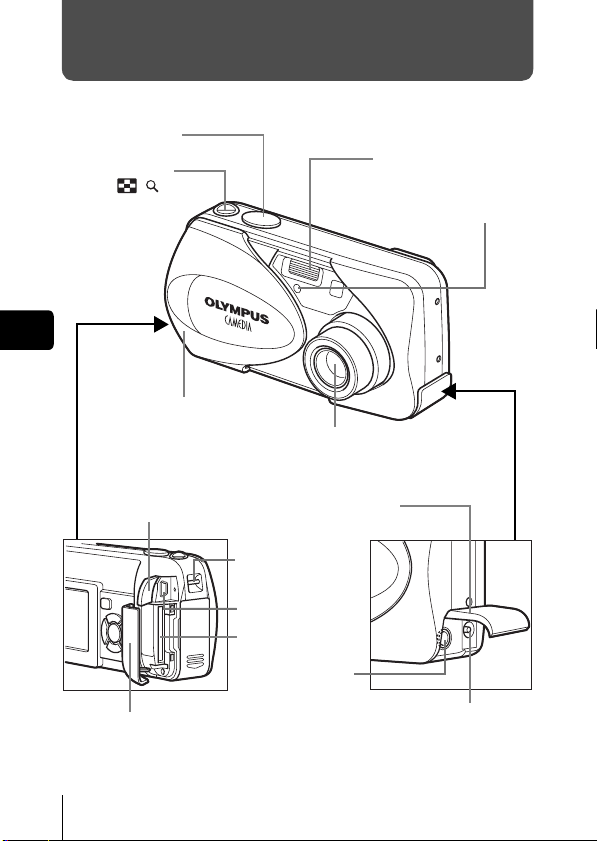

JNAMES OF PARTS

Lens barrier

Turns the camera on

and off in the shooting

mode.

Shutter button

Flash

Self-timer lamp

DC-IN jack/

VIDEO OUT jack

cover

USB connector

DC-IN jack

Lens

Extends automatically when

you open the lens barrier.

Zoom lever

(W/T• )

Card cover

VIDEO OUT jack

Strap eyelet

Connector cover

Card slot

En 5

Orange lamp

Green lamp

AF target mark

Monitor button

(QUICK VIEW )

Playback button ( )

Turns the camera on

and off in the

playback mode.

Turns the monitor on

and off in the shooting

mode.

Self-timer button ( )

Monitor

Macro button ( )

Viewfinder

Tripod socket

Flash mode button ( )

Arrow pad

()

Viewfinder

Arrow pad

OK/Menu button ( )

Battery compartment

cover

Buttons on the arrow pad have their respective functions. They

are also used as direction buttons. , , and indicate

which button to be pressed.

6En

JMONITOR INDICATIONS

Shooting mode

Items Indications

1 Scene select/movie , , , , ,

2 Battery check ,

3 Green lamp

4 Flash stand-by

Camera movement warning/Flash charge

(Lit)

(Blinks)

5 Macro mode

6 Flash mode , ,

7 Sequential shooting ,

8 Self-timer

9 Record mode SHQ, HQ, SQ1, SQ2

10 Resolution 2288×1712, 1024×768, 640×480, etc.

11 Metering

12 Exposure compensation

-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0

13 White balance , , ,

14 AF target mark [ ]

15 Memory gauge , , ,

16 Number of storable still pictures

Seconds remaining

36”

111

13 5

915

Still picture Movie

10 10

En 7

Playback mode

Screens when the information display is set to ON are shown below.

Items Indications

1 Print reservation,

Number of prints

×10

2 Battery check ,

3Protect

4 Record mode SHQ, HQ, SQ1, SQ2

5 Resolution 2288 × 1712, 1024 × 768, 640 × 480, etc

6 Exposure compensation

-2.0, -1.5, -1.0, -0.5, +0.5, +1.0, +1.5, +2.0

7 White balance WB AUTO, , , ,

8 Date and time '03.04.01 12:30

9 File number (still picture), Number of

frames

Playing time/Total recording time (movie)

100-0016, 16

0"/15"

10 Movie

Still picture Movie

8En

Memory gauge

The memory gauge lights up when you take a picture or record a movie. While

the gauge is lit, the camera is storing the picture or the movie on the card.

The memory gauge indication changes as shown below depending on the

shooting status.

If the memory gauge is fully lit, wait a few seconds until it goes off to take the

next shot.

When taking still pictures

When recording movies

Battery check

If the remaining battery power is low, the battery check indication on the

monitor changes as follows while the camera is turned on.

Before shooting

(Gauge is off)

No more pictures can

be taken (Fully lit).

Wait until the gauge

returns to the status

on the left to take the

next shot.

One picture

taken

(Lit)

More than

two taken

(Lit)

Shoot Shoot Shoot

Wait

Before shooting

(Gauge is off)

Shoot

Wait

If you continue shooting

During shooting (Lit)

• Shooting is not possible until the lit area goes off

completely.

• Movie recording ends automatically when the memory

gauge is full.

Lit (Green) Green lamp and orange

lamp on the right of the

viewfinder blink.

Blinks (Red)

No indication

Remaining power level:

exhausted.

Replace with a new batteries.

Remaining power level: low

Prepare new batteries.

(The indicator turns

off after a while.)

Remaining power

level: high

En 9

JATTACHING THE STRAP

1Thread the short end of the

strap through the strap eyelet.

2Thread the long end of the

strap through the loop that

has already gone through the

eyelet.

3Pull the strap tight, making

sure that it is securely

fastened and does not come

loose.

JLOADING THE BATTERIES

1Make sure that:

• The lens barrier is closed.

• The monitor is off.

• The lamp on the right of the viewfinder is off.

2Slide the battery compartment

cover in the direction of .

• The battery compartment cover is

unlocked and opened in the

direction of .

• Use the ball of your finger to slide

the cover. Do not use your fingernail

as this could result in injury.

Strap eyelet

Battery

compartment cover

10 En

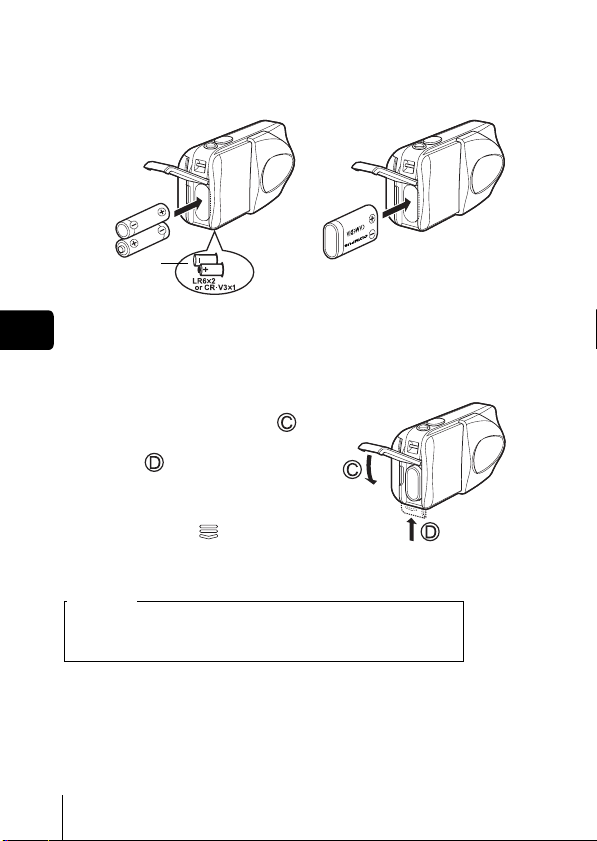

3Insert the batteries, making sure that they are correctly

oriented as shown in the illustration.

4Close the battery compartment

cover, then press it down

and slide it in the direction

shown .

• If the battery compartment cover

seems hard to close, do not force it.

With the battery compartment cover

shut, press the mark firmly and

push in the direction shown in the

illustration.

When using AA (R6) batteries When using CR-V3 lithium battery

pack

When using a lithium battery pack.

Insert it in the direction as shown

in the illustration.

There is a mark showing the

correct way to insert the AA

batteries on the bottom of the

camera.

Battery insertion

direction mark

Important

• CR-V3 lithium battery cannot be recharged.

• Do not peel off the label from a CR-V3 lithium battery pack.

• Manganese (zinc-carbon) batteries cannot be used.
