zThank you for purchasing an Olympus digital camera. Before you start to use your

new camera, please read these instructions carefully to enjoy optimum performance

and a longer service life. Keep this manual in a safe place for future reference.

zWe recommend that you take test shots to get accustomed to your camera before

taking important photographs.

zThe screen and camera illustrations shown in this manual were produced during the

development stages and may differ from the actual product.

zThe contents in this manual are based on firmware version 1.0 for this camera. If there

are addition and/or modification of functions due to firmware update for the camera,

the contents will differ. For the latest information, please visit the Olympus website.

DIGITAL CAMERA

INSTRUCTION

MANUAL

Basic guide P. 2

Review the camera part names,

the basic steps for shooting and

playback, and the basic operations.

Table of Contents P. 24

s0023_e_00_0_unified.book Page 1 Friday, February 20, 2009 11:36 AM

Camera

Hot shoe gP. 79

Mode dial

gP. 4

Mirror gP. 36

Lens release button

gP. 12

Lens attachment mark

gP. 12

Mount

(Attach the lens after removing the

body cap from the camera to

prevent dust and dirt from entering

the camera body.)

Lens lock pin

F(Exposure

compensation)

button

gP. 49

Built-in flash gP. 77

#(Flash) button gP. 77

Strap eyelet

gP. 10

Shutter button

gP. 16, 36, 60

Strap eyelet

gP. 10

SSWF indicator

gP. 14, 124

Control dial

(j) gP. 19, 34

Self-timer/

Remote control lamp/

Remotecontrolreceiver

gP. 62

</Y/j

(Remote control/Self-timer/

Sequential shooting) button

gP. 61-62, 99

COPY/<(Copy/Print)button

gP. 90, 111

When the camera is turned on, the buttons indicated in blue are illuminated, making it

easier to take pictures in dark surroundings.

White balance sensor

gP. 106

s0023_e_00_0_unified.book Page 2 Monday, February 2, 2009 5:18 PM

Names of parts and functions

Basic guide

LCD monitor

gP. 8, 9, 37

Viewfinder gP. 6

D(Erase) button

gP. 92

INFO (Information display)

button gP. 21, 40, 85

MENU button

gP. 22

q(Playback) button

gP. 18, 82

AEL/AFL button

gP. 36, 50, 97

0(Protect) button

gP. 91

ibutton gP. 22

Arrow pad

gP. 20, 22

Card cover

gP. 13

CF card slot

gP. 13

Eject button

gP. 13

Multi-connector

gP. 87, 112, 116

u(Live view) button

gP. 35

Diopter adjustment dial

gP. 14

Eyecup gP. 62

Tripod socket

Battery

compartment lock

gP. 11

Battery

compartmentcover

gP. 11

o(Image stabilizer)

button gP. 64

<button gP. 97

P(AF target) button

gP. 57

Connector cover

Card access lamp

gP. 13, 16, 117

ON/OFF switch

gP. 14

xD-Picture Card slot

gP. 13

s0023_e_00_0_unified.book Page 3 Monday, February 2, 2009 5:18 PM

Mode dial

The mode dial allows you to change the

camera settings easily according to the

subject.

• For more advanced shooting and greater creative control, you can set the aperture value and

shutter speed.

• The settings made in the advanced shooting modes are retained even if the camera is turned

off.

• Select according to the shooting scene. The camera sets the appropriate shooting conditions

automatically.

• When rotating the mode dial or turning off the power in the easy shooting modes, functions

with changes made to their settings are restored to the factory default settings.

PProgram shooting Allows you to shoot using an aperture and shutter speed

that the camera sets. (gP. 43)

AAperture priority

shooting Allows you to set the aperture manually. The camera

sets the shutter speed automatically. (gP. 44)

SShutter priority shooting Allows you to set the shutter speed manually. The

camera sets the aperture automatically. (gP. 45)

MManual shooting Allows you to set the aperture and shutter speed

manually. (gP. 46)

AUTO AUTO Allows you to shoot using an optimum aperture and

shutter speed that the camera sets. The built-in flash

pops up automatically in low-light conditions.

iPORTRAIT Suitable for shooting a portrait-style image of a person.

lLANDSCAPE Suitable for shooting landscapes and other outdoor

scenes.

&MACRO Suitable for taking close-up pictures.

jSPORT Suitable for capturing fast-moving action without blurring.

/NIGHT+PORTRAIT Suitable for shooting both the main subject and

background at night.

gArt filter/Scene When you select a desired filter or scene, the camera

optimizes the shooting conditions for that filter or scene.

Most of the functions cannot be changed.

Advanced shooting modes

Easy shooting modes

s0023_e_00_0_unified.book Page 4 Monday, February 2, 2009 5:18 PM

Names of parts and functions

Basic guide

1 Set the mode dial to g.

• The art filter menu is displayed. Press ito display the scene menu.

2 Use fg to select the filter or scene.

3 Press the ibutton.

• To change the setting, press the ibutton again to display the menu.

• Art filters are not applied to RAW images.

• If the record mode is set to [RAW] and art filter is applied, the record mode is automatically set

to [YN+RAW].

• The grainy appearance of the picture may be emphasized depending on the type of art filter.

Setting the art filter/scene

POP ART1

SET

CHILDREN1

SET

Icon Art filter Icon Art filter

jPOP ART mLIGHT TONE

SOFT FOCUS

nGRAINY FILM

lPALE&LIGHT COLOR oPIN HOLE

Types of art filters

Icon Mode Icon Mode

GCHILDREN @DOCUMENTS

HHIGH KEY sPANORAMA

ILOW KEY (FIREWORKS

qDIS MODE gBEACH & SNOW

rNATURE MACRO IUNDERWATER WIDE

&CANDLE HUNDERWATER MACRO

*SUNSET

Types of scene modes

s0023_e_00_0_unified.book Page 5 Monday, February 2, 2009 5:18 PM

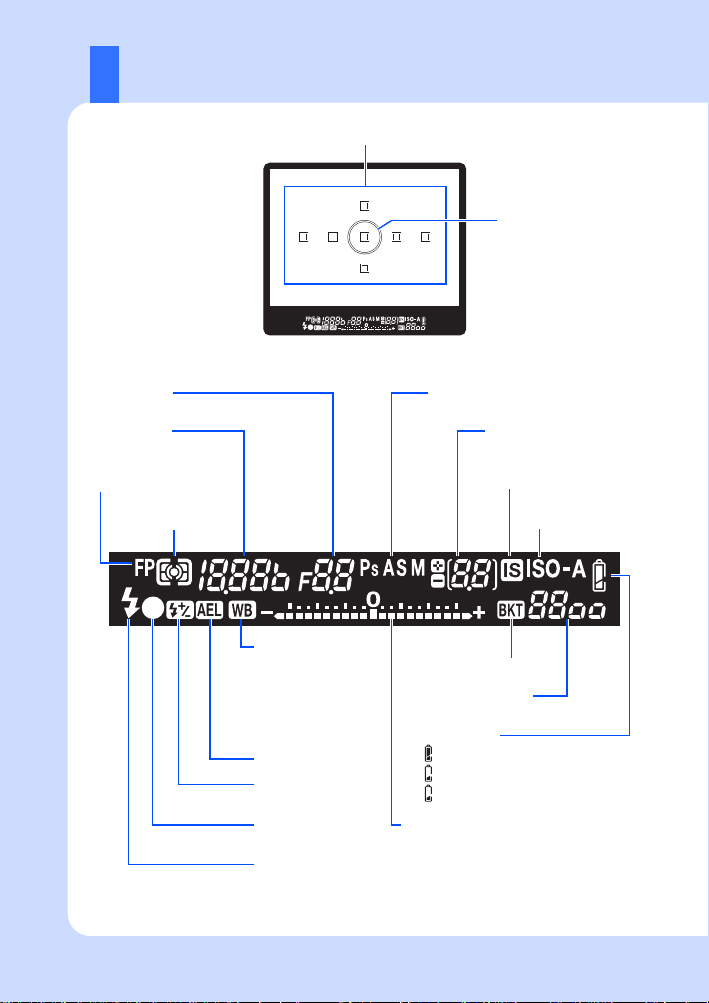

Viewfinder

AF target gP. 57

Super FP flash

gP. 80

Metering mode

gP. 48

Aperture value

gP. 43-46 Shooting mode gP. 4, 43-46

Number of storable

sequential pictures

gP. 61

Image stabilizer gP. 64

ISO sensitivity

gP. 52

Battery check

Lit up (ready for use)

Lit up (battery power is low)

Blinks (charging required)

Flash gP. 77

(blinks: charging in progress,

lights up: charging completed)

AF confirmation mark

gP. 16, 37, 60

Flashintensitycontrol

gP. 77

AE lock gP. 50

White balance

(Displayed when set

to a setting other than

auto white balance.)

gP. 68

Exposure level indicator gP. 46

Exposure compensation indicator gP. 49

Auto bracket

gP. 50, 53, 71, 78

ISOsensitivityvalue

gP. 52

Shutter speed

gP. 43-46

Spot metering area

gP. 48

s0023_e_00_0_unified.book Page 6 Monday, February 2, 2009 5:18 PM

Names of parts and functions

Basic guide

Super control panel

The following screen allows the display and setting of shooting settings at the same time

and is called the super control panel. Press the INFO button to display the super control

panel on the LCD monitor.

g“Setting while looking at the super control panel” (P. 21)

250 F5.6

+2.0

2009. 03.16

FP BKT

mall

Super Fine

OFF

Battery check

gP. 6

Flash charging

gP. 77

Shutter speed gP. 43-46

Exposure compensation indicator gP. 49

Exposure level indicator gP. 46

Flash intensity control indicator gP. 77

Aperturevalue

gP. 43-46

Exposure

compensationvalue

gP. 49

Exposure level

gP. 46

Sharpness NgP. 72

Contrast JgP. 72

Saturation TgP. 72

Gradation zgP. 73

B&W filter xgP. 72

Picture tone ygP. 72

Shooting mode

gP. 4, 43-46

Multiple exposure igP. 53

Super FP flash hgP. 80

Noise reduction ml gP. 103

Auto bracket 0gP. 50, 53, 71, 78

Arrow pad function epgP. 99

RC mode mgP. 80

Image stabilizer HIt gP. 64

AF illuminator TgP. 95

Internal temperature warning m

gP. 123

White balance gP. 68

White balance compensation gP. 69

ISO sensitivity gP. 52

Metering mode gP. 48

AF mode gP. 55

AF target gP. 57

Record mode

gP. 66

Flash intensity control gP. 77

Number of storable

still pictures

gP. 135

Date gP. 15

Remote control/Self-timer/Sequential shooting

gP. 61-62

Card

gP. 126

Picture mode

gP. 72

The functions within this area can be set on

the super control panel.

Color space

gP. 103

Flash mode gP. 74

Face

detection

gP. 38

My Mode gP. 98

Aspect ratio gP. 39

s0023_e_00_0_unified.book Page 7 Monday, February 2, 2009 5:18 PM

LCD monitor (Live view)

You can use the LCD monitor to view the subject while shooting. Press the ubutton to

use live view. g“Using live view” (P. 35)

Home position pgP. 59

RC mode qgP. 80

Super FP flash sgP. 80

Auto bracket t

gP. 50, 53, 71, 78

AE lock ugP. 50

Live view AF mode po

gP. 36

Image stabilizer vws

gP. 64

250

F5.6

+2.0

AEL

H-AF

BKTFPRCHP

AUTO

ISO

AUTO

3 8

Battery check

gP. 6

Shooting mode

gP. 4, 43-46

Shutter speed gP. 43-46

Aperture value gP. 43-46

Exposure

compensation value

gP. 49

Flash intensity control

gP. 77

Internal temperature

warning gP. 123

Face detection g

gP. 38, 101

Card

gP. 126

AF target

gP. 57

AF confirmation mark

gP. 16, 37, 60

Flash gP. 77

(blinks: charging in progress,

lights up: charging completed)

Flash mode

gP. 74

Metering mode

gP. 48

White balance

gP. 68

ISO sensitivity

gP. 52

Record mode

gP. 66

Histogram

gP. 40

Sequential shooting

gP. 61

Self-timer gP. 62

Remote control gP. 62

My Mode

gP. 98

Spot metering area

gP. 48

Number of storable

still pictures

gP. 135

s0023_e_00_0_unified.book Page 8 Monday, February 2, 2009 5:18 PM

Names of parts and functions

Basic guide

LCD monitor (Playback)

You can switch the monitor display using the INFO button.

g“Information display” (P. 85)

x10

100-0015

2.0

100

WBAUTO

sRGB

0.0

1.0

ISO

F5.6

250

NATURAL

[4032x3024,1/8]

x10

2009.03.16

21:56

100-0015

Battery check

gP. 6

Card gP. 126

Print reservation

Numberofprints

gP. 109

Protect

gP. 91

Record mode

gP. 66

Aperture value gP. 43-46

Shooting mode

gP. 4, 43-46

Focal length gP. 128

(The focal length is

displayed in 1 mm units.)

ISO sensitivity gP. 52

Metering mode

gP. 48

Date and time gP. 15

File number

AF target gP. 57

Exposure compensation gP. 49

Shutter speed

gP. 43-46

Flash intensity control gP. 77

Whitebalancecompensation

gP. 69

Picture mode gP. 72

Color space gP. 103

Whitebalance

gP. 68

Histogram gP. 85

Overall displaySimplified display

Frame number

Selection check mark

gP. 90, 91, 92

Pixel count, compression rate

gP. 66

AF adjustment

gP. 106

Aspect ratio

gP. 39, 88

Aspect border gP. 39

s0023_e_00_0_unified.book Page 9 Monday, February 2, 2009 5:18 PM

Unpack the box contents

The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you purchased the camera.

Camera Body cap Strap PS-BLS1 (BLS-1)

Lithium ion battery

PS-BCS1 (BCS-1)

Lithium ion charger USB cable

CB-USB6 Video cable

CB-VC2

• OLYMPUS Master 2 CD-ROM

• Instruction manual

• Warranty card

Eyepiece cover

Lastly, pull the strap tight

making sure that it is

fastened securely.

Attaching the strap

• Attach the other end of the strap to the other eyelet in the same way.

Thread the eyepiece cover through one end of the

strap. Thread the strap as indicated by the arrows.

s0023_e_00_0_unified.book Page 10 Monday, February 2, 2009 5:18 PM

Indice

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus SP 700 - 6 Megapixel Digital Camera Guida all'installazione

Olympus

Olympus E-3 Manuale utente

Olympus

Olympus FE 340 - Digital Camera - Compact Istruzioni per il montaggio

Olympus

Olympus FE 110 - Digital Camera - 5.0 Megapixel Guida all'installazione

Olympus

Olympus Stylus 840 Manuale utente

Olympus

Olympus FE 115 - Digital Camera - 5.0 Megapixel Guida alla configurazione

Olympus

Olympus CAMEDIA D-40 Zoom Manuale utente

Olympus

Olympus STYLUS 1s Manuale utente

Olympus

Olympus CAMEDIA C-5500 Sport Zoom Manuale utente

Olympus

Olympus EVOLT E-300 Manuale utente

Olympus

Olympus STYLUS 300 Manuale utente

Olympus

Olympus FE 3000 - Digital Camera - Compact Istruzioni per il montaggio

Olympus

Olympus Camedia C-21 Manuale utente

Olympus

Olympus SP 700 - 6 Megapixel Digital Camera Manuale utente

Olympus

Olympus E-PL3 Manuale utente

Olympus

Olympus Super DLX IS-10 Manuale utente

Olympus

Olympus FE-5035 Manuale utente

Olympus

Olympus STYLUS-7030 Manuale utente

Olympus

Olympus C 4000 - CAMEDIA Zoom Digital Camera Guida all'installazione

Olympus

Olympus IS-5 Deluxe Manuale utente

Olympus

Olympus SP 310 - Digital Camera - 7.1 Megapixel Manuale utente

Olympus

Olympus FE-170/X-760 Guida all'installazione

Olympus

Olympus CAMEDIA C-2 ZOOM Guida all'installazione

Olympus

Olympus STYLUS VERVE S Guida all'installazione

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
