Olympus E-PM1 Guida all'installazione

Basic Manual...................3

Thank you for purchasing an Olympus digital

camera.

Please read these instructions carefully.

The camera you purchased is provided with the

CD-ROM Instruction Manual.

For detailed information on all features and

Provisions of warranty, please refer to the

CD-ROM.

Adobe Reader is required to view the

Instruction Manual.

Manual de base.............31

Merci d’avoir acheté un appareil photo

numérique Olympus.

Veuillez lire attentivement ces instructions.

L’appareil photo que vous avez acheté est livré

avec le manuel d’instructions sur CD-ROM.

Pour des informations détaillées sur toutes les

caractéristiques et les conditions d’obtention de

la garantie, reportez-vous au CD-ROM.

Adobe Reader est requis pour afﬁcher le

manuel d’instructions.

Manual basico...............59

Le agradecemos que haya adquirido una

cámara digital Olympus.

Lea atentamente estas instrucciones.

La cámara que ha adquirido incluye el manual

de instrucciones en CD-ROM.

Para más información sobre todas las

características y las condiciones de la garantía,

consulte el CD-ROM.

Se necesita Adobe Reader para poder

visualizar el manual de instrucciones.

DIGITAL CAMERA

S0039BasicUA.indb1S0039BasicUA.indb1 2011/07/019:02:182011/07/019:02:18

■This notice concerns the supplied ﬂash unit and is chieﬂy directed to users in

North America.

Information for Your Safety

IMPORTANT SAFETY

INSTRUCTIONS

When using your photographic equipment, basic safety precautions should always be

followed, including the following:

Read and understand all instructions before using.

Close supervision is necessary when any ﬂash is used by or near children. Do not leave

ﬂash unattended while in use.

Care must be taken as burns can occur from touching hot parts.

Do not operate if the ﬂash has been dropped or damaged - until it has been examined by

qualiﬁed service personnel.

Let ﬂash cool completely before putting away.

To reduce the risk of electric shock, do not immerse this ﬂash in water or other liquids.

To reduce the risk of electric shock, do not disassemble this ﬂash, but take it to qualiﬁed

service personnel when service or repair work is required. Incorrect reassembly can

cause electric shock when the ﬂash is used subsequently.

The use of an accessory attachment not recommended by the manufacturer may cause a

risk of ﬁre, electric shock, or injury to persons.

SAVE THESE INSTRUCTIONS

•

S0039BasicUA.indb2S0039BasicUA.indb2 2011/07/019:02:192011/07/019:02:19

Unpack the box contents

The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you purchased the

camera.

Camera

Flash case

Computer software

CD-ROM

Instruction manual

Warranty card

•

Body cap Strap USB cable

CB-USB6

AV cable

(Monaural)

CB-AVC3

Flash

FL-LM1

Lithium ion

battery

PS-BLS1 (BLS-1)

or BLS-5

Lithium ion

charger

PS-BCS1 (BCS-1)

or BCS-5

Attaching the strap

Thread the strap in the direction of

the arrows.

Lastly, pull the strap tight making

sure that it is fastened securely.

Attach the other end of the strap to the other eyelet in the same way.•

Indications used in this manual

The following symbols are used throughout this manual.

#Cautions

Important information on factors which may lead to a malfunction

or operational problems. Also warns of operations that should be

absolutely avoided.

$Notes Points to note when using the camera.

%Tips Useful information and hints that will help you get the most out of

your camera.

gThis document contains pages from the Instruction Manual, which

may be found on the supplied CD-ROM.

S0039BasicUA.indb3S0039BasicUA.indb3 2011/07/019:02:192011/07/019:02:19

Charging the battery.

Charging indicator

BCS-1 BCS-5

Charging in

progress Lights orange

Charging

complete

Lights

blue Off

Charging error Blinks orange

(Charging time: Up to approximately

3 hours 30 minutes)

AC wall outlet

AC cable

Lithium ion

charger

Lithium ion battery

SDirection indicating

mark

Charging indicator

#Cautions

Unplug the charger when charging is complete.

Use only compatible battery chargers to charge rechargeable batteries. BLS-1

batteries must be charged using the BCS-1, BLS-5 batteries using the BCS-5.

•

Loading the battery.

Battery/card

compartment lock

Battery/card

compartment cover

Direction

indicating

mark

Removing the battery

Turn off the camera before opening or closing the

battery/card compartment cover.

To remove the battery, ﬁrst push the battery lock knob

in the direction of the arrow and then remove.

#Cautions

Contact an authorized distributor or service center if you are unable to remove the

battery. Do not use force.

•

$Notes

It is recommended to set aside a backup battery for prolonged shooting in case the

battery in use drains.

•

Charging and inserting the battery

S0039BasicUA.indb4S0039BasicUA.indb4 2011/07/019:02:202011/07/019:02:20

Loading the card.

Insert the SD/SDHC/SDXC/Eye-Fi card

(referred to as “card” in these instructions)

until it locks in place.

g“Card basics” (P. 99)

#Cautions

Turn off the camera before loading or

removing the card.

•

Removing the card

Press the inserted card lightly and it will be ejected.

Pull out the card.

#Cautions

Do not remove the battery or card while the card

write indicator (P. 24) is displayed.

•

Closing the battery/card compartment cover.

Close the cover and slide the battery/card

compartment lock in the direction shown

by the arrow.

•

#Cautions

Close the battery/card compartment cover when using the camera.•

Inserting and removing cards

S0039BasicUA.indb5S0039BasicUA.indb5 2011/07/019:02:202011/07/019:02:20

Attaching a lens to the camera

Remove the body cap from the camera and the rear cap from the lens.

Attach a lens to the camera.

#Cautions

Make sure the camera is turned off.

Do not press the lens release button.

Do not touch internal portions of the

camera.

•

Alignment

mark

Lens

attachment

mark

Align the lens attachment mark (red) on the camera

with the alignment mark (red) on the lens, then

insert the lens into the camera’s body.

Rotate the lens in the direction indicated by the

arrow until you hear it click.

•

Remove the lens cap.

Removing the lens from the camera

While pressing the lens release button, rotate the lens in the

direction of the arrow.

g “Interchangeable lenses” (P. 100) 2

Lens release button

S0039BasicUA.indb6S0039BasicUA.indb6 2011/07/019:02:202011/07/019:02:20

Attaching the ﬂash unit

Remove the terminal cover from the ﬂash unit and attach the ﬂash to the

camera.

Slide the ﬂash unit all the way in, stopping when it contacts the back of the shoe and

is securely in place.

UNLOCK switch

To use the ﬂash, raise the ﬂash head.

Lower the ﬂash head when the ﬂash is not in use.

Removing the Flash Unit

Press the UNLOCK switch while removing the

ﬂash unit. 2

UNLOCK switch

•

S0039BasicUA.indb7S0039BasicUA.indb7 2011/07/019:02:212011/07/019:02:21

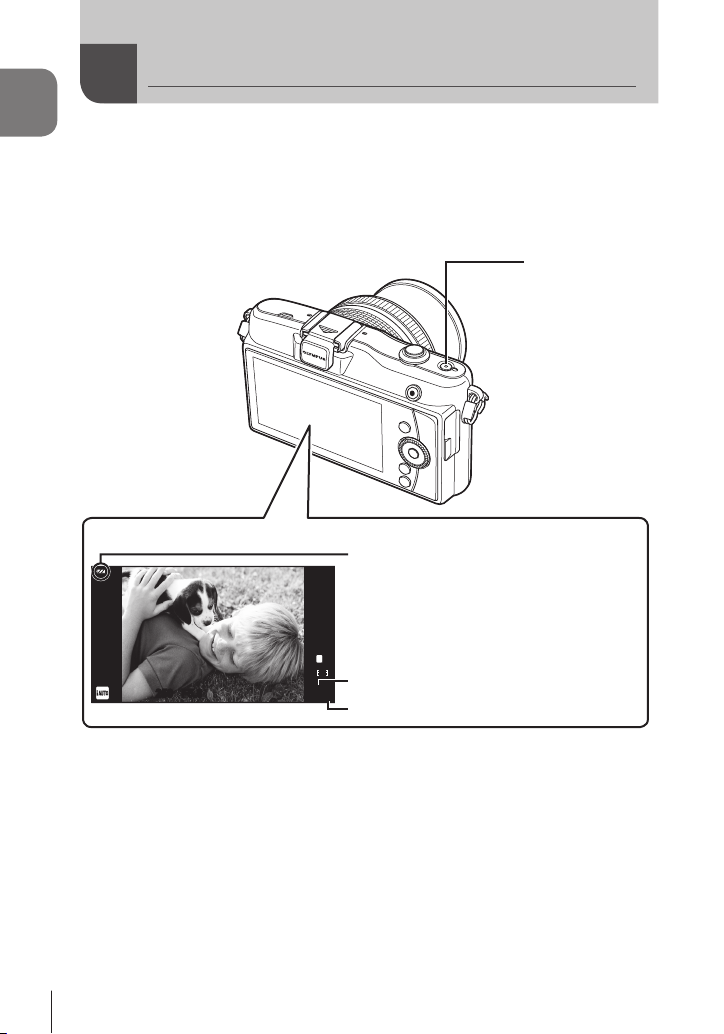

Press the ON/OFF button to turn on the camera.

When the camera is turned on, the (blue) power lamp will light and the monitor will

turn on.

When the camera is turned on, dust reduction will be performed to remove dust from

the surface of the image sensor ﬁlter.

To turn off the power, press the ON/OFF button again.

■Monitor

250250 F5.6

01:02:0301:02:03

3838

ISO-A

200

Battery level

7(green): Camera ready to shoot.

Displayed for about 10 seconds

after the camera is turned on.

8(green): Low battery

9(blinks red): Charge the battery

Number of storable still pictures

Available recording time

ON/OFF button

•

Power on

S0039BasicUA.indb8S0039BasicUA.indb8 2011/07/019:02:222011/07/019:02:22

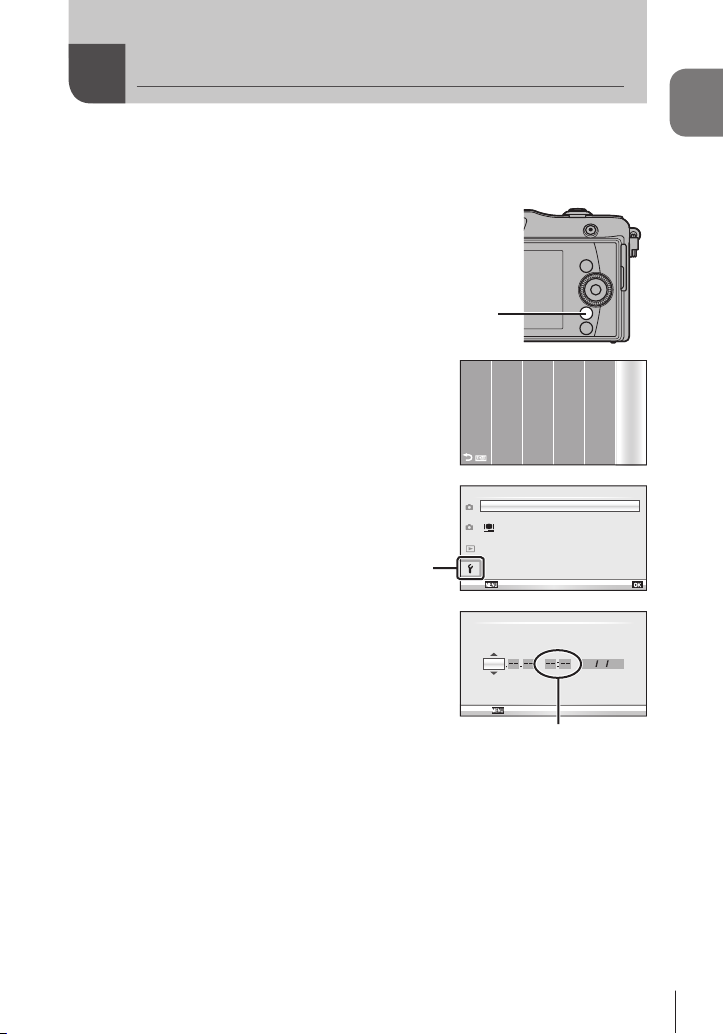

Setting the date/time

Date and time information is recorded on the card together with the images. The ﬁle

name is also included with the date and time information. Be sure to set the correct

date and time before using the camera.

Display the menus.

Press the MENU button to display the top menu.•

MENU button

Use HI to select [SETUP] and press Q.

ASCNART

SETUP

Select [X] in the [d] (setup) tab.

Use FG to select [d] and press I.

Select [X] and press I.

•

±0

--.--.-- --:--

Setup Menu

English

5sec

Menu Display

Firmware

Rec View

Back Set

[d] tab

Set the date and time.

Use HI to select items.

Use FG to change the selected item.

Use FG to select the date format.

•

YMD Time

2011 Y/ M/D

Cancel

The time is displayed

using a 24-hour clock.

Save settings and exit.

Press Qto set the camera clock and exit to the main menu.

Press the MENU button to exit the menus.

•

S0039BasicUA.indb9S0039BasicUA.indb9 2011/07/019:02:222011/07/019:02:22

Camera

1Shutter button ...............P. 13, 14, 36, 92

2ON/OFF button................................P. 8

3Strap eyelet.......................................P. 3

4Lens attachment mark ......................P. 6

5Mount (Remove the body cap before

attaching the lens.)

6Hot shoe cover

7Stereo microphone ...................P. 62, 68

8Self-timer lamp/AF illuminator

...............................................P. 49/P. 82

9Lens release button ..........................P. 6

0Lens lock pin

aTripod socket

bBattery/card compartment cover.......P. 4

cBattery/card compartment lock.........P. 4

dConnector cover

eMulti-connector ...................P. 69, 73, 77

fHDMI micro connector (type D) ......P. 69

Names of parts

S0039BasicUA.indb10S0039BasicUA.indb10 2011/07/019:02:232011/07/019:02:23

Altri manuali per E-PM1

Indice

Lingue:

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus Stylus 840 Guida all'installazione

Olympus

Olympus E-M1 MARK II Manuale utente

Olympus

Olympus FE-140 X-725 Guida all'installazione

Olympus

Olympus FE 310 - Digital Camera - Compact Manuale utente

Olympus

Olympus Camedia D-380 Manuale utente

Olympus

Olympus FE-35 Guida all'installazione

Olympus

Olympus 225840 - Stylus 730 7.1MP Digital Camera Manuale utente

Olympus

Olympus 226275 - Stylus 1010 10MP Digital Camera Guida all'installazione

Olympus

Olympus E-500 - EVOLT Digital Camera Guida alla configurazione

Olympus

Olympus STYLUS-7010/-7010 Manuale utente

Olympus

Olympus Trip AF 50 Manuale utente

Olympus

Olympus FE 5020 - Digital Camera - Compact Manuale utente

Olympus

Olympus Stylus 5010 Manuale utente

Olympus

Olympus D-390 - 2 MP Digital Camera Manuale utente

Olympus

Olympus 35 ECR Manuale utente

Olympus

Olympus E-1 - Digital Camera SLR Manuale utente

Olympus

Olympus UltraZoom C-2100U Manuale utente

Olympus

Olympus FE 210 - Digital Camera - Compact Guida all'installazione

Olympus

Olympus C-990ZOOM Manuale utente

Olympus

Olympus Tough TG-820 iHS Manuale di istruzioni

Olympus

Olympus SH-50 Manuale utente

Olympus

Olympus SP-600UZ Manuale utente

Olympus

Olympus VG-160 Guida all'installazione

Olympus

Olympus FE-360/X-S7S/C-S70 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
