●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

book_FE370_en.indb 1 6/12/2008 10:43:24 AM

Step 4

Step 1

Step 3

Step 2

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 38)

“Print Reservations (DPOF)” (p. 41)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Playback, and Erasing.......15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................23

Menus for Shooting Functions...........25

Menus for Playback, Editing, and

Printing Functions...............................30

Menus for Other Camera Settings .....34

Printing .................................................38

Using OLYMPUS Master 2...................44

Usage Tips ...........................................46

Appendix ..............................................51

Index .....................................................65

ContentsContents

book_FE370_en.indb 2 6/12/2008 10:43:26 AM

Printed in China VS704401

1AG6P1P4943--

book_FE370_en.indb 70 6/12/2008 10:45:16 AM

DIGITAL CAMERA

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

book_FE370_en.indb 1 6/12/2008 10:43:24 AM

Step 4

Step 1

Step 3

Step 2

How to Use the Camera

“Three Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 38)

“Print Reservations (DPOF)” (p. 41)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Playback, and Erasing.......15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................23

Menus for Shooting Functions...........25

Menus for Playback, Editing, and

Printing Functions...............................30

Menus for Other Camera Settings .....34

Printing .................................................38

Using OLYMPUS Master 2...................44

Usage Tips ...........................................46

Appendix ..............................................51

Index .....................................................65

ContentsContents

book_FE370_en.indb 2 6/12/2008 10:43:26 AM

Printed in China VS704401

1AG6P1P4943--

book_FE370_en.indb 70 6/12/2008 10:45:16 AM

Using the FUNC Menu (p. 22)Using the FUNC Menu (p. 22)

Frequently used shooting menu functions can be set with less

Steps using the FUNC menu.

Using the Direct Buttons (p. 20 to 24)Using the Direct Buttons (p. 20 to 24)

Frequently used shooting functions can be accessed using the

direct buttons.

Zoom lever (p. 20)

Shutter button (p. 15)

Kbutton (shooting) (p. 16)

qbutton (playback) (p. 16)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 21)

g/Ebutton (information display change/

menu guide) (p. 18, 22, 23)

button (print) (p. 38, 40)

"/button (backlight boost/erase) (p. 21/ p. 17)

button (p. 22)

Arrow pad

button

Buttons in use

book_FE370_en.indb 4 6/12/2008 10:43:30 AM

MEMO

book_FE370_en.indb 69 6/12/2008 10:45:16 AM

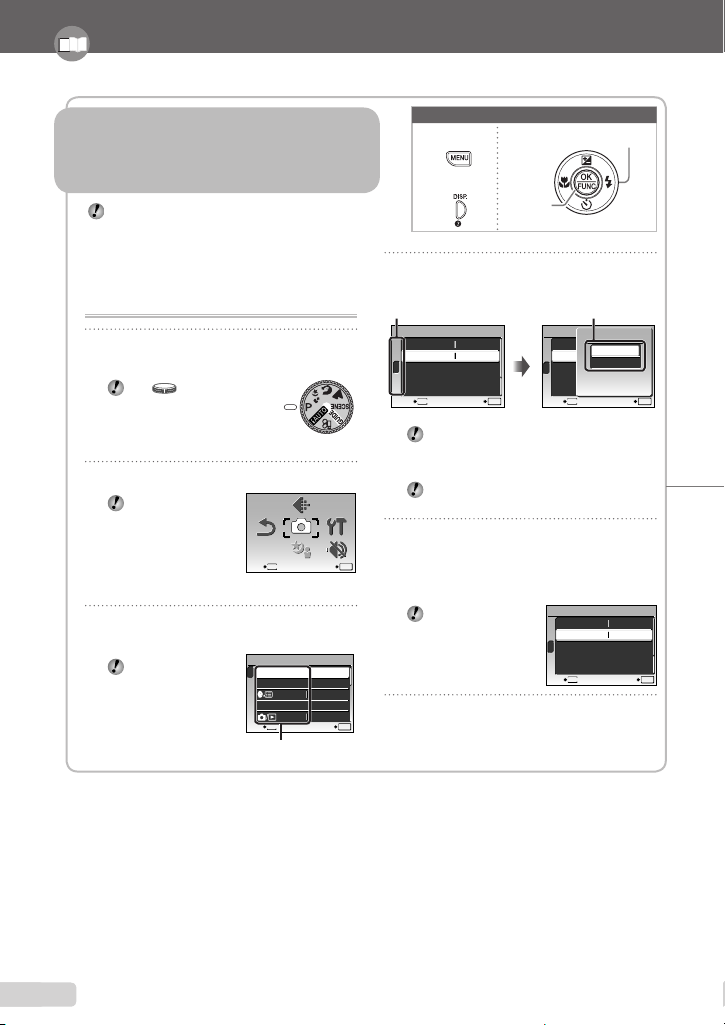

This example describes how to use the menus to set the
