●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

DIGITAL CAMERA

Printed in China VS698401

Step 4

Step 1

Step 3

Step 2

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct print (PictBridge)” (p. 50)

“Print order (DPOF)” (p. 53)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Playback, and Erasing.......15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................25

Menus for Shooting Functions...........28

Menus for Playback, Editing, and

Printing Functions...............................36

Menus for Other Camera Settings .....41

Printing .................................................50

Using OLYMPUS Master 2...................56

Usage Tips ...........................................58

Appendix ..............................................63

Index .....................................................80

ContentsContents

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

DIGITAL CAMERA

Printed in China VS698401

Step 4

Step 1

Step 3

Step 2

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct print (PictBridge)” (p. 50)

“Print order (DPOF)” (p. 53)

Shooting and Playing Back Images

“Shooting, Playback, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Playback, and Erasing.......15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................25

Menus for Shooting Functions...........28

Menus for Playback, Editing, and

Printing Functions...............................36

Menus for Other Camera Settings .....41

Printing .................................................50

Using OLYMPUS Master 2...................56

Usage Tips ...........................................58

Appendix ..............................................63

Index .....................................................80

ContentsContents

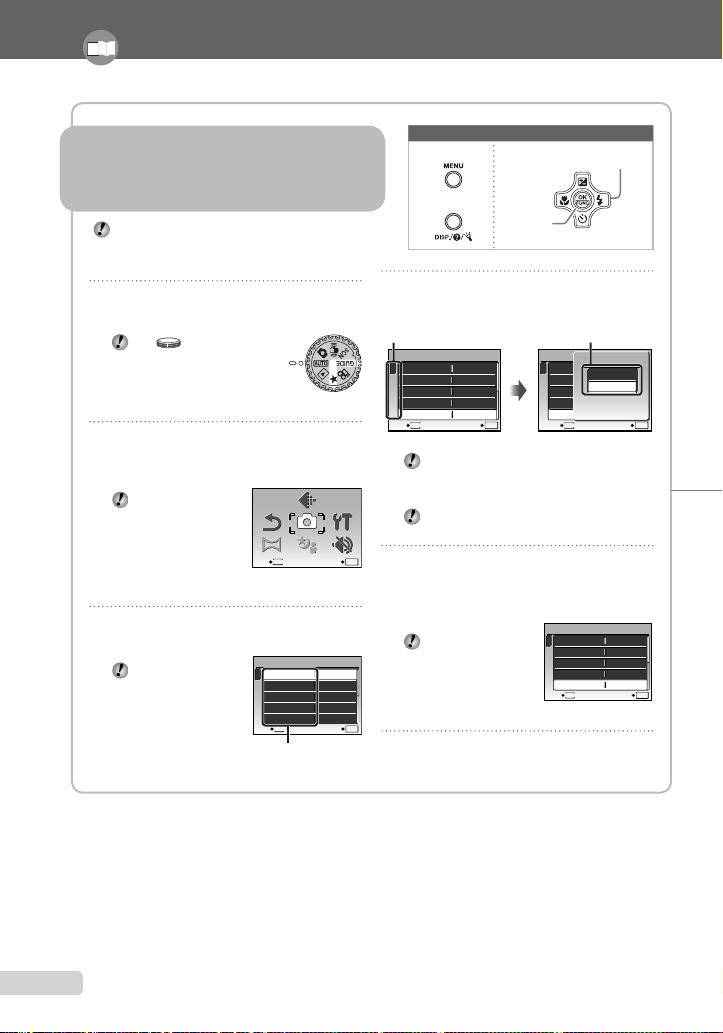

1Set the mode dial to a position other

than R, 6.

The symbol in “Menu

Settings” (p. 28 to 49)

indicates available shooting

modes.

2Press the mbutton.

This example describes how to set the

[DIGITAL ZOOM].

Press the m

button to return to

the previous screen

in any step after

step 2.

SCN

RESET

PANORAMA

CAMERA

SILENT

MODE

SILENT

MODE

EXIT SET


QUALITY


QUALITY

SETUP

Shooting mode top menu

3Use 1234 to select the desired

menu, and press the obutton.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 28 to 49) while referring to this page.

mbutton Arrow pad

obutton

Buttons in use

4Use 12 to select the desired

submenu 1, and press the obutton.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press 3to highlight the page tab, and then

use 12 to move the page tab. Press 4to

return to the submenu 1.

Some menus include submenus that appear

by pressing the obutton.

5Use 12 to select the submenu 2,

and press the obutton.

Once a setting is made, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 28

to 49)

6Press the mbutton to complete the

setting.

●

Four Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected smode

(p. 31).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 24)Using the FUNC Menu (p. 24)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the

direct buttons.

Shutter button (p. 15)

Zoom button (p. 20, p. 25)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 22)

#button (ﬂash) (p. 21)

Ybutton (self-timer) (p. 22)

q/Pbutton (playback/print) (p. 16, p. 50)

g/E/Ybutton (information display change/

menu guide/date and time check/LED illuminator)

(p. 3, p. 13, p. 23)

f/Dbutton (Shadow Adjustment Technology/

erase) (p. 17, p. 20)

obutton (p. 3, p. 24)

Arrow pad

obutton

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the

bodybody (p. 48)(p. 48)

You can operate the camera by tapping the body when [TAP CONTROL]

is [ON].

To set [TAP CONTROL] to [ON]

1Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

2Tap the top surface of the camera twice.

The setting is conﬁrmed.

●

OFFON

TAP CONTROL

Tap the camera body to operate

the camera.

MEMO

1Set the mode dial to a position other

than R, 6.

The symbol in “Menu

Settings” (p. 28 to 49)

indicates available shooting

modes.

2Press the mbutton.

This example describes how to set the

[DIGITAL ZOOM].

Press the m

button to return to

the previous screen

in any step after

step 2.

SCN

RESET

PANORAMA

CAMERA

SILENT

MODE

SILENT

MODE

EXIT SET


QUALITY


QUALITY

SETUP

Shooting mode top menu

3Use 1234 to select the desired

menu, and press the obutton.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 28 to 49) while referring to this page.

mbutton Arrow pad

obutton

Buttons in use

4Use 12 to select the desired

submenu 1, and press the obutton.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press 3to highlight the page tab, and then

use 12 to move the page tab. Press 4to

return to the submenu 1.

Some menus include submenus that appear

by pressing the obutton.

5Use 12 to select the submenu 2,

and press the obutton.

Once a setting is made, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 28

to 49)

6Press the mbutton to complete the

setting.

●

Four Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected smode

(p. 31).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 24)Using the FUNC Menu (p. 24)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the

direct buttons.

Shutter button (p. 15)

Zoom button (p. 20, p. 25)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 22)

#button (ﬂash) (p. 21)

Ybutton (self-timer) (p. 22)

q/Pbutton (playback/print) (p. 16, p. 50)

g/E/Ybutton (information display change/

menu guide/date and time check/LED illuminator)

(p. 3, p. 13, p. 23)

f/Dbutton (Shadow Adjustment Technology/

erase) (p. 17, p. 20)

obutton (p. 3, p. 24)

Arrow pad

obutton

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the

bodybody (p. 48)(p. 48)

You can operate the camera by tapping the body when [TAP CONTROL]

is [ON].

To set [TAP CONTROL] to [ON]

1Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

2Tap the top surface of the camera twice.

The setting is conﬁrmed.

●

OFFON

TAP CONTROL

Tap the camera body to operate

the camera.

MEMO

1ySLIDESHOW................ p.36

2wPERFECT FIX .............. p.36

35ADD FAVORITE ............ p.36

4EEDIT

Q(Resize) ................ p.37

P(Crop) .................... p.37

COLOR EDIT............... p.37

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the qposition, settings can be

made.

EXIT SET

ERASE

EDIT

PLAYBACK

PERFECT

FIX

PERFECT

FIX

SILENT

MODE

SILENT

MODE

ADD

FAVORITE

ADD

FAVORITE

SLIDE-

SHOW

SLIDE-

SHOW

ORDER

SETUP

Playback mode top menu

CALENDAR................. p.38

INDEX.......................... p.38

5qPLAYBACK MENU

0(Protect) ............... p.38

y(Rotate)................... p.39

R(Post REC) .............. p.39

6DERASE.......................... p.39

7<PRINT ORDER............. p.40

8xSETUP*

*Same as “Menus for

shooting functions”

9jSILENT MODE ............. p.49

1DIMAGE QUALITY......... p.28

2KCAMERA MENU

WB............................... p.29

ISO .............................. p.29

DRIVE.......................... p.29

FINE ZOOM................. p.30

DIGITAL ZOOM ........... p.30

ESP/n....................... p.30

DIS MOVIE MODE

(Only for nmode)... p.30

AF MODE .................... p.31

R(Still picture REC) .... p.31

3 s........................... p.31

4vPANORAMA ................. p.33

5RRESET ......................... p.35

6 xSETUP

MEMORY FORMAT/

FORMAT .................. p.41

BACKUP...................... p.41

W(Language)........ p.41

PW ON SETUP ........... p.42

MENU COLOR ............ p.42

SOUND SETTINGS..... p.43

REC VIEW................... p.43

FILE NAME.................. p.44

PIXEL MAPPING......... p.44

s(Monitor) ............... p.45

X(Date/time)............ p.45

DUALTIME................... p.45

ALARM CLOCK........... p.46

VIDEO OUT................. p.46

POWER SAVE............. p.47

LED ILLUMINATOR..... p.47

TAP CONTROL ........... p.48

7jSILENT MODE ............. p.49

Menu Index

Menus for Shooting Functions

When the mode dial is set to a shooting mode position

(hKhsn), settings can be made.

SCN

RESET

PANORAMA

CAMERA

SILENT

MODE

SILENT

MODE

EXIT SET


QUALITY


QUALITY

SETUP

3 7

Shooting mode top menu

book_oima_myu1050SW_en.indb 5book_oima_myu1050SW_en.indb 5 2008/07/10 11:48:122008/07/10 11:48:12

Names of Parts

1Microphone ............................ p.31, 39

2Multi-connector ................p.47, 50, 56

3Connector cover ........p.47, 50, 56, 68

4Speaker .......................................... —

5 Strap eyelet.................................. p.10

6Battery/card compartment cover

......................................... p.11, 59, 68

7Shutter button ........................p.15, 58

Camera unit

8obutton .............................p.13

9 Flash ............................................ p.21

10 Lens ............................................. p.63

11 Self-timer lamp/LED illuminator

................................... p.22, 23, 32, 47

12 Lens barrier.................................. p.15

13 Tripod socket .................................. —

book_oima_myu1050SW_en.indb 6book_oima_myu1050SW_en.indb 6 2008/07/10 11:48:172008/07/10 11:48:17

1Zoom button........................... p.20, 25

2Monitor......................... p.8, 15, 45, 59

3Card access lamp ........................p.65

4mbutton.............................. p.3, 5

5DISP./E/Ybutton

(information display change/

menu guide/date and time check/

LED illuminator) .................p.3, 13, 23

6Mode dial .................p.3, 5, 13, 15, 16

7q/Pbutton (playback/print)

............................................... p.16, 50

8obutton .................................p.3, 24

9f/Dbutton

(Shadow Adjustment Technology/

erase)..................................... p.17, 20

10 Arrow pad ............................p.3, 4, 12

Fbutton

(exposure compensation)........p.21

&button (macro) ....................p.22

Ybutton (self-timer) ...............p.22

#button (ﬂash).......................p.21

book_oima_myu1050SW_en.indb 7book_oima_myu1050SW_en.indb 7 2008/07/10 11:48:182008/07/10 11:48:18

Monitor

Shooting mode display

+2.0

1/30

F3.5

ISO

1600

ISO

1600

AFL

ORM

16181920 1517

2 5 98763

+2.0

00:34

VGA

16 151720

2 54 983 6

Still image Movie

1Shooting mode....................... p.18, 19

2Flash mode .................................. p.21

3Silent mode.................................. p.49

4Digital image stabilization ............p.30

5Macro/super macro/

S-macro LED mode .....................p.22

Shadow Adjustment Technology

... p.20

7AF lock......................................... p.18

8Tap control ......................... p.4, 32, 48

9Battery check .........................p.10, 59

10 Flash standby/

camera shake warning/

ﬂash charge .................................p.58

11 AF target mark .............................p.15

12 Sound record .........................p.19, 31

13 Dual time...................................... p.45

14 Alarm ...........................................p.46

15 Number of storable still pictures/

remaining recording time

......................................... p.15, 19, 65

16 Current memory........................... p.64

17 Self-timer .....................................p.22

18 Aperture value .............................p.15

19 Shutter speed ..............................p.15

20 Exposure compensation ..............p.21

21 Compression/Frame rate ............. p.28

22 Image size ...................................p.28

23 Metering....................................... p.30

24 Drive ............................................p.29

25 ISO............................................... p.29

26 White balance .............................. p.29

book_oima_myu1050SW_en.indb 8book_oima_myu1050SW_en.indb 8 2008/07/10 11:48:202008/07/10 11:48:20

Playback mode display

2008.11.26

12:30

+2.0

F3.5

100-0004

ORM

1/1000

ISO 1

600

ISO 1

600

34 61

131415

2008.11.26

12:30

100-0004

00:14

00:34

00:14

00:34

VGA

34 61

1314

5 5

Still image Movie

1Silent mode.................................. p.49

2Print reservation/

number of prints........................... p.53

3Sound record .............p.19, 31, 39, 62

4Protect .........................................p.38

5Tap control ......................... p.4, 32, 48

6Battery check .........................p.10, 59

7Aperture value .............................p.15

8Exposure compensation ..............p.21

9White balance .............................. p.29

10 Image size ...................................p.28

11 File number.................................. p.44

12 Frame number

Elapsed time/

total recording time ................p.16, 17

13 Current memory........................... p.64

14 Compression/Frame rate ............. p.28

15 ISO............................................... p.29

16 Date and time ........................p.13, 45

17 Shutter speed ..............................p.15

book_oima_myu1050SW_en.indb 9book_oima_myu1050SW_en.indb 9 2008/07/10 11:48:222008/07/10 11:48:22

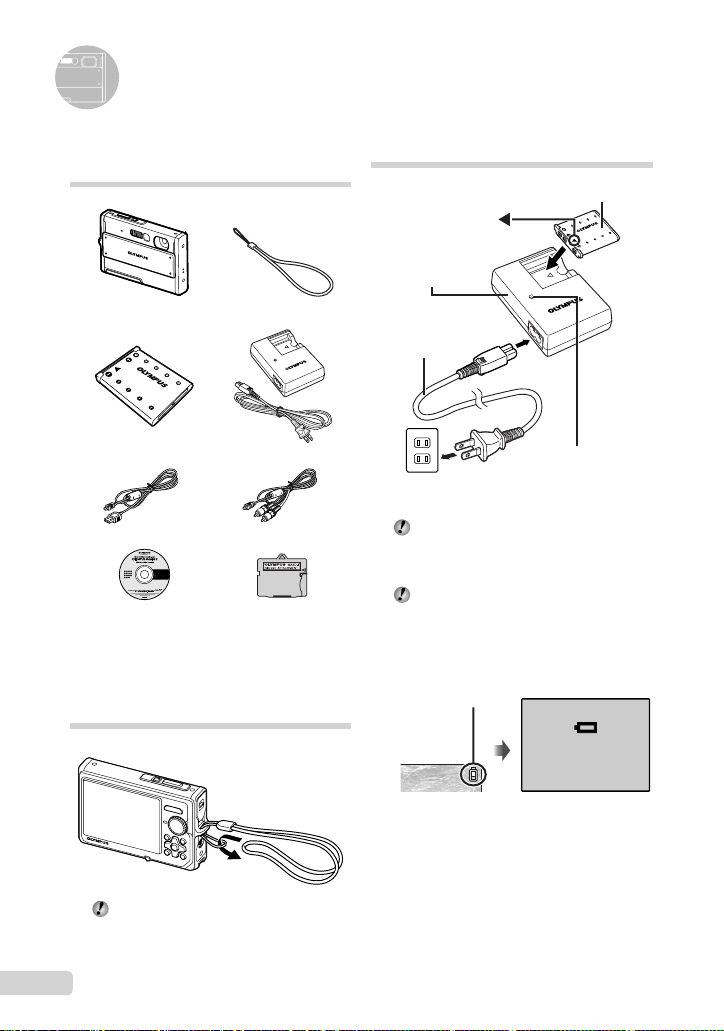

Preparing the Camera

Charging the battery

AC outlet

AC cable

Lithium ion battery

Battery charger

Charging indicator

Lights: Charging

Off: Charged

Battery comes partially charged. Before

use, be sure to charge the battery until the

charging indicator goes off

(for approx. 5 hours).

For details on the battery and the charger,

see “Battery and charger” (p. 63).

When to charge the battery

Charge the battery when the error message

shown below appears.

BATTERY EMPTY

Monitor top right Error message

Flashes in red

Checking the contents of the

box

Digital camera Strap

LI-42B Lithium Ion Battery LI-40C Battery Charger

USB cable AV cable

OLYMPUS Master 2

CD-ROM

microSD Attachment

Other accessories not shown: Instruction Manual (this

manual), warranty card

Contents may vary depending on purchase location.

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

book_oima_myu1050SW_en.indb 10book_oima_myu1050SW_en.indb 10 2008/07/10 11:48:242008/07/10 11:48:24

Altri manuali per Stylus 1050SW

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Olympus Macchina fotografica digitale

Olympus

Olympus DP21-SAL Manuale utente

Olympus

Olympus FE 210 - Digital Camera - Compact Guida all'installazione

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Manuale utente

Olympus

Olympus CAMEDIA C-5000 Zoom Manuale utente

Olympus

Olympus E-M10 Mark IV Manuale utente

Olympus

Olympus CAMEDIA C-40 Zoom Guida all'installazione

Olympus

Olympus STYLUS 700 Manuale utente

Olympus

Olympus STYLUS 700 Guida all'installazione

Olympus

Olympus CAMEDIA D-435 Manuale utente

Olympus

Olympus STYLUS-7010/-7010 Manuale utente

Olympus

Olympus Stylus 759 SW Guida all'installazione

Olympus

Olympus SP-310 Guida all'installazione

Olympus

Olympus STYLUS VERVE S Guida all'installazione

Olympus

Olympus Stylus 730 Guida all'installazione

Olympus

Olympus FE-290 Guida all'installazione

Olympus

Olympus Stylus Verve - Stylus Verve 4MP Digital... Manuale utente

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Manuale utente

Olympus

Olympus Stylus 1010 Manuale utente

Olympus

Olympus TG-320 Guida all'installazione

Olympus

Olympus C 4000 - CAMEDIA Zoom Digital Camera Guida all'installazione

Olympus

Olympus 226750 - Stylus Tough 8000 Digital Camera Manuale utente

Olympus

Olympus Stylus 770 SW Guida all'installazione

Olympus

Olympus IS-5 Deluxe Manuale utente

Olympus

Olympus STYLUS 9000 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
