Olympus InstaClear Manuale utente

INSTACLEAR

Setup and Operation Quick Reference Guide

This setup guide is only a summary of the InstaClear Instructions for Use (IFU). For detailed operating

instructions, be sure to follow the InstaClear IFU that was included with your device

when purchased.

15460

1 | Setup

2 | Power-Cord Attachment

3 | Power On

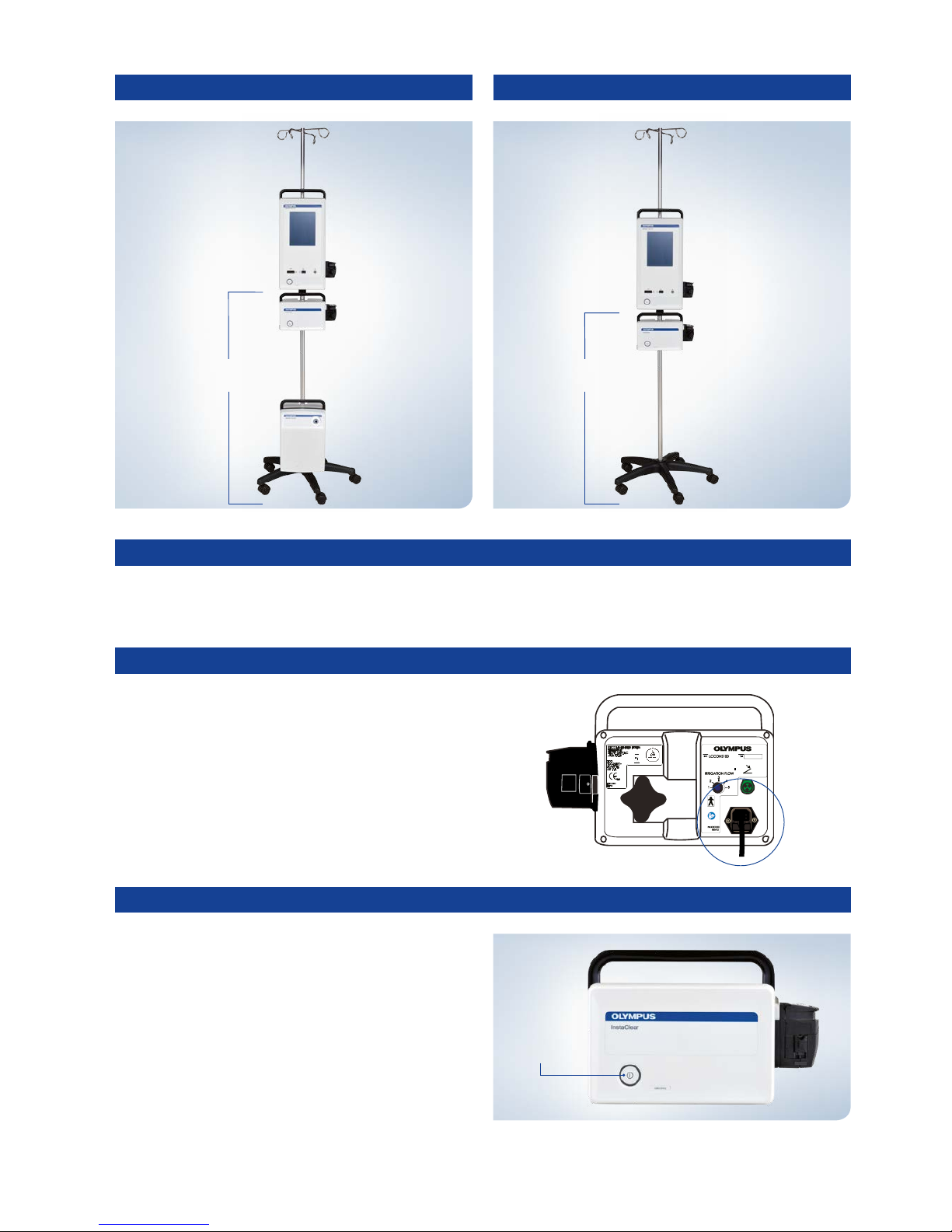

Setup with Suction Module Setup without Suction Module

Ensure the console is properly assembled onto an IV pole before use. To reduce the risk of tipping and possible equipment

damage, always follow the recommended height guidelines shown above.

The power cord needs to be attached to the back of the unit

and to a grounded wall outlet.

Turn the InstaClear system on by pressing the power button

at the lower left corner on the front of the console. The

power switch will illuminate.

15461

1.57 m

maximum

1.3 m

maximum

Attach power cord

Turn the

Console On

15455

1545715448

7 | Attach Irrigation

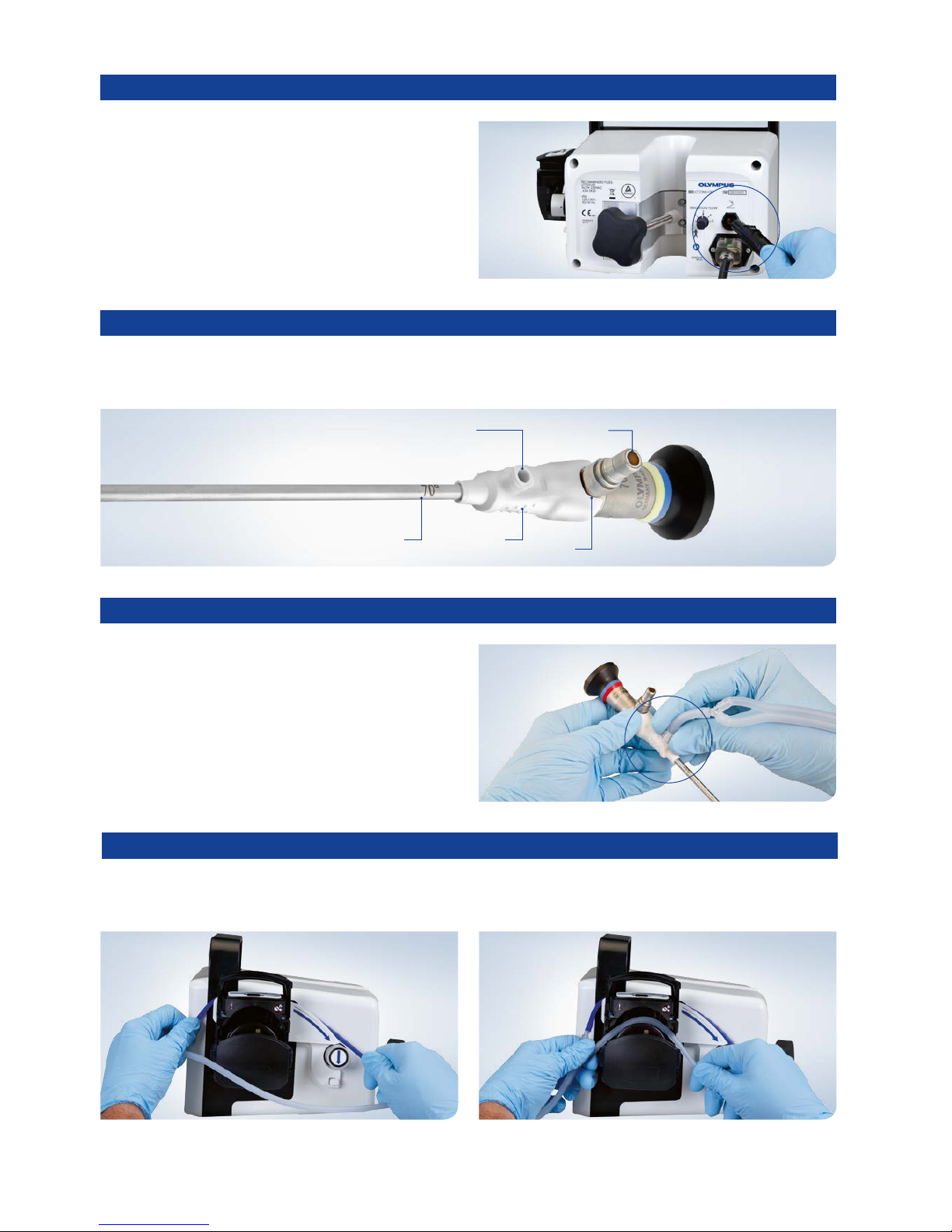

With the pump lever open, position the blue portion of the tube set across the tube guide. Thread the clear portion of the

tube set through the pump and close the pump lever. Remove the IV-spike cover and insert the IV spike into the IV bag.

4 | Connect Foot Pedal

5 | Assemble Endoscope in Sheath

Align the foot-pedal plug and foot-pedal socket (on the rear

of the console) and insert the plug fully into the socket.

Grasp the sheath by the hub and slide it over the end of the scope, hub end ﬁrst, until it stops at the distal end (a slight gap

is appropriate between the sheath hub and the light post).

Thread the Luer lock connector of the tube set onto the Luer

lock port of the sheath.

6 | Attach Sheath to Tube Set

Gap

Tip-Angle Label Hub

Luer Lock Light Post

15458

15447

15449

15452

15453

Speciﬁcations, design, and accessories are subject to change without any notice or obligation on the part of the manufacturer.

Postbox 10 49 08, 20034 Hamburg, Germany

Wendenstrasse 14–18, 20097 Hamburg, Germany

Phone: +49 40 23773-0, Fax: +49 40 233765

www.olympus-europa.com

E049xxxxEN ∙ x00 ∙ 05/16 ∙ OEKG ∙ ED

8 | Attach Suction

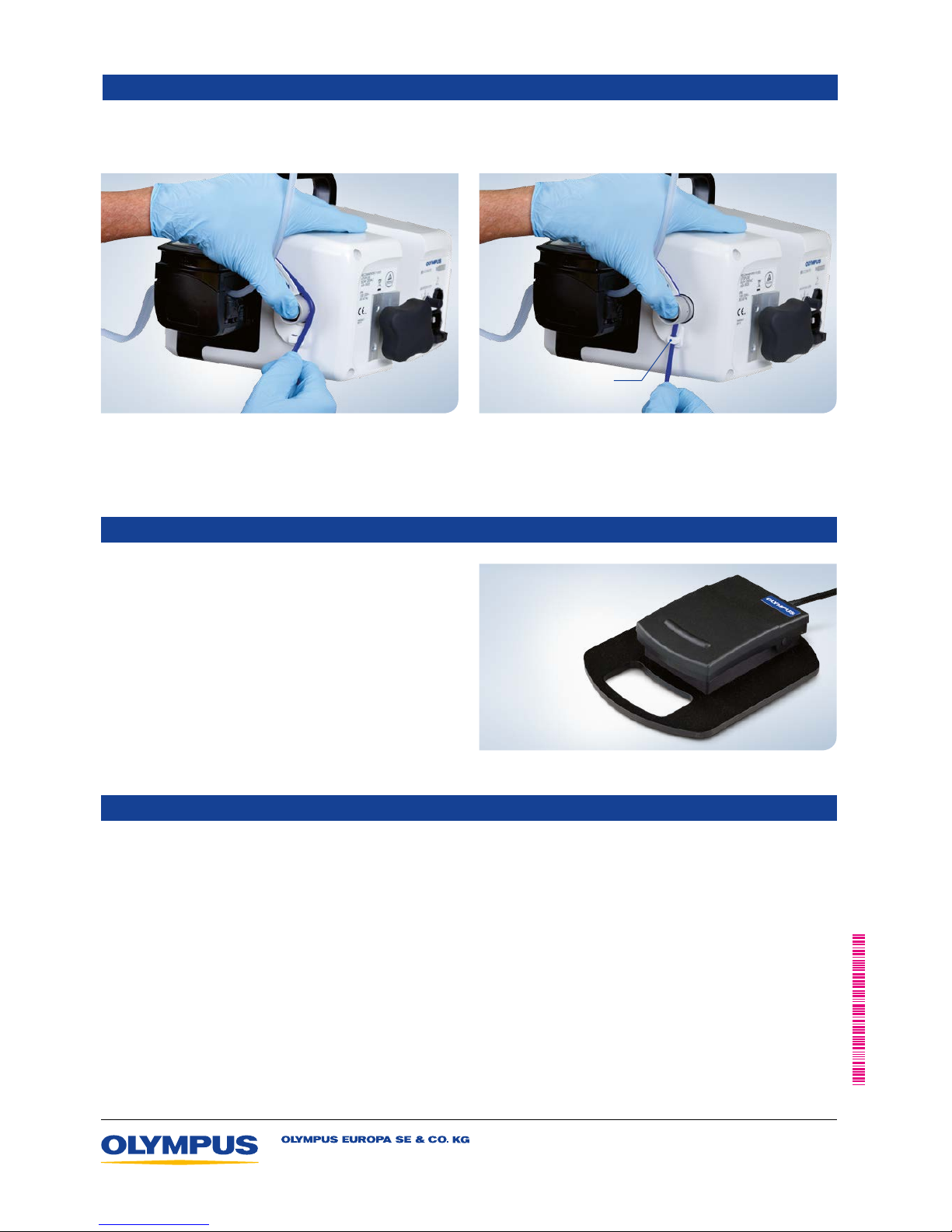

While pressing the button on the pinch valve, insert the blue tubing through the slot of the pinch valve and around the strain-

relief hook below. Release the button on the pinch valve. Connect the suction end of the tube set to the vacuum canister.

For best results, use a dedicated vacuum source such as the DIEGO ELITE suction module. If using the DIEGO ELITE

suction module, insert the ﬁlter end of the suction tubing (EGTS102SF) into the suction connection on the front of the

suction module. Attach the blue suction connector at the other end of the suction tubing to the suction canister.

9 | Prime

10 | Disassembly

Press and hold down the foot pedal to perform the priming

sequence. When ﬂuid can be seen ﬂowing out of the distal

tip of the sheath, the priming sequence is complete.

Unhook the tube set from the sheath. Slide the sheath distally off the endoscope to disassemble and dispose of the sheath.

Press the pinch-valve button on the InstaClear console and remove the blue tubing from the pinch valve. Open the pump

lever and remove the tubing from the pump. Pull the IV spike from the IV bag, being careful not to spill any remaining ﬂuid,

and dispose of the tube set. Press the power button to turn off the system. Disconnect the power cord from the wall outlet.

Clean and disinfect the console and foot pedal according to the IFU.

Foot pedal

Strain-Relief Hook

15454

1545615450
