Olympus DR 2000 - Speaker Microphone - Monaural Manuale utente
DIRECTREC
DR-2000
Executive Kit
INSTRUCTIONS
Thank you for purchasing an Olympus
DIRECTREC.
Please read these instructions for information
about using the product correctly and safely.
Keep the instructions handy for future reference.
EN
2
Main Features
●New and improved microphone system reduces extraneous sounds such as
wind or machine noise created while recording and thus enabling a higher
quality of sound recording than ever before.
●New design and location of buttons enable single-handed control without
ever having to visually check the placement of function buttons. Directrec
fits easily into your hand providing effortless control coupled with superb
dictation experience (☞P.4).
●The Directrec has 3 programmable (A,B,C) buttons (☞P.30,31).
●All button functions are easily customized to suit a particular preference or any
recording environment (☞P.30-34).
●USB Audio Device Directrec, can be used as a USB microphone or USB speaker
when connected to a PC. In addition, a powerful built-in speaker provides hi-
fidelity acoustic playback.
●Directrec can be used as a remote-control for the DSS Player Pro (referred to as
DSS Player from now on) not only for direct recording, but also when editing
recorded files on a PC.
●Directrec can save a recording as a file on a PC in DSS (Digital Speech Standard)
format.
●Two recording modes, SP (Standard Playback) mode or LP (Long Playback)
mode (☞P.20).
●Microphone sensitivity can be adjusted to better suit recording conditions and
environment (☞P.20).
●Multi-level priority setting (☞P.24).
This product is equipped with the following features.
OLYMPUS IMAGING CORPORATION holds the copyrights for DSS Player Pro software
and the instructions (this manual).
Microsoft and Windows are registered trademarks of Microsoft Corporation.
Intel and Pentium are registered trademarks of Intel Corporation.
Other product and brand names mentioned herein may be the trademarks or registered
trademarks of their respective owners.
3
Table of Contents
Identification of Parts ............................ 4
Minimum Requirement ......................... 5
Installing DSS Player Software ............ 6
Uninstalling DSS Player Software ........ 7
Using Online Help................................. 8
Connection to Your PC ......................... 9
Running DSS Player........................... 10
Window Names................................... 11
Using the Remote Edit Window ........
12
Direct Recording ................................. 14
Playback (Playing a Dictation File) .... 17
Save Recording .................................. 19
Microphone Sensitivity ....................... 20
Recording Modes ............................... 20
Index Marks ........................................ 21
Setting Priority Levels......................... 24
System Sounds .................................. 25
Setting Job Data ................................. 26
Directrec Button Function
Customization ..................................... 30
Troubleshooting .................................. 35
Specifications ..................................... 36
Technical Assistance And Support ..... 36
Introduction
Getting Ready
Let’s Get Started
User Support
4

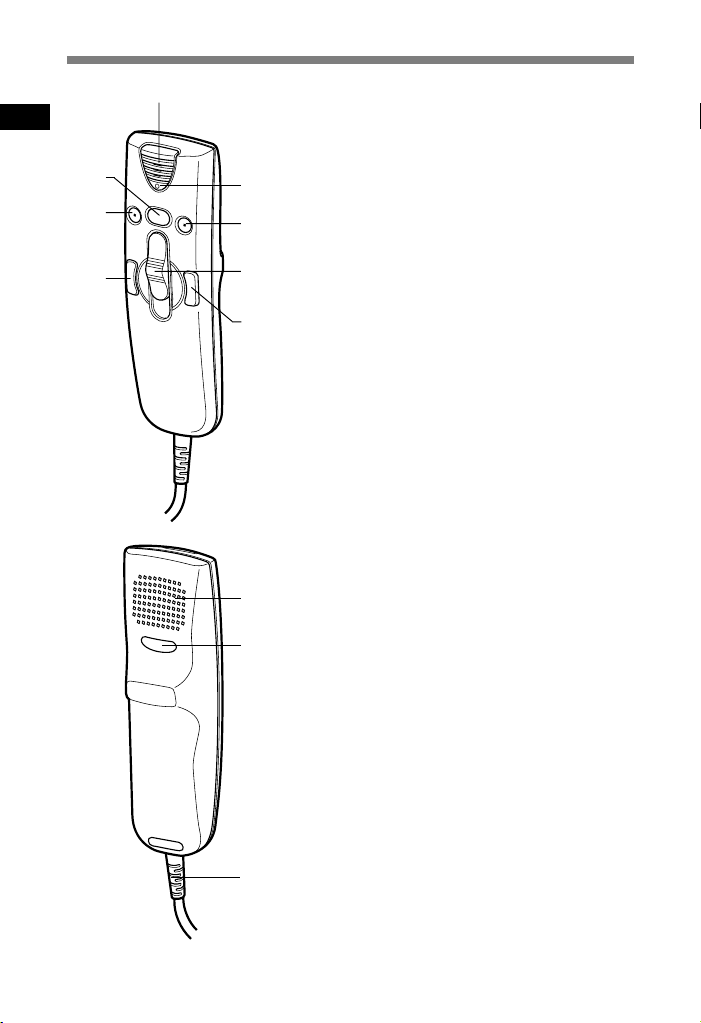

1Built-in microphone
2Record/Play indicator light
3B(Programmable) button
4Slide REC (Record)/
STOP/
PLAY/
REV (Review) switch
5FF (Fast Forward) button
6NEW button
7A(Programmable) button
8REW (Rewind) button
9Built-in speaker
0C(Programmable) button
!USB Cable
Identification of Parts
1
2
3
4
5
6
7
8
9
0
!
5
Minimum Requirement
IBM PC/AT compatible PC
Microsoft Windows Me/ 2000 Professional/
XP Professional,Home Edition
Intel Pentium II class 333 MHz processor or faster
(Processor 500 MHz or faster is recommended)
128 MB or more (256 MB or more is recommended)
50 MB or more
2x or faster CD-ROM, CD-R, CD-RW, DVD-ROM drive
Creative Labs Sound Blaster 16 or 100% compatible
sound card
Microsoft Internet Explorer 4.01 SP2 or later
800 x 600 pixels or more, 256 colors or more
One or more free ports
PC:
Operating System:
CPU:
RAM:
Hard drive space:
Drive:
Sound card:
Browser:
Display:
USB port:
Make sure that your computer meets the Minimum requirements listed below.
Please check with your system administrator or your Olympus Professional
Dealer.
6
Installing DSS Player Software
1
Insert Olympus DSS Player CD into the CD-ROM drive.
The installation program will start automatically.
If the installation program does not start automatically, browse your CD-ROM
drive and execute “setup.exe”.
2
The installation Language Selection dialog box appears.
Select the desired language.
3
Register user information.
Enter your name, company name, and license ID number (serial number).
The license ID number is printed on the license ID card included inside the
recorder package.
Click the [Next] button. When a confirmation dialog box appears, click the [Yes]
button.
4
Proceed with the installation according to the instructions on the
screen.
Before you connect your Directrec to your PC, you must first install the DSS
Player software.
Make sure to exit all running applications, eject the floppy disk if you are using
one, and logon as administrator if you are running Windows 2000/XP (Profes-
sional only) on the network.
7
Uninstalling DSS Player Software
1
Exit DSS Player program.
2
Click the [start] button on the taskbar.
3
Select [Add/Remove programs] from the [Control Panel].
A list of installed applications is displayed.
4
Select [Olympus DSS Player Pro], then click the [Change/Remove]
button.
5
Proceed with the uninstallation according to the instructions
on the screen.
To uninstall any of the software components of the DSS player software installed
on your PC, follow the steps below.
..............................................................................................................................
Note
•Uninstallation does not erase the stored dictation files.
8

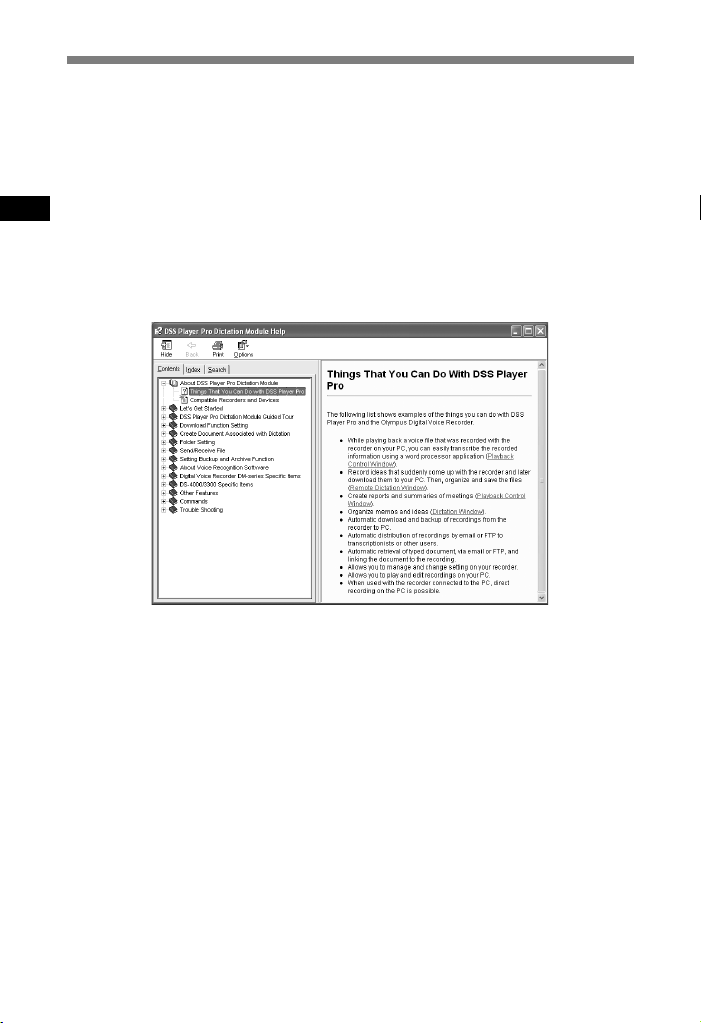

For information on the DSS Player usage and features, refer to the online Help.
To start online Help:
Using Online Help
•Click the [start] button, then select [All Programs], [Olympus DSS
Player Pro], [Dictation Help].
•While DSS Player is running, select the [Help] menu, [Contents].
•While DSS Player is running, press F1 on the keyboard.
......................................................................................................................................
Note
•For more information on menus and operations, refer to Online Help. Online Help is
available after the DSS Player is installed.
9
Connection to Your PC
Be sure to install the DSS Player software before connecting the Directrec to the
PC. However, if you do connect the Directrec before or during the software instal-
lation, the “Add New Hardware Wizard”will appear. In this case, cancel the wizard
by pressing the [Cancel] button in the wizard screen and then install or continue
the installation of DSS Player software.
1
Connect the Directrec USB cable
directly into the USB port or USB hub
of your PC.
When the DSS Player is activated, the
icon will appear in Device Tree View (☞P.11 )
in the Dictation Module.
Connecting to Your PC Using the USB Cable
Disconnecting from Your PC
1
Disconnect the Directrec USB cable from your PC USB port or
USB hub.
......................................................................................................................................
Notes
•Some PCs and USB hubs may not supply sufficient power and the Directrec fails to
connect. Refer to your PC User’s Manual regarding the USB port or USB hub on your PC.
•When using a USB hub to connect the Directrec, always use a self-powered (AC adapter)
USB hub.
•Never disconnect the USB cable while the record/play indicator light is flashing. If you do,
the data will be destroyed.
10
Running DSS Player
Disabling automatic start
1
Right-click the Device Detector icon in the System Tray in
the lower right hand corner of the screen, then select “Settings
startup application”.
2
Click [DSS Player Pro].
The check mark on [DSS Player Pro] disappears.
By default, connecting the Directrec to your PC will start the application auto-
matically.
1
Start Windows.
2

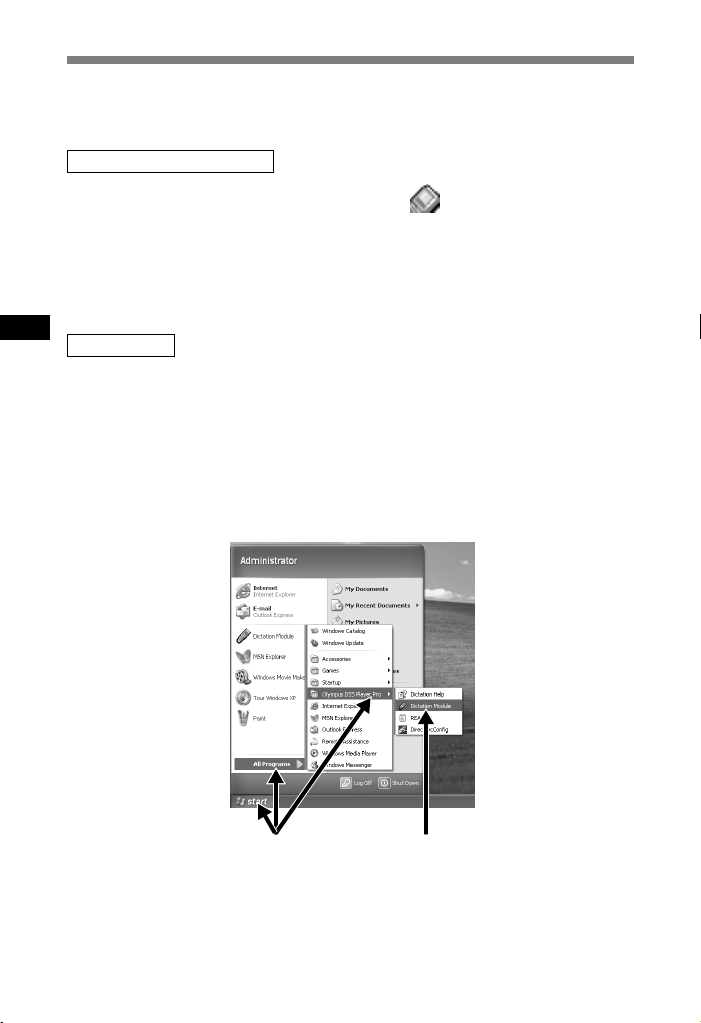

Click the [start] button, then select [All Programs].
All program menus will be displayed.
3
Select [Olympus DSS Player Pro], then click [Dictation Module].
Manual start
......................................................................................................................................
Note
•If you connect the Directrec before installing DSS Player, the “Add New Hardware Wizard”
dialog box will open. If this happens, click [Cancel] to exit the wizard, then install the DSS
Player software.
