Olympus DS-2300 Manuale utente

BZ8093T4-01-01-Q-REFER-E1 2005.03.18

Black Cyan

Recording Overwrite Recording

Press the NEW button to create a new file.

Press the REC button to start recording.

The record/play indicator lamp glows red.

Aim the microphone at the sound source.

Press the STOP button to stop

recording.

If you want to append additional recordings

to the same file, press the REC button again.

DIGITAL VOICE RECORDER

DS-2300

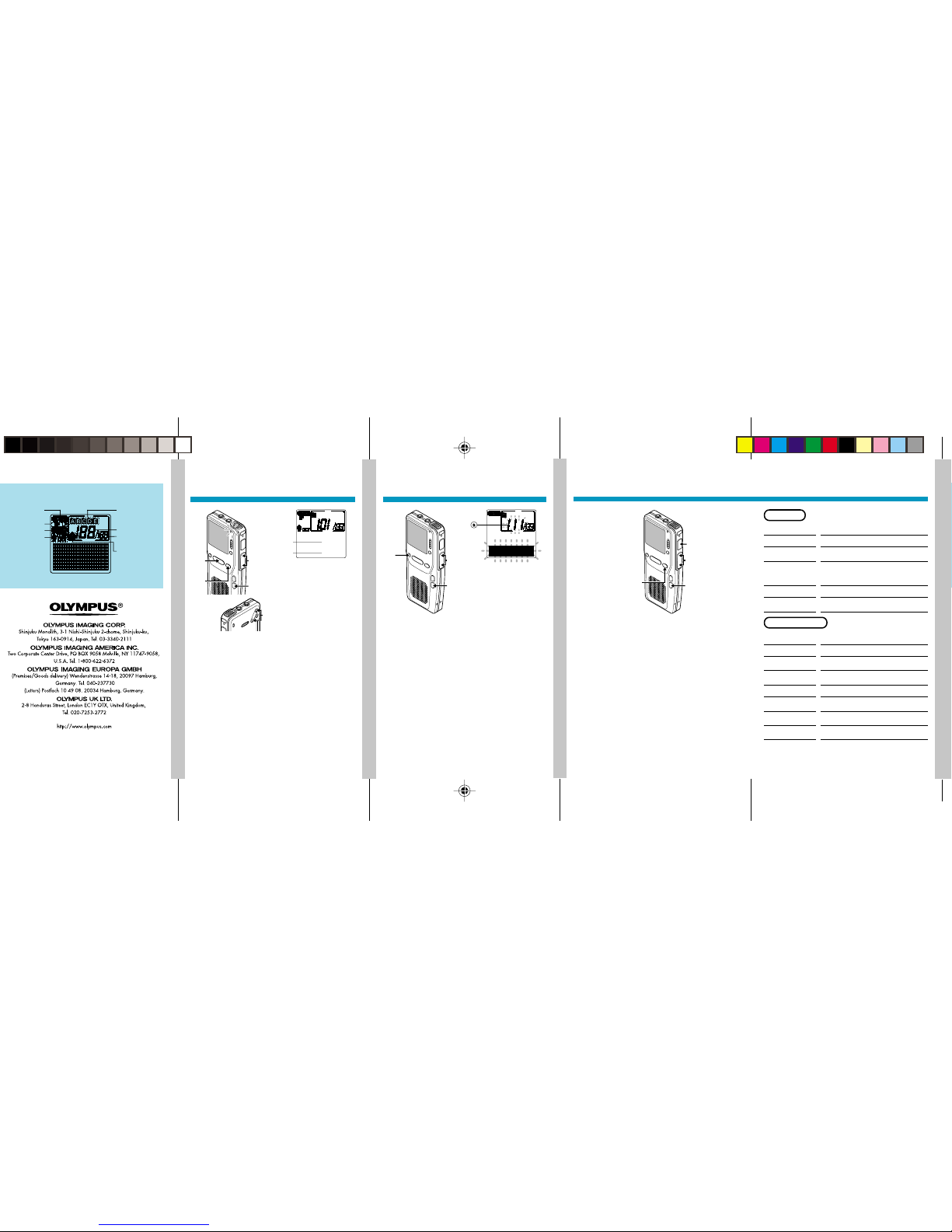

Quick Start Guide

Getting Started

Power Save Mode

When the recorder is ON but not in use for 10 minutes,

it will switch to power save mode automatically. To

reactivate the recorder again, press any of the buttons

on the recorder.

4H33M12S

REMA I N :

NEW F I LE

AUTHOR A

00M05S

LENGTH :

27M58S

Current recording mode

bNew file number

cSelected Author ID

Insert Recording

Press the FF or REW button to choose

the file into which you want to overwrite.

Press the PLAY button to play the file.

Press the STOP button where you want

to start overwriting.

Press the REC button to start overwriting.

The record/play indicator lamp glows red.

Press the STOP button to stop overwriting.

AUTHOR A

00M12S

I NSERT REC

Turning ON the Recorder

Slide the power switch to the ON position to activate

the recorder.

3,5

Press the FF or REW button to choose

the file into which you want to insert

additional recordings.

Press the PLAY button to start playback.

While playing the file, press the FOLDER/

MENU button to insert an additional recording.

Press the REC button to start inserting

additional recording.

The record/play indicator lamp glows red.

Press the STOP button to stop inserting

additional recording.

aCurrent playback time

bTotal recording time of

the file being played

BZ8093T4-01-01-Q-REFER-E1 2005.03.18

Black Cyan

Other Function

Playing Erasing a File

AP0503

File to be erased

Press the FOLDER/MENU button to

choose folder.

Press the FF or REW button to choose

the file that you want to play.

Press the PLAY button to start playback.

The record/play indicator lamp glows green.

Press the VOLUME (+) or VOLUME (–)

button to select the proper sound volume.

Press the STOP button at any point you

want to stop the playback.

Resume playback by pressing PLAY button again.

Press the FOLDER/MENU button to

choose a folder.

Press the FF or REW button to choose

the file you want to erase.

Press the ERASE button.

“FILE ERASE ?” flashes on the display for

approximately 8 seconds.

Press the ERASE button once more while

“FILE ERASE ?”is flashing.

The display changes to “FILE ERASE !” and

erasing will start.

∗“ERASE DONE” is displayed when the file is

erased. File numbers will be reassigned

automatically.

3,4

Press and hold the FOLDER/MENU

button for 1 second or longer.

Press the FF or REW button to choose

the setting item.

Press the REC button.

Press the FF or REW button to choose

the setting item.

Press the REC button to complete the

setup screen.

Press the STOP button to close the main

menu.

Setting item

REC MODE

MIC SENSE

EXIT

SUB MENU

VCVA

Setup

SP, LP

CONF or DICT

Exit MENU and return to STOP

mode.

Switches to the SUB MENU.

OFF or ON

2,4

3,5

Details of each setting item refer to the Reference

Manual for more information.

Setting item

LOCK

BEEP

FORMAT

EXIT

CONTRAST

BACKLIGHT

TIME&DATE

Setup

OFF or ON

Recorder formatting.

Returns to the MENU.

1 to 12

OFF or ON

Time/Date setting.

SUB MENU

AUTHOR A

00M05S

LENGTH :

27M58S

aCurrent playback

time

bTotal recording

time of the file

being played

FOLDER A

F I LE

ERASE ?

Display (LCD Panel)

Record mode

Battery

indicator

Microphone

sensitivity

VCVA indicator

Folder

Current file

Total number

of files

Erase lock

indicator

E1-BZ8093-01
