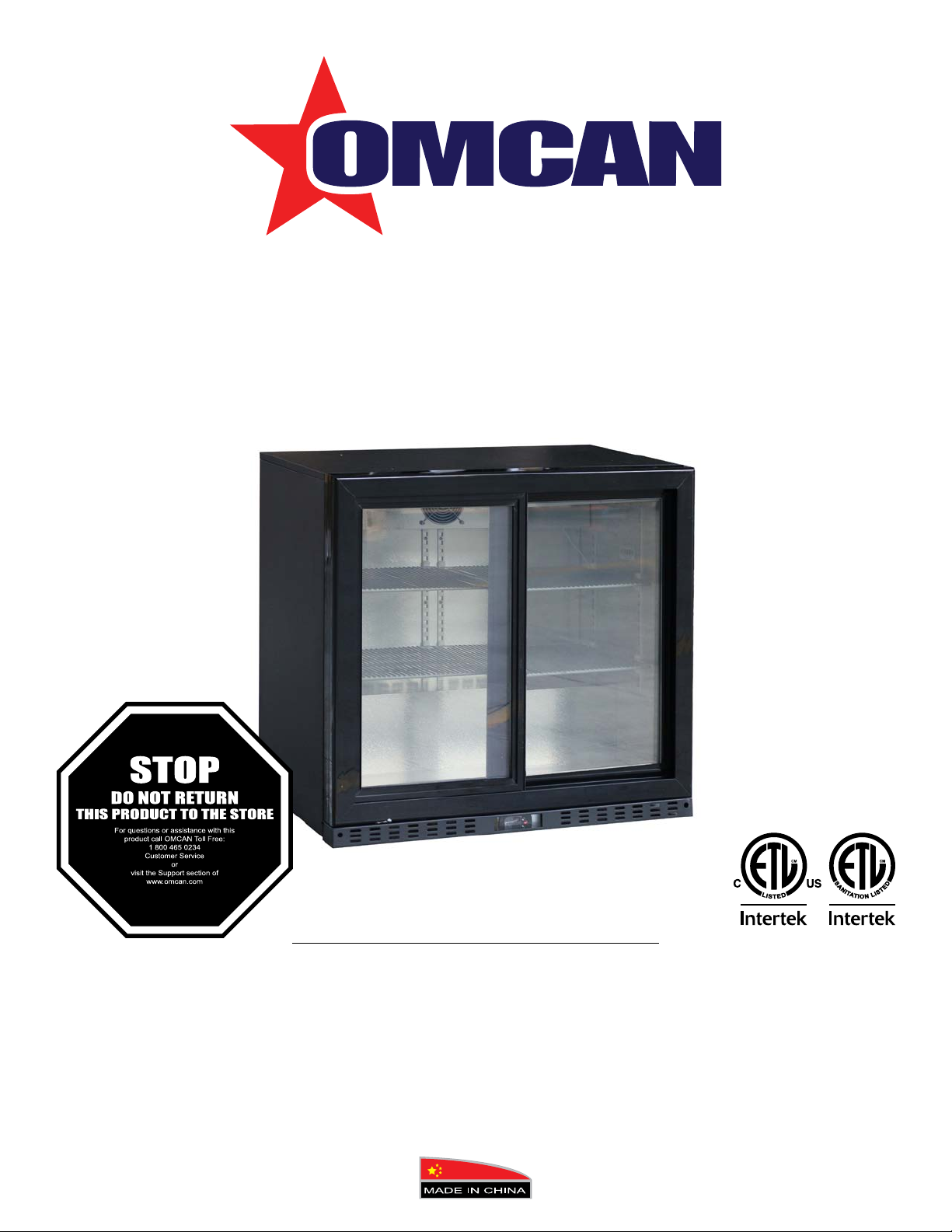

Omcan BB-CN-230S Manuale utente
Back Bar Cooler
Model BB-CN-230S
Item 47587
Instruction Manual
Revised - 02/16/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: [email protected]
www.omcan.com
2
Page
-------------------------------------------------------------------------------------------- 3
--------------------------------------------------------------------------- 4 - 5
--------------------------------------------------------------------------- 5 - 7
-------------------------------------------------------------------------- 7
-------------------------------------------------------------------------------------------- 8
--------------------------------------------------------------------------------------------- 8
----------------------------------------------------------------------------------------- 9
------------------------------------------------------------------------------- 9 - 10
---------------------------------------------------------------------------- 11 - 12
---------------------------------------------------------------------------- 13
------------------------------------------------------------------------------------------------- 14
---------------------------------------------------------------------------- 15
Table of Contents
Section
Disclaimer
General Information
Safety and Warranty
Technical Specications
Installation
Operation
Maintenance
Troubleshooting
Parts Breakdown
Electrical Schematics
Notes
Warranty Registration
Model BB-CN-230S
3
Disclaimer
OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES
DUE TO WATER LEAKS. WARRANTY FOR
WATER LEAKS IS VOID IF THE AMBIENT ROOM
TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE
HUMIDITY, AND THE APPLIANCE DRAIN IS NOT
CONNECTED DIRECTLY TO A FLOOR DRAIN.
OMCAN NO SE HACE RESPONSABLE DE LOS
DAÑOS CAUSADOS POR FUGAS DE AGUA. LA
GARANTÍA POR FUGAS DE AGUA QUEDA ANULADA
SI LA TEMPERATURA AMBIENTE SUPERA LOS 75°F Y
EL 55% DE HUMEDAD RELATIVA, Y EL DESAGÜE DEL
APARATO NO ESTÁ CONECTADO DIRECTAMENTE A
UN DESAGÜE DE PISO.
OMCAN N’EST PAS RESPONSABLE DES DOMMAGES
DUS AUX FUITES D’EAU. LA GARANTIE POUR LES
FUITES D’EAU EST ANNULÉE SI LA TEMPÉRATURE
AMBIANTE DE LA PIÈCE DÉPASSE 75°F ET 55%
D’HUMIDITÉ RELATIVE, ET SI LE DRAIN DE
L’APPAREIL N’EST PAS RACCORDÉ DIRECTEMENT
À UN DRAIN DE PLANCHER.
4
General Information
Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan
and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or
negligent use of this equipment. The product shall only be operated by someone over the age of 18, of
sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct
operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the
machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of
the machine while in operation.
CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the
external packaging, open carton to ensure all ordered items are within the box, and there is no concealed
damage to the machine. If the package has suered rough handling, bumps or damage (visible or concealed),
please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may
initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be
lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse
for damaged products that were shipped collect or third party.
Before operating any equipment, always read and familiarize yourself with all operation and safety
instructions.
Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save
these instructions for future reference. Also save the original box and packaging for shipping the
equipment if servicing or returning of the machine is required.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et
Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne
ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de
plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour
utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication
de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine
ou des personnes à proximité de la machine pendant son fonctionnement.
VÉRIFIEZ LE COLIS DÈS RÉCEPTION
Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage
n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés
sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises
manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant
d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager
une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine
doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents
d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli
par un tiers transporteur.
5
General Information
Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations
et les consignes de sécurité.
Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces
instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour
l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.
---------------------------------------------------------------------------------------------------------------------------------------------------
Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba
Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona
inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona
mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido
entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.
Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la
máquina mientras esta en el funcionamiento.
REVISE EL PAQUETE A SU LLEGADA
Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el
empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la
caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes
o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro
de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre
los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se
muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron
a recoger por terceros.
Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de
funcionamiento y seguridad.
Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para
salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el
envío del equipo si servicio técnico o devolución de la máquina que se requiere.
Safety and Warranty
HANDLING AND INSTALLATION
Handle with care
Unplug from the wall socket before moving. Never tilt
the refrigerator over 45 degrees during handling.
Storage
Always store the refrigerator in a dry place.
6
Safety and Warranty
Sucient space
To allow for proper air circulation and increased
refrigeration capabilities, the refrigerator must have at
least 4”/10cm of space between wall/ceiling and the
machine.
Proper ventilation
Always place the refrigerator in an area with good
ventilation. For rst time use, set in location and wait
at least 2 hours before plugging into wall socket.
Away from heat source
Never place the refrigerator near any type of heat
source or in direct sunlight, as it reduces refrigeration
capabilities.
No heavy load
Never put heavy items on top of the refrigerator.
No altercations/tampering
Never tamper with or make changes to the
refrigerator. Changes and add-ons should not be
installed to the inside or outside of the refrigerator.
Stable location
Unpack and place the refrigerator on at, solid
ground.
PREPARATION AND POWER SUPPLY
Exclusive power outlet
Power supply should be 110V, single phase AC with
exclusive single phase three pin outlet (125V/15A).
The power outlet must be in close proximity to the
ground.
No shared power outlets
Refrigerator cable should never share the power
outlet with any other appliance, as cable will overheat
and may result in a re.
Protect cables
Extra caution should be used when handling cables,
as broken or damaged cables can cause sparking
and may result in a re.
No water ushing
Never ush the refrigerator surface. This can cause
leakage, which may result in electrical damage or re.
Never store ammables and explosives
No explosives or ammables should be stored in,
or in proximity to, the refrigerator, such as gasoline,
alcohol, and adhesives.
No spray
Never spray ammables such as paint or coating
near the refrigerator. This may cause re or
malfunction.
After power outage
After a power outage or the unplugging of the
refrigerator, wait at least 5 minutes before plugging it
back in.
No medicine
Medicine should not be stored inside of the
refrigerator.
RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure
or other damages resulting from installation in non-commercial or residential applications. The right
is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as
possible.
1 YEAR PARTS AND LABOUR WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized
service technician to repair the equipment locally.
7
Safety and Warranty
Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not
improper use.
Please see https://omcan.com/disclaimer for complete info.
WARNING:
The packaging components are classied as normal solid urban waste and can therefore be disposed of
without diculty.
In any case, for suitable recycling, we suggest disposing of the products separately (dierentiated
waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!
Technical Specications
Model BB-CN-230S
Capacity 208 L / 7.34 cu.ft.
Temperature Range 0 - 8°C / 32 - 46.4°F
Max Ambient Temp
Rating 24°C / 75°F
Material Steel with Coating
Door Type Sliding Door
Number of Doors 2
Refrigerant R600a (70g)
Electrical 110-120V / 60Hz / 1
Current 2.8A
Dimensions 35.4” x 20.5” x 35.4” / 900 x 520 x 900mm
Packaging Dimensions 38.6” x 22.8” x 39.4” / 980 x 580 x 1000mm
Weight 112.4 lbs. / 51 kgs.
Packaging Weight 134.5 lbs. / 61 kgs.
Item Number 47587
8
Installation
Operation
Store the unit upright. If the unit has been stored or transported on its back, front or sides then it must be
placed upright for at least 24 hours before switching on. Place the unit on an even and stable surface as far
away as possible from any sources of heat.
Note: Do not move the unit by lifting either the door or door handle as this may cause damage to the
cabinet.
Please ensure that the unit is spaced appropriately in its surrounding area.
The correct area should give a gap of at least 1.18” between the top of the cabinet and the underside of the bar
itself. As well as between the back of the unit and the wall. Poor ventilation due to insucient spacing is likely
to cause reduced cooling, icing up and premature compressor failure.
GENERAL OPERATION
The cabinet door should remain rmly closed during normal operation. This prevents warm moist air from
entering and creating frost within the cabinet. If the cabinet is left open for extended periods ice will form. This
will prevent cooling and the machine will then require defrosting.
The unit should be left switched on, and should not be switched o between trading sessions. The cabinet
is designed to chill product in sealed containers only (bottles, can, etc). It is not recommended that open
containers are placed in the unit for cooling.
CONTROLS
The thermostat control is located below the doors on the front of the appliance. Refrigeration is switched on
and o at the main supply. The light is controlled independently by using the toggle switch provided at the front
of the unit.
Warning: If the supply cord is damaged, the manufacturer, its service agent or similarly qualied
persons must replace it, in order to avoid a hazard.
9
Maintenance
Troubleshooting
Fault Probable Cause Action
The appliance is not working. The unit is not switched on. Ensure the unit is plugged in
correctly.
Plug and lead are damaged. Call Omcan.
Fuse in the plug has blown. Replace the fuse.
Power supply. Check power supply.
Internal wiring fault. Call Omcan.
ROUTINE MAINTENANCE
Disconnect from the power supply before cleaning.
• Clean the enclosure and interior of the cabinet as often as possible.
• Clean the unit with moist cloth. Never allow the switch, control panel, cable or plug to get wet.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Use only mild soapy water.
• Clean the door seal with water only.
• Ensure that no cleaning water penetrates into the electrical components.
• Must not be cleaned by a water jet.
• Always wipe dry after cleaning with soft cloth.
• Take care when cleaning the rear of the cabinet.
• An agent or qualied technician must carry out repairs if required.
• If the cabinet is to be left inactive for long periods, unplug the cabinet after having turned the lamp switch to
o position, empty the refrigerating compartment and clean thoroughly.
SPECIAL MAINTENANCE
The instructions given below are for SKILLED PERSONS.
PERIODIC OPERATIONS
• Periodically clean the condenser using suitable tools (vacuum cleaner or soft brush).
• Check that the electrical connection are not loose.
• Check that the thermostat and the sensor are in proper working order.
• Periodically cleaning the condenser can extend the life of the appliance.
• Failure to keep the condenser clean will reduce the refrigeration performance of the cabinet.
• Recommend that agent or qualied technician clean the condenser.
10
Troubleshooting
The appliance turns on, but the
temperature is too high/low.
Too much ice on the evaporator Defrost the appliance.
Condenser blocked with dust. Call Omcan.
Doors are not properly sealed. Ensure doors are shut and seals
are not damaged.
Appliance is located near a heat
source or air ow to the condenser
is being interrupted.
Move the refrigerator to a more
suitable location.
Ambient temperature is too high. Increase ventilation or move
appliance to a cooler position.
Appliance is overloaded. Reduce the amount of containers
in the appliance.
The appliance is unusually loud. Loose nut/screw. Check and tighten all nuts and
screws.
The appliance has not been
installed in a level or stable
position.
Check installation position and
change if necessary.
The appliance is leaking water. The appliance is not properly
leveled.
Adjust the screw feet to level the
appliance.
The discharge outlet is blocked. Clear the discharge outlet.
The water container is damaged. Call Omcan.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Omcan Accessori
Omcan
Omcan BB-CN-0005 Manuale utente
Omcan
Omcan BB-CN-0012-DH Manuale utente
Omcan
Omcan BB-CN-0012-G Manuale utente
Omcan
Omcan RE-CN-0015-HC Manuale utente
Omcan
Omcan JBC-50 Manuale utente
Omcan
Omcan BB-CN-0005-HC Manuale utente
Omcan
Omcan BB-CN-0012-SH Manuale utente
Omcan
Omcan BB-CN-0014-HC Manuale utente
Omcan
Omcan 10996 Manuale utente
Omcan
Omcan BD-CN-0007-HC Manuale utente
