WMS831

WIRELESS DATA LOGGING WEATHER STATION

USER’S MANUAL

INTRODUCTION

Thank you for purchasing Omega’s Weather Station with

remote control. This compact and easy-to-use product

features a wide variety of time and weather data, such as

precise atomic time, perpetual calendar, air temperature,

relative humidity, barometric pressure, wind speed and

direction, rainfall, and etc.

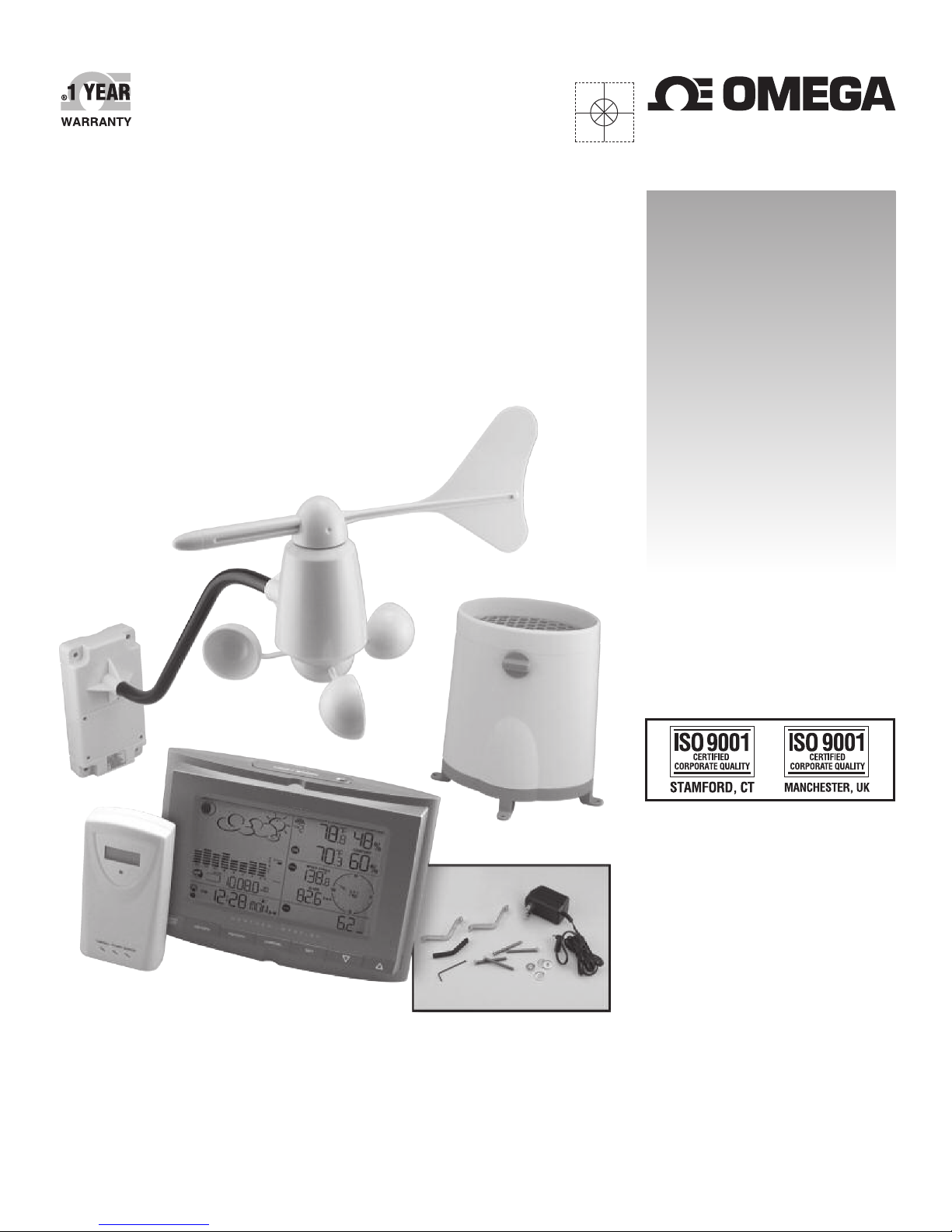

PACKAGE CONTENTS

In this package you will find:

•One Main Unit (receiver)

•One Rain Gauge (remote rain sensor/transmitter)

•One Anemometer (remote wind sensor/transmitter)

•One Three-Channel Temperature & Humidity Sensor (transmitter)

•One 7.5V AC/DC Adapter

•Mounting Hardware with wrench tool

•One User’s Manual

Components:

•Main Unit

•AC/DC 7.5V power adaptor

•Thermo Hygrometer Sensor

•Rain Gauge

Consists of:

Funnel shaped top with battery compartment

Rain Gauge bucket

Bucket see-saw mechanism

Protective screen

`•Anemometer

Consists of:

Wind Cups

Wind Vane

Anemometer arm

Anemometer base

•Mounting hardware:

4 screws for securing rain gauge to the flat surface;

4 screws for securing anemometer to vertical surface

INSTALLATION

Our Omega’s Full Weather Station #WS821 operates at 433MHz radio frequency, so no wire installation

is required between the main unit (receiver) and the remote weather sensors (transmitters). The remote

weather sensors include a thermo-hygrometer (temperature and humidity) sensor, anemometer (wind

sensor) and a rain gauge (rain sensor). All data measured by these remote sensors is transmitted to the

main unit wirelessly, with the operating range up to 328 feet (100 meters) in the open area. The

Anemometer and a rain gauge must be placed outdoors to measure weather elements. Remote thermo-

hygrometers can be placed indoors or outdoors, depending on the location where the temperature and

humidity are to be measured. If you intend measuring outdoor temperature and humidity, place the

remote sensor outdoors, preferably not in the direct sunlight.

NOTE:It is critical to assemble and power up all of the remote weather sensors BEFORE setting up the

main unit.

NOTE:It is critical to power up and test communication between all of the weather sensors and the

main unit BEFORE permanently mounting them outside.

BEFORE YOU BEGIN

•We recommend using alkaline batteries for the remote weather sensors and the main unit when

temperatures are above 32°F (0°C). We recommend using lithium batteries for the remote weather

sensors when temperatures are below 32°F (0°C).

•Avoid using rechargeable batteries. (Rechargeable batteries cannot maintain correct power

requirements).

•ALWAYS install batteries in the remote weather sensors before the main unit.

•Insert batteries before first use, matching the polarity in the battery compartment

•Remove protective plastic screen from LCD display (if any).

•During an initial setup, place the main unit close to the remote weather sensors.

•After reception is established (all of the remote readings will appear on the main unit’s display),

position the remote sensors and the main unit within the effective transmission range of up to 328

feet (100 meters). Ideally they should be placed within the line of sight of the main unit. See

placement tips in the user manual for each remote weather sensor separately.

•Transmission range may be affected by trees, metal structures and electronic appliances.

•The main unit must be placed indoors.

•The effective operating range may be influenced by the surrounding building materials and how the

receiver (main unit) and transmitters (weather sensors) are positioned.

•Place the remote weather sensors so that they face the main unit (receiver), minimizing obstructions

such as doors, walls, and furniture.

NOTE:When the temperature falls below freezing, the batteries in the outdoor remote weather sensors

may have reduced voltage supply and a shorter effective range. We recommend using lithium

batteries at temperatures of 32°F (0°C) and below.

IMPORTANT: Make sure that the remote weather sensors are easily accessible for cleaning and

maintenance.We recommend cleaning the remote weather sensors periodically, as the dirt

and debris may affect sensors accuracy.

THERMO-HYGROMETER SENSOR

FEATURES

•Remote data transmission to the main unit via 433 MHz signal

•328 feet (100 meters) transmission range without interference

•LCD display of measured temperature and humidity

•Three (3) transmission channels selection

•Case can be wall mounted using built-in hanger

•Up to three T-H sensors per station are permitted

A. LED INDICATOR

•Flashes once when the remote sensor

transmits a reading to the main unit.

•Flashes twice when battery power is low.

B. BATTERY COMPARTMENT

Holds 2 “AA” batteries

C. RESET

Resets all readings

D. CHANNEL SWITCH

Selects the desired transmission channel

from 1 to 3

E. WALL-MOUNT RECESSED OPENING

Attaches the remote sensor to the wall

NOTE:Install the batteries and select the channel before mounting the sensor.

BATTERY INSTALLATION

•Remove the screws from the battery compartment with a small Phillips screwdriver.

•Set the channel 1 through 3. The switch is located in the battery compartment. Channel 1 is

typically selected if only one remote sensor is being used.

•Install 2 “AA” batteries (not included) matching the polarities shown in the battery compartment.

•Replace the battery compartment door and secure the screws.

•Secure the thermo-hygrometer remote sensor in the desired location.

MOUNTING

•The remote thermo-hygrometer sensor can be placed on the flat surface or mounted on the wall in

vertical position.

•Use the wall mount hardware and screws provided when mounting the thermo-hygrometer sensor

on the wall.

PLACEMENT TIPS:

•The remote thermo-hygrometer sensor should be placed in the area with a free air circulation and

sheltered from the direct sunlight and an extreme weather conditions.

•Ideally, place the thermo-hygrometer sensor above the natural surfaces (such as a grassy lawn).

•Avoid placing the thermo-hygrometer sensor near sources of heat such as chimneys and heating

elements.

•Avoid any areas collecting and radiating a heat from the sun, such as metal, brick or concrete

structures, paving, patios and decks.

•The international standard for the valid air temperature measurements is 4 feet (1.25meters)

above the ground.

RAIN GAUGE

FEATURES

•Precipitation measurement

•Remote rainfall data

transmission to the main unit

via 433 MHz signal

•100 feet (30 meters)

transmission range without

interference

•Built-in installation level

•Non-corrosive protective

screen

A. RAIN GAUGE BUCKET

Holds all rain gauge components

B. KNOB

Secures the top on the rain gauge bucket

C. RAIN GAUGE BUCKET FEET

Allows securing the rain gauge on its place

D. FUNNEL-SHAPED TOP WITH BATTERY COMPARTMENT

Contains battery compartment and rainfall counting electronics

E. BATTERY COMPARTMENT

Holds 2 “AA” size batteries

F. SCREWS

Secure battery compartment cover

G. BUILT-IN LEVELER

Allows leveling rain gauge on the surface

H. BUCKET SEE-SAW MECHANISM

Collects the rainfall in one of its containers and self-empties once full

I. PROTECTIVE SCREEN

Protects the rain gauge funnel from debris

BATTERY INSTALLATION

•Unlock the funnel-shaped top on the rain gauge by turning both knobs on the sides in a Counter-

clockwise direction.

•Remove the funnel-shaped top lifting it off the rain gauge bucket.

•Remove 7 small screws from the battery compartment cover using a small Phillips screwdriver

•Insert 2 “AA” batteries (not included), matching the polarities as shown in the battery compartment.

•Replace the battery compartment door and secure the screws.

•Insert the funnel-shaped top into the rain gauge bucket and secure it into place by turning the knobs

clockwise.

MOUNTING

•Make sure that the rain gauge bucket is level – check if the ball bearing inside the bucket is at the

midpoint of the leveler.

•Place the protective screen over the top to protect the rain gauge from the debris.

•Mount the rain gauge in place using mounting hardware provided.

•Make sure that the rain gauge is in open area where precipitation falls directly into the gauge’s

bucket, ideally 2-3 feet above the ground.

PLACEMENT TIPS

•The rain gauge should be placed in an open area away from walls, fences, trees and other

coverings, which may reduce the amount of rain collected in the bucket. Additionally, trees and

rooftops may be sources of pollen, leaves and other debris.

•To avoid rain shadow effects, place the rain gauge two to four times the height of any nearby

obstruction.

•It is important that excess rain can flow freely away from the rain gauge.

ANEMOMETER (WIND SENSOR)

FEATURES

•Wind speed and wind direction measurement

•Remote wind speed and wind direction

data transmission to the main unit via

433 MHz signal

•Operating range 100 feet (30 meters)

•Wall or pole mount

A. WIND VANE

Measures wind direction

B. WIND CUPS

Measures wind speed

C. ANEMOMETER BASE

•Holds battery compartment

•Allows mounting the anemometer vertically

D. ANEMOMETER ARM

Keeps anemometer assembly together

E. WIND CUPS SHAFT

Holds wind cups on the anemometer arm

F. BATTERY COMPARTMENT

Holds 2 “AA” batteries

G. WALL MOUNT SCREW OPENINGS

Allows securing the anemometer in place

H. BATTERY COVER

Allows securing 2 “AA” batteries on the anemometer base

ASSEMBLY

•With a flashlight, look into the mounting hole that will receive the anemometer axle shaft, on the

back of the wind cups. Check that the set screw is backed off appropriately, not obstructing the

opening.

•Place the wind cups over the axle shaft protruding from the anemometer housing and gently slide

into place.

•Insert the Allen wrench tool provided into the wind cups opening and tighten the small set screw

inside.

•Test to assure the wind cups are securely mounted on the anemometer shaft and spin freely

BATTERY INSTALLATION

•Remove four (4) screws from the battery compartment with a small Phillips screwdriver.

•Open the battery compartment and install 2 “AA” batteries (not included) matching the polarities

shown.

•Replace the battery compartment door and secure the screws.

ALIGNING

•Point the wind direction vane to the North (use a compass or map if necessary).

•Press “SET” opening located inside battery compartment with a paper clip or similar tool. This will

“SET” the local wind direction to North. Continued pressing of “SET” alternately toggles wind

direction between the factory default preset or user set direction.

NOTE:Repeat this procedure every time after whenever changing the batteries.

MOUNTING

Securely mount the anemometer base to an appropriate vertical surface, using the fittings provided.

PLACEMENT TIPS:

•The anemometer should be mounted in an open area with unobstructed air flow; away from the

nearby trees, buildings or other structures.

•Aim for a maximum exposure of the anemometer to the most common wind directions in the area.

•The suggested mounting height for the anemometer is 33 feet (10meters) above the ground.

MAIN UNIT

The main unit should be placed indoors. It measures: pressure, indoor temperature, humidity, and

receives the US Atomic Clock data and data from each of the remote weather sensors.

FEATURES

Time

•Precise time and date set via RF signals from US Atomic clock

•Selectable 12 or 24 hour time format

•Manual adjustment of time and date

•Calendar displaying date with month and day in 6 languages: English, German, French, Italian,

Spanish and Dutch

•Sunrise/set calculation for over 100 pre-programmed world cities in accordance with the

geographical information entered by the user

•Moon Phase calendar and historical data for the past and future 39 days

•Dual crescendo alarms with programmable snooze

Weather

•Weather forecast for the next 12 to 24 hour in seven large icons: Sunny, Partly Cloudy, Cloudy,

Light Rain, Heavy Rain, Snowy and Unstable.

•Barometric pressure in imperial or metric units

•Altitude adjustment for pressure compensation

•24 hour barometric pressure history chart

•Multiple weather alarms

•Indoor/Outdoor Temperature & Humidity in up to 3 remote locations (additional sensors required)

•Dew point and comfort level indicators

•Wind speed and wind gust averages and memory

•Wind direction

•Rainfall amount with minimum and maximum memory

•Operating range from 100 feet (30 meters) up to 328 feet (100 meters)

Display

•Light sensor detects low light conditions and LCD lights up automatically when adapter is

connected

Power

•7.5 V AC/DC adapter for automatic remote control

•4 “AA” batteries

BATTERY INSTALLATION

•Open the battery compartment door on the back of the main unit.

•Insert 4 “AA” batteries according to the polarities shown and replace the battery compartment

door.

•Connect 7.5 V AC/DC adapter provided to the main display unit and plug into to the wall power

outlet.

NOTE: The AC/DC adaptor connection is required for automatic backlight control function. When the

main unit operates on battery power alone, the auto backlight control function is disabled.

•Connect the table stand to the back of main unit when placing on a table or other horizontal

surface.

•When mounting the main unit on the wall or vertical surface, detach the table stand and use the

mounting hardware provided.

Placement tips

•Make sure that the main unit is locating within the operating range of all remote weather sensors.

•Ideally the remote weather sensors should be mounted within the line-of-sight of the main unit.

•Transmission range may be affected by trees, metal structures and electronic appliances.

•Test reception before permanently mounting all the remote weather sensors.

Avoid placing the main unit in the following areas:

•Direct sunlight and surfaces emitting and radiating heat, such as heating ducts or air conditioners.

•Areas with interference from the wireless devices (such as cordless phones, radio headsets, baby

listening devices) and electronic appliances.

OPERATION

Once the main unit is powered, the display will show all available LCD segments for a moment.

IMPORTANT: All of the display functions will be locked, allowing setting your local altitude or sea level

pressure parameters.

The locked display will show the pressure and weather forecast icon and abbreviation “hPa/

mBar” flashing, indoor temperature and humidity readings and default time “12:00pm”.

BUTTONS AND CONTROLS

A. UP - Mode Selection: selects the next available mode counter-clockwise

- When programming: increases parameters

B. DOWN - Mode Selection: selects the next available mode clockwise

- When programming: decreases parameters

C. SET - Rotates display for current mode

- Press and hold: to enter the programming mode

- Locks in: set parameters

D. CHANNEL - Manually selects the channel # for receiving temperature and humidity

sensor data

- Enables the temperature and humidity channel auto-scan mode

E. MEMORY - Records: moon phase, temperature, humidity, rainfall and wind records.

Then stores in memory

- Moon phase: determined by the day of month interval

- Sets and stores pressure & altitude units in Memory

F. HISTORY - Allows displaying the sea-level pressure history

G. ALARM/CHART - Displays alarm times and programmed alerts for temperature,

rainfall and wind

- Press and hold, to enter the alarm/alert programming mode

- Press and hold in pressure and forecast window, to view different bar charts

H. LIGHT SENSOR - Sets the light sensor to: automatic, on or off

– AUTO, ON, OFF

I. SENSITIVITY - Adjusts the automatic light sensor sensitivity

– HIGH/LOW

J. LIGHT/SNOOZE - Illuminates the display backlight for 5 seconds

- Activates Snooze delay for alarms (programmable 1 to 15 minutes)

K. AC/DC ADAPTOR - Connects main unit to the power outlet through the AC to 7.5V DC adapter

INPUT provided

NAVIGATING THROUGH THE MODES

The main unit has five (5) different modes (windows) displaying separate data: Weather Forecast, Clock

& Alarm, Temperature and Humidity, Rain, and Wind. When a specific mode is selected the

corresponding icon begins flashing.

Press UP button to cycle through the modes clockwise or DOWN button for counter-clockwise.

PRESSURE AND WEATHER FORECAST WINDOW

Displays:

•Current pressure and history bar-chart

•Weather forecast

•Moon phase

CLOCK AND ALARMS WINDOW

Displays:

•US Atomic Time clock with time and calendar

•Single alarm, weekday alarm and ice warning alarm (pre-alarm)

TEMPERATURE AND HUMIDITY WINDOW

Temperature & Humidity are automatic features and no adjustments. IN or internal sensors reside

within the main unit. Readings for CH1, Ch2 or Ch3 are provided by external sensor transmitters.

Displays:

•Temperature and humidity readings for indoor and selected external channel

•Comfort level indication (Predetermined level)

•Dew point temperature (Predetermined level)

•High and Low temperature alerts (Predetermined level)

•Remote Thermo-Hygrometer sensor battery status

RAIN WINDOW

Displays:

•Precipitation amount for the last hour, day, yesterday, last week and last month

•Rainfall alert (User adjustable level setting)

•Remote rain gauge battery status

WIND WINDOW

Displays:

•Wind Chill temperature

•Temperature at place of anemometer

•Wind direction

•Wind speed

•Wind gust speed

•Alert for wind speed and wind gust speed (User Adjustable setting)

•Remote anemometer battery status

CUSTOMIZING YOUR WEATHER STATION

It is required to program:

•The pressure parameters during Initial Setup (See Pressure and Weather Forecast Mode P.15)

•The time, the date and the weekday language (Clock and Alarm Mode: P.17)

Optional:

•The time alarms (Clock and Alarm Mode: P.17)

•The temperature alerts (Temperature and Humidity Mode P.19)

•Daily rainfall alerts (Rain Mode P.21)

•Wind alerts (Winds Mode: P.22)

LED BACKLIGHT OPTIONS

The main unit backlight can be turned on, off or automatically toggled depending on the environment

light conditions. Use the light sensor switch at the back of the main unit to select a desired backlight

setting.

For the automatic backlight control, the sensitivity of the light sensor can be adjusted to high or low

using the switch, located on the back panel.

NOTE:For an automatic control function the main unit must be plugged into the wall power outlet via

the AC/DC adaptor provided.

USING DIFFERENT WEATHER MODES

PRESSURE AND WEATHER FORECAST MODE

It indicates the current barometric pressure, the sea level pressure, the weather forecast and the moon

phase.

A number of historical statistics can also be viewed, including the sea-level pressure for the past

24 hours, moon phase for the past and following 39 days, as well as a pressure/ temperature/ humidity

history bar-chart.

Pressure can be displayed inHg, hPa/mBar or mmHg, and altitude can be displayed in meters or feet.

(Altitude can be used to set or adjust barometric levels.)

ACCESSING PRESSURE AND WEATHER FORECAST MODE

From the main unit: Press UP or DOWN until the pressure and weather forecast icon

starts flashing.

SETTING PRESSURE PARAMETERS DURING INITIAL SETUP

IMPORTANT: During the main unit initial setup, after main unit powered up, all of the functions in

Pressure and Weather.

Forecast mode will be locked for a short time, until the pressure settings are confirmed. The locked

display will show the pressure and weather forecast icon and abbreviation “hPa/ mBar”flashing.

To correctly calibrate the sea level barometric pressure, you must program the correct local altitude.

•Store Units of Pressure: Press UP or DOWN button selecting the units of pressure in: inHg,

hPa/mBar or mmHg.

•Press SET to confirm and move to the altitude unit selection mode.

•Store Altitude Units: Press UP or DOWN button selecting the altitude unit in feet or meters.

•Press SET button to confirm and move to the altitude programming mode.

•Press UP or DOWN to adjust the local altitude. Press and hold either button for the “Rapid”

setting. (Local information is obtainable via GPS device or online services.)

•Press SET to confirm the programming.

VIEWING THE PRESSURE AND ALTITUDE INFORMATION

To view a pressure or altitude information, press SET button to alternate between the sea level

pressure, local pressure and local altitude settings.

SEA LEVEL PRESSURE SETTING

•Press SET button until the sea level pressure with “SEA LEVEL” is displayed.

•Press and hold SET until the pressure digits are flashing.

•Set the sea level pressure by pressing UP or DOWN buttons. Press and hold either button for

the quick digits advance.

•Press SET to confirm selection

CHANGING THE SEA LEVEL PRESSURE AND ALTITUDE UNIT

•Press SET until the local pressure with the word “SEA LEVEL” is displayed.

•Press and hold MEMORY until the pressure unit is flashing.

•Set the sea level pressure units by pressing the UP or DOWN buttons to adjust the pressure

value.

•Press MEMORY to confirm your selection.

•Press SET button until the local altitude value will be displayed

•Press and hold MEMORY until the altitude unit is flashing.

•Set the altitude unit in meters or feet by pressing the UP or DOWN .

•Press MEMORY to confirm your selection.

VIEWING THE SEA LEVEL PRESSURE HISTORY

•In all modes, press HISTORY button entering the sea level pressure display.

•When the SEA LEVEL is displayed, press HISTORY repeatedly viewing the sea level pressure

history for the past 24 hours in hour increments.

•If no buttons are pressed for 5 seconds, the unit will automatically return to the Pressure and

Weather Forecast Mode.

VIEWING THE PRESSURE, TEMPERATURE AND HUMIDITY BAR CHARTS

The bar chart in Pressure and Weather forecast window can be configured to display a historical data

for the sea level pressure and temperature or humidity for channel 1.

After selecting the Pressure and Weather Forecast Mode, press and hold ALARM/CHART button to

toggle the bar chart between the sea level pressure with a word “PRESSURE” displayed at the right

bottom corner of the chart, temperature with a thermometer icon and “CH1” and a humidity with

“RH” icon and “CH1”.

Viewing the Moon Phase History and Weather Forecast

•After selecting the Pressure and Weather Forecast Mode, press MEMORY, so “+ 0 days” is

flashing.

•Press UP or DOWN selecting from today’s date a future (+) or past (-) days and the

corresponding moon phase will be displayed. Press and hold either button for a quick advance.

•To exit, press MEMORY button.

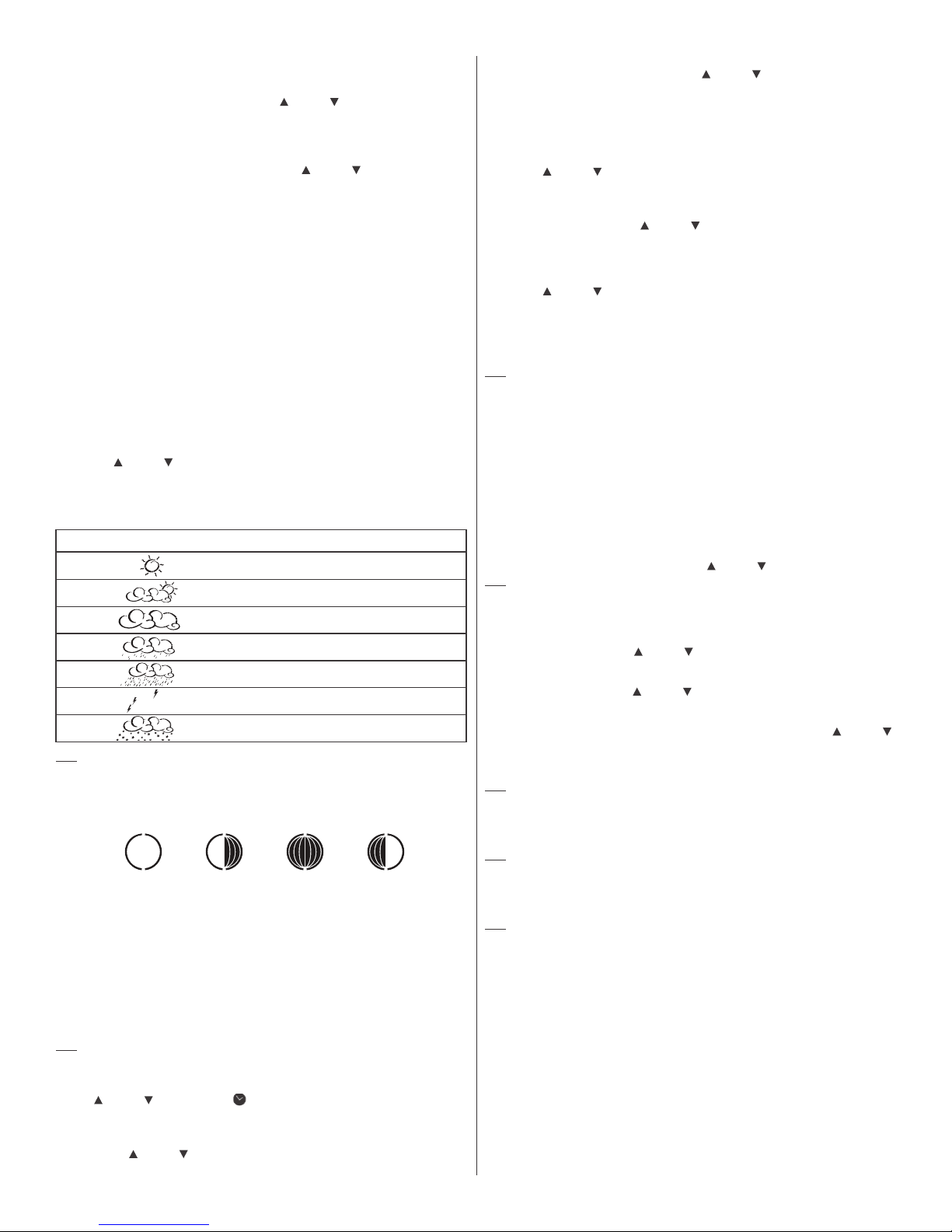

SEVEN UNIQUE WEATHER FORECAST DISPLAYS

Display Weather Forecast

Sunny

Partly Cloudy

Cloudy

Light Rain

Heavy Rain

Unstable Weather

Snow

NOTE:The weather forecast accuracy is approximately 70%.

Display shows forecasted, not current conditions. The SUNNY icon indicates clear weather, even when

displayed during the night-time.

UNDERSTANDING THE MOON PHASE DIAGRAM

CLOCK AND ALARM MODE

MANUAL SETTING

The main unit can be manually set to display the time, calendar or UTC time. There are three time

alarms available on the main unit: Weekday alarm (W), Single alarm (S) and Ice Warning Alarm (Pre-Al).

•If Weekday alarm is activated, it will sound at the set time and the alarm icon will flash Mondays

through Fridays.

•If Single day alarm is activated, it will sound at the set time and the alarm icon will flash only for

this specific day and will not activate on subsequent days.

•The Ice Warning Alarm is activated at programmed time interval (from 15 to 90 minutes) before

the weekday or single alarm, if channel 1 temperature falling to freezing and below.

NOTE:Ice Warning Alarm can be set only if one or both-Weekday or Single alarm are programmed.

The snooze duration for listed alarms can also be programmed up to 15 minutes.

ACCESSING CLOCK AND ALARM MODE

Press UP or DOWN until the clock icon next to the time/date display will flash.

Setting the time, date and language

•In the Clock and Alarm Mode, press and hold SET button until the day of week language

abbreviation “ENG” will flash.

•Press the UP or DOWN selecting the day of the week in English, German, French, Italian,

Spanish or Dutch.

•Press SET to confirm selection.

•Select the City Code for your area by pressing UP or DOWN . Refer to P.25 for a list of

available codes.

•Press SET to confirm the selection and enter to the latitude and longitude programming mode.

SETTING USR LATITUDE & LONGITUDE

If you selected the USR as a city code,

ou will be prompted to enter the latitude, longitude, Time

Zone and select Daylight Savings Time on or off.

•Press UP or DOWN to adjust the latitude. Press and hold down either button for quick digits

advance.

•Press SET to confirm the selection.

•Continue setting the longitude using the same steps.

•Set the Time Zone by pressing UP or DOWN to adjust the time in 30 min intervals. Press and

hold down either button for quick digits advance.

•Press SET to confirm selection.

If the USR was selected as a city code or your city is located in the Daylight Savings zone you would

need to set the Daylight Saving Time Option:

•Press UP or DOWN to enable of disable the DST option. Press and hold either button for

quick digits advance.

•Press SET to confirm selection.

•Continue setting the year, month, day, calendar format (day/month or month/day), time format

(12 or 24 hours), local hour and minutes, using the same steps.

After programming is complete the display will return to the default Clock and Alarm Mode.

NOTE:Press and hold SET anytime during the setup to return to normal Clock and Alarm Mode. All

previous settings will be cancelled.

DIFFERENT CLOCK AND CALENDAR DISPLAYS

In the Clock and Alarm Mode press SET selecting either:

•Hour and Minutes with the Day of the week

•Hour and Minutes for UTC (Coordinated Universal Time)

•Hour and Minutes with the City abbreviation

•Hour and Minutes with the Seconds

•Month with the day and a year. Or day with month and a year.

ENABLING OR DISABLING THE TIME ALARMS

•Press the ALARM/CHART to display the Weekday Alarm. If these alarms are not set, the

abbreviation OFF will be displayed.

•To enable or disable any of these alarms, press UP or DOWN .

NOTE:Press SET anytime during alarm selection mode to return to the default clock display.

PROGRAMMING TIME ALARMS

•In the Clock and Alarm Mode, press the ALARM/CHART selecting the desired alarm.

•Press and hold ALARM/CHART button until the hour digit will flash

•Set the alarm hour using the UP or DOWN . Press and hold either button for quick digit

advance.

•Press ALARM/CHART to confirm selection.

•Set the alarm minutes using UP or DOWN . Press and hold either button for quick digit

advance.

•Press ALARM/CHART to confirm selection.

•Set a Snooze interval (all three alarms share same snooze time duration) using UP or DOWN .

Press and hold either button for quick digit advance.

•Press ALARM/CHART to confirm your selection.

After programming is completed, the display will return to the alarm selection screen.

NOTE:Pre-alarm (Ice Warning Alarm) can be set only if the weekday alarm or single alarm is enabled.

DISABLING OR ENABLING SNOOZE FUNCTION

To enable a snooze function press LIGHT/SNOOZE button. Snooze duration is programmable and can

set: from 1 to 15 minutes.

NOTE:When the alarm sounds for 2 minutes the clock will automatically Snooze if no buttons are

pressed. This will occur for three consecutive snooze cycles.

TO DISABLE ALARM(S):

Press ALARM/CHART to disable the alarm (s).

NOTE:For weekday alarm, pressing ALARM/CHART will only disable the alarm for the current day.

The alarm will activate again on the next day, Monday through Friday.

ATOMIC TIME RECEPTION

The main unit synchronizes the time and date with WWVB radio clock broadcasts maintaining the

atomic time precision.

WWVB RADIO CONTROLLED TIME

The NIST (National Institute of Standards and Technology) radio station (WWVB) is located in Ft. Collins,

Colorado. It transmits an exact time signal continuously throughout the most of the continental United

States at 60 KHz frequency. The Atomic Time Clock in your weather station can receive this WWVB

signal through the internal antenna from up to 2,000 miles away. Due to the nature of the Earths

ionosphere, reception can be limited during the daylight hours. The radio controlled clock will search

for an alternate station that receives the atomic time signal from the NIST Atomic clock in Boulder,

Colorado.

The WWVB tower icon on the unit’s display will flash indicating a radio signal reception from the WWVB

station. If the tower icon is not fully lit, or if the time and date are not set automatically, please consider

the following:

FIRSTNEWLASTFULL

•During night-time hours, atmospheric disturbances are typically less severe and radio signal

reception may improve. A single daily reception is sufficient enough to keep the clock accuracy

within 1 second.

•Make sure the unit is positioned at 8 feet (2 meters) distance from any interference source such

as a TV, computer monitor, microwave, etc.

•Within concrete wall rooms such as basements or office buildings, the received signal may be

weakened. Always place the Projection Clock near the window for better reception.

Once the atomic time signal is received, the date and time will be set automatically, and the icon

will appear.

After the clock is set manually, place the main unit by the window for the better reception. The atomic

clock receiver is programmed that it will continue to search for the atomic time signal daily for every

hour between 1:00 am and 4:30 am.

Once the time signal has been successfully received, the time and date will be updated automatically.

To enable or disable the atomic time receiver:

•Press and hold UP - if atomic time reception is activated, a triangular tower icon will start

flashing next to the clock icon. If reception is disabled, the triangular tower icon will disappear.

Icon Atomic Time Reception Strength

(Flashing) Undefined data

(no circle) Reception failed for 24 hours

(one circle) Weak signal, but can be decoded

Strong signal

TEMPERATURE AND HUMIDITY MODE

The weather station supports up to 3 remote thermo hygrometers corresponding to a separate channel

of the temperature and relative humidity display. The temperature can be displayed in Celsius (ºC) or

Fahrenheit (ºF).

The main unit carries the temperature and humidity sensor and uses this indoors data to calculate an

indoors comfort level - Wet, Comfort or Dry.

A temperature alert function is available for each channel. It can be programmed to sound if the

channel temperature exceeds or falls below the pre-set upper and lower limit.

NOTE:The temperature alerts have a 0.5 ºC deviation to prevent them from sounding due to small

temperature fluctuations that are close to the set alert value. This means that after the

temperature reaches the alert temperature, it will have to fall below the alert temperature plus

the deviation (0.5°C) to activate the alert.

ACCESSING TEMPERATURE AND HUMIDITY MODE

From the main unit: Press UP or DOWN until the IN icon on the upper right will flash.

VIEWING TEMPERATURE AND HUMIDITY FOR EACH CHANNEL

Static Display:

In Temperature and Humidity Mode, press the CHANNEL button to recall a different channel.

Channel Auto-Scan Display:

To enable automatic scan of the different channels, press and hold CHANNEL, until the icon is

displayed. Each valid channel will be alternately displayed with a 5 seconds delay.

RECALLING OF TEMPERATURE AND DEW POINT DISPLAYS

In Temperature and Humidity Mode press the SET button to recall temperature and relative humidity

or dew point and relative humidity.

SET THE TEMPERATURE IN CELSIUS OR FAHRENHEIT.

(Does not affect Wind Chill)

In Temperature and Humidity Mode, press and hold SET to toggle the temperature in Celsius (ºC) or

Fahrenheit (ºF).

ACTIVATING/DEACTIVATING THE TEMPERATURE ALERTS

In Temperature and Humidity Mode, press the ALARM/CHART to recall a current temperature for the

corresponding channel, the upper temperature alert with icon (if disabled, displays OFF), or lower

temperature alert with icon (if disabled, displays OFF).

Once the above alerts are displayed, press the UP or DOWN to enable or disable the

corresponding alert.

PROGRAMMING THE TEMPERATURE ALERTS

•In the Temperature and Humidity Mode, press ALARM/CHART selecting the desired alarm.

•Press and hold ALARM/CHART button until the remote temperature and or icon starts

flashing.

•Adjust the temperature digits for the Temperature Alert using the UP or DOWN . Press and

hold either button for fast digits advance.

•Press the ALARM/CHART to confirm selection and return to the temperature alert selection screen.

DISABLING TEMPERATURE ALARM(S)

In the Temperature & Humidity Mode press the ALARM/CHART to disable the alarm(s).

VIEWING THE MAX/MIN CHANNEL TEMPERATURE AND HUMIDITY

In the Temperature & Humidity Mode press the MEMORY button to recall a current temperature and

humidity, minimum temperature and humidity or maximum temperature and humidity at the remote

location.

RESETTING THE REMOTE TEMPERATURE AND HUMIDITY MEMORY

In the Temperature and Humidity Mode, press and hold MEMORY button to clear memory for all

channels.

REMOTE SENSOR STATUS

The wave icon above the current channel display shows the connection status of the corresponding

remote sensor:

Icon Status

Searching for the signals from the remote sensor

Corresponding remote sensor signal received successfully

No signals received for over 15 minutes

ALL REMOTE SENSOR SIGNALS SEARCH ACTIVATION

The main unit can be manually activated to search for the signals from all remote sensors. Press and

hold DOWN button to enable the search.

RAIN MODE

The main unit records the total amount of the rainfall for the last hour, 24 hours, past day, past week

and the past month. The rainfall can be displayed in mm or inches.

There is a daily rainfall alert that can be programmed in the unit if the daily rainfall exceeds a

pre-programmed limit.

ACCESSING RAIN MODE

From the main unit: Press UP or DOWN until the RAIN icon on the display starts flashing.

VIEWING RAIN STATISTICS

In the Rain Mode, press either SET or MEMORY button to recall a rain statistics for the past hour,

past 24 hours, yesterday, past week or past month.

TIP: For the rain rate estimate the Last Hour rainfall value is understood as “inch/hr” or “mm/hr”.

RESETTING THE RAINFALL STATISTICS MEMORY

In the Rain Mode, press and hold MEMORY to reset all rainfall statistics.

SETTING UNITS FOR THE RAIN DISPLAY IN INCHES OR MM

In the Rain Mode, press and hold SET button to toggle rainfall data units between mm and inches.

ENABLING OR DISABLING THE DAILY RAINFALL ALERT

•In the Rain Mode press the ALARM/CHART to display either the current rainfall statistics or the

daily rainfall alert with “ALARM HI” displayed.

•If the alert is disabled, the “OFF” will be displayed; otherwise the rainfall alert value will be shown.

•When the rainfall alert is displayed, press the UP or DOWN to enable or disable it.

SETTING UP THE DAILY RAINFALL ALERT

•In the Rain Mode, press ALARM/CHART to display the rainfall alert.

•Press and hold ALARM/CHART until the rainfall alert “ALARM HI” will flash.

•Set the desired value for the Rainfall Alert by using the UP or DOWN . Press and hold either

button for fast digits advance.

•Press ALARM/CHART to confirm selection and the unit will return to the rainfall alert display.

DISABLING THE DAILY RAINFALL ALERT

In the Daily Rainfall Alert Mode press the ALARM/CHART to disable the alert.

WIND MODE

The wind direction is shown by an animated compass display. Its angle can be displayed as compass

points (i.e. NW) or in bearings starting from north (i.e. 22.5º).

The upper left section of the wind mode can be programmed to display either a temperature at the

place of anemometer or the temperature adjusted to the wind chill factor.

The lower left section of the wind mode indicates the average wind speed for the past 10 minutes, as

well as gust, wind speed alert and gust alert information. It can also show records of the maximum

wind speed and wind gust collected during the day.

The wind speed and gust alert functions can be programmed to alert you if the wind speed or gust

exceeds a pre-configured limit. The wind speed can be displayed in km/h, mph, m/s or knots.

NOTE:The wind speed alert has a 5 mph deviation and the wind gust speed alert has a 7 mph

deviation. It is set to prevent the alerts from sounding all the time due to small fluctuations close

to the alert value. This means that after the wind speed reaches the alert value, it will have to fall

below the alert value plus deviation to activate the alert.

ACCESSING WIND MODE

From the main unit: Press UP or DOWN until the icon on the display starts flashing.

CONFIGURING WIND DISPLAY

In the Wind Mode press the SET button to recall either a wind chill temperature with wind direction in

bearings, a wind chill temperature with a wind direction in compass points, a temperature at

anemometer and wind direction in compass points or a temperature at anemometer and wind direction

in bearings.

SETTING UNITS FOR THE WIND SPEED IN KM/H, MPH, M/S OR KNOTS

In the Wind Mode, press and hold SET to set the wind speed units in km/h, mph, m/s or knots.

VIEWING WIND STATISTICS

In the Wind Mode, press the MEMORY button to recall a current wind speed, a daily maximum wind

speed with “DAILY MAX” displayed, a gust speed with a “GUST” displayed and a daily maximum gust

speed with a “GUST DAILY MAX” displayed.

RESETTING THE WIND STATISTICS MEMORY

In the Wind Mode, press and hold MEMORY to reset all wind statistics.

ENABLING OR DISABLING THE WIND ALERTS

In the Wind Mode press the ALARM/CHART to recall a current wind speed, a wind speed alert with the

“ALARM HI” displayed or gust alert with the “GUST ALARM HI” displayed.

If the alert is disabled, “OFF” will be displayed; otherwise the alert value is shown.

When a wind alert is displayed, press the UP or DOWN to activate or deactivate it.

WIND ALERTS PROGRAMMING

•In the Wind Mode, press ALARM/CHART to select the desired alarm.

•Press and hold ALARM/CHART button until alert and corresponding icon will flash.

•Set the alert using the UP or DOWN . Press and hold either button for fast digits advance.

•Press ALARM/CHART to confirm your selection and return to the wind alert selection screen.

DISABLING THE WIND ALERT

To disable wind alert press ALARM/CHART.

MAINTENANCE

Changing Batteries

The battery status of each weather sensor is checked every hour. If the low battery indicator lights up,

replace the batteries in the corresponding unit.

Changing Batteries in the Main Unit

•First connect the AC/DC adaptor provided to the main unit to avoid losing any data.

Remove the battery compartment door on the back and replace all batteries. Do not mix old and

new batteries.

•Replace the battery compartment door.

Changing Batteries in Remote Weather Sensors

•Replace the batteries following the setup instructions for the corresponding sensor.

•When the batteries are properly installed, the remote weather sensor will resume sending signals

to the main unit.

•To enforce an immediate remote signals search, press and hold DOWN on the main unit.

Cleaning

The main unit and outer casings of the remote weather sensors can be cleaned with a damp cloth.

Small parts can be cleaned with a cotton tip or pipe-cleaner.

Never use any abrasive cleaning agents and solvents. Do not immerse any units with electronic parts in

water or under running water.

Anemometer

Check if the wind vane and wind cups can spin freely and are free from dirt, debris and spider webs.

Rain Gauge

Checking and cleaning the rain sensor in a timely manner will maintain an accuracy of the precipitation

measurements.

•Detach the protective screen and lid.

•Clean with soapy water and a damp cloth, removing dirt, leaves or debris

•Clean small holes and parts with Q-tips or pipe-cleaner.

•Watch out for spiders or insects that might have crawled into the funnel.

•Clean the swinging mechanism with a damp cloth.

TROUBLESHOOTING

Q: “The display shows dashes “---” for weather parameter(s)”

A: The display will show “- - -” when the wireless connection with the remote sensor is lost for the

following periods:

Thermo-Hygrometer: 15 minutes

UV Sensor: 30 minutes

Anemometer (Wind Sensor): 15 minutes

Rain Gauge (Rain Sensor): 30 minutes

Check or replace the batteries for the corresponding sensor. Then press and hold DOWN on the main

unit or handheld remote to enforce a search for all remote signals.

If this does not work, check the wireless transmission path from the corresponding weather sensor to

the main unit and change their locations if necessary.

Although wireless signals can pass through solid objects and walls, the weather sensor should ideally

be within the line of sight of the main unit.

The following may be the cause of reception problems:

•The remote weather sensor and a main unit are too far from each other.

•The signal shielding materials, such as metal surfaces, concrete walls or dense vegetation, are

in the path of transmission.

•There is interference from the wireless devices (such as cordless phones, radio headsets and

baby listening devices) and electronic appliances.

Q: “The weather readings on my weather station are different from the TV, radio or official weather

reports.”

A: The weather data may vary considerably due to different environmental conditions and placement

of the weather sensors.

Check the placement tips included in this manual to site your weather sensors in the best possible way.

Q: “The weather forecast is inaccurate.”

A: The weather forecast predicts the weather for the next 12 to 24 hours, and does not reflect

current weather conditions.

PRECAUTIONS

This product is engineered to give you years of satisfactory service if handled carefully. Here are a few

precautions:

•Do not immerse the units in water.

•Do not clean the units with abrasive or corrosive materials. They may scratch the plastic parts and

corrode the electronic circuits.

•Do not subject the product to excessive force, shock, dust, temperature, or humidity, which may

result in malfunctions, shorter lifespan, damaged batteries, and damaged parts.

•Do not tamper with the product’s internal components. Doing so will invalidate the warranty and

may cause damage. The product contains no user-serviceable parts.

•Use only fresh batteries. Do not mix new and old batteries.

•Read the user's manual thoroughly before operating the product.

APPENDIX-CITY CODES

City codes are used for presetting setting Latitude and Longitude. These codes affect time zones and

DST settings.

US AND CANADIAN CITIES

City Code Zone DST City Code Zone DST

Offset Offset

Atlanta, Ga. ATL -5 SU Memphis, Tenn. MEM -6 SU

Austin, TX AUS -6 SU Miami, Fla. MIA -5 SU

Baltimore, Md. BWI -5 SU Milwaukee, Wis. MKE -6 SU

Birmingham, Ala. BHM -6 SU Minneapolis, Minn. MSP -6 SU

Boston, Mass. BOS -5 SU Montreal, Que., Can. YMX -5 SU

Calgary, Alba., Can. YYC -7 SU Nashville, Tenn. BNA -6 SU

Chicago, IL CGX -6 SU New Orleans, La. MSY -6 SU

Cincinnati, Ohio CVG -5 SU New York, N.Y. NYC -5 SU

Cleveland, Ohio CLE -5 SU Oklahoma City, Okla. OKC -6 SU

Columbus, Ohio CMH -5 SU Omaha, Neb. OMA -6 SU

Dallas, Tex. DAL -6 SU Ottawa, Ont., Can. YOW -5 SU

Denver, Colo. DEN -7 SU Philadelphia, Pa. PHL -5 SU

Detroit, Mich. DTW -5 SU Phoenix, Ariz. PHX -7 NO

El Paso, Tex. ELP -7 SU Pittsburgh, Pa. PIT -5 SU

Houston, Tex. HOU -6 SU Portland, Ore. PDX -8 SU

Indianapolis, Ind. IND -5 NO San Antonio, Tex. SAT -6 SU

Jacksonville, Fla. JAX -5 SU San Diego, Calif. SAN -8 SU

Las Vegas, Nev. LAS -8 SU San Francisco, Calif. SFO -8 SU

Los Angeles, Calif. LAX -8 SU San Jose, Calif. SJC -8 SU

Seattle, Wash. SEA -8 SU Vancouver, B.C., Can. YVR -8 SU

St. Louis, Mo. STL -6 SU Washington, D.C. DCA -5 SU

Tampa, Fla. TPA -5 SU Vancouver, Canada VAC -8 SU

Toronto, Ont., Can. YTZ -5 SU

Milan, Italy MIL 1 SE

Montevideo, Uruguay MVD -3 SM

Moscow, Russia MOW 3 SK

Munich, Germany MUC 1 SE

Nairobi, Kenya NBO 3 NO

Nanjing (Nanking), China NKG 8 NO

Naples, Italy NAP 1 SE

New Delhi, India DEL 5.5 NO

Odessa, Ukraine ODS 2 SE

Osaka, Japan KIX 9 NO

Singapore, Singapore SIN 8 NO

Sofia, Bulgaria SOF 2 SE

Stockholm Arlanda, Sweden ARN 1 SE

Sydney, Australia SYD 10 SA

Tokyo, Japan TKO 9 NO

Tripoli, Libya TRP 2 NO

Vienna, Austria VIE 1 SE

Warsaw, Poland WAW 1 SE

Zürich, Switzerland ZRH 1 SEA

WORLD CITIES

City Code Zone DST City Code Zone DST

Offset Offset

Addis Ababa, Ethiopia ADD 3 NO Cairo, Egypt CAI 2 sg

Adelaide, Australia ADL 9.5 SA Calcutta, India

(as Kolkata)

CCU 5.5 NO

Algiers, Algeria ALG 1 NO Cape Town, South Africa CPT 2 NO

Amsterdam, Netherlands AMS 1 SE Caracas, Venezuela CCS -4 NO

Ankara, Turkey AKR 2 SE Chihuahua, Mexico CUU -6 SU

Asunción, Paraguay ASU -3 sp Copenhagen, Denmark CPH 1 SE

Athens, Greece ATH 2 SE Córdoba, Argentina COR -3 NO

Bangkok, Thailand BKK 7 NO Dakar, Senegal DKR 0 NO

Barcelona, Spain BCN 1 SE Dublin, Ireland DUB 0 SE

Beijing, China BEJ 8 NO Durban, South Africa DUR 2 NO

Belgrade, Yugoslavia BEG 1 SE Frankfurt, Germany FRA 1 SE

Berlin, Germany BER 1 SE Glasgow, Scotland GLA 0 SE

Birmingham, England BHX 0 SE Guatemala City, Guatemala GUA -6 NO

Bogotá, Colombia BOG -5 NO Hamburg, Germany HAM 1 SE

Bordeaux, France BOD 1 SE Havana, Cuba HAV -5 SH

Bremen, Germany BRE 1 SE Helsinki, Finland HEL 2 SE

Brisbane, Australia BNE 10 NO Hong Kong, China HKG 8 NO

Brussels, Belgium BRU 1 SE Irkutsk, Russia IKT 8 SK

Bucharest, Romania BBU 2 SE Jakarta, Indonesia JKT 7 NO

Budapest, Hungary BUD 1 SE Johannesburg, South Africa JNB 2 NO

Buenos Aires, Argentina BUA -3 NO Kingston, Jamaica KIN -5 NO

Kinshasa, Congo FIH 1 NO Oslo, Norway OSL 1 SE

Kuala Lumpur, Malaysia KUL 8 NO Panama City, Panama PTY -5 NO

La Paz, Bolivia LPB -4 NO Paris, France PAR 1 SE

Lima, Peru LIM -5 NO Perth, Australia PER 8 NO

Lisbon, Portugal LIS 0 SE Prague, Czech Republic PRG 1 SE

Liverpool, England LPL 0 SE Rangoon, Myanmar RGN 6.5 NO

London, England LON 0 SE Reykjavík, Iceland RKV 0 NO

Lyon, France LYO 1 SE Rio de Janeiro, Brazil RIO -3 sb

Madrid, Spain MAD 1 SE Rome, Italy ROM 1 SE

Manila, Philippines MNL 8 NO Salvador, Brazil SSA -3 NO

Marseille, France MRS 1 SE Santiago, Chile SCL -4 sc

Melbourne, Australia MEL 10 SA São Paulo, Brazil SPL -3 sb

Mexico City, Mexico MEX -6 SU Shanghai, China SHA 8 NO

DST (DAYLIGHT SAVINGS TIME) DEFINITIONS:

SA = Australian DST.

SB = South Brazilian DST. Changes annually.

SC = Chile DST

SE = Standard European DST.

SG = Egypt DST

SH = Havana, Cuba DST

SI = Iraq and Syria DST

SK = Irkutsk & Moscow DST

SM = Montevideo, Uruguay DST

SPECIFICATIONS

Radio Frequency: 433 MHz

RF Reception range: 100-328 feet (30 -100 m)

Barometric Pressure

Measuring Range: 14.75 inHg to 32.44 inHg (500 Hpa to 1100Hpa); (374.5 mmHg to 823.8 mmHg)

Resolution: 0.003 inHg (0.1 Hpa, 0.08 mmHg)

Accuracy: 0.015 inHg (5 Hpa; 0.38 mmHg)

Sampling interval: 20 minutes

Altitude Compensation Range: -657 ft to 16404 ft (-200m to +5000 m)

Temperature (Indoor)

Operating Range: 14.2° to 140°F (-9.9° to 60°C)

Resolution: 0.2°F (0.1°C)

Accuracy: 2°F (1°C)

Sampling Interval: 10 seconds

Humidity (Indoor)

Operating Range: 0% to 99%

Resolution: 1%

Accuracy: 5%

Sampling Interval: 10 seconds

Wind Direction

Range: 0° to 360°

Resolution: 22.5°

Accuracy: 11.25°

Starting Threshold: 3mph (4.8 Km/h)

Transmitting interval: 33 seconds

Rainfall

1h/24h/yesterday range: 0 to 78.73 inch

(0 to 1999.9 mm)

Last week/ last month range: 0 to 787.3 inch

(0 to 19999 mm)

Resolution: 0.03 inch (0.6578 mm)

Accuracy: +/- 5% +/- 0.03 inch

(+/-5%mm +/-0.6875)

Transmitting Interval: 183 seconds

Battery life (alkaline)

Main unit: 2 month

Thermo-Hygrometer: over 12 months

Anemometer: 2 years

Rain Gauge: 2 years

Dimensions

Main unit: 7.31 (L) x 5.39 (H) x 1.26 (D) inches / 185.8 (L) x 136.9 (H) x 32 (D) mm

Remote Thermo - Hygrometer: 2.37 (L) x 4 (H) x 1 (D) inches / 60 (L) x 101 (H) x 25 (D) mm

Remote Anemometer: 19.16 (L) x 19.16 (H) x 15.35 (D) inches / 486.6 (L) x 486.6 (H) x 390 (D)mm

Remote Rain gauge: 6.49 (L) x 6.89 (H) x 4.72 (D) inches / 165 (L) x 175 (H) x 119 (D)mm

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause undesired operation.

Warning: Changes or modification to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE:This equipment had been tested and found to comply with the limits for a Class B Digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment, installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

There is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to improve or correct turning the interference by one or

more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver.

•Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio / TV technician for help.

SN = Namibia DST

SP = Paraguay DST

SQ = Iran DST maybe changed annually.

ST = Tasmania DST

SU = Standard American DST.

SZ = New Zealand DST

NO DST = no = Places that do not observe DST;

ON = Always add 1 hour to the local standard time

Temperature (remote)

Range: -40° to 176°F (-40° to 80°C)

Resolution: 0.2°F (0.1°C)

Accuracy: 2°F (1°C)

Transmitting Interval: around 47 seconds

Humidity (Outdoor)

Operating Range: 0% to 99%

Resolution: 1%

Accuracy: 5%

Sampling Interval: 10 seconds

Transmitting Interval: around 47 seconds

Wind Speed

Range: 0 to 199.9mph

(199.9 Km/h, 173.7 Knots, 89.3 m/s)

Resolution: 0.1mph (0.16 Km/h)

Accuracy: (2mph + 5%)

Starting Threshold: 3mph (4.8 Km/h)

Wind/Gust Speed Display Update Interval:

33 seconds

Wind/Gust Sampling Interval: 11 seconds

Power

Main unit: 4 x UM-3 or “AA” batteries;

7.5V AC/DC power adaptor

(200mA; center pin positive)

Remote Thermo Hygrometer:

2 x UM-3 or “AA” batteries

Remote Anemometer: 2 x UM-3 or “AA” batteries

Remote Rain Gauge: 2 x UM-3 or “AA” batteries

Weight (without batteries)

Main unit: 8.15oz (231g)

Remote Thermo-Hygrometer: 2.29oz (65g)

Remote Anemometer: 11.12oz (315g)

Remote Rain gauge: 10.24oz (290g)

Indice

Altri manuali Omega Stazione meteorologica

Omega

Omega WMS-16 Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
