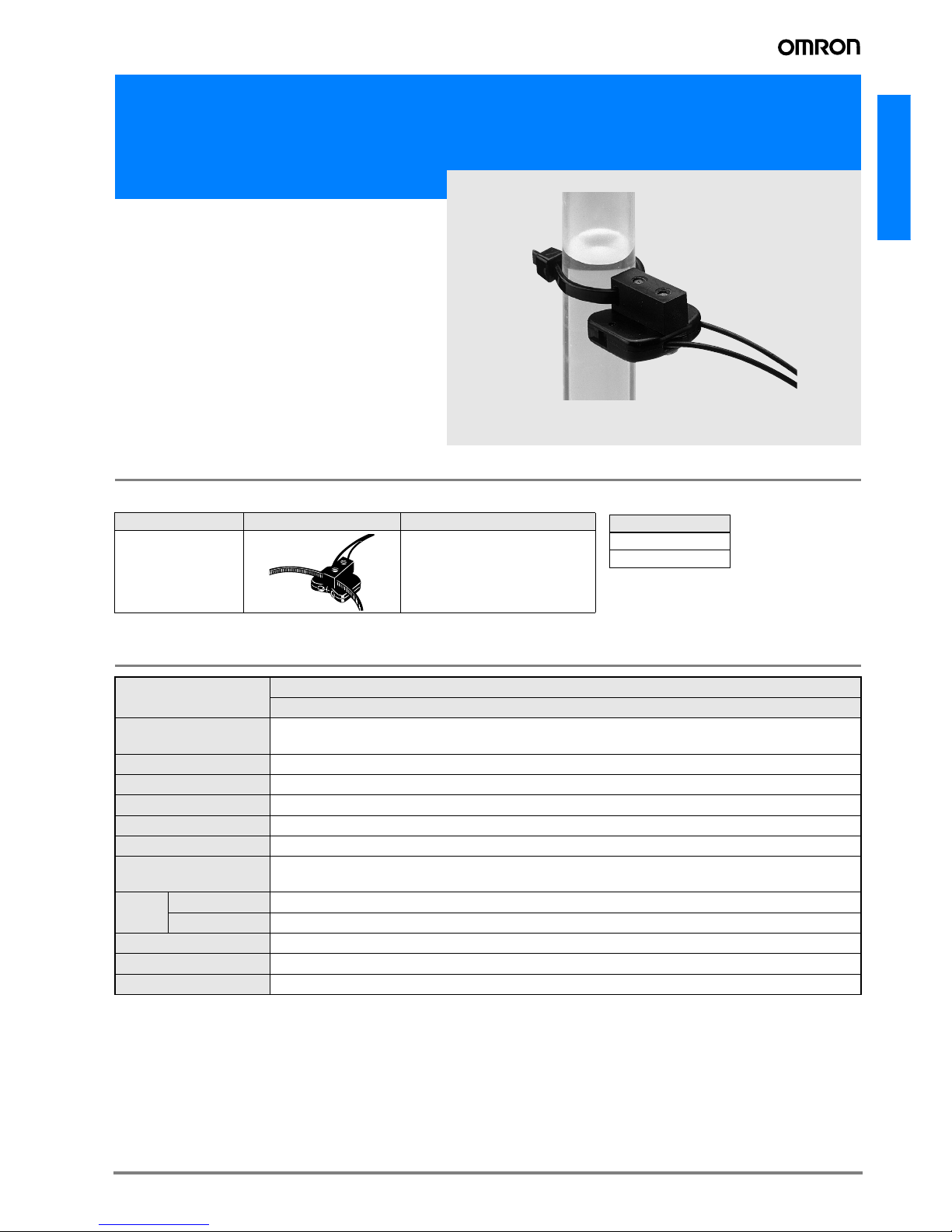

E32-L25T

A-365E32-L25T

Fluid level sensor (fiber pipe type)

E32-L25T

For installation of thin pipe (thick-

ness of 10 mm) that can be used

even in combustible atmospheres

●Easy post-installation on unit or pipe using band.

●Affordable pricing makes a big contribution to cost

reduction when upgrading equipment.

●Thin pipe of thickness = 10 mm. Contact mounting is

possible to enable detection of level differences to a

minimum of 4 mm.

●Can also be used in combustible atmospheres.*

* Plastic is used in the lens, unit case, and fiber coating. Avoid contact

with solvents as these will cause corrosion and deterioration (cloud-

ing).

Ordering Information

Rating/performance

Fiber Units

Sensor type Shape Model

Reflective model E32-L25T

Applicable amplifier unit

Model

E3X-DA-N

E3X-NA

Sensing method Reflective model

Item Model E32-L25T

Clamping pipe

(outer diameter) Transparent pipe, 8 mm to 10 mm dia. (6 mm to 8 mm inner diameter)*1

Applicable pipe material Transparent pipe (FEP or with equivalent transparency)

Sensing object Fluid *2

Repetition precision 1 mm max.

Ambient temperature Operating/storage: -40 to +70°C (no ice formation or condensation)

Ambient humidity Operating: 35% to 85% RH, Storage: 35% to 95% RH (with no icing or condensation)

Permissible bending

radius 10 mm min.

Material Sensors Polycarbonate

Fiber Plastic (polyethylene coating)

Protective structure IEC 60529 IP50

Weight (Packed state) Approx. 10 g

Accessories Band, anti-reflection sheet, fiber cutter

*1. The E32-L25T6 for a 6 mm dia. transparent pipe is also available. The model type is E32-L25T6.

*2. When using an opaque fluid, test detection with the unit before using.

A-366 Advanced Photoelectric Sensors

Principle of operation

Precautions

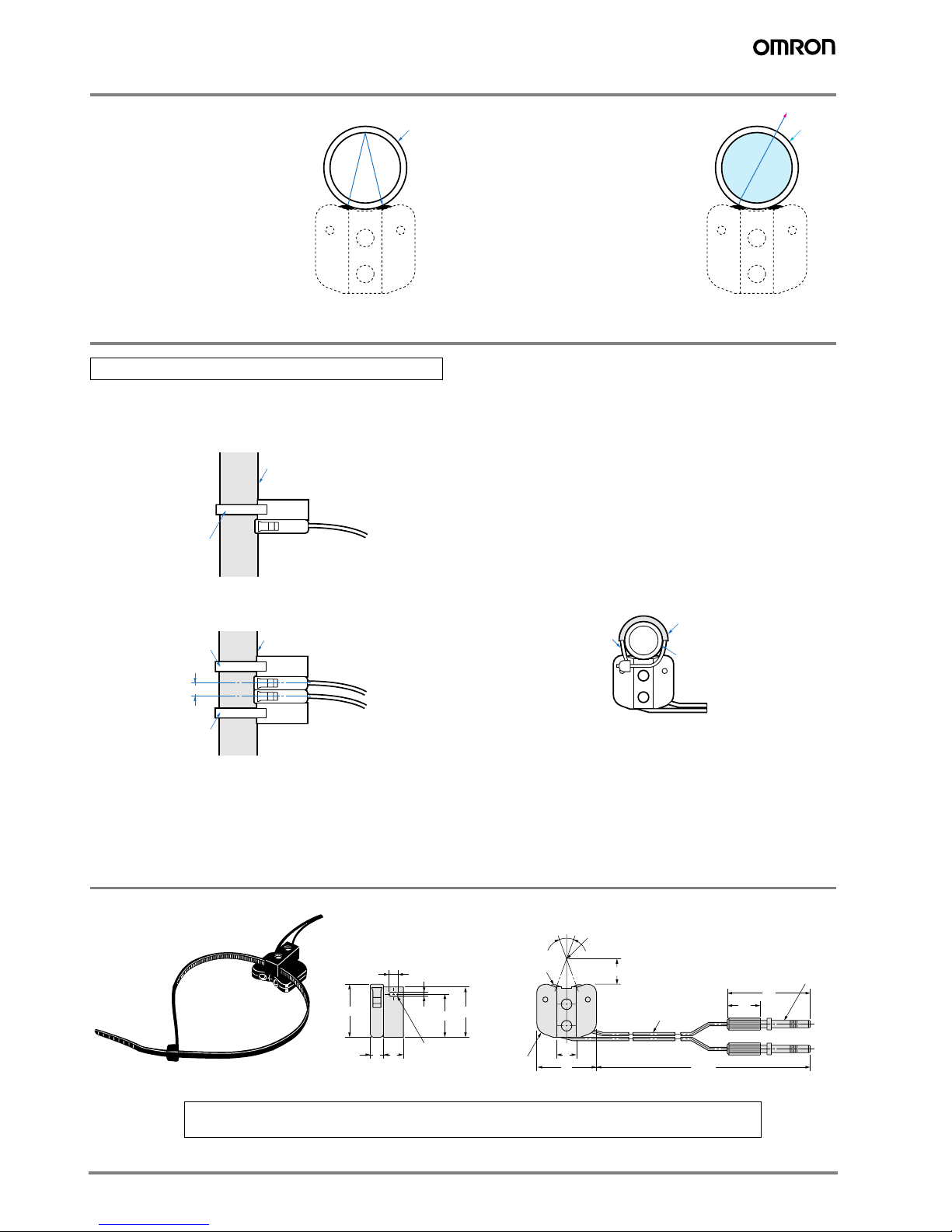

Dimensions (Unit: mm)

PipePipe

Emitter

Receiver

Emitter

Receiver

Fluid

If there is detection fluid, set so that

dark state is effective.

No fluid

If no detection fluid, light state.

Installation

• If only the Fiber Unit is installed, proceed according to the fol-

lowing basic procedure.

• Detection of level differences to a minimum of 4 mm is pos-

sible with the following installations.

• Do not expose the fiber unit to undo forces such as pulling

or compression (no more than 0.1 Nm).

• The bending radius of the fiber unit should be no less than the

allowed bending radius (both rated and performance).

• When securing with the band, take care that the fiber is not de-

formed.

• If an opaque pipe is used, this may result into incorrect opera-

tion.

• Water drops, air bubbles, or clouding in the pipe may cause in-

correct operation.

• If the background exerts an effect, use the anti-reflection

sheet (accessory) (see the diagram below). The anti-reflec-

tion sheet also serves to prevent shifting due to fiber unit vi-

bration.

Miscellaneous

Polycarbonate is used in the case. Do not allow contact with

chemicals such as alkalis, aromatic hydrocarbon, or chloro-al-

iphatic hydrocarbon, as these will dissolve the case.

Correct Use

E32-L25T

Binding band

Pipe

4mm

E32-L25T

Binding band

Binding band Pipe Binding band

Antireflection sheet

Pipe

E32-L25T

Sensing head (PC)

Mounting holes

15.2

(13)

1.2

2.8

18 2,000

Two, fiber attachment E39-F9

Optical fiber two, 1 dia.

7.63

40˚

Lens Two, 3.2 dia. (PC)

Optical axis

E32

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. E03E-EN-01
