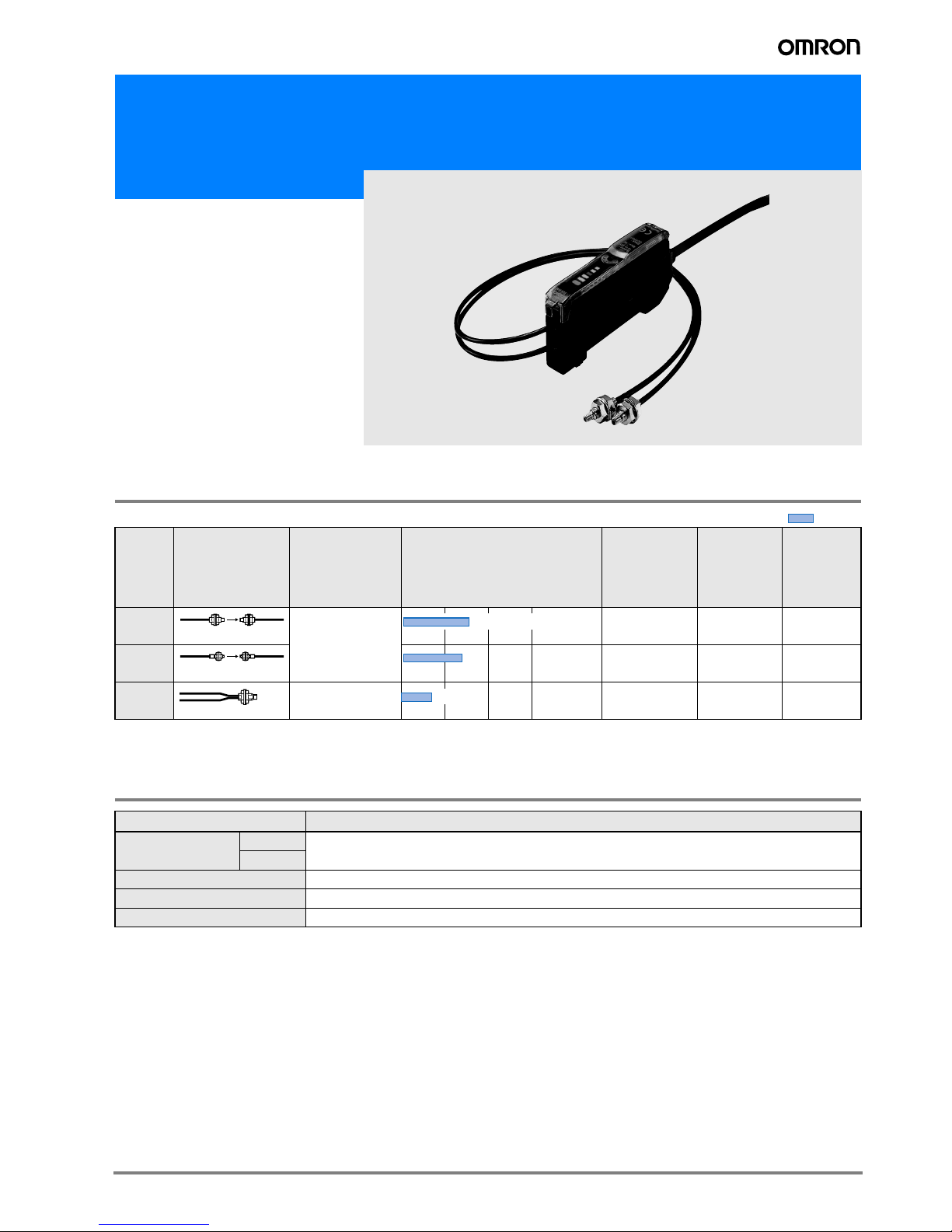

1E32-@C200 + E3X-NA@V

Ultra-miniature cylindrical photoelectric sensors

E32-@C200 + E3X-NA@V

• Ultra miniature M3, M4 or M6 size for

demanding mounting condition

• Through-beam and diffuse reflective

models

• Plug & Play connection for quick in-

stallation and setup

• High protection amplifier with manual

adjuster for simple adjustment

Sensing Distance

Rating/Performance

Size Shape Type Sensing distance (mm) *1

(Parentheses: With E39-F1 Lens

Unit)

Standardobject

(min. sensing

object*2)

(Parentheses:

Opaque object)

Model Permissible

bending

radius

M4 Through-beam 1.0 mm ø

(0.03 mm ø)

E32-TC200 25 mm

M3 1.0 mm ø

(0.03 mm ø)

E32-TC200A 25 mm

M6 Diffuse reflective 200x200

(0.01 mm ø)

E32-DC200 25 mm

*1. Sensing distance based on white paper.

*2. Indicates values for standard mode.

Item E32-@200

Ambient temperature

Operation -40°C to 70°C (with no icing or condensation)

Storage

Admissible bending radius 25 mm min.

Fiber sheath material Black polyethylene

Protective structure IEC 60529 IP67

Red light

M4 screw

400 (3,000)

M3 screw

360

M6 Screw

150

2 Advanced Photoelectric Sensors

Dimensions

Throughbeam

Diffuse reflective

Ordering Information

Amplifier Units

Pre-wired Connector type

Accessories (Order Separately)

Mounting Brackets End Plate

E32-TC200 E32-TC200A

E32-DC200

M2.6 x 0.45

1.0 ø

Two, hexagon clamping nuts

Two, toothed washers

Sensing head, M4 x 0.7 *

* Nickel-plated brass

2.2-ø optical fiber

3.2 3 2.4

14 2,0007 2,000

7(1.5)

5.5

1.0 ø

1.8

3 ø

2.2 ø

Two, hexagon clamping nuts

Two, toothed washers

Sensing head,

M3 x 0.5 *

2.2-ø optical fiber

* Nickel-plated brass

4.8

Two, 1 ø

4 ø

2.43

17 2,000

Two, hexagon clamping nuts

Two, toothed washers

Sensing head *

M6 x0.75

Two, 2.2-ø optical fiber

* ADC

Shape Control output Model

NPN output PNP output

ON/OFF output E3X-NA11V E3X-NA41V

Shape Control output Model

NPN output PNP output

ON/OFF output E3X-NA14V E3X-NA44V

Shape Applicable type Model Quantity

E3X-NA#V E39-L148 1

Shape Model Quantity

PFP-M 1

3E32-@C200 + E3X-NA@V

Rating/performance

Amplifier Units

Pre-wired Connector type

Model NPN output

E3X-NA11V E3X-NA14V

Item PNP output

E3X-NA41V E3X-NA44V

Light source (wave length) Red LED (680 nm)

Power supply voltage 12 to 24 VDC ±10%, ripple (p-p): 10% max.

Control output Load current 50 mA (residual voltage 1 V max. each) Open collector output type (depends on the NPN/PNP

output format) Light-ON/Dark-ON switch selectable

Response time 200 s max. for operation and reset respectively*1

*1 If 8 or more units are installed side-by-side, the response time is 350 s max.

Timer function OFF-delay timer: 40 ms (fixed)

Ambient temperature

Operating: Groups of 1 to 3 Amplifiers: -25 to +55°C, Groups of 4 to 11 Amplifiers: -25 to +50°C,

Groups of 12 to 16 Amplifiers: -25 to +45°C

Storage: -30 to +70°C (with no icing and condensation)

Vibration resistance 10 to 55 Hz with a 1.5 mm double amplitude for 2 hrs each in X, Y and Z directions

Shock resistance Destruction: 500 m/s2for 3 times each in X, Y, and Z directions

Protective structure IEC 60529 IP66 (with Protective Cover attached)

Connection method Pre-wired models (standard length: 2 m)

M8 connector

Material Case PBT (polybutylene terephthalate)

Cover Polyethersulfone (PES)

4 Advanced Photoelectric Sensors

In the interest of product improvement, specifications are subject to change without notice.Cat. No. E35E-EN-01

OMRON EUROPE B.V.

Wegalaan 67-69,

NL-2132 JD, Hoofddorp,

The Netherlands

Phone: +31 23 568 13 00

Fax: +31 23 568 13 88

www.eu.omron.com
