Omron EQUO Series Guida utente

・To directly connect KM-N1-FLK, KM-N2-FLK and

KM-N3-FLK to ZN-KMX21-□, please purchase a

separately sold dedicated connection cable

ZN9-KMC30-N.

Terminal names may differ depending on the model type.

See below to make communication setting of the KM series.

Unit No.: A consecutive number starting from 1.

To change the starting number (other than 1), other setting is required.

Baud rate: 38400 bps

Data bit length: 7-bit

Stop bit length: 2-bit

Vertical parity: even

D

Recommended SD card: HMC-SD491 (4GB)

HMC-SD291 (2GB)

Power Monitor KM-N1-FLK,KM-N2-FLK,

KM-N3-FLK

For further information, refer to the Instruction Sheet in the package

and a user's manual.

The connected Power Sensor/Monitor units must be turned ON before the Power Sensor Station.

If the order is reversed, the station may not correctly recognize the type names of the Power Sensor/Monitor units,

which may result in power data acquisition failures.

Caution

Recommended SD card: HMC-SD491 (4GB)

HMC-SD291 (2GB)

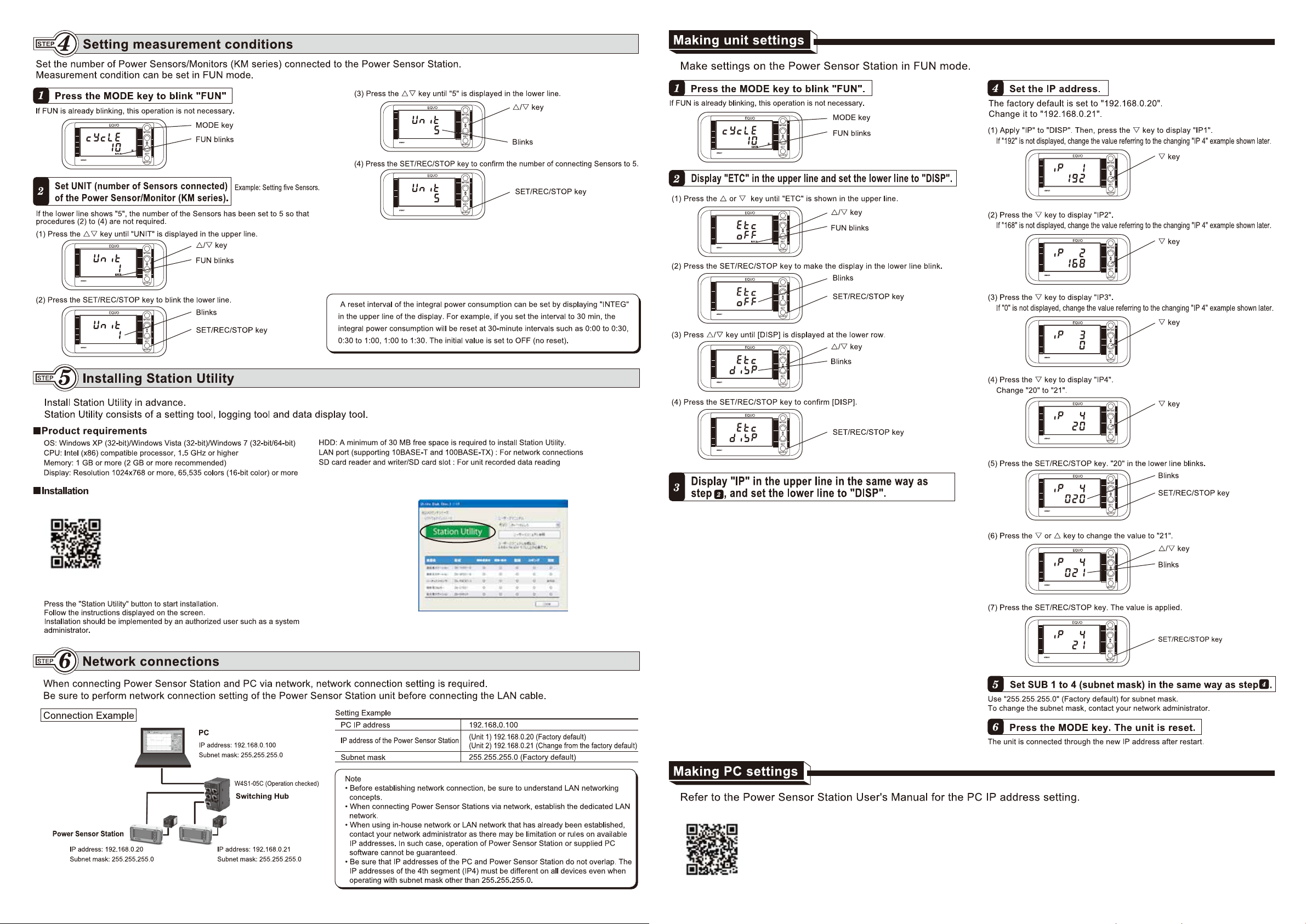

Installation data is downloaded in a PC from following URL.

When Setup.exe in the installation data is executed, the right screen is indicated.

User’ s Manual is downloaded in a PC from following URL.

http://www.fa.omron.co.jp/products/family/3080/download/manual.html

http://www.fa.omron.co.jp/station-u-e

SEN

E2002 Sensor communications

error

SEN

E2003 Sensor registration failed

Communication with the sensor failed. Check the

wiring between the sensor and the main unit.

To cancel the error display, press and hold the

MODE key for 3 seconds or more.

Failed to register the sensor in the initial processing

on startup. Check the wiring between the sensor and

the main unit, and restart the main unit.

If you turn on the power of the main unit before the

sensor starts up, the sensor cannot be properly

registered.
