D-115TL

Smooth Barrel Proximity Sensors

Cylindrical dia 8 mm

all-metal housing with

M8 plug connection

or pre-wired

Ordering information

Short barrel type

Long barrel type

Specifications

Versions Sn(mm)

Output

NPN PNP

Size Type NO NC NO NC

8 mm

Shielded Connector 1.5 TL-C1R5E1-M3-E1 TL-C1R5E2-M3-E1 TL-C1R5F1-M3-E1 TL-C1R5F2-M3-E1

Pre-wired TL-C1R5E1-E1 TL-C1R5E2-E1 TL-C1R5F1-E1 TL-C1R5F2-E1

Non-shielded Connector 2TL-C2ME1-M3-E1 TL-C2ME2-M3-E1 TL-C2MF1-M3-E1 TL-C2MF2-M3-E1

Pre-wired TL-C2ME1-E1 TL-C2ME2-E1 TL-C2MF1-E1 TL-C2MF2-E1

Versions Sn(mm)

Output

NPN PNP

Size Type NO NC NO NC

8 mm

Shielded Connector 1.5 TL-C1R5E1-M3-E2 TL-C1R5E2-M3-E2 TL-C1R5F1-M3-E2 TL-C1R5F2-M3-E2

Pre-wired TL-C1R5E1-E2 TL-C1R5E2-E2 TL-C1R5F1-E2 TL-C1R5F2-E2

Non-shielded Connector 2TL-C2ME1-M3-E2 TL-C2ME2-M3-E2 TL-C2MF1-M3-E2 TL-C2MF2-M3-E2

Pre-wired TL-C2ME1-E2 TL-C2ME2-E2 TL-C2MF1-E2 TL-C2MF2-E2

Type

8 mm Ø

TL-C1R5@@-E1

TL-C1R5@@-E2

TL-C2M@@-E1

TL-C2M@@-E2

Sensing distance (Sn) 1.5 mm ± 10% 2 mm ± 10%

Power supply 10 to 35 V DC

Power consumption 15 mA max.

Object St 37 8 x 8 x 1 mm

Switching hysteresis 1 to 15 %

Switching frequency 5 kHz

Temperature dependency 10% max.

Ambient temperature -25° to 70° C

Switching output 300 mA max.

Residual voltage 2.5 V max.

Function display 1 LED

Degree of protection IP 65

Housing material Nickel-plated brass

F502-EN2-04.book Seite 115 Dienstag, 26. Juli 2005 5:48 17

D-116 Inductive Sensors

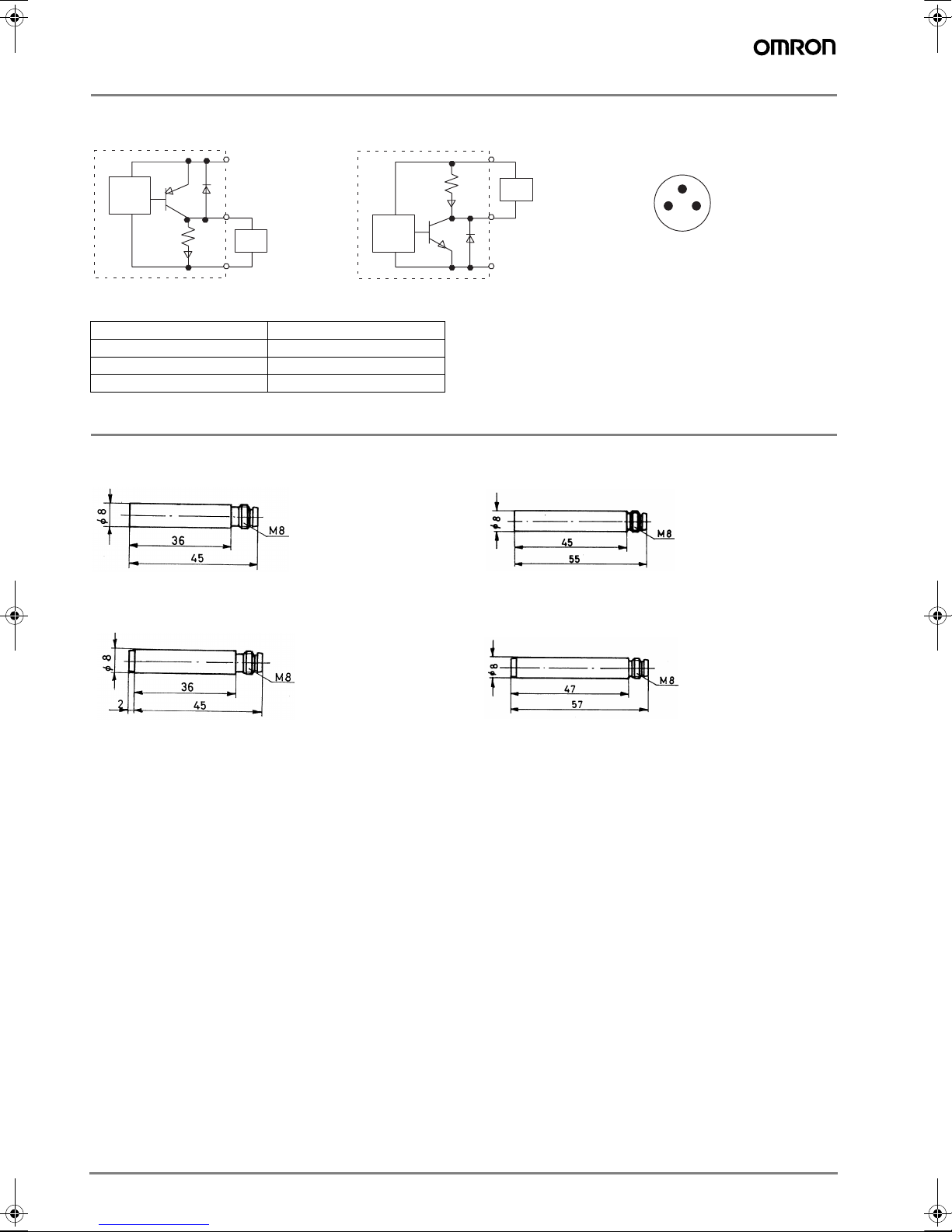

Output circuits

Reduction factors (typical values)

Dimensions (mm)

Chrome-nickel Sn x 0.9

Brass Sn x 0.5

Aluminium Sn x 0.45

Copper Sn x 0.4

PNP output

Load

Circuit

NPN output

Circuit

Load

TL-C1R5@@-E1

TL-C2M@@-E1

TL-C1R5@@-E2

TL-C2M@@-E2

F502-EN2-04.book Seite 116 Dienstag, 26. Juli 2005 5:48 17

D-117TL

Installation

The minimum clearances indicated below must always be maintained in the case of non-shielded mounted types.

Installation accessories

Type d1 d2 d3 L1 L2 w h d Material

Y92E-B8-E1 8.0 6.0 3.2 7.5 3.3 20 12 16 Brass

Y92E-B8-E2 8.0 6.0 3.2 7.5 3.3 20 14 16 Plastic

2Sn

3Sn 2d

3Sn

2Sn

hd1

F502-EN2-04.book Seite 117 Dienstag, 26. Juli 2005 5:48 17

D-118 Inductive Sensors

In the interest of product improvement, specifications are subject to change without notice.

ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.

To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.

Cat. No. D05E-EN-01
