A-64 Photoelectric Sensors

Super Manual Fiber Amplifier

E3X-NA

Adjuster type standard that is the culmina-

tion of true ease and simplicity

Features

Instinctive LED bar displays of light levels

The previous manual type used the stability and incident level

indicators to display the light level change, which was difficult

to understand at a glance. The E3X-NA uses the LED bars to

display the light level, ensuring the light level change at a

glance.

Same "Wire-saving" Connector as

E3X-DA-N

OMRON's original wiring-saving connector, which was inher-

ited from the digital fiber amplifier E3X-DA-N, allows connec-

tion of up to 16 units.

* The vertical movement

of the LED light level

and operation display

shows the light level

at a glance.

Operation indicator

Approx. 20% or lower

Approx. 10% or lower

Approx. -10% or higher

Approx. -20% or higher

Unstable level

E3X-NA Conventional model

Power supply

Optical

commu-

nications

Master connector Slave connector

Gang-mount up

to 16 Amplifiers

A-65E3X-NA

E3X-NA

Features

Reduced wiring and space requirements for

power lines

Example for 5 Amplifiers E3X-NA Series

Same Sensing Distance as Previous Long-

distance Models

200 mm Reflective Models

Approximately Seven Times the Detection

Accuracy

Applied Fiber: E32-T16P (screen fiber) set at 100 mm. E3X-

A1 1 (previous model) Minimum detection object: 2.0 mm dia.

E3X-NA 0.3 mm dia.

Addition of high-speed type and waterproof

type to the series

Optical Communications to Prevent Mutual

Interference

Optical communication between amplifiers prevents mutual

interference. Up to 5 fiber heads can be installed closely, ex-

cept E3X-NA#F.

Dimensions and Designs Inherited from the

E3X-DA-N Digital Fiber Amplifier

Relay connectors

Reduced Wiring and Space Requirements for Power Lines

Less space

required.

Power and output

lines required

for each amplifier.

15 lines

Power supplied from

master amplifier

through master

connector to

slave amplifiers.

7 lines

No relay connectors

required.

E3X-NA series

Example for 5 Amplifiers

Five previous

amplifiers

Output lines separate

from power

Output lines and power lines

Note: The above characteristics are ensured

with the E32-D11L Reflective Sensor

(long-distance model).

* The E3X-NA Series does not

have a long-distance model.

100mm

200

E3X-NA

Long-distance:

E3X-H

Standard:

E3X-A

Standard model

100

150

200

Sensing

distance

Minimum

detection object:

Applied Fiber: E32-T16 (screen fiber) set at 100 mm.

E3X-A11 (previous model) E3X-NA

7 times

2.0 mm dia. 0.3 mm dia.

Optical

commu

nications

Up to 5

Amplifiers

Standard-feature

OFF delay timer

Digital Fiber Amplifier

E3X-DA-N

Non-removable hinged c

8-turn adjustment knob for

precise adjustment (with indicator)

Easy-to-see indicator

10mm

Super manual Amplifier

E3X-NA

Same 10-mm width as

the E3X-DA-N Digital

Fiber Amplifier

(Previously 12 mm) Same shape as the E3X-DA-N Digital Fiber Amplifier

A-66 Photoelectric Sensors

Ordering Information

Amplifier Units

Pre-wired

Connector type

Amplifier Units Connectors (Order Separately) Note: Stickers for Connectors are included as accessories.

Sensor I/O Connectors (Order separately)

Note: Refer to page NB-6 for details.

Accessories (Order Separately)

Item Shape Control output Model

NPN output PNP output

Standard models

ON/OFF output

E3X-NA11 E3X-NA41

High-speed detection E3X-NA11F E3X-NA41F

Mark-detecting models

E3X-NAG11 E3X-NAG41

Water-resistant models

E3X-NA11V E3X-NA41V

Item Shape Applicable Connector

(order separately) Control output Model

NPN output PNP output

Standard models

Master E3X-CN11

ON/OFF output

E3X-NA6 E3X-NA8

Slave E3X-CN12

Water-resistant models

(M8 Connector)

XS3F-M421-40#-A

XS3F-M422-40#-A E3X-NA14V E3X-NA44V

Item Shape Cable length No. of conductors Model

Master connector

2 m

3E3X-CN11

Slave connector 1 E3X-CN12

Size Cable type Shape Cable length Model

M8 Standard cable

2 m

4 conductors

XS3F-M421-402-A

5 m XS3F-M421-405-A

2 m XS3F-M422-402-A

5 m XS3F-M422-405-A

Precautions for ordering the connector type

Amplifier Units Applicable Connector (order separately)

Refer to the following tables when placing an order. Basical- Type NPN PNP

Master connector Slave connector

ly, Amplifier Units and connectors are sold separately.

Please place an order after referring to the combination giv-

Standard E3X-NA6

E3X-NA8

E3X-CN11 (3 wires) E3X-CN12 (1 wire)

When Using 5 Amplifier Units

Amplifier Units (5 Units)

1 Master Connector + 4 Slave Connectors

Straight

L-shaped

Mounting Brackets

Shape Applicable type Model Quantity

E3X-NA#

E3X-NA#F

E3X-NAG#

E39-L143

E3X-NA#V E39-L148

End Plate

Shape Model Quantity

PFP-M 1

A-67E3X-NA

E3X-NA

Applicable fiber unit type

Note: 1 . indicates a unit that can be cut freely.

2 . The values of the minimum sensing object for E3X-NA#(V) and E3X-NAG#through-beam models indicate those obtained where the sensing distance and

sensitivity are set to optimum values.

3 .The value of the minimum sensing object for E3X-NA#F through-beam models indicates that obtained at the rated sensing distance with the sensitivity set to

the optimum value.

4 .The size of standard sensing object is the same as the fiber core diameter (lens diameter for models with lens).

5 .The value of the minimum sensing object of the through-beam model assumes that the sensing distance and sensitivity are set to the optimum.

Long distance

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

NA#(V) 1.4 mm dia.

(0.03 mm dia.) E32-T11L

25 mm

NAG#

NA#F1.4 mm dia.

(0.5 mm dia.)

3.0 mm dia.

NA#(V) 1.4 mm dia.

(0.03 mm dia.) E32-T12LNAG#

NA#F1.4 mm dia.

(0.5 mm dia.)

NA#(V) 0.9 mm dia.

(0.03 mm dia.) E32-T21L

10 mm

NAG#

NA#F0.9 mm dia.

(0.2 mm dia.)

2 mm dia.

(small diame-

ter)

NA#(V) 0.9 mm dia.

(0.03 mm dia.) E32-T22LNAG#

NA#F0.9 mm dia.

(0.2 mm dia.)

With M14

lens, ideal for

explosion-proof

applications

NA#(V) 10 mm dia.

(0.1 mm dia) E32-T17L 25 mm

NA#F10 mm dia.

(1.5 mm dia)

Free-cut

Red light Green light

Free-cut

M4 screw

700 (2,000)

130 (370)

210 (600)

Free-cut

3-mm dia.

700

130

210

Free-cut

M3 screw

200

Free-cut

2-mm dia.

200

Free-cut

M14 screw

14,000

4,200

A-68 Photoelectric Sensors

General purpose

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-TC200 25 mm

NAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-ET11R

1 mm

NAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

3.0 mm dia.

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-T12RNAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

Reflective

side-view

conversion

attachment

E39-F5

mountable

NA#(V)

1.0 mm dia.

(0.03 mm dia.)

E32-TC200A 25 mm

NAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

Minute work de-

tection

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-TC200E 10 mm

NAG#

NA#F0.5 mm dia.

(0.1 mm dia.)

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-ET21R 1 mm

NAG#

NA#F0.5 mm dia.

(0.1 mm dia.)

Free-cut

M4 screw

400 (3,000)

75 (550)

120 (900)

Free-cut

M4 screw

280 (2,100)

50 (375)

Free-cut

3-mm dia.

280

Free-cut

(

)

M3 screw

360

100

Free-cut

M3 screw

100

Free-cut

M3 screw

A-69E3X-NA

E3X-NA

Note: 1 . indicates a unit that can be cut freely. The unit without the mark cannot be cut freely.

2 . The values of the minimum sensing object for E3X-NA#(V) and E3X-NAG#through-beam models indicate those obtained where the sensing distance and

sensitivity are set to optimum values.

3 .The value of the minimum sensing object for E3X-NA#F through-beam models indicates that obtained at the rated sensing distance with the sensitivity set to

the optimum value.

4 .The size of standard sensing object is the same as the fiber core diameter (lens diameter for models with lens).

5 .The value of the minimum sensing object of the through-beam model assumes that the sensing distance and sensitivity are set to the optimum.

Small diameter head

Flexible (resists breaking) (R4)

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

2.0 mm dia.

Minute work

detection

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-T22 10 mm

NAG#

NA#F0.5 mm dia.

(0.1 mm dia.)

2 mm dia. Small

work detection

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-T22R 1 mm

NA#F0.5 mm dia.

(0.1 mm dia.)

With 1.2 mm

dia. sleeve

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-TC200B

E32-TC200B4 25 mm

NAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

With 0.9 mm

dia. sleeve

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-TC200F

E32-TC200F4 10 mm

NAG#

NA#F0.5 mm dia.

(0.1 mm dia.)

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

Ideal for

mounting on

moving sec-

tions (R4)

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-T11

4 mm

NAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-T21NAG#

NA#F0.5 mm dia.

(0.1 mm dia.)

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-T22BNAG#

NA#F0.5 mm dia.

(0.1 mm dia.)

Free-cut Free-cut

Red light Green light

Free-cut

2-mm dia.

100

Free-cut

2-mm dia.

Free-cut

1.2 dia.

M4 screw

( ): E32-

TC200B4

90mm(40mm)

400

120

Free-cut

M3 screw 0.9 dia.

90mm(40mm) ( ): E32-

TC200F4

100

Free-cut

M4 screw

360

100

M3 screw

100

1.5 mm dia.

100

A-70 Photoelectric Sensors

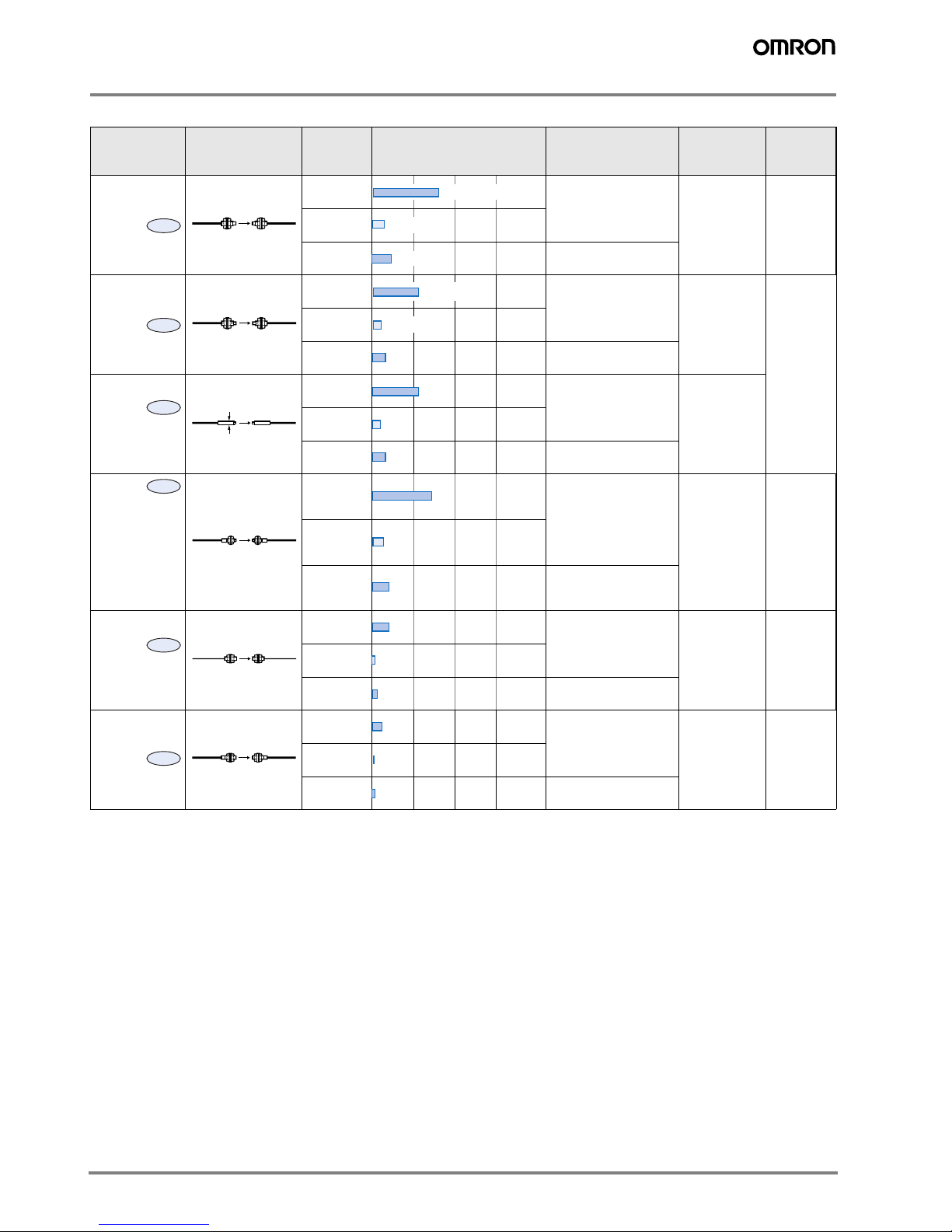

Side-view

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

Long-distance

Space-saving

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-T14L 25 mm

NAG#

NA#F1.0 mm dia.

(0.2 mm dia.)

Space-saving

NA#(V) 1.0 mm dia.

(0.03 mm dia.) E32-T14LR 1 mm

NA#F1.0 mm dia.

(0.2 mm dia.)

Small work

detection (small

diameter)

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-T24 10 mm

NAG#

NA#F0.5 mm dia.

(0.3 mm dia.)

Small work

detection (small

diameter)

NA#(V) 0.5 mm dia.

(0.03 mm dia.) E32-T24R 1 mm

NA#F0.5 mm dia.

(0.3 mm dia.)

Screw-

mounting Model

NA#(V) 4.0 mm dia.

(0.03 mm dia.) E32-T14 25 mm

NAG#

NA#F4.0 mm dia.

(0.2 mm dia.)

Free-cut

3-mm dia.

240

Free-cut

3-mm dia.

110

Free-cut

1-mm dia.

Free-cut

1-mm dia.

Free-cut

1,800

330

540

A-71E3X-NA

E3X-NA

Chemical resistant

* Teflon is a registered trademark of Dupont Company and Mitsui Dupont Chemical Company for their fluoride resin.

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

Teflon cover *

ensures envi-

ronmental re-

sistance

Operating am-

bient tempera-

ture: -30 to

+70°C

NA#(V)

4.0 mm dia.

(0.2 mm dia.)

E32-T12F

40 mm

NAG#

NA#F4.0 mm dia.

(0.7 mm dia.)

Teflon cover *

ensures envi-

ronmental re-

sistance Side-

view Operating

ambient tem-

perature: -30 to

+70°C

NA#(V)

3.0 mm dia.

(0.2 mm dia.)

E32-T14FNAG#

NA#F3.0 mm dia.

(0.7 mm dia.)

Teflon cover *

ensures envi-

ronmental re-

sistance

Operating am-

bient tempera-

ture: -40 to

+200°C

NA#(V) 1.0 mm dia.

(0.2 mm dia.)

E32-T81F 10 mm

NA#F1.0 mm dia.

(0.5 mm dia.)

Free-cut

5-mm dia.

1,600

300

480

Free-cut

m dia.

200

6-mm dia.

350

100

A-72 Photoelectric Sensors

Heat resistant

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

150°C *1

Operating am-

bient tempera-

ture: -40 to

+150°C Fiber

sheath material:

Fluororesin

*1. For continuous operation, use the products within the temperature ranging from -40°C to 130°C.

NA#(V) 1.5 mm dia.

(0.03 mm dia.)

E32-ET51 35 mm

NA#F1.5 mm dia.

(1 mm dia.)

200°C

Operating am-

bient tempera-

ture: -40 to

+200°C Flexi-

ble: R10

Fiber sheath

material: Te-

flon*2

*2. Teflon is a registered trademark of Dupont Company and Mitsui Dupont Chemical Company for their fluoride resin.

NA#(V) 1.0 mm dia.

(0.2 mm dia.)

E32-T81R 10 mm

NA#F1.0 mm dia.

(0.5 mm dia.)

300°C *3

With spiral tube,

excellent in me-

chanical

strength Oper-

ating ambient

temperature: -

40 to +300°C

Fiber sheath

material: SUS

*3. Indicates the heat-resistant temperature at the fiber tip.

NA#(V) 1.0 mm dia.

(0.03 mm dia.)

E32-T61 25 mm

NA#F1.0 mm dia.

(0.5 mm dia.)

150°C

Side-view

minute work de-

tection Operat-

ing ambient

temperature:

-40 to +150°C

Fiber sheath

material: Fluo-

roresin

NA#(V) 1.0 mm dia.

(0.03 mm dia.)

E32-T54 35 mm

NA#F1.0 mm dia.

(0.3 mm dia.)

200 °C

L-shaped Fiber

sheath material:

SUS

NA#(V) 1.7 mm dia.

(0.03 mm dia.) E32-T84S 25 mm

NA#F1.7 mm dia.

(0.4 mm dia.)

Free-cut

M4 screw

400

120

M4 screw

180

M4 screw

300 (3,000)

Free-cut

2-mm dia.

130

3-mm dia.

700

210

A-73E3X-NA

E3X-NA

Note: 1 . indicates a unit that can be cut freely. The unit without the mark cannot be cut freely.

2 . The values of the minimum sensing object for E3X-NA#(V) and E3X-NAG#through-beam models indicate those obtained where the sensing distance and

sensitivity are set to optimum values.

3 .The value of the minimum sensing object for E3X-NA#F through-beam models indicates that obtained at the rated sensing distance with the sensitivity set to

the optimum value.

4 .The size of standard sensing object is the same as the fiber core diameter (lens diameter for models with lens).

5 .The value of the minimum sensing object of the through-beam model assumes that the sensing distance and sensitivity are set to the optimum.

Grooved

Narrow vision field

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

Detection of film

sheet, beam

axis adjust-

ment unneces-

sary, easy

installation

NA#(V) 4.0 mm dia.

(0.1 mm dia.) E32-G14 25 mm

NAG#

NA#F4.0 mm dia.

(1.0 mm dia.)

Features Shape

Compatible

Amplifier

Units (E3X-)

Sensing distance (mm)

(Values in parentheses: when

using the E39-F1 Lens Unit)

Standard object (mm)

Minimum sensing object

(Opaque object) Typical

Model

Permissible

bending

radius

Ideal for wafer

detection

NA#(V) 1.7 mm dia.

(0.5 mm dia.) E32-T22S

10 mm

NA#F

Side-view

Ideal for wafer

NA#(V) 2.0 mm dia.

(0.03 mm dia.) E32-T24S

NA#F2.0 mm dia.

(0.5 mm dia.)

Free-cut Free-cut

Free-cut 10

Free-cut

3-mm dia.

1,000

300

Free-cut 3.5 mm dia.

x 3 700

210

Altri manuali per E3X-NA -

Indice

Altri manuali Omron Amplificatore

Omron

Omron E3X-SD Series Manuale utente

Omron

Omron E3NX-MA Series Manuale utente

Omron

Omron E3X-MDA11 Manuale utente

Omron

Omron E3NC-LA0 Manuale utente

Omron

Omron E3X-DA-N series Manuale utente

Omron

Omron E9NC-TA Series Manuale utente

Omron

Omron SMARTSTEP R7D-AP Series Manuale utente

Omron

Omron K7L-AT50 Manuale utente

Omron

Omron E9NC-AA0 Manuale utente

Omron

Omron V600-HAM42-DRT Manuale utente

Omron

Omron E3X-DRT21 Manuale utente

Omron

Omron E3X-DA-N series Manuale utente

Omron

Omron E3X-CN11 Manuale utente

Omron

Omron E3X-DA-S Series Manuale utente

Omron

Omron E3X-DA-N series Manuale utente

Omron

Omron E3NX-FA21 Manuale utente

Omron

Omron E9NC-TA0 Manuale utente

Omron

Omron E3X-DRT21-S Manuale utente

Omron

Omron V1000 Manuale utente

Omron

Omron E3Z-B61 2M Manuale utente

Omron

Omron E3X-NH Manuale utente

Omron

Omron V640-HAM11 Manuale utente

Omron

Omron K7L-AT50 Manuale utente

Omron

Omron SMARTSTEP Junior R7D-ZP Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
