Omron G3NE Manuale utente
Solid State Relays G3NE J-17
SSR
Solid State Relays
G3NE
Compact, Low-cost, SSR Switching 5 to 20 A
• Wide load voltage range: 75 to 264 VAC. Both 100-V and
200-V loads can be handled with the same model.
• Dedicated, compact aluminum PCB and power elements used.
• Built-in varistor effectively absorbs external surges.
• Quick-connect #110 input terminals and #250 output
connections. (#187 input terminals and #250 output
connections are available.)
• “-US” models certified by UL, CSA, and IEC/EN (TÜV).
Model Number Structure
■Model Number Legend
1. Basic Model Name
G3NE: Solid State Relay
2. Rated Load Power Supply Voltage
2: 200 VAC
3. Rated Load Current
05: 5 A
10: 10 A
20: 20 A
4. Terminal Type
T: Quick-connect terminals
5. Zero Cross Function
Blank: Equipped with zero cross function
L: Not equipped with zero cross function
6. Special Specifications
Blank: Standard models
2: #187 input terminals
7. Certification
US: Certified by UL, CSA, and TÜV
1234 567
G3NE-@@@@-@-@
J-18 Solid State Relays G3NE
Ordering Information
■List of Models
Note: When ordering, specify the input voltage.
■Accessories (Order Separately)
Heat Sinks
The following heat sinks are thin and can be DIN-track mounted.
See Dimensions for details.
Specifications
■Ratings (at an Ambient Temperature of 25°C)
Input
Note: Each model has 5-VDC, 12-VDC, and 24-VDC input versions.
Output
Note: 1. The load current varies depending on the ambient temperature. Refer to Load Current vs. Ambient Temperature under Engineering Data
for details.
2. These values apply when using a dedicated heat sink or a radiation plate of specified size.
Isolation Zero cross
function Indicator Rated output load Rated input voltage Model
Phototriac Yes No 5 A at 100 to 240 VAC 5, 12, 24 VDC G3NE-205T-US
G3NE-205T-2-US
10 A at 100 to 240 VAC G3NE-210T-US
G3NE-210T-2-US
20 A at 100 to 240 VAC G3NE-220T-US
G3NE-220T-2-US
No 5 A at 100 to 240 VAC G3NE-205TL-US
G3NE-205TL-2-US
10 A at 100 to 240 VAC G3NE-210TL-US
G3NE-210TL-2-US
20 A at 100 to 240 VAC G3NE-220TL-US
G3NE-220TL-2-US
Model Applicable SSR
Y92B-N50 G3NE-205T(L)(-2)-US/-210T(L)(-2)-US
Y92B-N100 G3NE-220T(L)(-2)-US
Rated voltage Operating voltage Voltage level Input impedance
Must operate Must release With zero cross function Without zero cross function
5 VDC 4 to 6 VDC 4 VDC max. 1 VDC min. 250 Ω±20% 300 Ω±20%
12 VDC 9.6 to 14.4 VDC 9.6 VDC max. 600 Ω±20% 800 Ω±20%
24 VDC 19.2 to 28.8 VDC 19.2 VDC max. 1.6 kΩ±20%
Model Applicable load
Rated load voltage Load voltage range Load current
(See note 1.) Inrush current
With heat sink Without heat sink
G3NE-205T(L)(-2)-US 100 to 240 VAC 75 to 264 VAC 0.1 to 5 A 0.1 to 5 A 60 A (60 Hz, 1 cycle)
G3NE-210T(L)(-2)-US 0.1 to 10 A
(See note 2.) 0.1 to 5 A 150 A (60 Hz, 1 cycle)
G3NE-220T(L)(-2)-US 0.1 to 20 A
(See note 2.) 0.1 to 5 A 220 A (60 Hz, 1 cycle)
Solid State Relays G3NE J-19
SSR

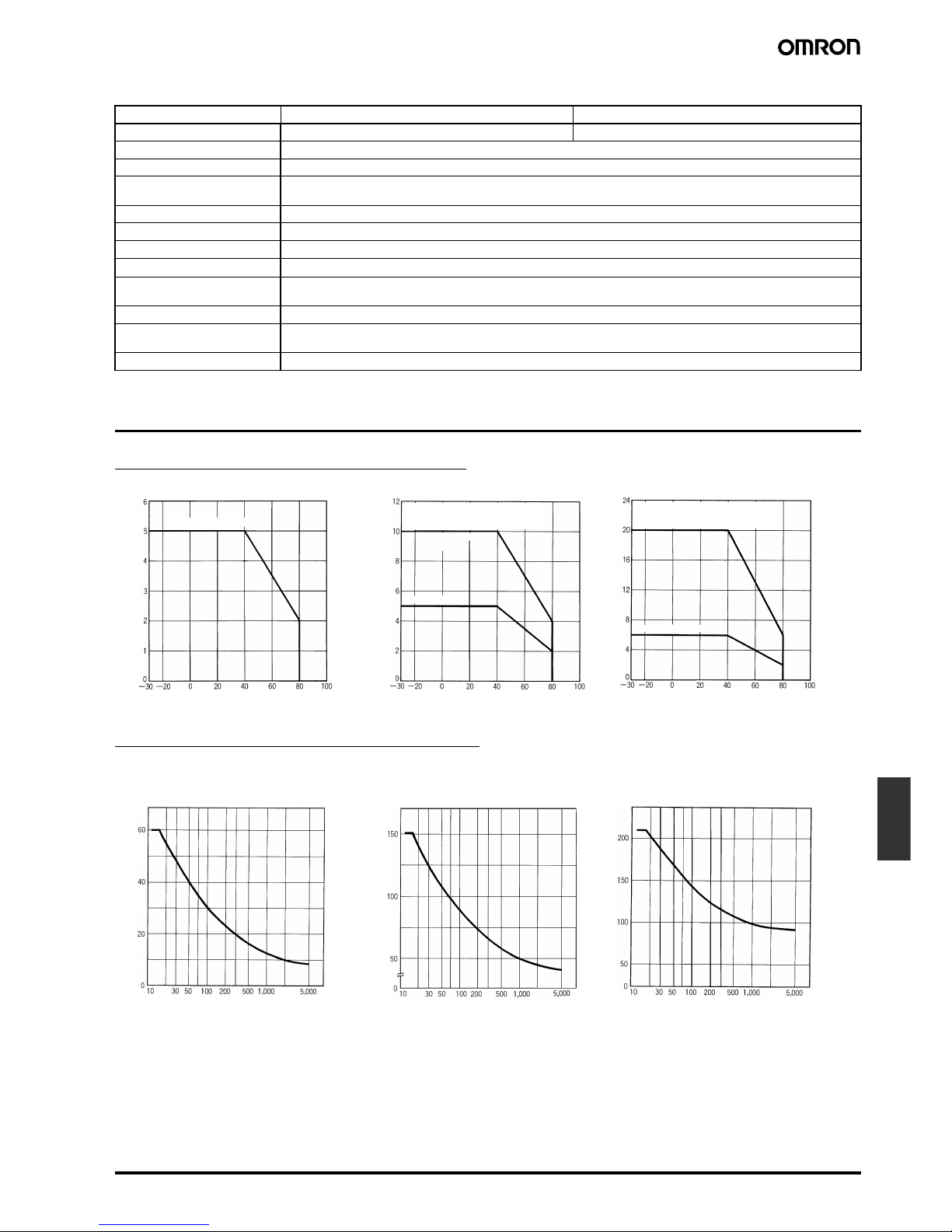

■Characteristics
Engineering Data
Load Current vs. Ambient Temperature
One Cycle Surge Current: Non-repetitive
Note: Keep the inrush current to half the rated value if it occurs repetitively.
Item G3NE-2@@T(-2)-US G3NE-2@@TL(-2)-US
Operate time 1/2 of load power source cycle + 1 ms max. 1 ms max.
Release time 1/2 of load power source cycle + 1 ms max.
Output ON voltage drop 1.6 V (RMS) max.
Leakage current 2 mA max. (at 100 VAC)
5 mA max. (at 200 VAC)
Insulation resistance 100 MΩmin. (at 500 VDC)
Dielectric strength 2,000 VAC, 50/60 Hz for 1 min
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude
Shock resistance Destruction: 1,000 m/s2
Ambient temperature Operating: –30°C to 80°C (with no icing or condensation)
Storage: –30°C to 100°C (with no icing or condensation)
Ambient humidity Operating: 45% to 85%
Certified standards UL508 File No.E64562/CSA C22.2 (No.0, No.14) File No. LR35535
TÜV R9051064 (VDE0435) (EN60950)
Weight Approx. 37 g
G3NE-205T(L)(-2)-US G3NE-210T(L)(-2)-US G3NE-220T(L)(-2)-US
Ambient temperature (°C) Ambient temperature (°C) Ambient temperature (°C)
Load current (A)
Load current (A)
Load current (A)
Without heat sink
Without heat sink
Without heat sink
With standard heat sink (Y92B-N50)
or aluminum plate measuring 100 mm
x 100 mm x t2 mm (W x H x D)
With standard heat sink (Y92B-N100) or
aluminum plate measuring 300 mm x
300 mm x t3 mm (W x H x D)
G3NE-205T(L)(-2)-US G3NE-210T(L)(-2)-US G3NE-220T(L)(-2)-US
Inrush current (A. Peak)
Ener
g
ized time (ms)
Inrush current (A. Peak)
Ener
g
ized time (ms)
Inrush current (A. Peak)
Ener
g
ized time (ms)
J-20 Solid State Relays G3NE
Dimensions
Note: All units are in millimeters unless otherwise indicated.
Safety Precautions
■Precautions for Correct Use
Please observe the following precautions to prevent failure to
operate, malfunction, or undesirable effect on product performance.
Do not apply excessive force to the terminals. Be careful when
pulling or inserting the terminal clips for the Quick Connector (QC).
When attaching a heat sink to the G3NE, in order to facilitate heat
dissipation, apply heat-conductive grease on the heat sink. Tighten
the mounting screws of the heat sink with a torque of 0.59 to
0.98 N·m.
30±0.2
3 +
4 −
1
2
14.5
6.5
7.1
2.9 7.95
3
6
30+0.5
G3NE-205T(L)/210T(L)/220T(L)(-2)-US
Mounting Holes
Two, 3.5-dia. or M3 holes
Output Load
Input
37.5 max.
3.5 dia. hole
11.5 max.
* G3NE-2@@T(L)-2-US: Two, #187 (t=0.5) (Faston tab or equivalent)
47.5
max.
Two #110 (t = 0.5) (Faston
tab or equivalent)*
Two #250 (t = 0.8) (Faston
tab or equivalent)
Terminal Arrangement/
Internal Connections
(Top View)
Input
voltage
Load power
supply
5.6
47.6
90±0.3
35 30.5±0.3 30
54.5
6
35±0.2
90±0.4
35 30.5±0.3
47.6
90±0.3
5.6
30
5 4.5
28 13
35±0.2
90±0.4
Mounting Holes
Y92B-N100
4.6 dia. hole Two, M3 holes
Two, M4 holes
77 max.
100 max.
44 max. 47 max.
51 max.
4.6 dia. hole Two, M3 holes
77 max.
100 max.
71 max.
100 max.
75 max.
Two, 3.2-dia. holes Mounting Holes
Weight: approx. 200 g
Weight: approx. 400 g
Heat Sink
Y92B-N50 Two, 3.2-dia.
holes
Two, M4
holes
Two, 4.4-dia.
or M4 holes
Two, 4.4-dia.
or M4 holes
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. K062-E1-05
