Omron H5S - Manuale utente
★
How would you like to use the Time Switch?
The H5S Time Switch offers simple operation to set various
time controls.
You want the Time Switch to turn an
output ON/OFF at a scheduled time.
<Cases> • You want to put a machine into
operation between certain times.
• You want to turn on a light between
certain times.
Timer operation is recommended.
You want the Time Switch to turn
outputs ON/OFF over several days.
<Cases> • You want to put a machine into operation
from 22:00 to 8:00 in the next morning.
• You want to turn ON an output at 10:00 on
Monday and turn it OFF at 17:00 on Friday.
Multiple-day operation is recommended.
You want the Time Switch to turn
outputs ON/OFF at the same intervals.
<Case> • You want to water plants for five minutes
every hour from 9:00 to 17:00.
Cyclic operation is recommended.
※Refer to the main part to know the other functions or those details.
8:00
Start time Stop time
17:00
4-1 4-2
4-4
Output Output
You need a pulse-output for
a short time.
<Cases> • You need an ON pulse-output to
activate a device for preheating.
• You want to ring a chime or time
signal.
Pulse-output operation is recommended.
10:00
10s
4-3
Output
5min
55 min
Mon. Tue. Wed.
Output

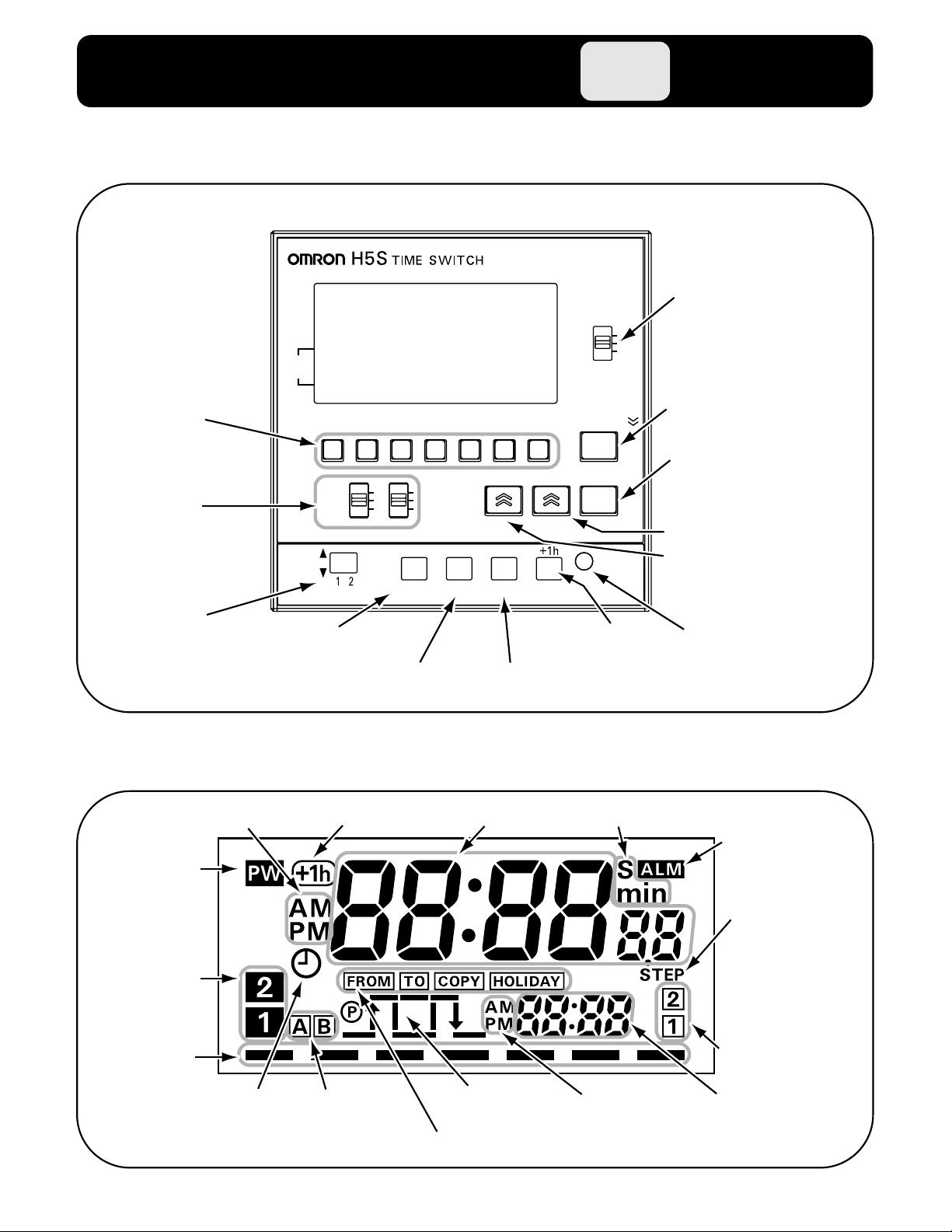

2. Nomenclature Weekly
2 chnls
Yearly
2 chnls
Yearly
4 chnls
<Front panel>
<Display>
<Weekly 2 chnls>
RESET
TEST
COPY
CYCLE CLEARTIME ADJ
OUT
PULSE
TIMER
HOLIDAY /
ON
AUTO
OFF
OUT
SATFRITHUWEDTUEMONSUN
P2
P1
RUN
PULSE
h min
WRITE
OUT1 OUT2
RESET Key
DAY Keys
Power
indicator
Day
indicators
Output circuit
number
indicators
FROM/TO indicators, COPY indicator, HOLIDAY indicator
AM/PM indicator
Summer time (DST)indicator
Main display Pulse width unit indicator
Total value
alarm indicator
Sub-display
AM/PM
indicator
Timing chart display
Bank indicators
Time adjustment
mode indicator
Display of
number of
remaining
steps
Set circuit number
indicators
TIME ADJ Key
OUT ON/OFF
switches
MODE switch
HOLIDAY/
DOWN Key
WRITE Key
m/PLS Key
h Key
+1h/CLEAR Key
COPY/CYCLE KeyTEST Key
OUTPUT
setting
switches
3. Time Adjustment
--
Weekly
2 chnls
Yearly
2 chnls
Yearly
4 chnls
【Example】The current time (day/hour/minute)
is set to Saturday 17:28.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
The color indicates flashing.
①Set the Mode
Switch to RUN.
※1 Holding down these Keys rapidly
advances the value.
Pressing decrements the value
of the Key that was last pressed.
≪Note≫
• On first power-up or after a reset
( Section 8), the time adjustment display
appears on the screen. Adjust the time by
following the steps ③and ④.
• If is pressed again
before confirming the time adjustment setting,
the setting is cancelled.
P1
P2
RUN
②Press for 2 s or more.
The symbol flashes.
TIME ADJ
TIME ADJ
③Press .
(The bar ( ) mark at the Saturday position
will turn ON.)
Set the time with and . ※1
h
SAT
m
④Press to confirm the
setting, and the Time Switch will start timing
from 0 second.
WRITE
4. Basic Operations
- -
4-1. Ordinary Timer Operation
Weekly
2 chnls
Yearly
2 chnls
Yearly
4 chnls
【Example】The Time Switch turns ON circuit 1 or
circuit 2 at 8:30 and turns it OFF at
17:15 from Monday through Friday.
①Set the Mode Switch to P1 or P2. ※1
→See Section 4-5 for 4 channel type.
②Press the DAY Keys to turn on the bars (−)
at the positions of Monday through Friday.
Set the ON time with and . ※2
④Press to confirm the settings.
P1
P2
RUN
SUN MON TUE WED THU FRI SAT
8:30 17:15 8:30 17:15 8:30 17:15 8:30 17:15 8:30 17:15
Number of
remaining steps
The color indicates flashing.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
PULSE
TIMER
h m
③Press .
Set the OFF time with and .※2
WRITE
WRITE
h m
※1
If one or more programs have already been set, the display starts showing the set programs.
To add another program, press repeatedly until "
--:--
" is displayed.
※2 Holding down these Keys rapidly advances the value.
Pressing decrements the value of the Key that was last pressed.
WRITE
≪Note≫
• If multiple settings are required, repeat the steps ②through ④.
• Both the ON and OFF times must be set.
• All the set weekly programs can be checked by pressing in program
setting mode.
• When the Mode Switch is set to P1 or P2 (to PRGM for 4 channel type), the
Time Switch stop automatic operation. To forcibly turn ON or OFF the output,
use the OUT ON/OFF switches.
• The set data will be cleared if the OUTPUT setting switch is moved between the
TIMER and PULSE positions after the data has been set.
WRITE
4-2. Multiple-day operation
Weekly
2 chnls
Yearly
2 chnls
Yearly
4 chnls
②Press to turn on the bar ( ) at
the Monday position.
Set the ON time with and .※2
④Press to confirm the settings.
8:30 17:15
Number of
remaining steps
【Example1】The Time Switch turns circuit 1 or circuit 2 ON continuously
between 8:30 on Monday and 17:15 on Friday.
③Press .
Press to turn off the bar ( ) at
the Monday position and press to
turn on the bar ( ) at the Friday position.
Set the OFF time with and . ※2
MON
MON
FRI
SUN MON TUE WED THU FRI SAT
The color indicates flashing.
①Set the Mode Switch to P1 or P2. ※1
→See Section 4-5 for 4 channel type.
P1
P2
RUN
PULSE
TIMER
h m
h m
WRITE
WRITE
※1
If one or more programs have already been set, the display starts showing the set programs.
To add another program, press repeatedy until "
--:--
" is displayed.
※2 Holding down these Keys rapidly advances the value.
Pressing decrements the value of the Key that was last pressed.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
WRITE
①Set the Mode Switch to P1 or P2. ※1
→See Section 4-5 for 4 channel type.
②Press the DAY Keys to turn on the bars ( )
at the positions of Monday through Friday.
Set the ON time with and . ※2
22:00 8:00 22:00 8:00 22:00 8:00 22:00 8:00 22:00 8:00
Number of
remaining steps
【Example 2】The Time Switch turns ON circuit 1 or circuit 2 at 22:00 from Monday
through Friday and turns it OFF at 8:00 each following morning.
SUN MON TUE WED THU FRI SAT
P1
P2
RUN
PULSE
TIMER
The color indicates flashing.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
h m
③Press .
Press to turn off the bar ( ) at
the Monday position and press to
turn on the bar ( ) at the Saturday
position.
Set the OFF time with and . ※2
MON
SAT
h m
WRITE
④Press to confirm the settings.
WRITE
※1
If one or more programs have already been set, the display starts showing the set programs.
To add another program, press repeatedly until "
--:--
" is displayed.
※2 Holding down these Keys rapidly advances the value.
Pressing decrements the value of the Key that was last pressed.
WRITE
AM8:25
30s
Number of
remaining steps
【Example】The Time Switch turns ON circuit 1 or circuit 2 for 30
seconds at 8:25 am from Monday through Saturday.
③Press .
Set the pulse width with .※2
The displayed pulse width changes by
pressing this Key in the following order.
1s→2s→…→59s→1m→…59m→60m→1s
4-3.Pulse-outputOperation
Weekly
2 chnls
Yearly
2 chnls
Yearly
4 chnls
SUN MON TUE WED THU FRI SAT
The color indicates flashing.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
①Set the Mode Switch to P1 or P2. ※1
→See Section 4-5 for 4 channel type.
P1
P2
RUN
PULSE
TIMER
②Press the DAY Keys to turn on the bars ( )
at the positions of Monday through Saturday.
Set the ON time with and . ※2
h m
WRITE
PLS
④Press to confirm the settings.
WRITE
※1
If one or more programs have already been set, the display starts showing the set programs.
To add another program, press repeatedly until "
--:--
" is displayed.
※2 Holding down these Keys rapidly advances the value.
Pressing decrements the value of the Key that was last pressed.
WRITE
≪Note≫
• If multiple settings are required, repeat the steps ②through ④.
• Both the ON time and pulse width must be set.
• All the set weekly programs can be checked by pressing in program
setting mode.
• When the Mode Switch is set to P1 or P2 (to PRGM for 4 channel type), the
Time Switch stops automatic operation. To forcibly turn ON or OFF the output,
use the OUT ON/OFF switches.
• The set data will be cleared if the OUTPUT setting switch is moved between the
TIMER and PULSE positions after the data has been set.
WRITE
①Set the Mode Switch to P1 or P2. ※1
→See Section 4-5 for 4 channel type.
②Press .
(The display moves to cyclic program
setting mode.)
④Press .
Set the stop time to 19:00 with and . ※2
SUN
8:00
Start
1h55 min
5min
Number of
remaining steps
【Example】The Time Switch turns circuit 1 or circuit 2 ON for 5 minutes and OFF
for 1 hour 55 minutes repeatedly from 8:00 to 19:00 on Sunday.
③Press to turn on the bar ( ) at
the Sunday position.
Set the start time to 8:00 with and .※2
4-4. Cyclic Operation
Weekly
2 chnls
Yearly
2 chnls
Yearly
4 chnls
19:00
Stop
CYCLE
SUN
P1
P2
RUN
PULSE
TIMER
The color indicates flashing.
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
SUN MON TUE WED THU FRI SAT
h
h
m
m
WRITE
