One Control Tri Loop Manuale utente

User's Manual

Tri Loop

Thank you for your purchase of the Tri Loop by One Control.

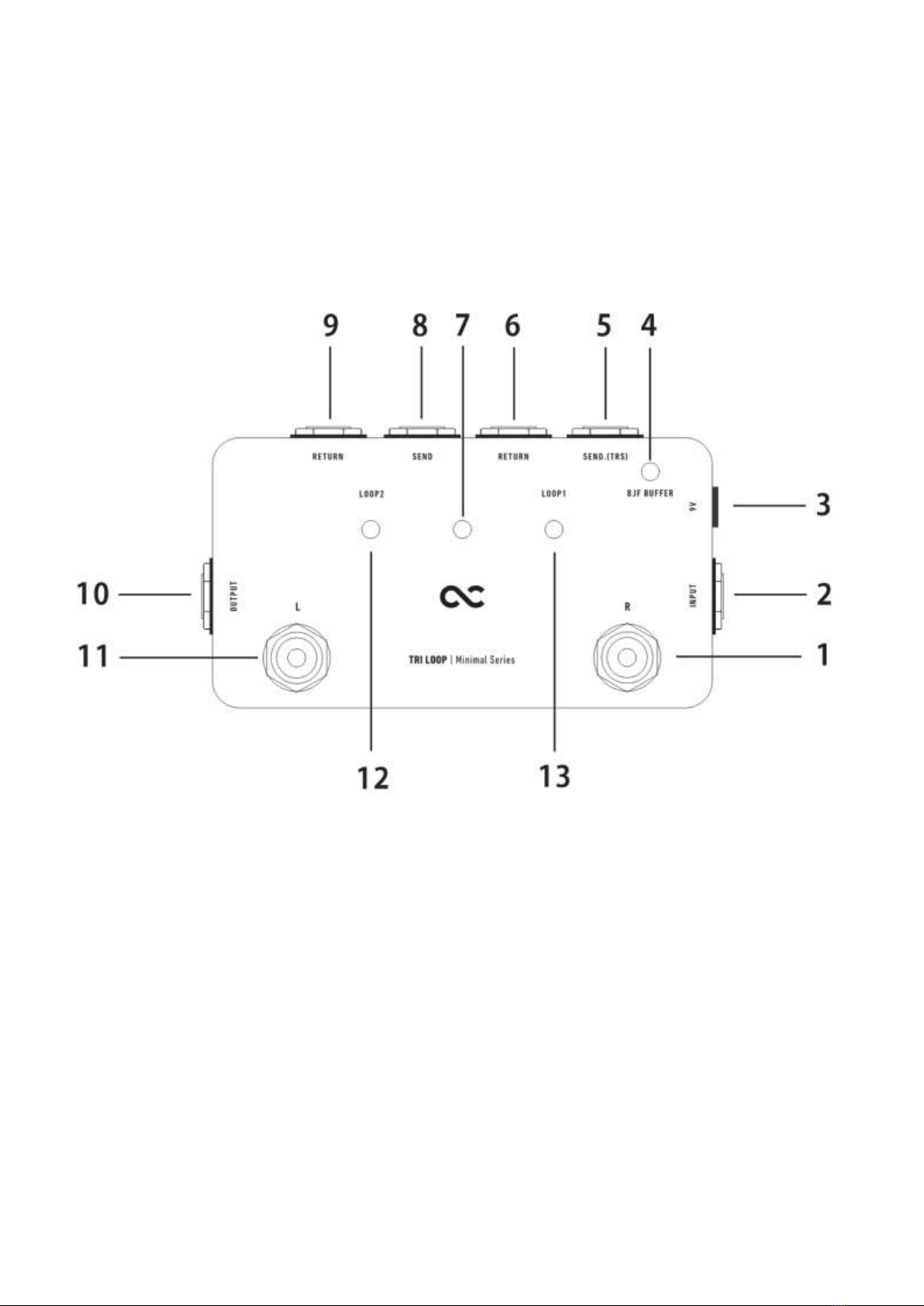

PREVIEW

1. Footswitch “R”

The right footswitch.

2. INPUT jack

Connect output of instrument here.

3. DC jack

Power supply - DC 9V, 5.5x2.1mm, negative center type.

4. BJF buffer on/off indicator

It lights up when BJF buffer is engaged.

5. SEND jack of Loop1

It is a multifunction jack for either audio or control signal.

6. RETURN jack of Loop1

Connects it to send jack of a guitar pedal.

7. MODE indicator

It indicates the working mode of this pedal.

8. SEND jack of Loop2

It is a multifunction jack for either audio or control signal.

9. RETURN jack of Loop2

Connects it to send jack of a guitar pedal.

10. OUTPUT jack

It is a multifunction jack for either audio or control signal.

11. Footswitch L

The left footswitch.

12. Indicator 2

Indicator of loop2

13. Indicator 1

Indicator of loop1

MODE Initialization

Tri loop can be initialized as different purpose looper/switcher/footswitch

RED mode: Black Loop (Cascaded two loops /Footswitch)

WHITE mode: White Loop (flash loop /AB box/Splitter/Selector)

BLUE mode: Momentary footswitch (N.C or N.O)

GREEN mode: Special Momentary footswitch

Chart 1: Mode Initialization

Behavior of Switch “PRESS”

MODE

Action

L switch press

R switch press

RED

Engage/bypass loop2

Engage/bypass loop1

WHITE

Toggle loop1/loop2

Master bypass

BLUE

Momentary switch via SEND2

Momentary switch via SEND1

GREEN

“Favorite” Latch via OUT jack

Tap tempo via SEND1 (TRS cable)

Behavior of Switch “HOLD”

MODE

Action

L (Hold for 4s)

R (Hold for 4s)

RED

NIL

Turn on/off BJF buffer

WHITE

Turn on/off BJF buffer for loop2

Turn on/off BJF buffer for loop1

BLUE

SEND2 sets to be N.O or N.C

SEND1 sets to be N.O or N.C

GREEN

NIL

Specifications

Dimensions: 118(L) x64(W)X50(H) mm

Weight: 380g

Power Supply: DC9V (Negative Center)

Current Drain: Max. 100mA

Max. Input Vp-p: 3V

Buffer Input Impedance: 1M ohm

Buffer Output Impedance: <1K ohm

Tutorials : RED

Cascaded 2 loops

Signal Path: Guitar -> BJF Buffer (if on) -> loop1 -> loop2 -> AMP

A or A+B output (choose by loop2 off/on)

Signal Path:

Guitar -> BJF Buffer (if on) -> FX 1(if on) -> A (Loop2 off)

Guitar -> BJF Buffer (if on) -> FX 1(if on) -> A+B (Loop2 on)

Tutorials : RED (Continued)

Amp switching (mono jacks)

Amp switching (TRS stereo cable)

Tutorials : WHITE

Loop 1 / Loop2 toggle by one click

Signal Path:

Guitar -> Loop1 on -> BJF buffer (if buffer on) -> FX1 (if master bypass is off) -> AMP

Guitar -> Loop2 on -> BJF buffer (if buffer on) -> FX2 (if master bypass is off) -> AMP

Splitter (Keep Loop2 always on)

Signal path:

Guitar -> BJF buffer (if on) -> OUT1 (Master engage) or OUT2 (Master bypass)

Tutorials : WHITE (Continued)

AB BOX

Signal path:

Guitar -> BJF buffer (if on) - > A (loop1 on)

Guitar -> BJF buffer (if on) - > B1+B2 (loop2 on)

Signal path:

Guitar 1 -> AMP (Master bypass)

Guitar 2 -> AMP (loop1 on, master engage), Guitar 3 -> AMP (Loop2 on, master engage)

Tutorials : BLUE

Momentary footswitch for multi-effect pedal

Momentary footswitch for modern amplifier with multi-effect

Tutorials : GREEN

Footswitch L for Favorite

Footswitch R for tap tempo
