One Stop Gardens SOLAR INSECT KILLER 95500 Guida di riferimento rapido

SOLAR INSECT KILLER

WITH LIGHT

Model

95500

ASSEMBLY & OPERATING INSTRUCTIONS

Due to continuing improvements, actual product may differ slightly from the product described herein.

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our website at: http://www.harborfreight.com

TO PREVENT SERIOUS INJURY, READ AND UNDERSTAND

ALL WARNINGS AND INSTRUCTIONS BEFORE USE.

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions or replacement parts, please call 1-800-444-3353.

Page 2SKU 95500 For technical questions, please call 1-800-444-3353.

SPECIFICATIONS

Overall Dimensions 5-7/8” L x 5-7/8” W x 6-1/8” H

Solar Panel Dimension 2.62” L x 2.62” W

Polycrystalline Solar Panel 60 mA - 0.24 W

Batteries 600 mA AA NiCd Batteries - Qty. 2 - (included)

LED Lights-2 Modes Single LED Light (1 White LED)

Pest Attracting Light (2 Ultraviolet LED)

Running Time 8 Hours on Fully Charged Batteries

Net Weight 0.8 lb.

Save This Manual

You will need this manual for the safety warnings and precautions, assembly, oper-

ating, inspection, maintenance and cleaning procedures, parts list and assembly diagram.

Keep your invoice with this manual. Write the invoice number on the inside of the front

cover. Write the product’s serial number in the back of the manual near the assembly dia-

gram, or write month and year of purchase if product has no number. Keep this manual

and invoice in a safe and dry place for future reference.

GENERAL SAFETY RULES

WORK AREA

Keep work area clean. Cluttered areas invite injuries.

Check for damaged parts. Before using any product, any part that appears

damaged should be carefully checked to determine that it will perform its intended

function. Check for any broken or damaged parts and any other conditions that may

affect its operation. Replace or repair damaged or worn parts immediately.

Always check hardware and assembled parts after assembling. All connec-

tions should be tight and hardware tightened.

Keep children away. Children must never be allowed in the work area. Children

should not be allowed to play or touch this product because of high voltage. Also

keep pets away front the Solar Insect Killer with Light.

Use eye protection. Always wear ANSI-approved impact safety goggles when

setting up this product.

Maintain products with care. Keep the Solar Insect Killer with Light clean for better

and safer performance. Follow instructions for set up. Be sure the Solar Insect Killer

is in the OFF position before cleaning off bugs. Clean with a dry brush. Be careful

not to damage the electric grid. Keep the Solar Panel clear of dirt and dust with a

damp cloth. Inspect periodically.

Page 3SKU 95500 For technical questions, please call 1-800-444-3353.

People with pacemakers should consult their physician (s) before using this

product. Electromagnetic ﬁelds in close proximity to a heart pacemaker could cause

interference to or failure of the pacemaker.

UNPACKING

When unpacking, check to make sure that the item is intact and undamaged. If any

parts are missing or broken, please call Harbor Freight Tools at the number shown on the

cover of this manual as soon as possible.

ASSEMBLY INSTRUCTIONS

Note: For additional information regarding the parts listed in the following pages, refer to

the Assembly Diagram near the end of this manual on page 8.

Installation Operation

Note: The Solar Insect Killer with Light can be conﬁgured in two designs. One design is as

a Light that resembles a Lantern. The other design is a Solar Garden Light with a

stake that goes into the ground.

As a Solar Garden Light, insert the assembled Stake (17, 18, 19, & 20) into a

ﬂat and level surface. Choose an area where the sunlight falls directly onto the

Solar Panel (2). Insert the sharp end of the Stake into the ground, deep enough to

hold ﬁrmly. Be sure you have avoided any underground wiring or plumbing. Attach

the Light ﬁrmly on the top of the Stake. See the cover photo. Make sure the area

is not accessible to children or pets and that the area has no plant debris nearby

that can fall on the unit.

As a Lantern design, remove the Stake. You need to place the lantern in a area

where the Solar Panel (2) can be charged with direct sunlight while hanging. Lift the

Hook (1) and connect it to a chain or hook from a beam or door jam. Avoid hanging

it too low where bodily injury could happen. See Figure 3.

Page 4SKU 95500 For technical questions, please call 1-800-444-3353.

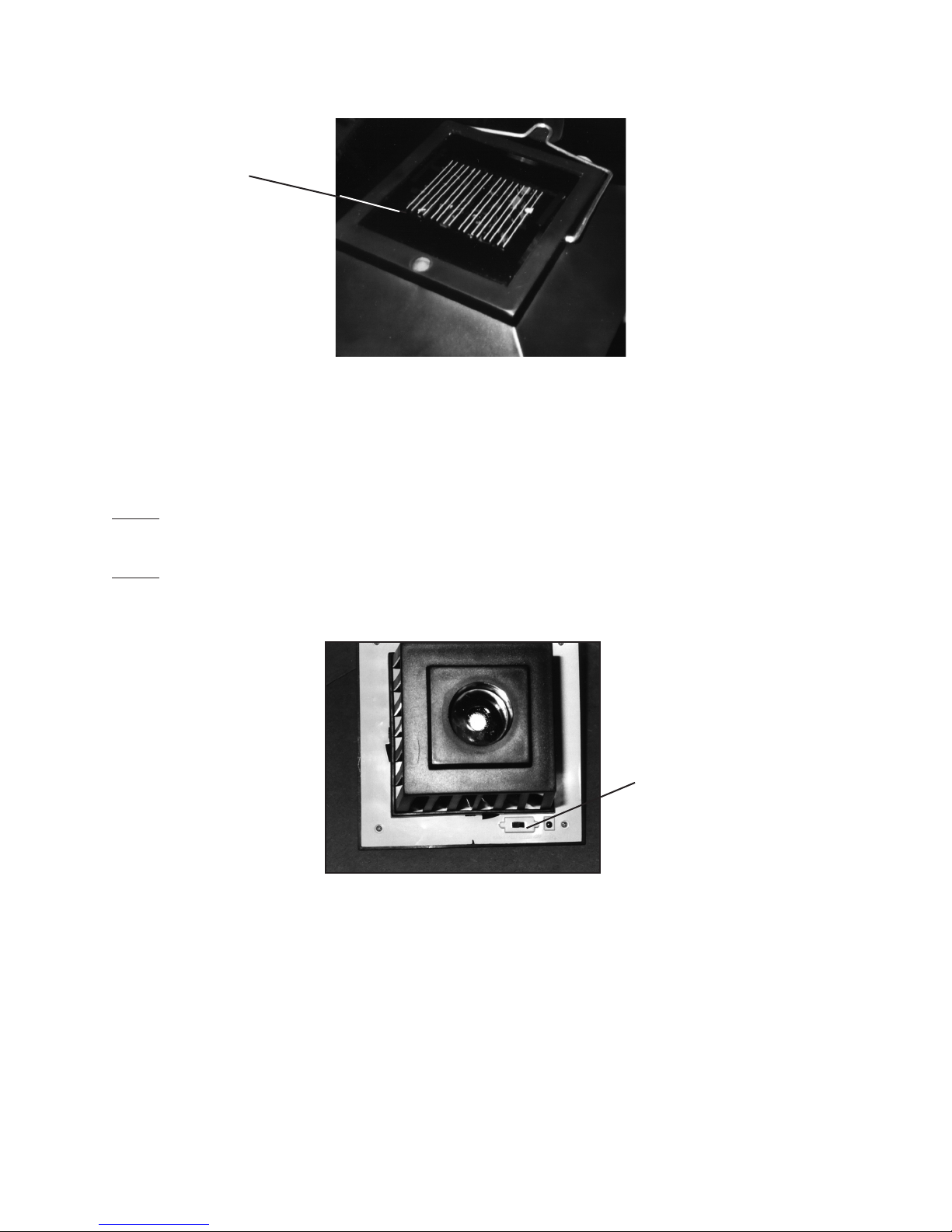

Figure 1

Solar Panel (2)

You need to ﬂip the Switch to OFF (8) and charge the Solar Insect Killer with

Light when using it for the ﬁrst time. Charge time for the Solar Panel (2) is at

least 2-3 days. After this, it will last eight hours without sunlight. Turn OFF the light

during daylight.

Note: The Solar Insect Killer with Light can also be charged with an AC/DC adapter,

4.5V/250mA (not included).

Note: There are three positions on the Switch (8). ON, OFF & Ultraviolet Light (that attracts

insects to kill them). The Insect Killer position of the switch will operate 6 hours at

a time after a full days charge. See Figure 2.

Figure 2

On/Off and Ultravio-

let Switch (8)

The power Switch (8) is located on the underside of the top cover. See Figure 2.

Page 5SKU 95500 For technical questions, please call 1-800-444-3353.

Hook (1)

Lantern Style

Ground Stake

(17, 18, 19, 20)

Figure 3

Place the lantern assembly on the top of the Ground Stake (17,18,19, 20). Be sure

it is connected ﬁrmly. Turn the Switch (8) ON.

REPLACING THE BATTERIES

Note: If the light stops working after being used for a period of time, it may mean the bat-

tery is beyond its lifespan.

Remove the Light from the Stake. From the underside of the Light, remove the cage

to access the batteries. Twist the cage counterclockwise and lift off to expose the

Screws (10). Set aside. (Caution:The cage is fragile. Handle carefully). See Figures

4 & 5.

On/off Switch (8)

Figure 4

Underside of

top cover

With a screwdriver (not provided) remove the Screws (10) to expose the batteries.

Tilt the Transparent Inner Hood assembly (12), containing the bulbs, carefully aside

but still connected. Remove the batteries, being careful not to damage the wiring.

See Figures 4 (above) and 5 on page 6.

Page 6SKU 95500 For technical questions, please call 1-800-444-3353.

Figure 5

Transparent

Inner Hood

Assembly (12)

Batteries (11)

Battery Case (9)

Replace the dead batteries with identical AA NiCd Rechargeable Batteries (11). Be

sure to follow the polarity signs inside of the Battery Case (9).

Reverse these steps and reassembly the Solar Insect Killer with Light. Tighten the

screws and replace the cage, turning clockwise. Connect assembly to the Stake.

Turn the Switch to ON. If it does not light, check to polarity of the batteries again or

place the Solar Light in sunlight and charge.

Dispose of the used batteries properly by contacting your local community waste

disposal facility.

INSPECTION, MAINTENANCE, AND CLEANING

To remove dust, be sure the Switch is in the OFF position. Use a damp cloth. Dry

with a cloth.

This product is weather resistant but avoid standing water.

Brush off the dried bugs with the Light in the OFF position.

Page 7SKU 95500 For technical questions, please call 1-800-444-3353.

PARTS LIST

Part Description Q’ty

1 Hook 1

2 Solar Panel 1

3 Top Cover 1

4 Circuit Board 1

5 LED 1 White

2 Ultraviolet

6 Control Circuit Board 1

7 Recharge Socket 1

8 Switch 1

9 Battery Case 1

10 Screw 4

Part Description Q’ty

11 Battery 2

12 Electric Grid 1

13 Screw 2

14 Reﬂect Ring 1

15 Reﬂect Board 1

16 Outer Hood 1

17 Upper Shaft 1

18 Connector 1

19 Lower Shaft 1

20 Ground Stake 1

PLEASE READ THE FOLLOWING CAREFULLY

THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEM-

BLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER

OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER

THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR

SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER

AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS

SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE

BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS

TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS

OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

Page 8SKU 95500 For technical questions, please call 1-800-444-3353.

Record Product’s Serial Number Here:

Note: If product has no serial number, record month and year of purchase instead.

Note: Some parts are listed and shown for illustration purposes only, and are not available

individually as replacement parts.

ASSEMBLY DIAGRAM

Solar Panel (2)

Ultraviolet LED

White LED

Electric Grid

Main Body

Stake (17, 18, 19, 20)
