OneTouch H700B Manuale utente

FEB-9455 Main Board, 15 inch LCD’s

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cables must be employed with this

equipment to insure compliance with the pertinent RF emission limits governing this device.

Changes or modifications not expressly approved by the system‟s manufacturer could void the

user‟s authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference

2. this device must accept any interference received, including interference that may cause

undesired operation.

DHHS- the DVD-ROM Drive

FDA Regulations require the following statement for all laser-based devices:

“Caution, Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.”

Caution: This appliance contains a laser system and is classified as a “CLASS 1 LASER PRODUCT”.

To use this model properly, read the instruction manual carefully and keep this manual for future

reference. In case of any trouble with this model, please contact your nearest “Authorized Service

Station”. To prevent direct exposure to the laser beam, do not try to open this enclosure.

Important Safety Information

SAFETY INSTRUCTIONS

1. Please read these safety instructions carefully.

2. Keep this User‟s Manual for later reference.

3. Disconnect this equipment from the AC outlet before cleaning. Don‟t use liquid or spray

detergent for cleaning. Use only a moistened sheet or cloth.

4. For pluggable equipment, the socket-outlet should be installed near the equipment and

should be easily accessible.

5. Keep this equipment from humidity.

6. Lay this equipment on a stable surface when installing.

7. Do not leave this equipment in an non-air-conditioned environment, or in a storage

temperature above 60∘C. Such conditions may damage the equipment.

8. The openings on the enclosure are for air convection and protect the equipment from

overheating. DO NOT COVER THE OPENINGS.

9. Check the voltage of the power source when connecting the equipment to the power outlet.

10. Place the power cord so that it will not be stepped on. Do not place anything over the

power cord. The power cord must be rated for the product and for the voltage and current

marked on the product‟s electrical ratings label. The voltage and current rating of the cord

should be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect the equipment from the mains to

avoid damage.

13. Never allow liquid into ventilation openings. This could cause fire or electrical shock.

14. Never open the equipment. For safety reasons, qualified service personnel should only

open the equipment.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The Power cord or plug is damaged.

b. Liquid has penetrated the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well or you cannot get it work according to the user‟s

manual.

e. The Equipment has been dropped and damaged.

f. The equipment has obvious signs of damage.

Caution: Danger of explosion if battery is incorrectly replaced. Replace only with same type, and discard used batteries

according to manufacturer‟s instructions.

Warnings: Not intended for Outdoor Use.

The information in this guide is subject to change without prior notice.

The manufacturer shall not be liable for technical or editorial errors or omissions contained

herein, nor for incidental or consequential damages resulting from the furnishing, performance,

or use of this material.

This manual contains information protected by copyright. No part of this manual may be

photocopied or reproduced in any form without prior written consent from the manufacturer.

The software described in this guide is furnished under a license agreement or nondisclosure

agreement. The software may be used or copied only in accordance with the terms of the

agreement.

Product names mentioned herein may be trademarks and/or registered trademarks of their

respective companies.

First Edition March 2011

Introduction 1

Model H700B Characteristics...............................................................................................1

How to Use This Manual......................................................................................................2

A Visual Tour of Model H700B.............................................................................................3

What comes with Model H700B....................................................................................4

Dimensions15”..............................................................................................................6

Connector Panels................................................................................................................7

Hardware Setup 8

Model H700B Assembly.......................................................................................................8

Hard Disk Drive Installation...........................................................................................9

Compact Flash Installation..........................................................................................10

Magnetic Card Reader Installation..............................................................................11

MCR Parameter Modification......................................................................................13

VFD Customer Display Installation..............................................................................14

Cash Drawer Installation.............................................................................................15

Optional Second LCD Panel Display...........................................................................18

OSD Settings for Second LCD Panel..........................................................................19

CMOS Setup .....................................................................................................................20

Software Setup 21

Intel Chip Set Driver Installation for Windows XP...............................................................24

Graphic Media Accelerator Driver Installation ....................................................................26

Lan Driver...................................................................................................................28

Audio Driver................................................................................................................29

ELO Touch Tools Installation.............................................................................................29

ELO Touch Tools Installation for Windows XP & Vista................................................29

ELO Control Panel......................................................................................................35

Wireless LAN Driver Installation.........................................................................................37

Specifications 40

Jumper setting...................................................................................................................42

Connector function lists......................................................................................................42

Connector pin define..........................................................................................................43

Troubleshooting 50

Power is on, but there is no Panel Display..................................................................50

Cannot Detect HDD....................................................................................................50

Touch Panel Does not Work.......................................................................................50

ELO Touch Panel Cannot Calibrate Correctly.............................................................50

Second LCD Panel is Not Functioning Properly..........................................................51

PS/2 Keyboard is not functioning normally..................................................................51

MCR is not Functioning Properly.................................................................................51

VFD Display is not functioning Properly......................................................................52

LAN is not functioning Properly...................................................................................52

COM1, COM2 and COM3 are not functioning properly ...............................................52

Cash Drawer Port is not functioning Properly..............................................................52

9455 Main Board

Model H700B Characteristics

Model H700B uses a high speed processor capable of handling a high capacity of data

efficiently.

Model H700B‟s solid quality Aluminum housing distinguishes it from ordinary plastic

housings.

The Model H700B touch terminal all-in-one design combines a powerful PC, multiple

LCD and touch screens, which are suitable for any market. The primary LCD panel can

be tilted at multiple angles.

Model H700B‟s functionality extends far beyond the standard setup. Model H700B can

be adapted for a variety of uses with the addition of any of the following options:

Magnetic Card Reader, VFD/LCD customer display and cash drawer, Modem, LAN,

Audio devices, Compact Flash or USB devices (all available upon request).

Model H700B‟s security is designed to prevent data theft. The Model H700B system is

comprised of an internal 2.5” HDD making it hard to copy data without authority.

The solid aluminum design enhances heat dissipation and passes EMI testing.

9455 Main Board

How to Use This Manual

This manual contains all the information you need to set up and use Model H700B. In addition,

you can also consult the manuals for the operating system and added hardware.

Chapter 1 Provides an introduction to Model H700B and this manual.

Chapter 2 Provides all necessary information for all hardware setup.

Chapter 3 Provides the necessary information for installing the Intel Chip set driver, Video

drivers and the touch screen tools,Audio, USB and LAN drivers.

Chapter 4 Lists all Model H700B specifications and Information for the I/O board

configuration.

Chapter 5 Provides information for troubleshooting Model H700B.

9455 Main Board

A Visual Tour of Model H700B

Before you start, take a few moments to become familiar with Model H700B.

USBX1

9455 Main Board

What comes with Model H700B

The following items are standard with Model H700B:

Main system with LCD panel

ATX power supply

One DVD contains driver, utilities and user‟s guide

AC power cord

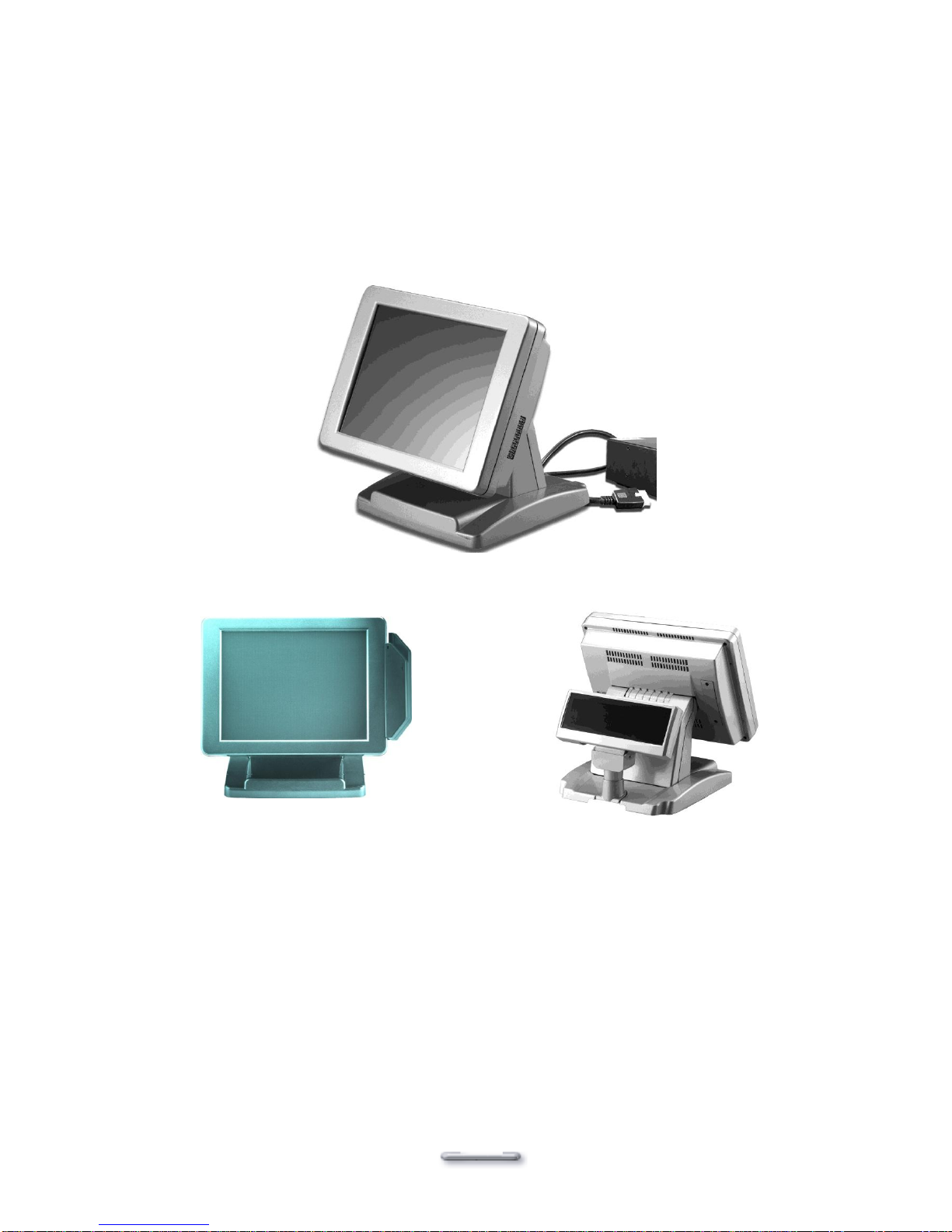

Model H700B and power adapter

Model H700B with MCR

Model H700B with VFD
