SERVICE MANUAL

CD Receiver System

DW-S500,HS-N1(S).(T)

DW-S500/HS-N1(S).(T)

DD,DT 120V,60Hz

PP,PA 230-240V,50Hz

GR,GQ,GT 220-230V,50Hz

DD : U.S.A.,Canada model

DT : Taiwan model

PP : Europe model

PA : Australia model

GR : China model

GQ : Hong Kong model

GT : Asia model

Center unit Speaker unit

DW-S500MDD CR-N1(S)MDD D-N1MD

HS-N1(T)MPP CR-N1(T)MPP D-N1MP

HS-N1(S)MPA CR-N1(S)MPA D-N1MD

HS-N1(S)MDT CR-N1(S)MDT D-N1MD

HS-N1(S)MGR CR-N1(S)MGR D-N1MR

HS-N1(S)MGQ CR-N1(S)MGQ D-N1MD

HS-N1(S)MDD CR-N1(S)MDD D-N1MD

HS-N1(S)MGT CR-N1(S)MGT D-N1MD

COMBINATION

DW-S500/HS-N1(S).(T)

SPECIFICATIONS

CR-N1(S).(T)

Amplifier

CD Player

USB

Power output

(U.S. & Canadian models)

2 x 6.5 watts min., RMS at 8 ohms, 50 Hz-20 kHz, with no more than 0.6%

total harmonic distortion (FTC)

2 x 9.5 watts min., RMS at 4 ohms, 50 Hz-20 kHz, with no more than 0.8%

total harmonic distortion (FTC)

2 x 15 watts at 4 ohms (EIAJ)

Power output

(Other models)

2 x 10 watts at 4 ohms, 1 kHz (DIN)

2 x 8.5 watts at 6 ohms, 1 kHz (DIN)

2 x 7 watts at 8 ohms, 1 kHz (DIN)

2 x 6.5 watts min., RMS at 8 ohms, 1 kHz, no more than 0.6% THD (FTC

rating)

2 x 15 watts at 4 ohms (EIAJ)

Dynamic power 2 x 15 watts at 4 ohms

2 x 9 watts at 8 ohms

Total harmonic distortion 0.4% at 5 watts output into 4 ohms, 1 kHz

IM distortion 0.4% at 5 watts output into 4 ohms, 1 kHz

Damping factor 25 at 4 ohms

50 at 8 ohms

LINE IN sensitivity and

impedance 500 mV, 47kW

Frequency response 10 Hz-20 kHz, +3/-3 dB

Acoustic presence 1: +6.0 dB at 80 Hz

2: +10.0 dB at 80 Hz

Signal to noise ratio 95 dB (IHF-A)

Muting -50 dB

Signal readout system Optical non-contact

Reading rotation Approx. 500-200 rpm (constant linear velocity)

Linear velocity 1.2-1.4 m/s

Error correction system Cross interleave Reed Solomon code

D/A converter 1 bit

Digital Þlter 352.8 kHz, 8-times oversampling

Number of channels 2 (stereo)

Frequency response 5 Hz20 kHz

Wow & ßutter Below threshold of measurability

Connection method USB (Universal Serial Bus) Ver 1.1

Sampling rate (input) 32/44.1/48 kHz compatible

Frequency response 5 Hz-20 kHz

DW-S500/HS-N1(S).(T)

SPECIFICATIONS

CR-N1(S).(T)

Tuner

General

Specifications and features are subject to change without notice.

Power supply and voltage specifications depend on where the unit is purchased.

Tuning range

FM 87.9-107.9 MHz (200 kHz steps) (U.S. & Canadian model)

87.5-108.00 MHz (50 kHz steps) (Other area models)

530-1710 kHz (10 kHz steps) (U.S. & Canadian model)

522-1611 kHz (9 kHz steps) (European & Australian

models)

531-1602 kHz (9 kHz steps) (Asian models)

Usable sensitivity FM Mono 11.2 dBf, 1.0 µV (75 ohms IHF)

11.2 dBf, 0.9 µV (75 ohms DIN)

Stereo 17.2 dBf, 2.0 µV (75 ohms IHF)

17.2 dBf, 23.0 µV (75 ohms DIN)

AM 30 µV

50 dB quieting sensitivity FM Mono 17.2 dBf, 2.0 µV (75 ohms)

Stereo 37.2 dBf, 20.0 µV (75 ohms)

Capture ratio FM 2.0 dB

Image rejection ratio FM 40 dB (U.S. & Canadian model)

85 dB (Other area models)

AM 40 dB

IF rejection ratio FM 90 dB

AM 40 dB

Signal to noise ratio FM Mono 73 dB, IHF

Stereo 67 dB, IHF

AM 40 dB

Selectivity FM 50 dB DIN

(±300 kHz at 40 kHz deviation)

AM suppression ratio 50 dB

Harmonic distortion FM Mono 0.2%

Stereo 0.3%

AM 0.7%

Frequency response FM 30 Hz-15.0 kHz (±1.5 dB)

Stereo separation FM 35 dB at 1 kHz

25 dB at 100 Hz-10.0 kHz

Stereo threshold FM 17.2 dBf, 2.0 µV (75 ohms)

Power supply

AC 120 V, 60 Hz, 39 W (U.S. & Canadian model, some Asian

models)

AC 230 V, 50 Hz, 32 W (European model)

AC 220 V, 50/60 Hz, 32 W (Other area models)

Dimensions (W x H x D) 203 x 270 x 234 mm

8" x 10-5/8" x 9-3/16"

Weight 4.2 kg (9.3 lbs)

DW-S500/HS-N1(S).(T)

SPECIFICATIONS

D-N1

Type 2way , Bass Reflex

Impedance 4 ohm

Maximum Input Power 30W

Output sound pressure level 83dB/W/m

Frequency Response 63Hz - 35kHz

Crossover Frequency 3000Hz

Cabinet Capacity 2.6 Litter

Woofer 9cm OMF Cone Type

Tweeter 2.5cm Soft Dome Type

Dimensions (W x H x D) 165x271x160 mm

Weight 1.7kg

DW-S500/HS-N1(S).(T)

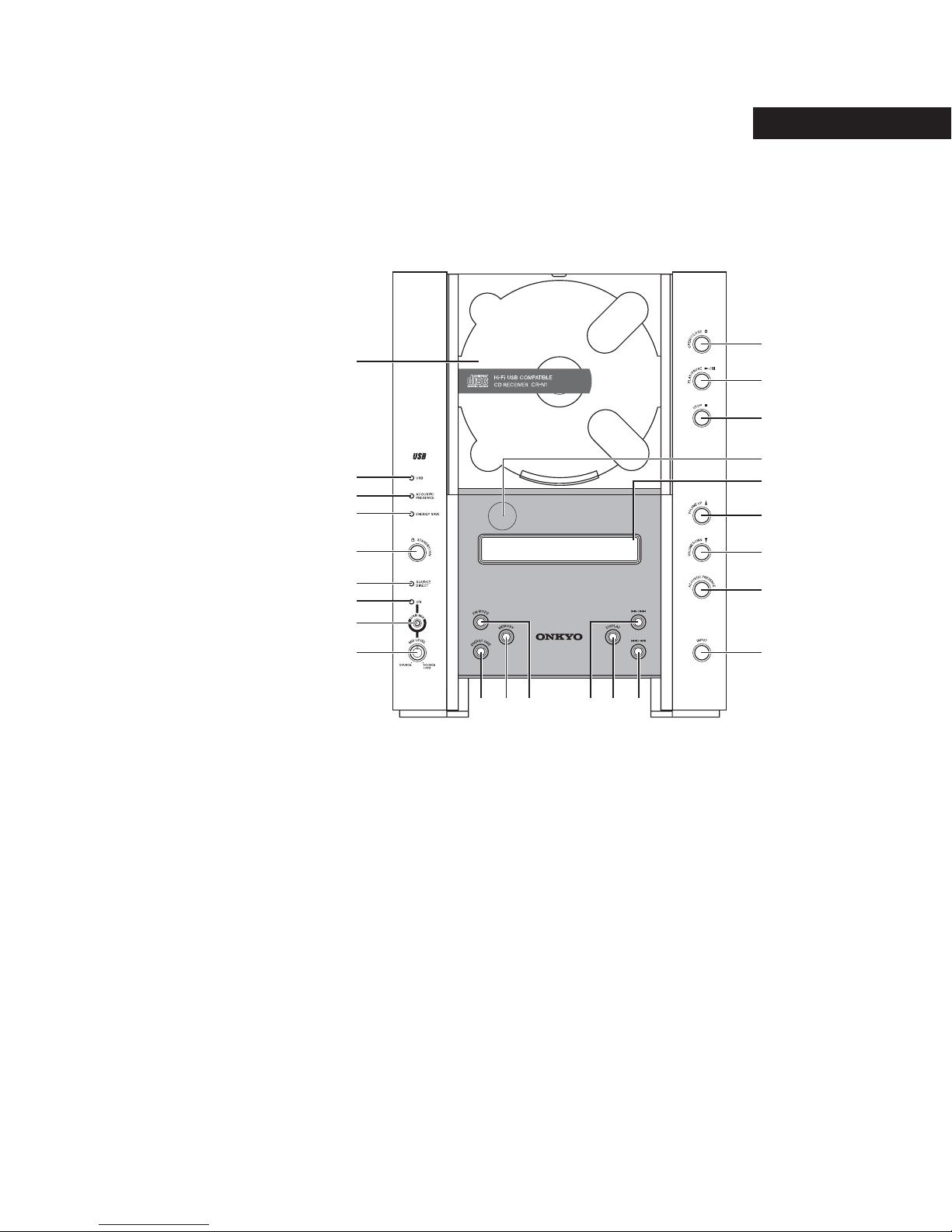

FRONT PANEL VIEW

CR-N1(S).(T)

NMLKJ

A CD compartment

B USB indicator

C ACOUSTIC PRESENCE indicator

D ENERGY SAVE indicator

E STANDBY/ON button

F SOURCE DIRECT indicator

G USB MIX ON indicator

H USB MIX button

I USB MIX LEVEL control

J ENERGY SAVE button

K MEMORY button

L FM MODE button

M Next/Preview/Tuning button

N DISPLAY button

O Previous/Review/Tuning button

P OPEN/CLOSE button

Q PLAY/PAUSE button

R STOP button

S Remote control sensor

T Display

U VOLUME UP button

V VOLUME DOWN button

W ACOUSTIC PRESENCE button

X INPUT selector button

DW-S500/HS-N1(S).(T)

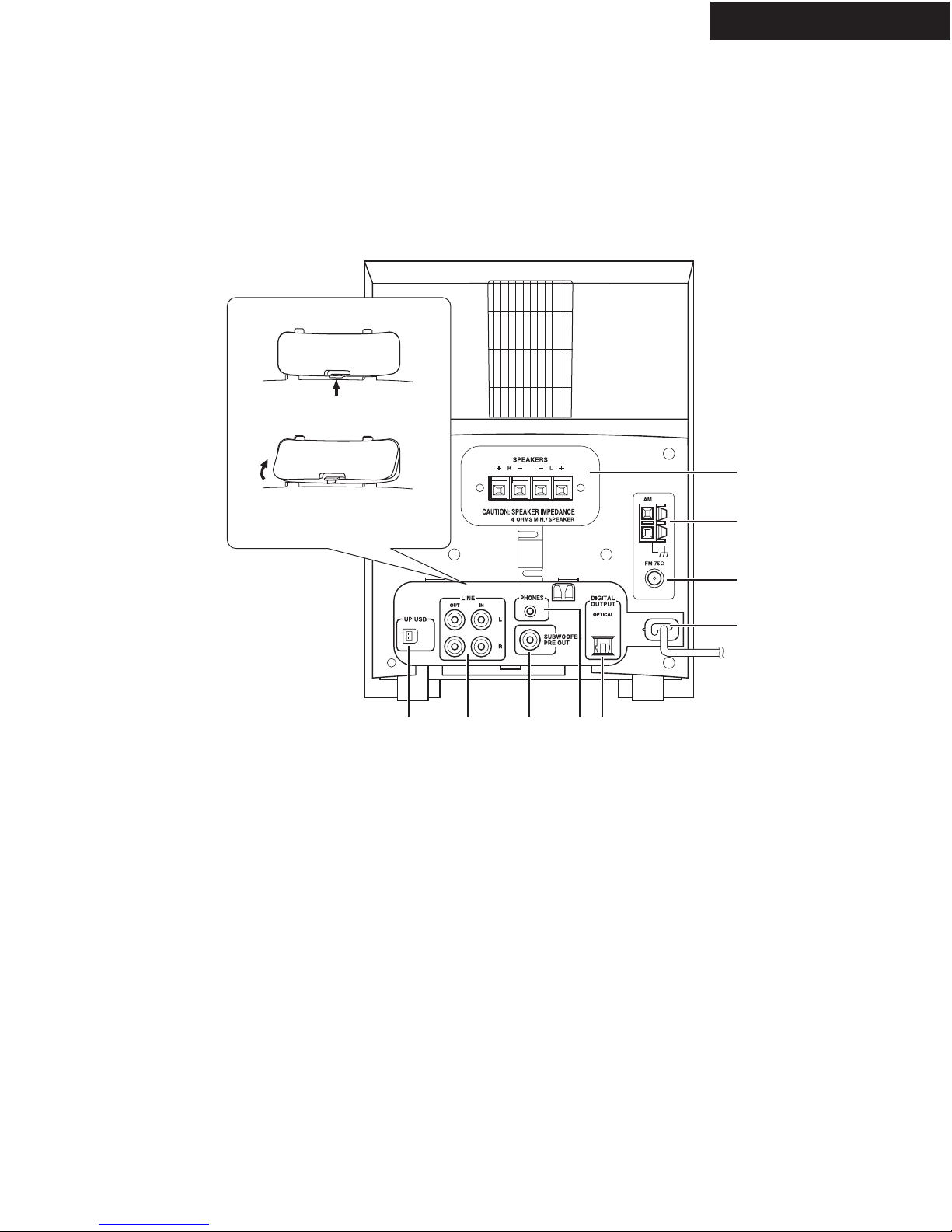

REAR PANEL VIEW

CR-N1(S).(T)

A UP USB port

B LINE IN/OUT connectors

C SUBWOOFER PRE OUT connector

D PHONES jack

E OPTICAL DIGITAL OUTPUT

connector

F Power cord

G FM 75ohm antenna connector

H AM antenna terminals

ISPEAKERS terminals

AB C D E

Replace the cover when nothing

is connected to these connectors.

Push up the tab to release the cover .

Connector cover

DW-S500/HS-N1(S).(T)

GETTING CONNECTED

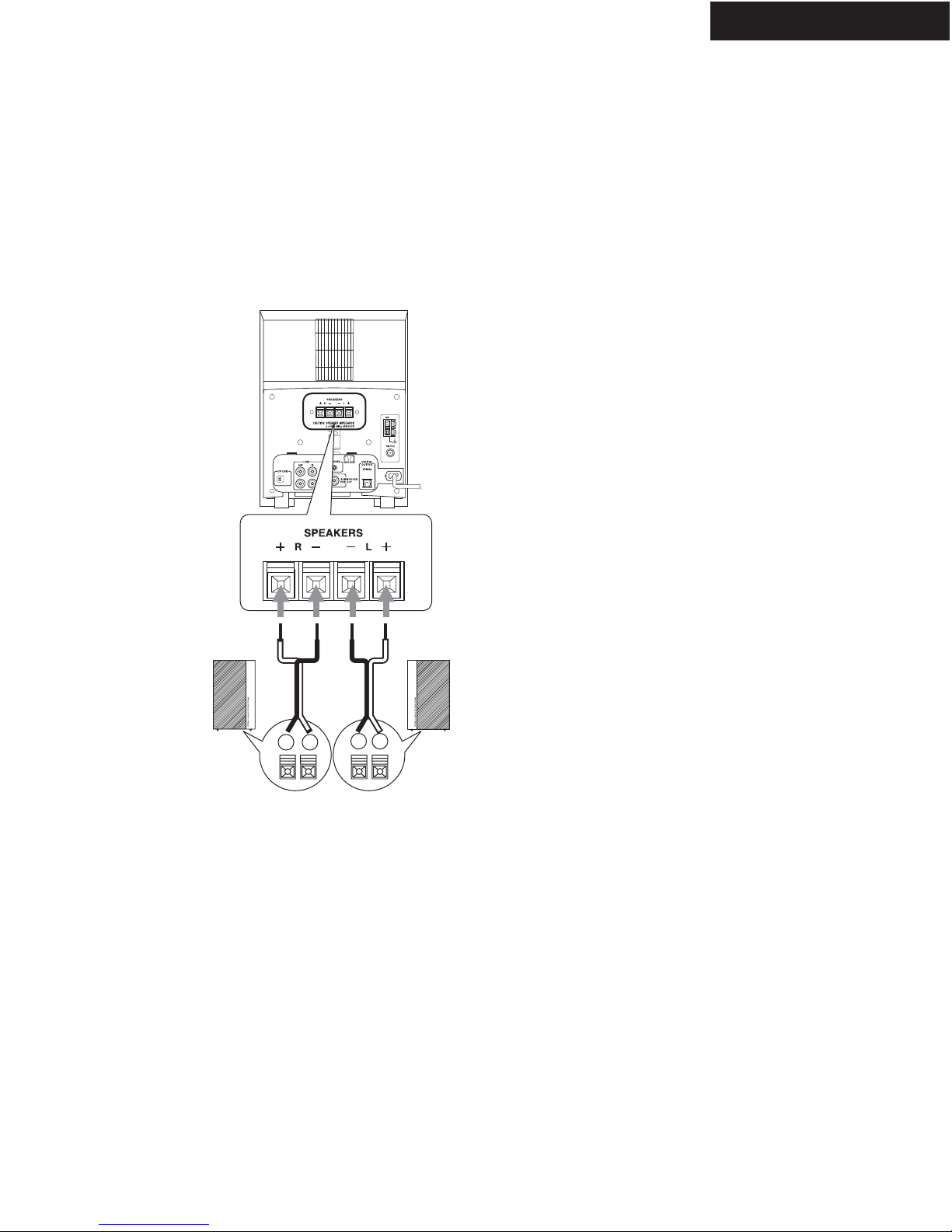

Connect the speakers only as shown here.

Incorrect connections may damage the

CR-N1 or the speakers.

Right

speaker Left

speaker

These terminals are located on

the underside of the D-N1 speakers.

-+-+

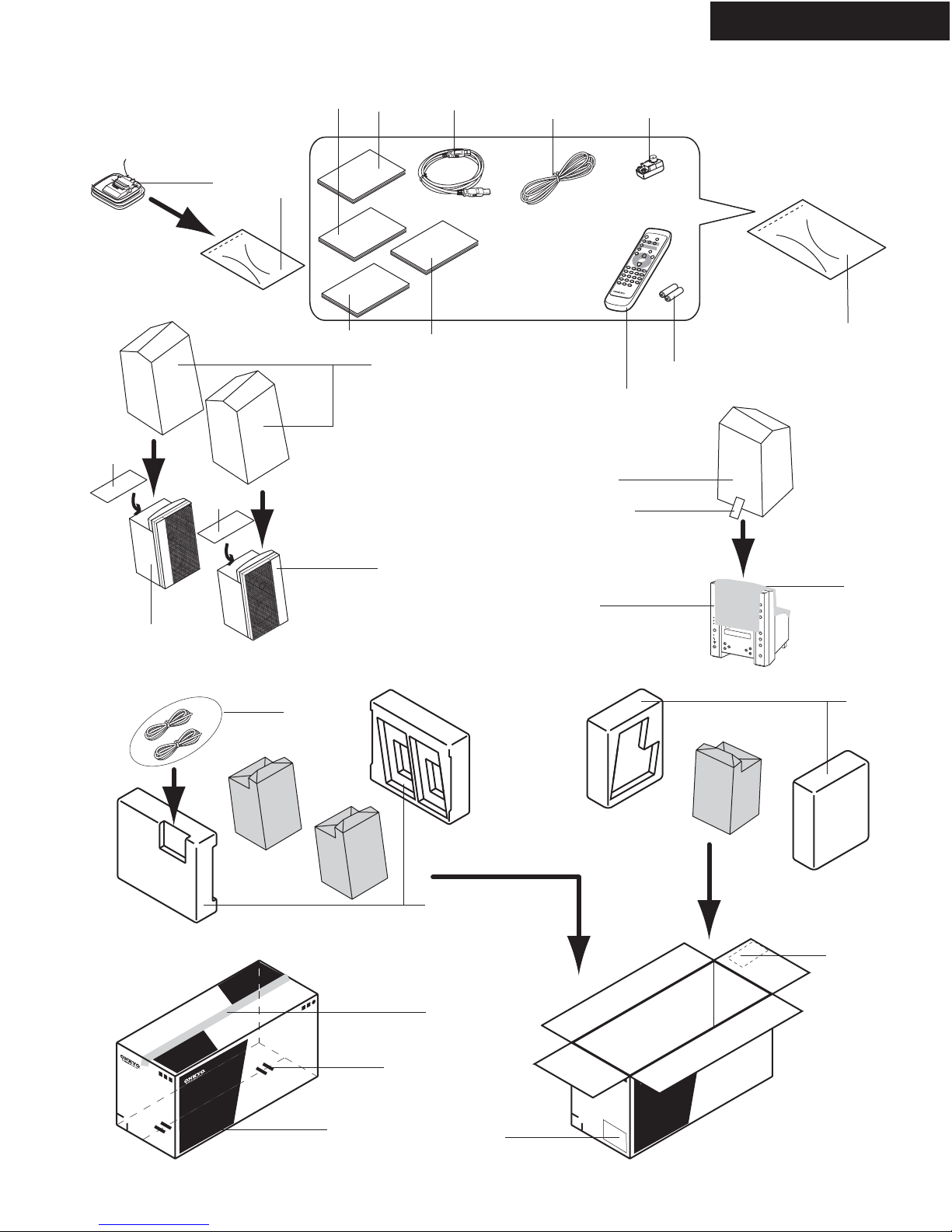

PACKINGVIEW

DW-S500/HS-N1(S).(T)

PRECISE

DW-S500(S)

Hi-Fi USB COMPATIBLE CD RECEIVER SYSTEM

DW-S500(S)

CR-N1

D-N1

DW-S500(S)

Hi-Fi USBCOMPATIBLE CD RECEIVER SYSTEM

FRAGILE / MANIPULERAVEC SOIN

DW-S500(S)

Hi-Fi USB COMPATIBLECD RECEIVER SYSTEM

FRAGILE / MANIPULER AVEC SOIN

PRECISE

DW-S500(S)

Hi-Fi USBCOMPATIBLE CDRECEIVER SYSTEM

DW-S500(S)

CR-N1

D-N1

B10 B11

B12

B13

B17

B18

B19

Center Unit

Speaker(L)

Speaker(R)

B14B15

B16

DW-S500 HS-N1(T)

DD PP PA DT GR GQ GT DD

A1 29365090 Warranty card O X X X X X X O

29053810 Carton X X O O O O O X

29053809 Carton X O X X X X X X

29053808 Carton O X X X X X X O

A3 282301 Staple O O O O O O O O

A4 29110098 Tape O O O O O O O O

29362925A UPC Label O X X X X X X O

29362960A EAN Label X O X X X X X X

B1 29100037-1A Poly bag (650 x 500) O O O O O O O O

B2 29110149 Tape O O O O O O O O

B3 29100097-1A Poly bag (350 x 250) O O O O O O O O

B4 29092005 Pad ass'y O O O O O O O O

B5 29095906 Protection sheet O O O O O O O O

B10 24140454A Remote controller,RC-454S O O O O O O O O

B11 3010054 Battery,UM-3 O O O O O O O O

B12 232140 Antena coil,NMA-3057 O O O O O O O O

B13 29343196 Instruction manual,E O O O O O O O O

29343199 Instruction manual,CT X X X O X X O X

29343258 Instruction manual,CS X X X X O O X O

B15 29343197 Instruction manual,U3FSI X O X X X X X X

B16 29343198 Instruction manual,U3GSWD X O X X X X X X

292142 FM Antenna ass'y O X X O X X X X

292115 FM Antenna ass'y X O O X O O O O

B18 2010402 Cord ass'y,USB Cable(A-B) O X X X X X X X

B19 25065462 FM Adaptor,YAE21-0237 X X O O O O O O

C1 404-D-N1 Pad O O O O O O O O

C2 434-NS-300 Protection bag,0.5tx440x320 O O O O O O O O

C3 434-ANS-300 Protection sheet,1tx200x60 O O O O O O O O

C4 610-PD-N1 Speaker cable O O O O O O O O

B14

B17

HS-N1(S)

DESTINATION

REF NO. PART NO. DESCRIPTION

DW-S500/HS-N1(S).(T)

PARTS LIST

The parts registration of B1-B19 is done with CR-N1.

The parts registration of C1-C4 is done with D-N1.

DW-S500/HS-N1(S).(T)

http://www.onkyo.co.jp/

HOMEPAGE

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: 201-785-2600 Fax: 201-785-2650 E-mail: [email protected]

ONKYO EUROPE ELECTRONICS GmbH

Industriestrasse 20, 82110 Germering, GERMANY

Tel: 089-849-320 Fax: 089-849-3265 E-mail: [email protected]

ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,

N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN

Tel: 072-831-8111 Fax: 072-833-5222

ONKYO CORPORATION
