Onkyo HT-S3100 Scheda tecnica

Thank you for purchasing this product.

This quick setup sheet shows the typical hookup method for connecting

speakers and AV components (DVD player,TV, cable/satellite receiver).

For more detailed hookup information and operating instructions,

please see the Instruction Manual.

See the other side of this sheet

for the AV component hookup.

HTP-360 speaker package is shown

First of all,

turn on speaker set A.

Press the SPEAKERS [A] button on

the front panel. Make sure that speaker

indicator A is shown on the display.

Turn off speaker set B when not in use.

Indicator should be off.

Speaker Set A Layout (Main Room)

Front

Left

Surround

Left

Surround

Right

Listener

Sub

woofer

Front

Right

Center

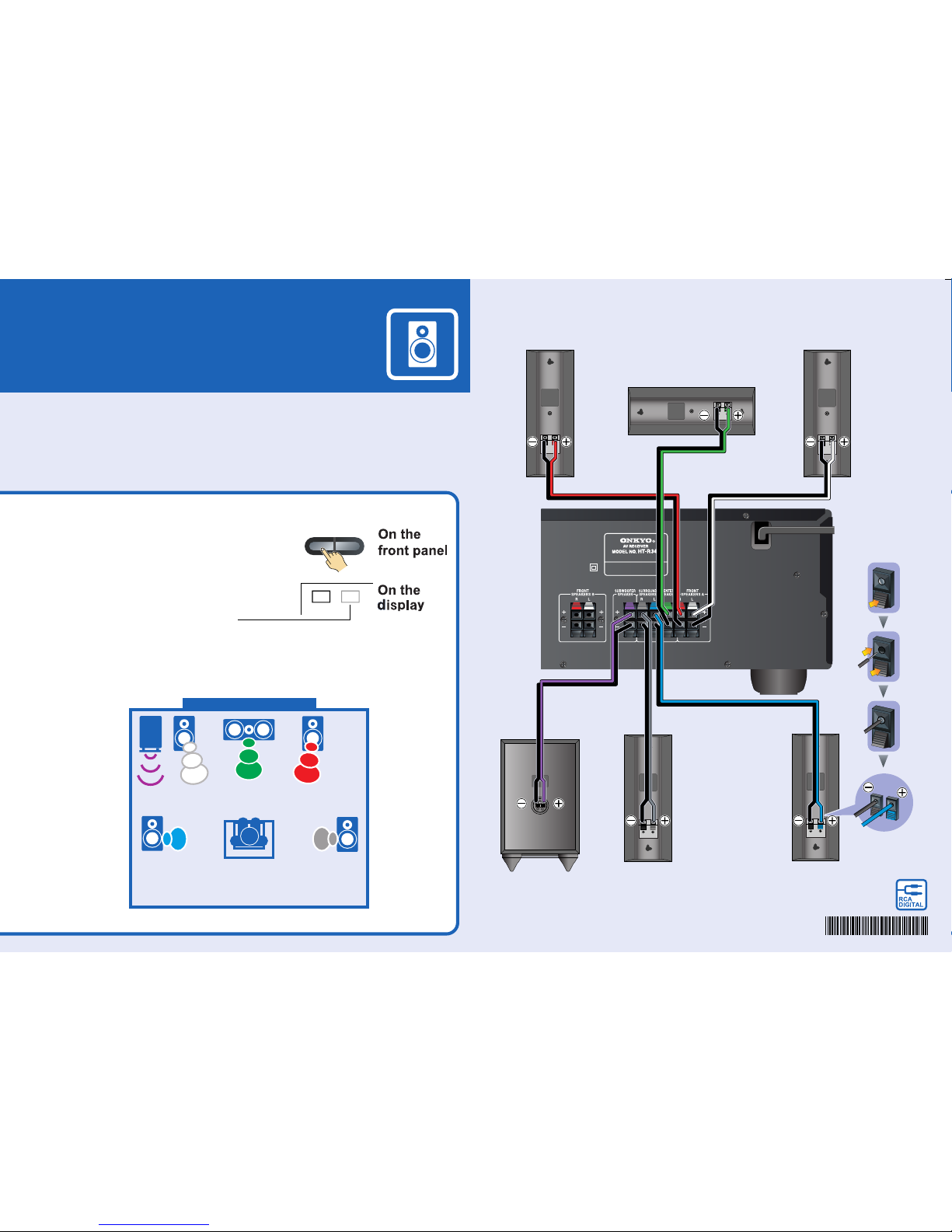

Speaker Set A Hookup

A SPEAKERS B

SN 29344694

* 2 9 3 4 4 6 9 4 *

QUICK SETUP

Model : HT-S3100/HT-S3105

RED/BLACK

CABLE

PURPLE/BLACK

CABLE

Subwoofer

Front left speaker

WHITE/BLACK

CABLE

Front right speaker

GREEN/BLACK

CABLE

Center speaker

BLUE/BLACK

CABLE

Surround left speaker

GRAY/BLACK

CABLE

Surround right speaker

Cable/satellite

VIDEO

OUT

AUDIO

OUT

DIGITAL

OUT

OPTICAL

DVD player

VIDEO

OUT

AUDIO

OUT

DIGITAL

OUT

COAXIAL

VIDEO 1

Please ensure the monitor input

(VIDEO 1, VIDEO 2, VIDEO 3, etc.)

selected corresponds to actual

connection used.

Antenna input

(e.g..RF IN)

Coaxial feed from

TV antenna

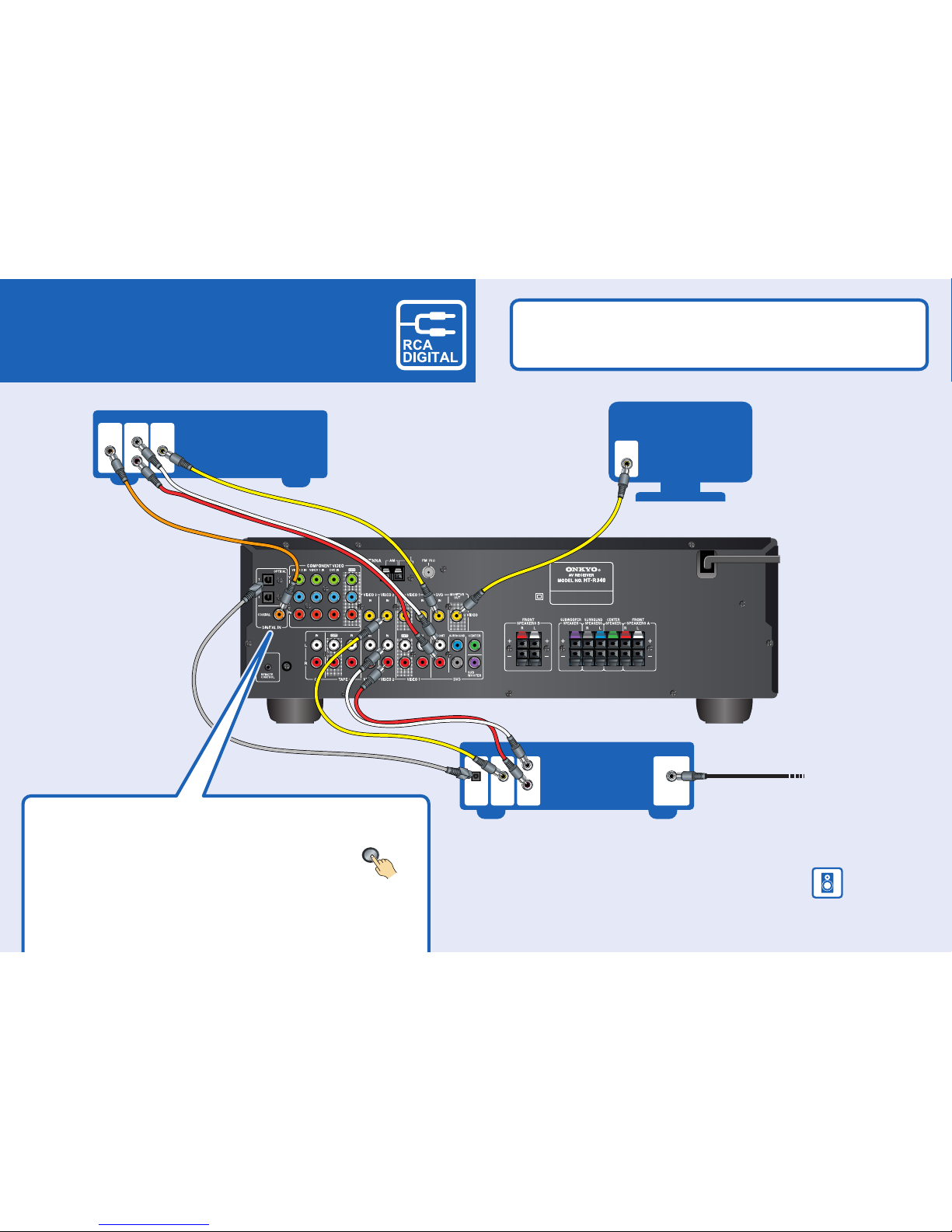

A TV, DVD player, and cable/satellite receiver is used in this hookup example.

See the Instruction Manual for how to connect other types of components.

Assigning the Digital Input

If there's no sound, press the [DIGITAL INPUT]

button repeatedly until sound is heard. The digital input is

now properly assigned.

If you connect your DVD player to the AV receiver's

COAXIAL DIGITAL IN, and your cable/satellite receiver

to the OPTICAL 1 DIGITAL IN, as shown, it's not necessary

to assign the digital input.

On the

front panel

See the other side of this sheet for the Speaker hookup.

DIGITAL INPUT

AV Component Hookup
