Onkyo HT S3200 Scheda tecnica

FRONT

SPEAKERS A

FRONT

SPEAKERS B

SURR

SPEAKERS

CENTER

SPEAKER

SUBWOOFER

Speaker Set A Layout (Main Room)

Front

Left

Surround

Left

Surround

Right

Listener

Sub

woofer

Front

Right

Center

Press the SPEAKERS [A] button on

the front panel. Make sure that speaker

indicator A is shown on the display.

Press the [RECEIVER] button, and then

press the remote controller’s [SP A/B]

button repeatedly to select speaker set A.

Make sure that speaker indicator A is

shown on the display.

Turn off speaker set B when not in use.

Indicator should be off.

On the

front panel

On the

remote

controller

On the

display

First of all, turn on speaker set A.

Surround right

speaker

Surround left

speaker

Center speaker

Front left speakerFront right speaker

Subwoofer

Speaker Set A Hookup

* 2 9 3 4 4 9 3 3 *

QUICK SETUP

Model : HT-S3200

Thank you for purchasing this product.

This quick setup sheet shows the typical hookup method for connecting

speakers and AV components (DVD/BD player, TV, cable/satellite receiver).

For more detailed hookup information and operating instructions,

please see the Instruction Manual.

See the other side of this sheet

for the AV component hookup.

HTP-370 speaker package is shown

HDMI

VIDEO 1

HDMI

OUT Antenna input

(e.g., RF IN)

Cable/

satellite

Cable/

satellite

VIDEO

OUT

AUDIO

OUT

DIGITAL

OUT

OPTICAL

Antenna input

(e.g..RF IN)

DVD/BD

player

VIDEO

OUT

AUDIO

OUT

DIGITAL

OUT

COAXIAL L

HDMI

OUT

DVD/BD

player

AUDIO

OUT

DIGITAL

OUT

OPTICAL

COAXIAL

DIGITAL

OUT

AUDIO

OUT

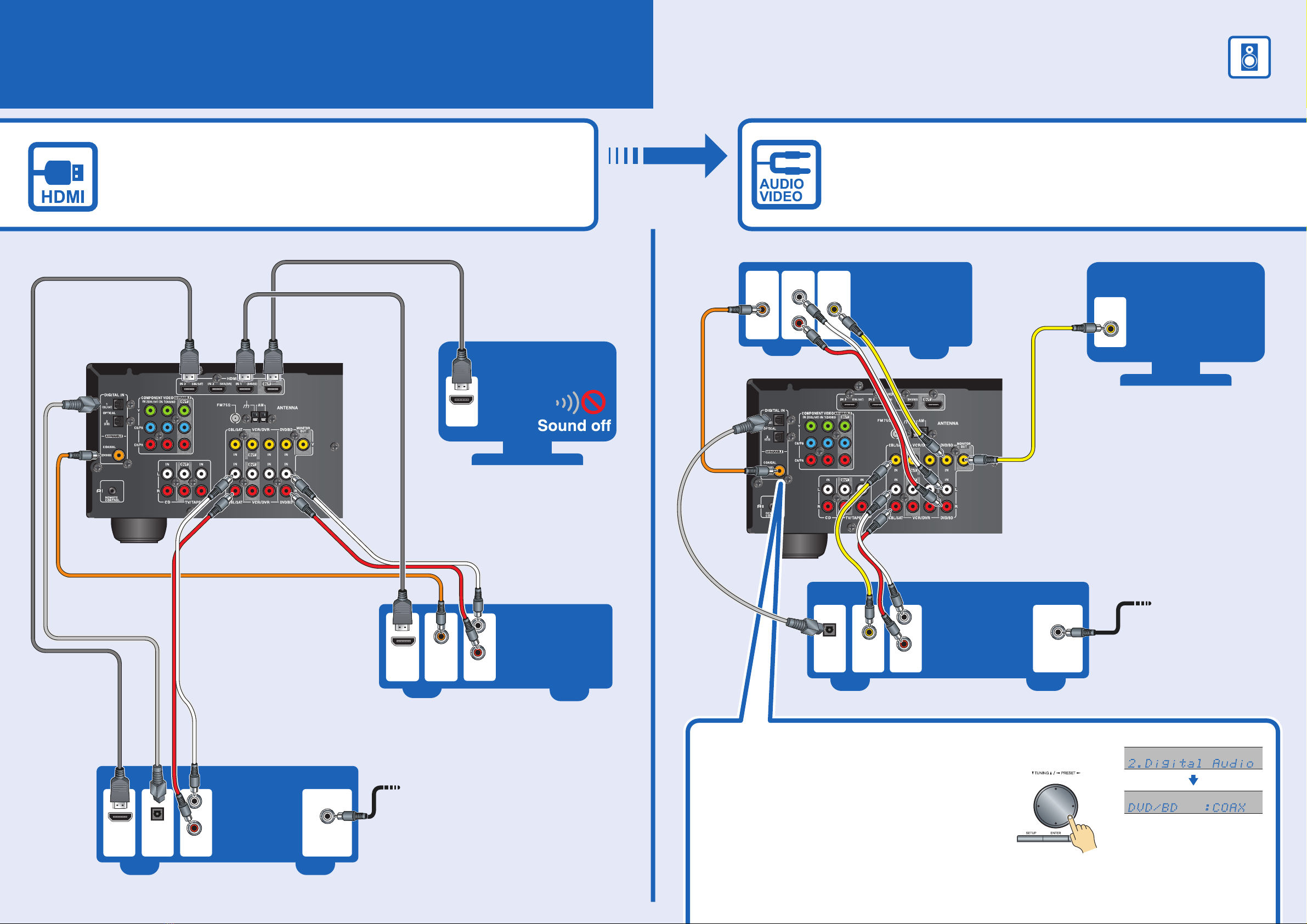

AV Component Hookup

IF NO HDMI

See the other side of this sheet for the Speaker hookup.

If you have an HDMI-compatible TV and players, you can connect them

to the AV receiver with HDMI cables. The audio and video signals received

via the HDMI inputs are output by the HDMI OUT as they are (pass-through).

To listen through the speakers connected to the AV receiver, please make

the audio connections shown below.

If your TV or player doesn’t support HDMI, use the analog or digital

connections shown below.

Please ensure the monitor input

(VIDEO 1, VIDEO 2, VIDEO 3, etc.)

selected corresponds to actual

connection used.

Coaxial feed from

TV antenna

If you are not using

Cable/satellite box,

please refer to the

instruction manual.

Coaxial feed from TV antenna

If you are not using Cable/satellite box,

please refer to the instruction manual.

To fully enjoy the AV receiver’s

listening modes, turn off the

volume on your TV.

Assigning the Digital Input

If there’s no sound, you’ll need to assign the

digital inputs as necessary using the setup

menus on the AV Receiver’s display.

If you connect your DVD/BD player to the AV

receiver’s COAXIAL DIGITAL IN, and your

cable/satellite receiver to the OPTICAL 1

DIGITAL IN, as shown, it’s not necessary to

assign the digital input.

On the front panel
