Onkyo HT-S4100 Scheda tecnica

TX-SR304

Thank you for purchasing this product.

This quick setup sheet shows the typical hookup method for connecting

speakers and AV components (DVD player,TV, cable/satellite receiver).

For more detailed hookup information and operating instructions,

please see the Instruction Manual.

First of all,

turn on speaker set A.

Press the SPEAKERS [A] button on

the front panel. Make sure that speaker

indicator A is shown on the display.

Turn off speaker set B when not in use.

Indicator should be off.

Speaker Set A Layout (Main Room)

Front

Left

Surround

Left

Surround

Right

Listener

TV

Sub

woofer

Front

Right

Center

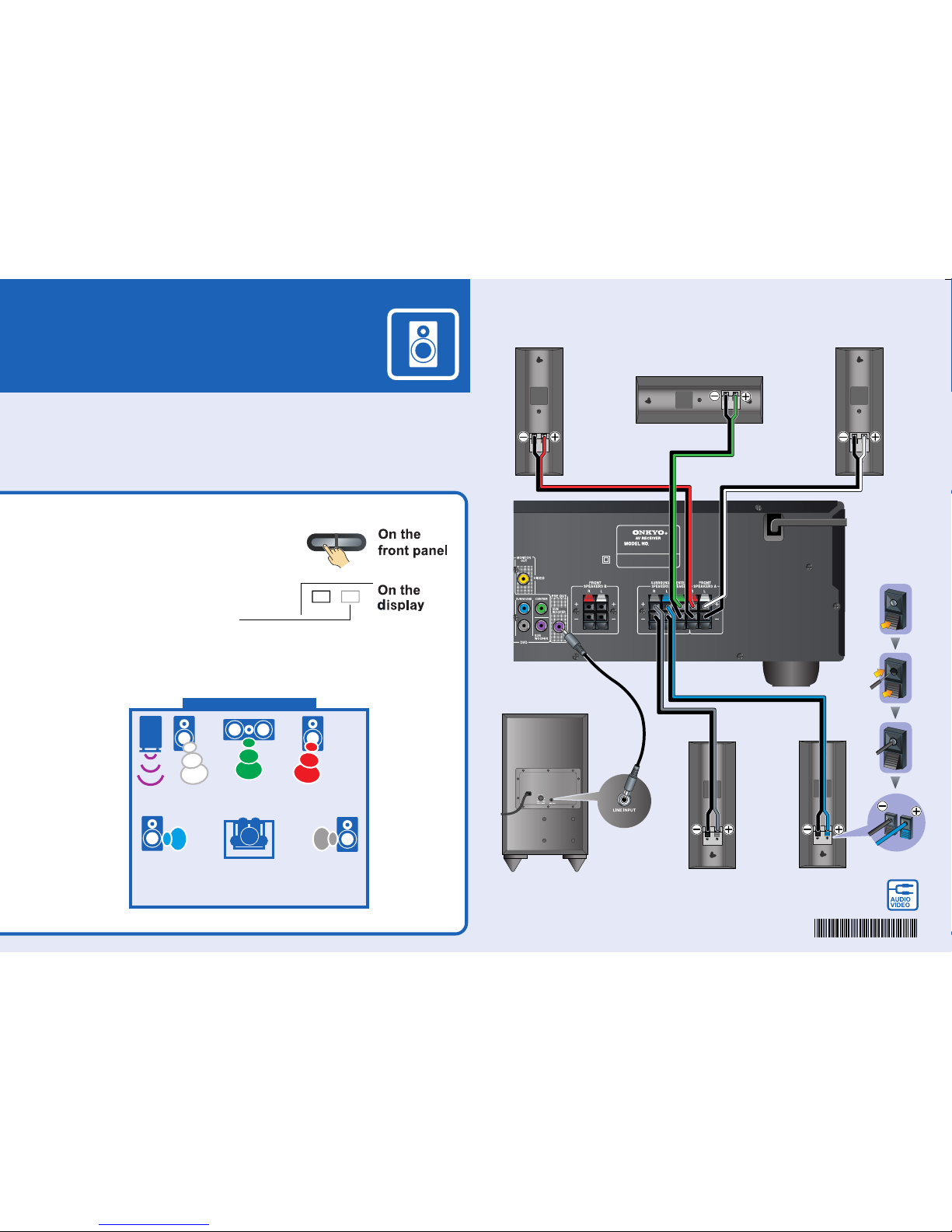

Speaker Set A Hookup

BA

A SPEAKERS B

SN 49344693(C) Copyright 2008 ONKYO CORPORATION Japan. All rights reserved.

See the other side of this sheet for the AV component hookup.

* 4 9 3 4 4 6 9 3 *

QUICK SETUP

Model : HT-S4100

RED/BLACK

CABLE

Front left

speaker

WHITE/BLACK

CABLE

Front right

speaker

GREEN/BLACK

CABLE

Center

speaker

BLUE/BLACK

CABLE

Surround left

speaker

GRAY/BLACK

CABLE

Surround right

speaker

Powered

subwoofer

TX-SR304

Cable/satellite

VIDEO

OUT

AUDIO

OUT

L

R

DIGITAL

OUT

OPTICAL

DVD player

VIDEO

OUT

AUDIO

OUT

DIGITAL

OUT

COAXIAL

TV

VIDEO 1

IN

Please ensure the monitor input

(VIDEO 1, VIDEO 2, VIDEO 3, etc.)

selected corresponds to actual

connection used.

Antenna input

(e.g..RF IN)

Coaxial feed from

TV antenna

A TV, DVD player, and cable/satellite receiver is used in this hookup example.

See the Instruction Manual for how to connect other types of components.

L

R

See the other side of this sheet for the Speaker hookup.

Assigning the Digital Input

If there's no sound, press the [DIGITAL INPUT]

button repeatedly until sound is heard. The digital input is

now properly assigned.

If you connect your DVD player to the AV receiver's

COAXIAL DIGITAL IN, and your cable/satellite receiver

to the OPTICAL 1 DIGITAL IN, as shown, it's not necessary

to assign the digital input.

On the

front panel

DIGITAL INPUT

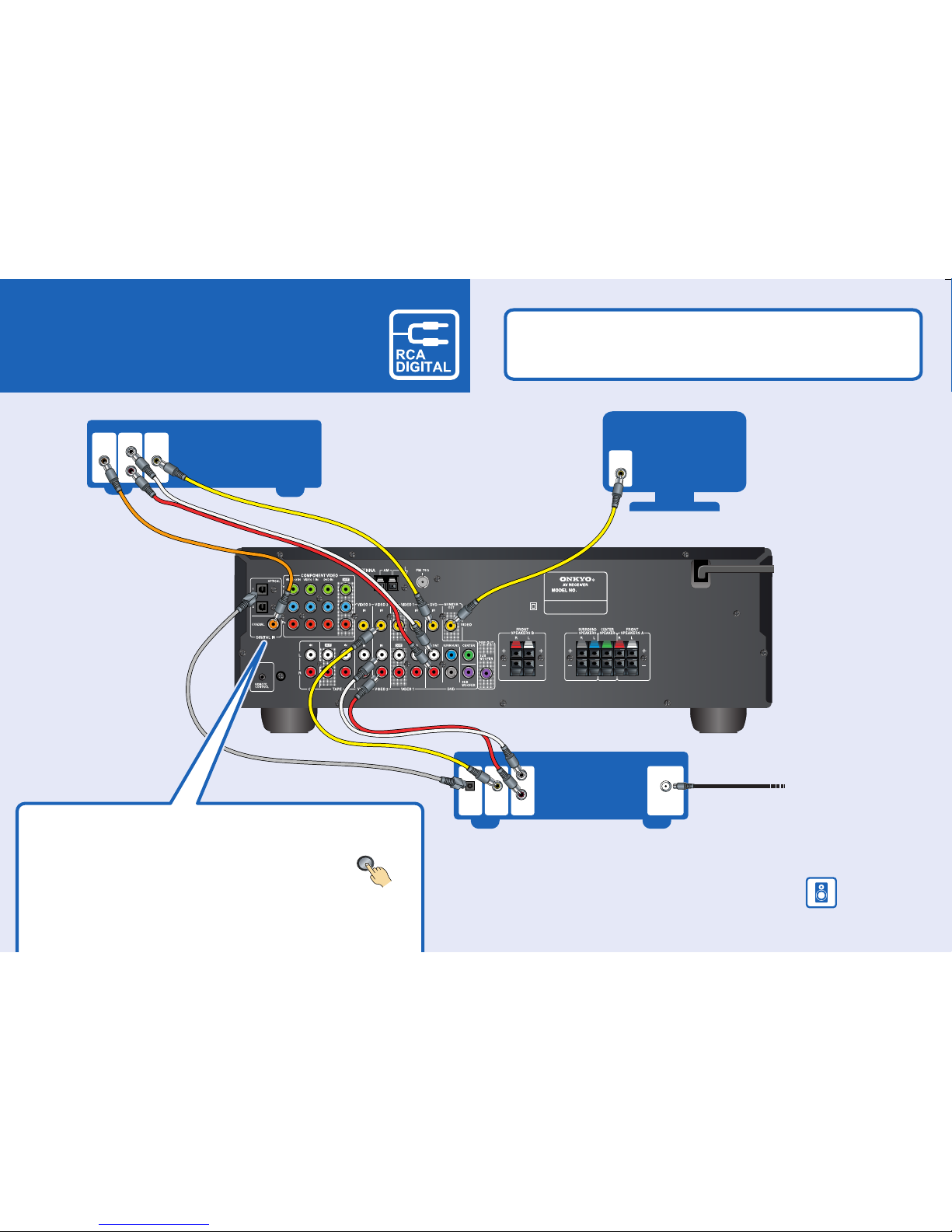

AV Component Hookup
