TX-NR3007

SERVICE MANUAL

RC-747M

AV RECEIVER

Black and Silver models

MODEL TX-NR3007(B)/(S)

120V AC, 60Hz

220-240V AC, 50/60Hz

B MDC

B MMP, S MMP

B MMO

Ref. No. 4169

082009

SAFETY-RELATED COMPONENT

WARNING!!

COMPONENTS IDENTIFIED BY MARK ON THE

SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ONKYO

PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE

MEASUREMENTS TO DETERMINE THAT EXPOSED

PARTS ARE ACCEPTABLY INSULATED FROM THE

SUPPLY CIRCUIT BEFORE RETURNING THE

APPLIANCE TO THE CUSTOMER.

TX-NR3007

SERVICE PROCEDURE-1

1. Replacing the fuses

2. Safety check out

(U.S.A. model only)

After correcting the original service problem, perform the following safety check before releasing the unit to the customer.

Leakage current Check

Measure the leakage current to a known earth ground (water pipe or conduct etc.) by connecting a leakage current

tester between the earth ground and exposed metal parts of the unit (input/output ground terminals, screw heads or metal overlays etc.).

Plug the power supply cord directly into a 120Vac 60Hz wall socket and turn ON/STANDBY button on.

Any current measured must not exceed 0.5mA.

3. Memory Backup

This model uses a EE-PROM IC in order to retain radio presets and other settings. So, memory contents will be

kept eternally with no care.

4. To initialize the unit

1. Press and hold down VCR/DVR button, then press ON/STANDBY button when the unit is powered on.

2. After " Clear " is displayed, the preset memory and each mode stored in the memory, are initialized and

will return to the factory settings.

This symbol located near the fuse indicates that the

fuse used is show operating type, For continued protection against

fire hazard, replace with same type fuse, For fuse rating, refer to

the marking adjacent to the symbol.

Ce symbole indique que le fusible utilise est e lent.

Pour une protection permanente, n'utiliser que des fusibles de meme

type. Ce demier est indique la qu le present symbol est apposre.

REF NO. PART NAME DESCRIPTION PART NO. REMARKS

FUSE

F2001

F2001 or

F2004, 2005

F2004, 2005 or

F6601, 6602, 6603, 6604

F9100

F9100 or

F9100

F9301, 9401, 9402

F9301, 9401, 9402 or

4A-UL/T-233

4A-T/UL-ST2

1.25A-UL/T-233

1.25A-T/UL-ST2

20A-UL-250V

6.3A-SE-EAK

6.3A-SE-TL250V

12A-UL-ST6

3.15A-UL/T-233

3.15A-T/UL-ST2

252325GR

252257GR

252318GR

252251GR

252304GR

252079GR

252279GR

252340GR

252323GR

252256GR

!, <MMP, MMO>

!, <MDC>

<Notes>

<MDC> : Canadian model

<MMP> : European model

<MMO> : Asian model

TX-NR3007

SERVICE PROCEDURE-2

Main:

1.22/09Z11AH

[e.g.]

Main:

1.22/09Z11AH

[e.g.] In case TX-NR5007

<Note> Number depends on the version.

DSP 1st/NET:

1.14/09X23AHA

Video:

1.13/09Y02AR

DSP 3rd:

1.05/09914AH3

DSP 2nd:

1.03/09723AH2

VSP(Reon):

1.03/09Z11AEO

(TONE)

(Tone)

(TONE)

(Tone)

Video:

1.13/09Y02AR

VSP(Reon):

1.03/09Z11AEO

[TX-NR1007]

[TX-NR5007, NR3007, PR-SC5507, DTR-70.1, DTR-80.1, DHC-80.1]

[TX-NR1007]

Torino

[TX-NR5007, NR3007, PR-SC5507, DTR-70.1, DTR-80.1, DHC-80.1]

Reon

[TX-NR5007, NR3007, NR1007, PR-SC5507]

AEO

[DTR-70.1, DTR-80.1, DHC-80.1]

AEI

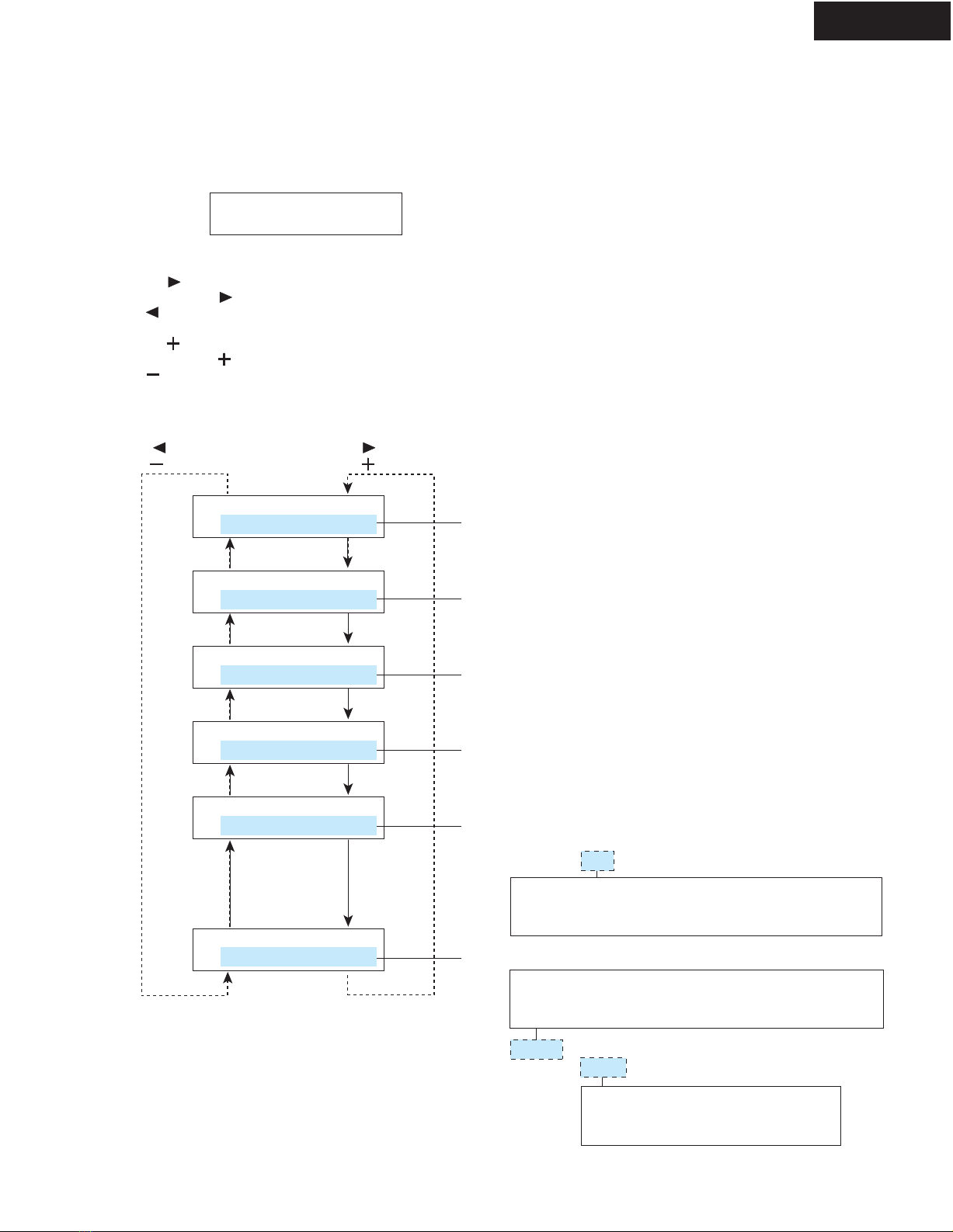

5. To check version of Microprocessor, DSP and Video FW(Firmware)

1. Press and hold down DISPLAY button, then press ON/STANDBY button when the unit is power on.

The main microprocessor version will be displayed on Front Display for about 3 seconds.

2. [TX-NR1007, NR3007, NR5007, PR-SC5507]

Press (TONE) button while the version is displayed. Then, version of DSP FW will be displayed.

In this way, as (TONE) button is pressed while a version is displayed, the next information will be displayed.

If (TONE) button is pressed, the order will be reversed.

[DTR-70.1, DTR-80.1, DHC-80.1]

Press (Tone) button while the version is displayed. Then, version of DSP FW will be displayed.

In this way, as (Tone) button is pressed while a version is displayed, the next information will be displayed.

If (Tone) button is pressed, the order will be reversed.

3. Press ON/STANDBY button to power off.

Version of Main Microprocessor FW

Version of 1st DSP FW

Version of Video Microprocessor FW

Version of 3rd DSP FW

Version of 2nd DSP FW

Version of VSP(Video Signal Processor) FW

TX-NR3007

SERVICE PROCEDURE-3

+BL

-BL

+B1L

-B1L

NFL

BACLA-0226

-1.1V

1.1V

-0.6V

0.6V

(From Part-8)

(To Part-7)

-60.2V

60.1V

P6010A

P6030B

R6050

2.7K

R6010

4.7K

R6020

3.3K

R6110

10K

C6000

102J

R6030

1.8K

Q6020

2SA933

R6290

(1/4W)

2.2

R6300

(1/4W)

2.2

R6250

(1/4W)

120

R6260

(1/4W)

120

Q6040

2SA949Y

Q6010

2SC1740S_S

R5230

(1/4W)

Q6030

2SC2229Y

R6280

(1/4W)

R6270

(1/4W)

R6310

(1/4W)

R6060

(1/4W)

120

R5240

(1/4W)

C6020

UTSP

47/50

R5260

270K

C6010

47/50

R6040

R6070

(1/4W)

R5250

68K

Q6100

TTA-004

Q6110

TTC-004

U0080 AMPLIFIER PC BOARD

IDLING

ADJ.

-B1L

+B1L

SPLNFL

IPRO

VPRO

VOLH

ID-ID+

(To Part-23)

(From Part-6)

P6240A

18pvc

P6030A

R6230

47K

R6210

47K

D6000

1SS133

R6170

33K

C6040

223J

P6070

R6400 0.47(2W)

R6410 0.47(2W)

L6000

L6010

R6080

R6090

Q6070

2SC2631

R6180

56K

R6190

10K

+60V

-60V

Q6050

TTC0002(Q)

Q6060

TTA0002(Q)

BAAMP-0192

U0021 AMPLIFIER PC BOARD

Front LFront RCenter Surround LSorround R

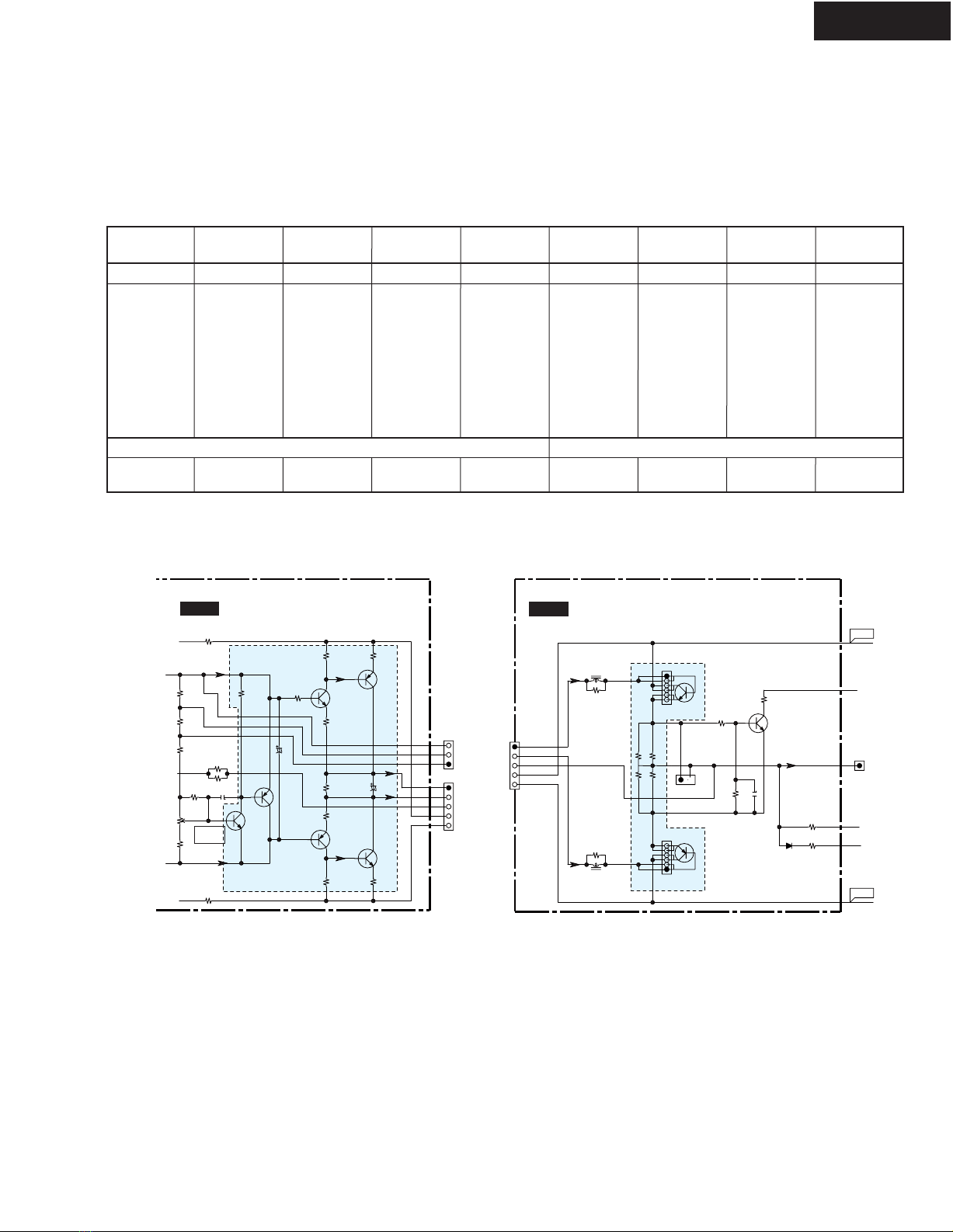

6. Replacing Power Amplifier Parts

When a power amplifier of certain channel is broken and goes into Protect mode, the following parts in the channel

must be replaced at the sametime, because these parts get damage in most cases.

<Note>

Idling current readjustment is necessary for after repairs.

Sorround

Back L

Sorround

Back R

Front

High L

Front

High R

BACLA-0226BACLA-0227BACLA-0228 BACLA-0229BACLA-0230 BACLA-0231BACLA-0232BACLA-0234 BACLA-0233

Q6010, Q6020

Q6030, Q6040

Q6100, Q6110

C6010, C6020

R6050, R6070

R6250, R6260,

R6270, R6280,

R6290, R6300,

R6310

BAAMP-0192

BAAMP-0191

Q6050, Q6060,

R6400, R6410

Q6057, Q6067,

R6407, R6417

Q6053, Q6063,

R6403, R6413

Q6055, Q6065,

R6405, R6415

Q6052, Q6062,

R6402, R6412

Q6051, Q6061,

R6401, R6411

Q6054, Q6064,

R6404, R6414

Q6058, Q6068,

R6408, R6418

Q6056, Q6066,

R6406, R6416

Q6012, Q6022

Q6032, Q6042

Q6102, Q6112

C6012, C6022

R6052, R6072

R6252, R6262,

R6272, R6282,

R6292, R6302,

R6312

Q6014, Q6024

Q6034, Q6044

Q6104, Q6114

C6014, C6024

R6054, R6074

R6254, R6264,

R6274, R6284,

R6294, R6304,

R6314

Q6018, Q6028

Q6038, Q6048

Q6108, Q6118

C6018, C6028

R6058, R6078

R6258, R6268,

R6278, R6288,

R6298, R6308,

R6318

Q6016, Q6026

Q6036, Q6046

Q6106, Q6116

C6016, C6026

R6056, R6076

R6256, R6266,

R6276, R6286,

R6296, R6306,

R6316

Q6011, Q6021

Q6031, Q6041

Q6101, Q6111

C6011, C6021

R6051, R6071

R6251, R6261,

R6271, R6281,

R6291, R6301,

R6311

Q6015, Q6025

Q6035, Q6045

Q6105, Q6115

C6015, C6025

R6055, R6075

R6255, R6265,

R6275, R6285,

R6295, R6305,

R6315

Q6017, Q6027

Q6037, Q6047

Q6107, Q6117

C6017, C6027

R6057, R6077

R6257, R6267,

R6277, R6287,

R6297, R6307,

R6317

Q6013, Q6023

Q6033, Q6043

Q6103, Q6113

C6013, C6023

R6053, R6073

R6253, R6263,

R6273, R6283,

R6293, R6303,

R6313

Refer to “SCHEMATIC DIAGRAMS-1

AMP1 (VOLTAGE POWER AMP) SECTION”

[e.g.] In case Front Lch

Refer to “SCHEMATIC DIAGRAMS-2

AMP2 (FINAL STAGE) SECTION”

BACLA-0226, BACLA-0229, BACLA-0231 and BACLA-0233 are electrically and mechanically full-compatible with each other,

but idling current readjustment is necessary.

BACLA-0227, BACLA-0228, BACLA-0230, BACLA-0232 and BACLA-0234 are also electrically and mechanically full-compatible

with each other, but idling current readjustment is necessary.

TX-NR3007

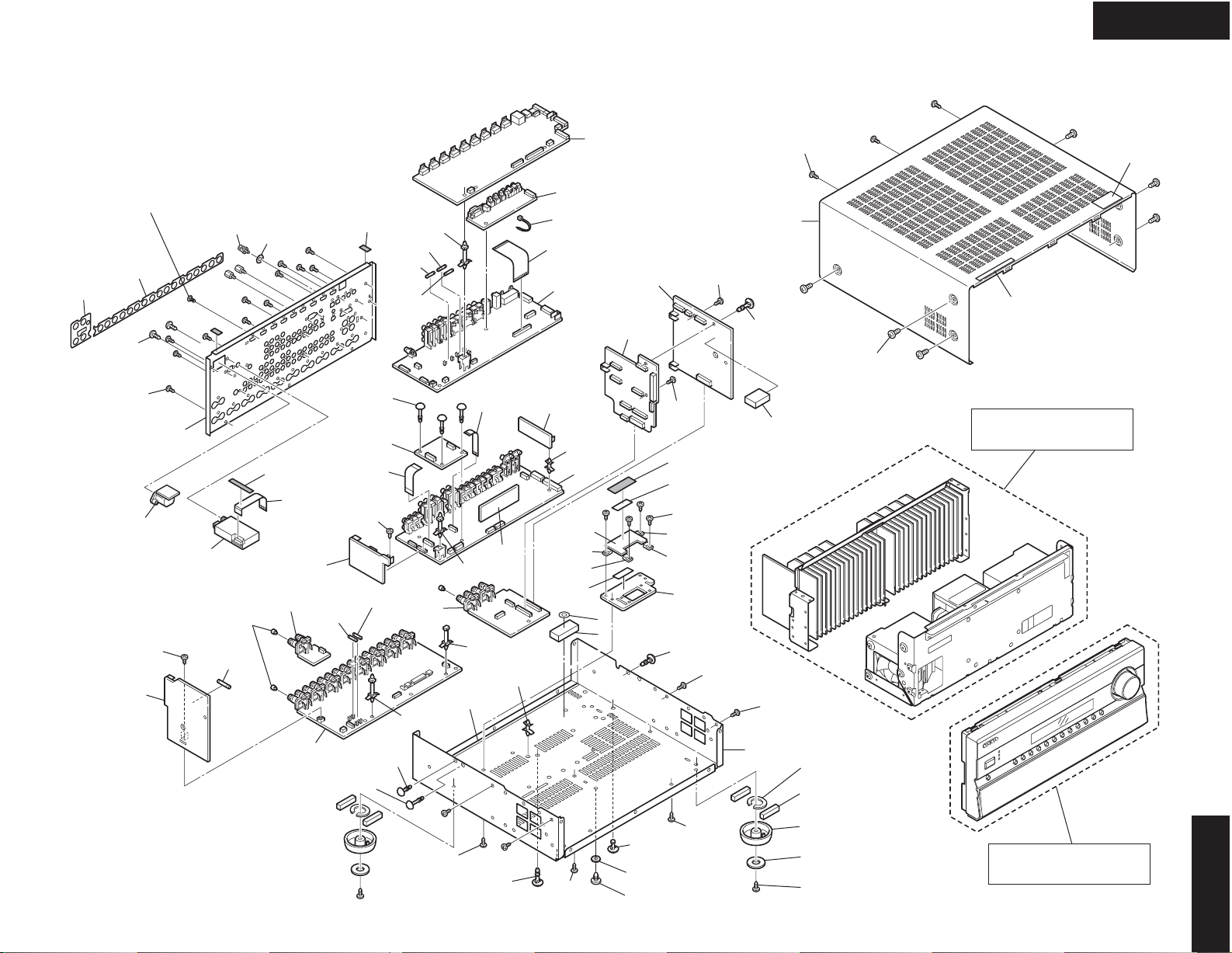

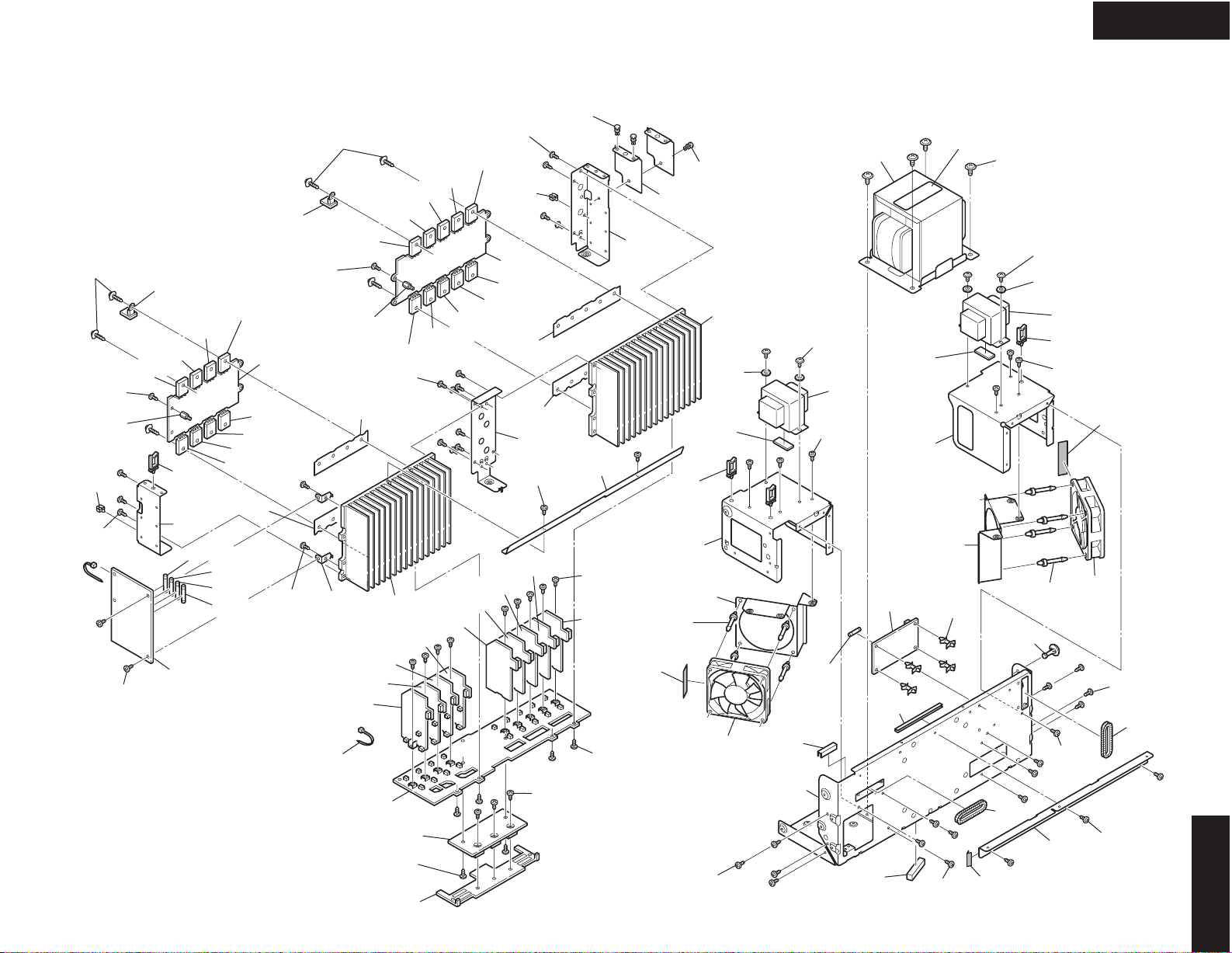

EXPLODED VIEWS-1

TX-NR3007

A139

x 2 pcs.

A205

x 8 pcs.

A285

x 2 pcs.

P6800

x 22 pcs.

A279

MDC type : x 1 pcs.

MMP, MMO type : x 10 pcs.

A261

x 54 pcs.

A251

x 23 pcs.

A555

x 6 pcs.

A557

x 3 pcs.

A203

x 8 pcs.

A201

x 5 pcs.

A171

x 3 pcs.

A181

x 3 pcs.

A169

A167

A179

A185

A183

A175

A177

A173

A170

A165

x 3 pcs.

A197

x 3 pcs.

A163

x 4 pcs.

A153

x 4 pcs.

A159

x 8 pcs.

A155

x 4 pcs.

A161

x 4 pcs.

A137

x 4 pcs.

A131

A133

A255

A187

A189

A191

A193

A215

L=10mm

A215

L=50mm

A551

A553

A561

MDC type only

A287 A289

A291

A293

A151 A157 L=20mm

A141 L=60mm

Q9427

Q9429

F2001

F2004

F9100

U0063

U0064

U011

U0030

U0045

U0040

U0042

U0043

U0046

U0044

U0031

U0041

U007

U0062 U0061

U0065

U0060

P106

P4008

P4009

P4104

F9401

F9402

F2005

Q9430

Q9428

Refer to

“EXPLODED VIEWS-2”

Refer to

“EXPLODED VIEWS-3”

A694

A135

<Note>

MMP, MMO type only

A200

A263

A147

L=400mm

A223 x 2 pcs.

A221 x 2 pcs.

TX-NR3007

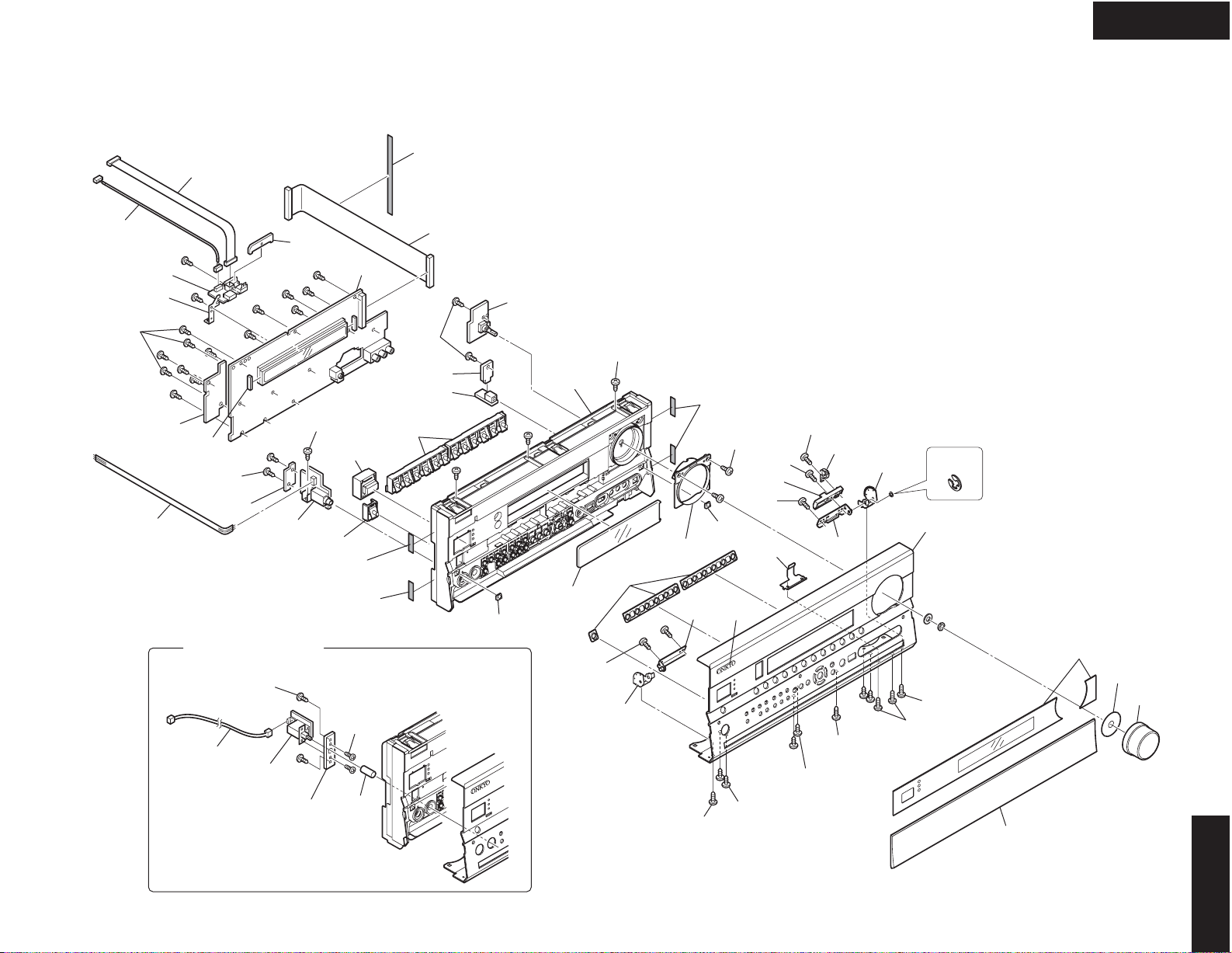

EXPLODED VIEWS-2

TX-NR3007

A005

x 4 pcs.

A023

x 3 pcs.

A011

x 2 pcs.

A013

x 2 pcs.

A037

x 4 pcs.

A125

x 4 pcs.

A071

x 4 pcs.

A125

x 4 pcs.

A081

x 4 pcs.

A077

x 2 pcs.

A075

x 3 pcs.

A085

x 3 pcs.

A119

x 2 pcs.

A119

x 2 pcs.

A039

x 9 pcs. A061

x 4 pcs.

A045

x 2 pcs.

A051

x 12 pcs.

A043

x 3 pcs.

A057

x 3 pcs.

A013

x 2 pcs.

A007

x 4 pcs.

A009

x 8 pcs.

A009

x 10 pcs.

A005

x 4 pcs.

A019

x 8 pcs.

A007

x 4 pcs.

A031

x 4 pcs.

A297

x 2 pcs.

A299

x 2 pcs.

Q6060A

A001

A049

L=40mm

A003

A055

A053

A069

A073 A079

P061

P062

A067

A087

A083

A127

L=50mm

A065

A059

A041

A017

A025 A027

A021

A029

U0021

U0012

U0013

U0014

U0011

U0010

U0080

U0083

U0087

U0084

U0088

U0082

U0086

U0081

U0085

U0055

U0020

A295

x 2 pcs.

A298

A296

A033

Q6050A

Q6051A

F6604

F6601

F6602

F6603

T904

T903

F9301

Q6065

Q6063

Q6055

Q6053

Q6057

Q6050

Q6067

Q6060

Q6061

Q6051

Q6058

Q6054

Q6056

Q6052

Q6068

Q6064

Q6066

Q6062

Q6061A

A121

x 2 pcs.

A121

x 2 pcs.

A049

L=40mm

A064

A126

x 4 pcs.

A126

x 4 pcs.

A215

L=10mm

A062

A141

L=40mm

A141

L=40mm

T901

A247 A117

x 4 pcs.

TX-NR3007

EXPLODED VIEWS-3

TX-NR3007

A301

A215

L=110mm

A311

A323

A329

A349

A351

A353

A371

(3TTBx10B)

A353

A361

A333

A337

A339 A341

A343

A345 A331

A401

A405

A406

A407

A403

A303

A215

A321

U0101

U0058

U0056

U0054

U0053

P7501

P8641

JL4103

P3101

U0051

U0050

U0052

U0057

A365

A307

A404

A309

x 2 pcs.

A315

x 2 pcs.

A319

x 16 pcs.

A319

x 2 pcs.

A319

x 2 pcs.

A317

x 2 pcs.

A347

x 2 pcs.

A367

x 3 pcs.

A369

x 3 pcs.

A327

A333

x 2 pcs.

A363

x 3 pcs.

A327

A215

L=30mm

A215

L=30mm

A215

L=20mm

P9008

U00510

A415

x 2 pcs.

A413

x 2 pcs.

A411

MMP, MMO type only

U0059

<Note>

A311 --- Silver type only

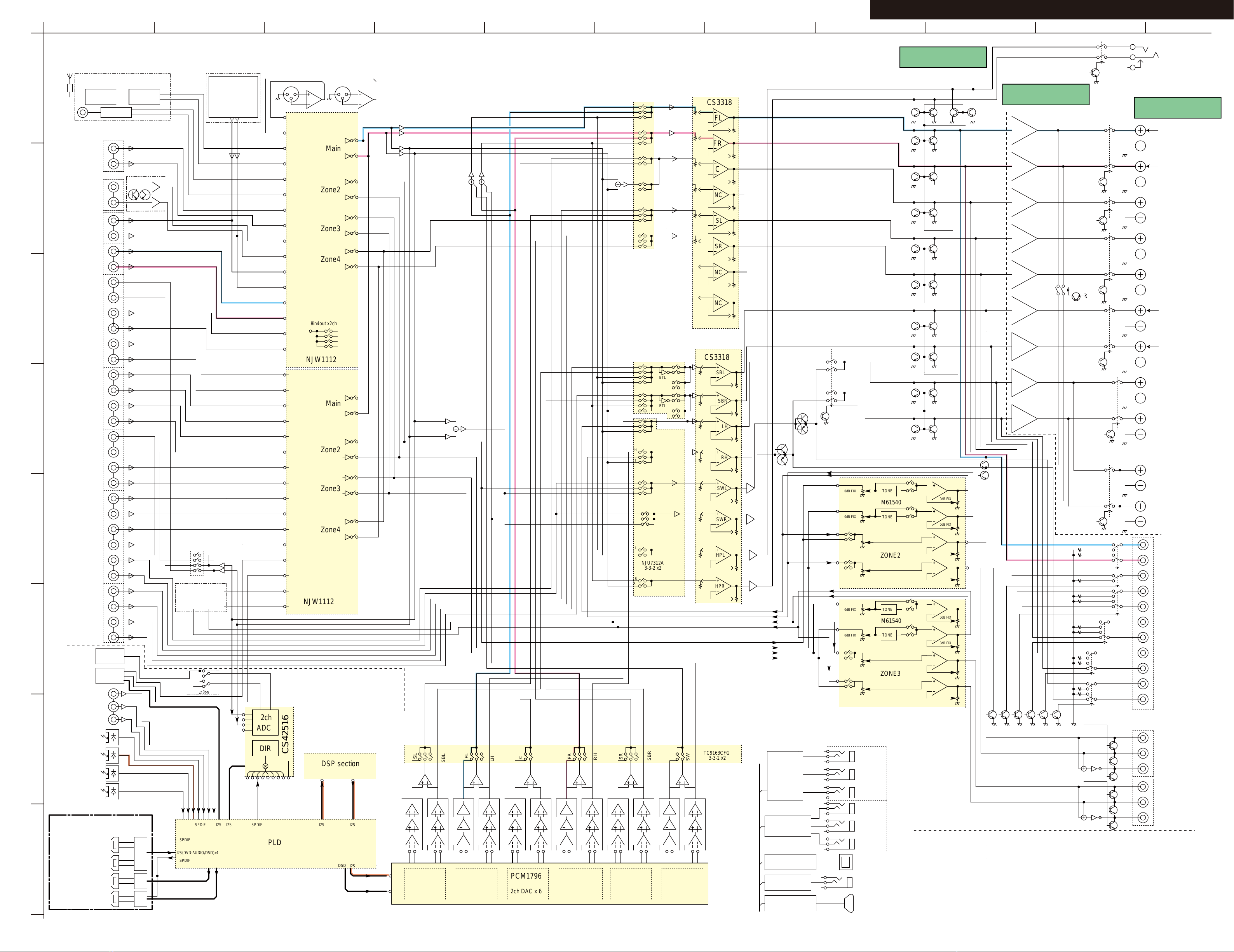

BLOCK DIAGRAMS-1 / PART-1

AUDIO SECTION

TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507

B C D E F G H

I J K

DAC C

DAC FR

MCH SL

MCH SR

DAC SR

MIX R

DAC SL

MCH C

Z4R

Z4L

MAIN L

DAC FL

MIX L

MAIN R

MIX R

DIRECT R

MIX L

DIRECT L

DAC SW

MCH SW

DAC RH

DIRECT

DAC_RH

DAC LH

DAC_LH

DIRECT

MCH SBR

DAC SBR

MCH SBL

DAC SBL

AMUTE

FHZ2MUTE

SRZ4MUTE

SBZ3MUTE

PRESW

PREFH

PRESB

PRESR

PREC

PREF

PLYPSVSW

Z3MUTE

Z2MUTE

MCH_CT

MCH_SW

MCH_SL

MCH_SR

DAC_SR

DAC_SL

DAC_CT

DAC_FR

DAC_FL

DAC SW2

DAC_SW

DAC_SBR

DAC_SBL

MCH_SBR

MCH_SBL

XM/DT IC

SIRIUS

XM-RADIO

ANTENNA UNIT

For only DD,DC

PHONO

FRONT L

FRONT R

CENTER

PHONES

TUNER

( For only SA**)

CBL/SAT IN

VCR/DVR OUT

VCR/DVR IN

FRONT

CENTER

SUBWOOFER

FRONT

OUT MAIN

OUT SUB

IN 1

(FRONT IN) DIGITAL

IN 2OPTICAL

HDMI

SURR

+29dB

FRONT R

ZONE 2

PRE OUT

ZONE 3

PRE OUT

DVD/BD

CENTER

PREOUT

SURR BACK L

SURR R

SURR L

SURR BACK R

SW1

SW2

SBL

SBR

IN 3

PHONO EQ

PACK

except SA***

TUNER

DAC

TV/TAPE OUT

TV/TAPE IN

GAME IN

IN 1-max7

9.2CH

for US

FRONT HIGH/WIDE L

FRONT HIGH/WIDE R

CS3318

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

VLSC2

+6dB

HDMI

0dB

ch1

DHC-** only

DSP section

PLD

DIR

2ch

ADC

CS42516

ATT ATT

I2S(DVD-AUDIO/DSD)x4

DSD I2S

I2S I2SSPDIF SPDIF

SPDIF

I2S I2S

IN 1

SURR BACK R

IN 2COAXIAL IN 3

AUX1 INPUT

FRONT L

TC9162CFG

2-2-2-1 x2

TC9163CFG

3-3-2 x2

PoweredZ3>>OFF

PoweredZ2>>OFF

SW/SW to FR

SW/SW to FL

SBR

SBL

2ch DAC x 6

PCM1796

0dB FIX

TONE

0dB FIX

M61540

ZONE2

0dB FIX

TONE

0dB FIX

M61540

ZONE3

INTERFACE

RI RI

ETHERNET

NET bord

REMOTE SENSOR

OUT

IN A

IN B

CONTROL

12V TRIGGER

RS232

12V TRIGGER OUT

except NR model

TC4066*

L+R(-6dB)

Ana Allch ST.

3-3-2 x2

NJW1112

8in4out x2ch

Main

Zone2

Zone3

Zone4

Zone3

Zone4

Zone2

SW 80Hz LPF

-12dB/oct

-12dB

FS0dB

=4Vrms

+15.5dB

TC9163CFG

3-3-2 x2

TC9164CFG

4-2-2 x2

SURR R

SURR/ZONE 4 R

SURR L

NJU7312A

SWL

SWR

+20dB

HP AMP L

HP AMP R

HPL

HPR

SBR

SBL

CS3318

SURR/ZONE 4 L

SUUR BACK/ ZONE 3 R

+ FRONT L (BTL)

FRONT WIDE/

ZONE 2 L

FRONT WIDE/

ZONE 2 R

SPEAKER B

SUBWOOFER 1

SP-B

WL/WR

ch7

ch6

ch4

ch3

ch16

ch14

ch9

ch5

ch8

ch10

ch11

ch12

ch13

ch15

ch2

SW.>>>OFF

NJU7313A

4-2-2 x2

BTL

3-3-2 x2

NJU7312A

SUBWOOFER 2

FRONT HIGH L

FRONT HIGH R

AUX2 IN

U Port

NET

Z2/Z3 Analog

(FRONT IN) AUDIO

AUX1 INPUT

MIC

+ FRONT R (BTL)

- FRONT R (BTL)

- FRONT L (BTL)

SURR BACK/ZONE 3 L

BAHDM-00132/0157

(PART-32/33) except NR model

9CH POWER AMPLIFIER

AUDIO MUTING

SPEAKER TERMINALS

EXCEPT DHC-80.1/PR-SC5507

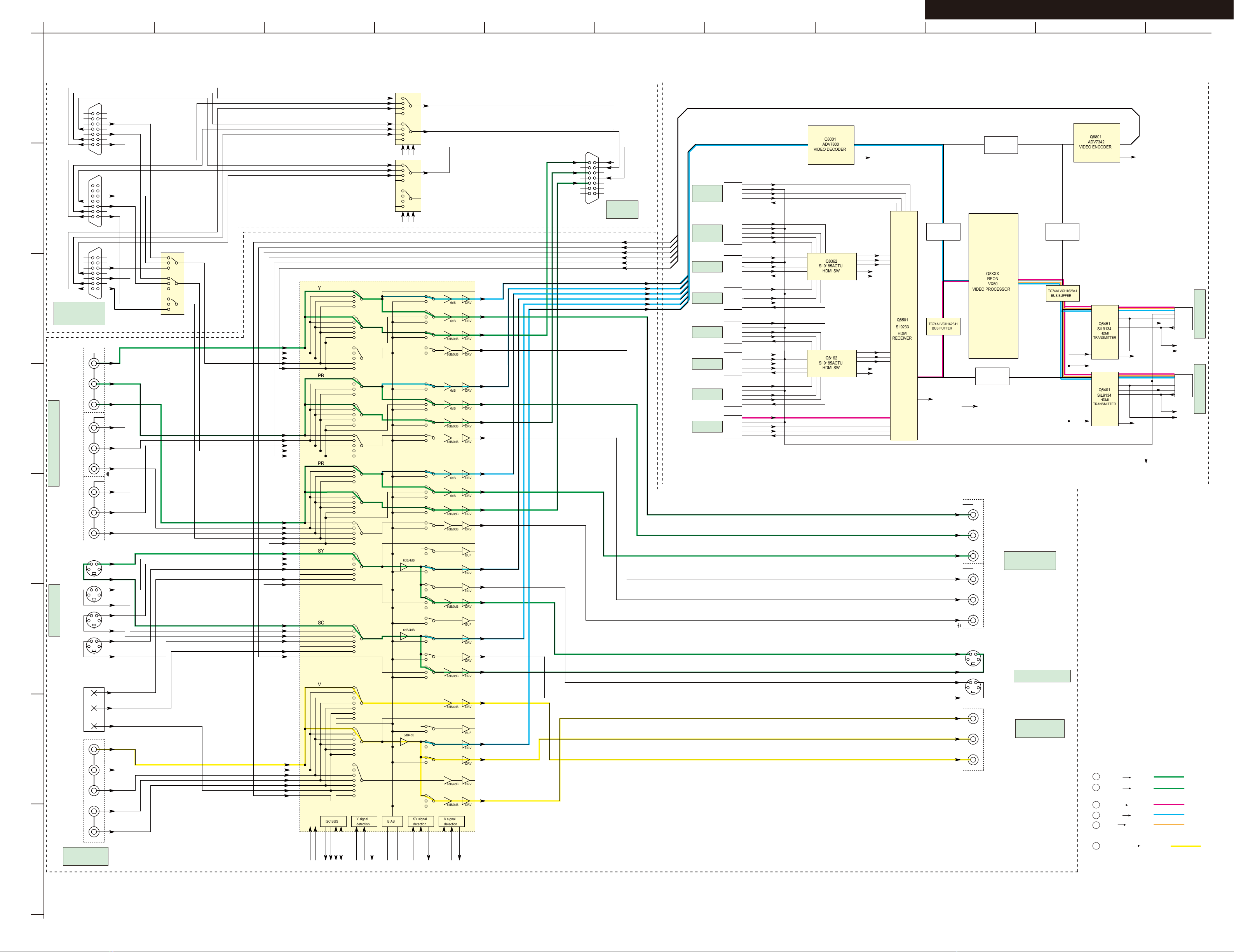

BLOCK DIAGRAMS-3 / PART-3

VIDEO SECTION

TX-NR3007/5007/NA5007,DTR-70.1/80.1, DHC-80.1, PR-SC5507

B C D E F G H

IJ K

Video Signal Flow

Analog Analog

Above analog ex. is Component

HDMI HDMI

Analog HDMI

OSD HDMI

Composite Composite

Analog Analog

(S-video) (S-video)

YDET

YDETIN

YDETOUT

BIAS1

BIAS2

SYDETIN

SYDETOUT

SYDET

VDETIN

VDETOUT

VDET

DUAL/SINGLE

EX1

EX2

SDA

SCL

MUTE

VOUT

VOUT5

PBOUT4

PBOUT2

PBOUT1

SYOUT

YOUT2

PROUT1

BIAS

VIN7

VIN6

VIN5

VIN4

VIN3

VIN2

VIN1

PBIN3

PBIN2

PBIN1

SYIN2

SYIN1

PRIN1

PRIN3

PRIN2

YIN3

YIN2

YIN1

I2C BUS

SCIN1

YOUT1

YOUT

SYIN3

SYIN4

SYIN5

SYIN6

SCIN2

SCIN3

SCIN4

SCIN7

SCIN6

VOUT4

PROUT2

PROUT4

SYIN7

MONITOR

ZONE 2

INTEGRA ONLY

MONITOR

VCR/DVR

MONITOR

VCR/DVR

ZONE 2

VOUT2

SCOUT4

SYOUT4

YOUT4

VOUT3

IN1

(DVD/BD)

IN2

(CBL/SAT)

IN3

(GAME)

GAME

CBL/SAT

VCR/DVR

DVD/BD

NJW1325

DAC_V

DAC_SC

DAC_SY

DAC_PR

DAC_PB

DAC_CY

ADC_PR

ADC_PB

ADC_CY

detection

Y signal V signal

detection

SY signal

detection

DVD/BD

VCR/DVR

CBL/SAT

GAME

AUX1

Video

UNIVERSAL PORT

YIN5

PBIN5

PRIN5

SCOUT3

SYOUT3

MONI

VOUT6

VCR

SYOUT2

VCR

SCOUT2

VCR

MONI

SYOUT1

SCOUT1

VOUT1

ADC_V

ADC_SC

ADC_SY

ADC_SC

ADC_V

MONI

ADC_CY

ADC_PB

ADC_PR

6dB/0dB DRV

6dB/4dB DRV

DRV6dB/0dB

DRV6dB

6dB/0dB

DRV

6dB/0dB

6dB

6dB/0dB

DRV6dB

6dB4dB

6dB/4dB

DRV6dB

DRV

BUF

DRV

BUF

DRV

DRV6dB/4dB

DRV

TMDS

PWR5V

S/PDIF

Digital Video

CEC

S/PDIF

DDC

HPD

CEC

Q8701

MPD70F3740GC-UEC-AX

VIDEO MPU

ANALOG

VIDEO

(PY/PB/PR, CV, SY/SC)

ANALOG

VIDEO

(PY/PB/PR, CV, SY/SC)

MAIN MPU

MAIN MPU MAIN MPU

DSP

Q8XXX

REON

VX50

VIDEO PROCESSOR

TC74VCX162244

BUS FUFFER

TC74ALVCH162841

BUS FUFFER

BUS BUFFER

TC74ALVCH162841

HDMI

SII9233

Q8501

RECEIVER

HP DET

+5V

DDC

CEC

TMDS

HPD

DDC

I2C

TMDS

PWR5V

DDC

HPD

Q8401

SiL9134

HDMI

TRANSMITTER

Q8451

SiL9134

HDMI

TRANSMITTER

HP DET

+5V

DDC

CEC

TMDS

CEC

DDC2

RPWR2

HPD2

TMDS2

HP DET

+5V

DDC

CEC

TMDS

Q8801

ADV7342

VIDEO ENCODER

CEC

DDC2

RPWR2

HPD2

TMDS2

HP DET

+5V

DDC

CEC

TMDS

I2C

TC74ALVCH162841

BUS FUFFER

TC74VCX162244

BUS FUFFER

TC74ALVCH162841

BUS FUFFER

Q8001

ADV7800

VIDEO DECODER

CEC

RPWR0

HPD0

DDC0

TMDS0

DDC1

RPWR1

HPD1

TMDS1

DDC2

RPWR2

HPD2

TMDS2

HPD3

RPWR3

DDC3

TMDS3

TMDS

DDC

RPWR

SII9185ACTU

Q8162

HDMI SW

HP DET

+5V

DDC

CEC

TMDS

HP DET

+5V

DDC

CEC

TMDS

HP DET

+5V

DDC

CEC

TMDS

HP DET

+5V

DDC

CEC

TMDS

CEC

DDC1

RPWR1

HPD1

TMDS1

DDC2

RPWR2

HPD2

TMDS2 TMDS

DDC

RPWR

SII9185ACTU

Q8362

HDMI SW

HP DET

+5V

DDC

CEC

TMDS

HP DET

+5V

DDC

CEC

TMDS

CEC

I2C

CEC

I2C

INH

IN1

IN2

Scanning Line

Progressive/Interlace

Aspect Ratio

Scanning Line

Progressive/Interlace

Aspect Ratio

OUT

TC4052BF

Aspect Ratio

TC4052BF

Scanning Line

Progressive/Interlace

TX-NA1007/5007 ONLY

8 1

714

IN3

NJM2586AM

8 1

YIN4

PBIN4

PRIN4

YOUT3 Z3

PBOUT3 Z3

PROUT3 Z3

COMPOSITE

VIDEO INPUT

D4 VIDEO INPUT

(ASSIGNABLE)

COMPONENT VIDEO INPUT

S- VIDEO INPUT

D4 VIDEO

OUTPUT

COMPOSITE

VIDEO OUTPUT

S-VIDEO OUTPUT

COMPONENT

VIDEO OUTPUT

HDMI OUT(SUB)

HDMI OUT(MAIN)

INTEGRA ONLY

HDMI IN 1

HDMI IN 2

HDMI IN 3

HDMI IN 4

HDMI IN 5

HDMI IN 6

FRONT

HDMI IN

HDMI IN 7

(5007 only)

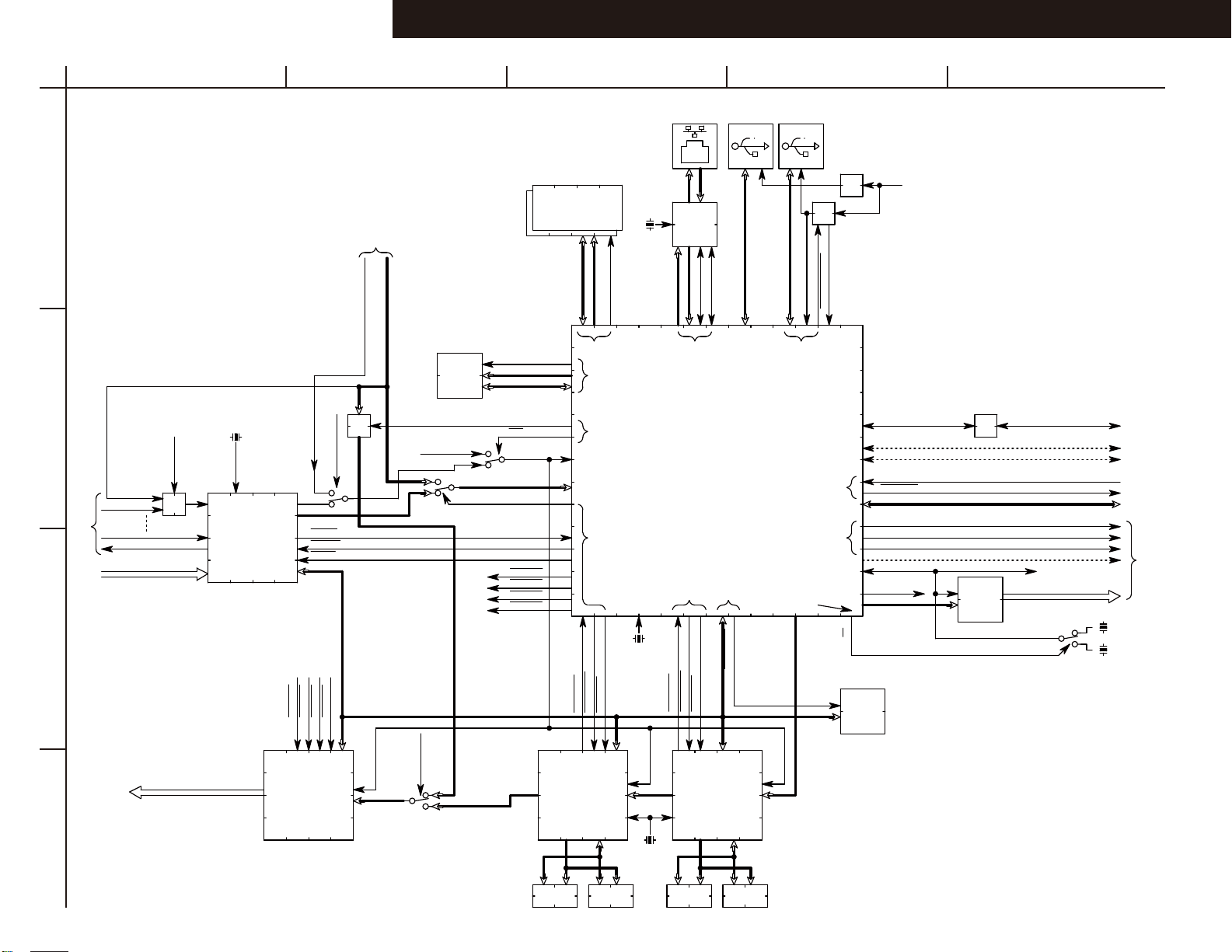

BLOCK DIAGRAMS-4 / PART-4

DSP/ETHER/USB/NET SECTION

TX-NR1007/3007/5007/NA1007/5007, DTR-70.1/80.1, DHC-80.1/PR-SC5507

B C D E

I2Sx6

I2Sx6/DSD

SPI0

SPIO

I2S_NETUSB

RMII_TX

RMII_RX

USB0 HS

USB1 FS (Reserved)

EMFB_A[0:12]

EMFB_D[0:31]

EMFB_A[1:2]

EMFA_D[0:7]

SPI1

I2S_MAIN x5

Data

Adr Data

Adr

DSD_DRCT

DSD_HDMI

SPIO

I2S_DIR x4

I2S_IN x4/DSD x6

I2S_HDMI x4 / DSD

MCK

DIG/NETUSB

DACCS1

DSP3_RST

DSP3_INT

DSP3_CS

DSP2_INT

DSP2_RST

DSP2_CS

DSDDIRECT

512fs

MCK

Analog 12chMax

SFlash_CS

AMUT0

512fs

512fs 512fs

DIGMUT1

DIGMUT2

44/48

MDIO Controls

RMII_Controls

Control Signals

DIGMUT3

HOST_CS

HOST_REQ

I2C0 (Reserved)

NETUSB_LR analog

RS-232C

USB_VBUS

+5V

USB_EN_VBUS

+5V

OverCurrentDet

NETUSB_SPDIF

NAND Controles

DACRST

DACCS1

DACCS2

DACCS3

DACRST

DACCS2

DACCS3

DSPINPSEL

MCK_Digital

SPDIFSW

ADC_LR analog

MCK_HDMI

DSDSLRSEL

SPDIF out

SPDIF1

SPDIFn DIRINT

DIRRST

DIRCS

OMCK

UART1(Reserved)

UART2

RMCK

DSPINPSEL

SPDIF0

to ASP block

HOST

micro-Con

Interface

AHCLKX1

GPIO

McASP0

AXR0[14]

Reserved

AHCLKX0

/AHCLKX2

AXR2[0]

GPIO x3

GPIO x2

SPI1

Master

I2C0

GPIO x1

USB1

USB0

EMIFB

x32DataBus

EMAC

MDIO

EMIFA

Reserved

SPI0

Boot & Master

GPIO x2

McASP1

AXR1[n] x5

GPIO x11

from ASP block

SPDIF I/F

from HDMI block

UART2

UART1

for Linux SerialConsole

McASP1

AXR1[n] x6

-May use either Flash momory (NAND flash or Serial flash) for system ROM include boot image.

24.576MHz

22.5792MHz

SDR SDRAM(x16bit)

25MHz

EtherMAC

RJ-45 USB HS HOST

USB FS

Reserved

HiSideSw

Reserved

HiSideSw

Level Convert

2nd DSP

24MHz

DAC x6 block (max12ch)

2ch DAC

NET/USB

NANDFlash

256Mbit

SerialFlash

3rd DSP

NOR FlashNOR Flash SDRAM SDRAM

17.734MHz

DIR/CODEC/ADC/DAC

DualCoreProcessor ARM + DSP

DA830

24.576MHz

Questo manuale è adatto per i seguenti modelli

Altri manuali Onkyo Ricevitore stereo

Onkyo

Onkyo TX-SR494 Manuale

Onkyo

Onkyo TX-8255 Manuale utente

Onkyo

Onkyo TX-RZ70 Manuale utente

Onkyo

Onkyo TX-SR803 Manuale utente

Onkyo

Onkyo TX-5000 Manuale utente

Onkyo

Onkyo TX-NR6050 Manuale utente

Onkyo

Onkyo Integra TX-DS898 Manuale utente

Onkyo

Onkyo TX-SR603X Manuale utente

Onkyo

Onkyo TX-SR373 Manuale utente

Onkyo

Onkyo TX-8050 Manuale utente

Onkyo

Onkyo TX-8211 Manuale utente

Onkyo

Onkyo TX-8160 Manuale utente

Onkyo

Onkyo TX-NR6100 Manuale utente

Onkyo

Onkyo TX-SR501 Manuale utente

Onkyo

Onkyo TX-SR876 - AV Receiver Scheda tecnica

Onkyo

Onkyo TX-1500 Manuale utente

Onkyo

Onkyo 8555 - TX AV Receiver Manuale utente

Onkyo

Onkyo TX-SR576 Scheda tecnica

Onkyo

Onkyo TX-8050 Manuale utente

Onkyo

Onkyo TX-2100 Manuale utente

Onkyo

Onkyo TX-8020 Manuale utente

Onkyo

Onkyo TX-NR727 Guida all'installazione

Onkyo

Onkyo TX-NR838 Guida all'installazione

Onkyo

Onkyo TX-8555 Manuale utente

Manuali Ricevitore stereo popolari di altre marche

Marantz

Marantz CINEMA 70S Manuale utente

Kenwood

Kenwood KMDX92 Manuale utente

Yamaha

Yamaha RX-830 Manuale utente

Pioneer

Pioneer AVH-Z7250BT Manuale utente

Yamaha

Yamaha RX-750 Manuale utente

Denon

Denon AVR-1311 Manuale utente

Denon

Denon AVR-S760H Manuale utente

Denon

Denon AVR-X7200W Manuale utente

Pioneer

Pioneer SC-LX904 Manuale

Sony

Sony XAV-1500 Manuale utente

Radio Shack

Radio Shack DX-399 Manuale utente

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manuale utente

Pioneer

Pioneer SX-1000TA Manuale utente

Yamaha

Yamaha MusicCast TSR-5B3D Manuale utente

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manuale utente

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manuale utente

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manuale utente

Pioneer

Pioneer SX-838 Manuale utente
