OE-C3011D4-S Hardware Manual - Features and Contents

Important Safeguards

Warranty

Product Description

Camera Dimensions

Connections

Features

Box Contents

Important Safeguards

View Important Safeguards before installing the camera.

Warranty

View the Product Warranty for the camera.

Product Description

The OE-C3011D4-S is a 4MP indoor IP dome camera equipped with person, vehicle, and line crossing detection

analytics. The 2.7~13.5mm varifocal, autofocus, zoom lens delivers crisp and clear images. True WDR and True Day/

Night provide superior images in varied lighting environments. Adaptive IR technology prevents overexposure of objects

close to the camera further enhancing the low light performance. Progressive Smart Compression reduces network

throughput and storage requirements without impacting overall video quality and retention. Additional features include

audio in/out, as well as sensor and relay connections supported by the enhanced remote monitoring capabilities of the

OWS platform. The OE-C3011D4-S is compatible with a wide range of accessories allowing it to be mounted in a broad

range of applications.

The OE-C3011D4-S is ONVIF™ profile S/G/T compliant and fully compatible with the OpenEye Web Services platform,

allowing multiple users to concurrently view high quality images and perform remote setup using a Web browser.

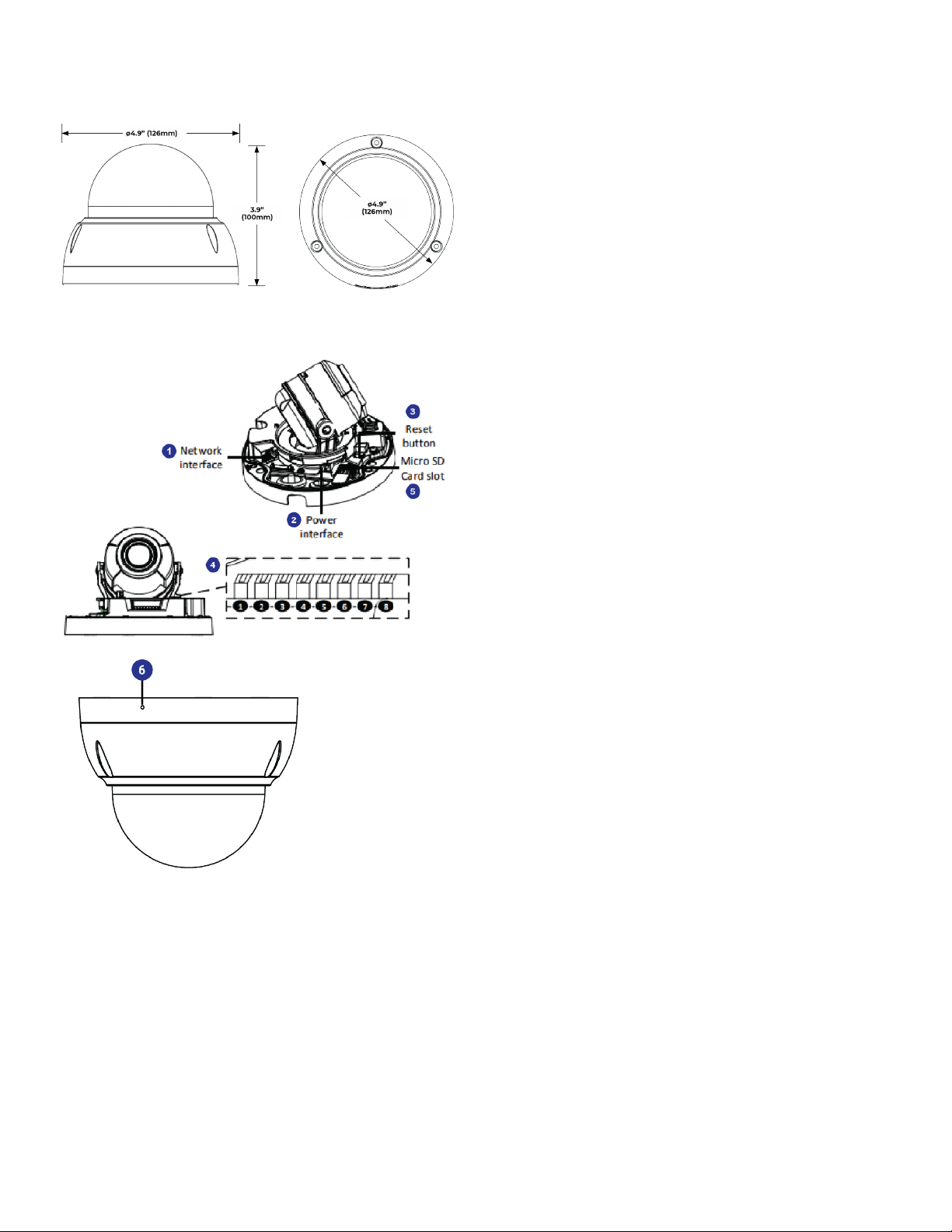

Camera Dimensions

Connections

1 RJ45 - For network and PoE connections

2 Power (12vDC)

1 12vDC +

Power Connection

2 GND -

3 Reset Button - To restore the camera to factory defaults:

1. Disconnect power for 30 seconds.

2. Reconnect power and wait 30 seconds.

3. Press and hold the reset button for 20 seconds.

4 Alarm & Audio I/O

1 Alarm Out -

Alarm connection

2 Alarm Out +

3 GND Ground connection

4 Alarm In Alarm connection

5 GND Ground connection

6 Audio In Two-way audio transmission

7 GND Ground connection

8 Audio Out Two-way audio transmission

5 microSD Card Slot - Supports up to 512GB microSD card for Edge storage.

Do not add or remove the microSD card when the camera is powered on.

6 Built-in microphone

Power Connection

For an adequate power connection, use a 12vDC adaptor. Alternatively, you can power the camera by PoE if a Power

Sourcing Equipment (PSE) switch is available. Ensure that the camera’s power cable is correctly and firmly connected.

NOTE: OpenEye recommends against using more than one power source at a time. Do not use a PoE power

source when providing the camera with 12vDC power.

If using Power over Ethernet (PoE), make sure Power Sourcing Equipment (PSE) is in use in the network.

Product Features

• Person, Vehicle, Line Crossing Detection Analytics

• Internal Network Connection

• Corridor Mode

• NDAA Compliant

• True WDR @ 4MP

• Adaptive IR | up to 98' range

• 2.7~13.5mm VF, AF, Zoom Lens

• 4MP | up to 30FPS

• Audio I/O

• Alarm I/O

• Optional Paintable Dome Cover (Free Upon Request)

• Built-in microphone

Box Contents

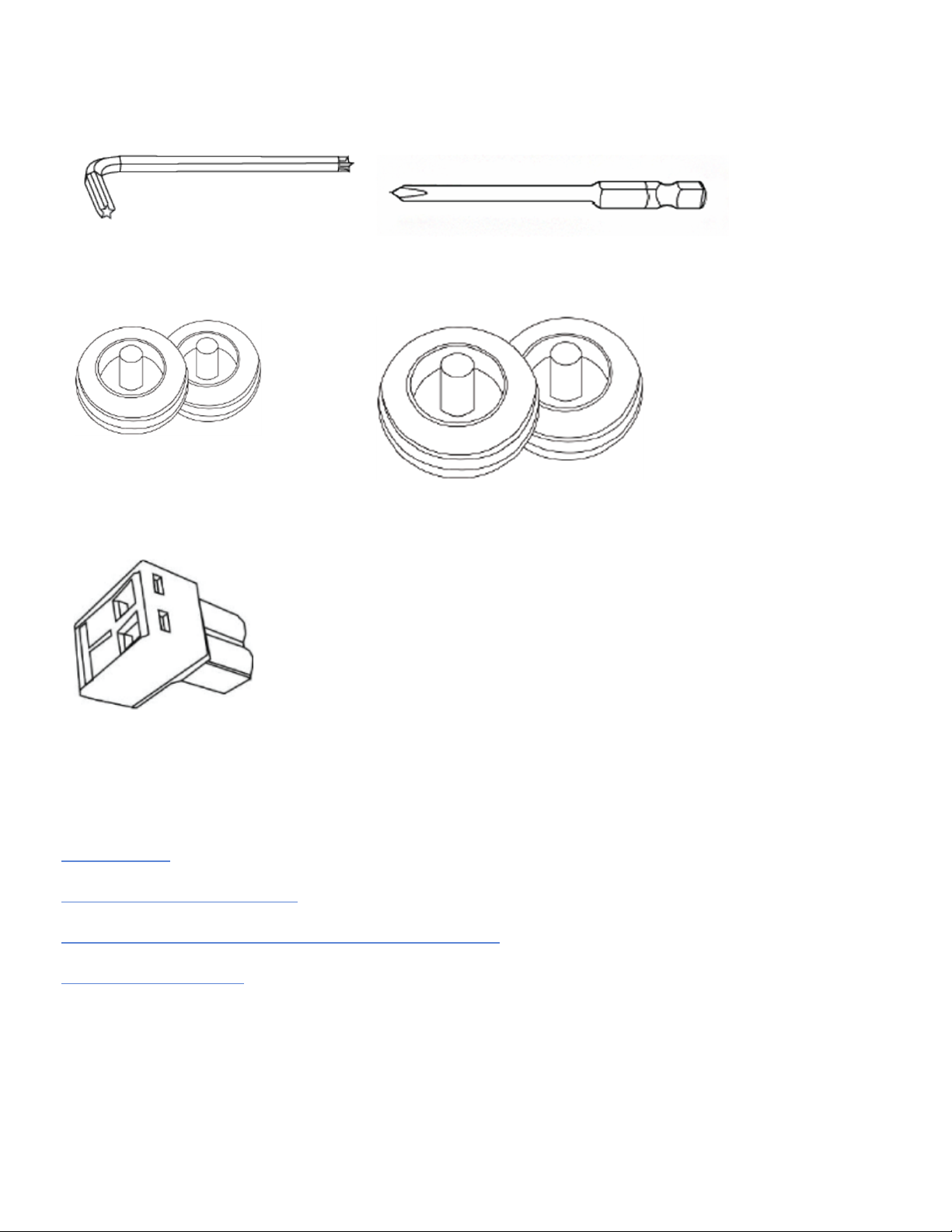

OpenEye C3011D4-S cameras come with self-tapping screws and plastic anchors, mounting template, a tapered RJ45

sleeve, a torx tool, a #2 Phillips bit, 21mm cable grommets, 28mm cable grommets, and a 2-pin terminal block. Identify

the following components to make sure everything has been properly included with your new recorder. If any of the

following items are missing, contact the dealer to arrange a replacement.

OE-C3011D4 -S Turret Camera Self-Tapping Screws and Plastic Anchors x3

Mounting Template Tapered RJ45 Sleeve

Torx Tool #2 Phillips Bit

2x - 21mm Cable Grommet 2x - 28mm Cable Grommet

2-Pin Terminal Block

Related Links

OE-C3011D4-S

OE-C3011D4-S Quick Start Guide

Update the firmware on a 10/20/30/32 Series OpenEye Camera

Network Camera Manager
