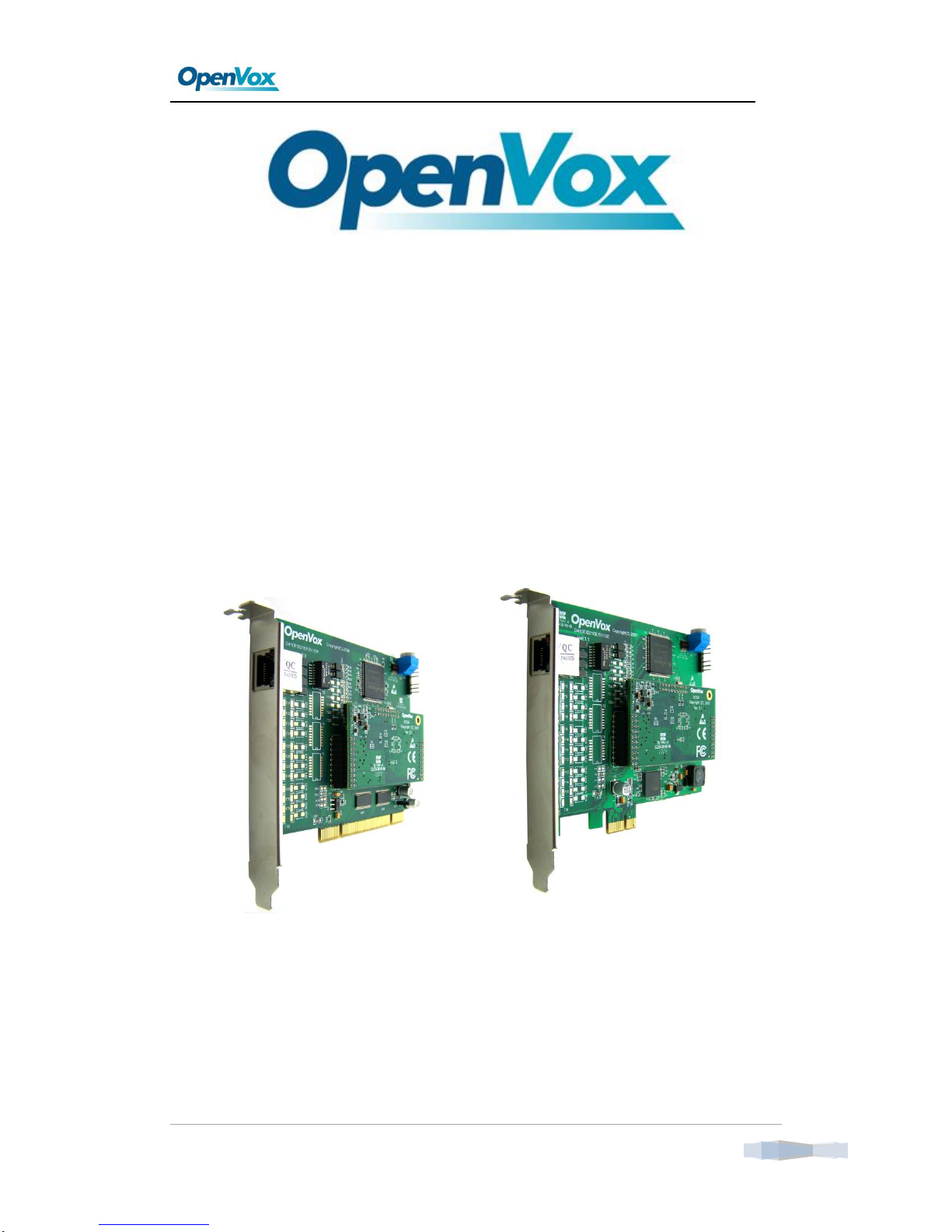

OpenVox DE115P Manuale utente

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

OpenVox Communication Co Ltd

OpenVox DE115P/DE115E Installation

（Trixbox 2.8 & Elastix 1.5 with dahdi）

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

OpenVox Communication Co Ltd

OpenVox-Best Cost Effective Asterisk Cards

OpenVox Communication Co. Ltd.

Address: F/2,Building No.14,Shangsha Science & Technology Park,

No.9283,Binhe Road, Futian District,ShenZhen ,Guangdong 518048,China

TEL：0755－82535461

0755－82535095

0755－82535362

FAX：0755－82535174

Sales：[email protected]

Technical Support：[email protected]

[email protected]

Business Hours: 9:30AM-18:00PM from Monday-Friday, except for holidays.

（GMT＋8 Beijing）

Thank You for Choosing OpenVox Products!

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

Table of Contents

Chapter 1 Installing Compiling Environment..............................................................................4

Chapter 2 Installing Driver.............................................................................................................5

Chapter 3 Editing Configuration Files .........................................................................................6

Chapter 4 Loading Driver..............................................................................................................8

Chapter 5 Technical Support......................................................................................................10

Chapter 6 Reference....................................................................................................................11

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

Chapter 1 Installing Compiling

Environment

I. Installing trixbox 2.8 or elastix 1.5

II. Installing DE115P/DE115E

III. Starting trixbox or elastix

IV. Checking the system recognition of DE115P/DE115E

# lspci

V. Installing compiling environment

# yum install gcc

# yum install kernel-devel

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

Chapter 2 Installing Driver

I. Check the version of the dahdi

# modinfo /lib/modules/`uname -r`/dahdi/dahdi.ko

II. Downloading Driver

If the version of dahdi is 2.2.0 or 2.2.0-rc4, you should download

openvox_dahdi-linux-complete-2.2.0+2.2.0.tar.gz;

If it is 2.1.0.4, please download openvox_dahdi-linux-complete-2.1.0.4+2.1.0.2.tar.gz

An example of installing OpenVox DE115P/DE115E with trixbox-2.8.0.1 is as below:

# cd /usr/src

# wget

http://downloads.openvox.cn/pub/drivers/dahdi/openvox_dahdi/openvox_dahdi-linux-com

plete-2.2.0+2.2.0.tar.gz

http://downloads.openvox.cn/pub/drivers/dahdi-linux-complete/openvox_dahdi-linux-com

plete-2.2.0.2+2.2.0.tar.gz

If you want to install OSLEC with DAHDI, please download the package linux-2.6.28.tar.bz2,

copy the echo to DAHDI directory and recompile it. Please read this link for more:

http://bbs.openvox.cn/viewthread.php?tid=1063&pid=4555

III. Downloading libpri, asterisk

(Please download the right version of libpri, asterisk with the version of trixbox or

elastix )

Compilling libpri-xx

# tar –xvzf libpri-xx.tar.gz

# cd libpri-xx

# make && make install

Compilling dahdi

# tar -xzvf openvox_dahdi-linux-complete-2.2.0+2.2.0.tar.gz

# cd dahdi-linux-complete-2.2.0+2.2.0/

# make

IV. Installing Driver

# mkdir -p /lib/modules/`uname -r`/dahdi/opvxd115

# cp

/usr/src/dahdi-linux-complete-2.2.0+2.2.0/linux/drivers/dahdi/opvxd115/o

pvxd115.ko /lib/modules/`uname -r`/dahdi/opvxd115/

# depmod –a

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

V. Downloading Firmware

# cd /usr/src

# wget

http://downloads.openvox.cn/pub/firmwares/opvx-dahdi-fw-oct6114-032-1.07.01.tar.g

VI. Installing Frimware

# tar -xzvf opvx-dahdi-fw-oct6114-032-1.07.01.tar.gz

# cp dahdi-fw-oct6114-032.bin /lib/firmware/

# mkdir -p /usr/lib/hotplug/firware/

# mv dahdi-fw-oct6114-032.bin /usr/lib/hotplug/firware/

Cmpilling asterisk

# tar –xvzf asterisk-xx.tar.gz

# cd asterisk-xx

# ./configure

# make && make install

Chapter 3 Editing Configuration Files

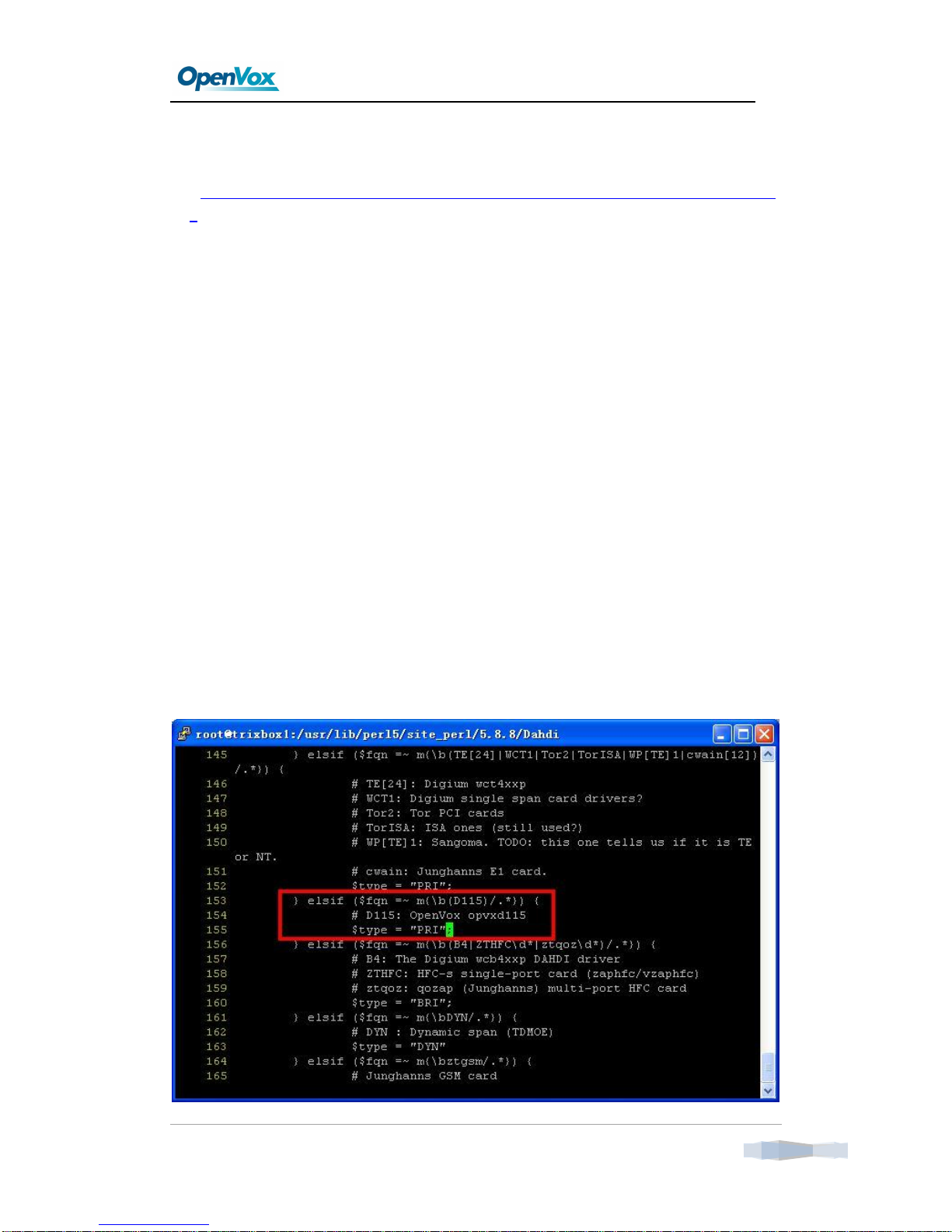

I. Edit/usr/lib/perl5/site_perl/5.8.8/Dahdi/Chans.pm

# cd /usr/lib/perl5/site_perl/5.8.8/Dahdi

# vi Chans.pm

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

II. Edit/usr/lib/perl5/site_perl/5.8.8/Dahdi/Span.pm

# vi Span.pm

III. Edit /usr/lib/perl5/site_perl/5.8.8/Dahdi/Hardware/PCI.pm

# vi Hardware/PCI.pm

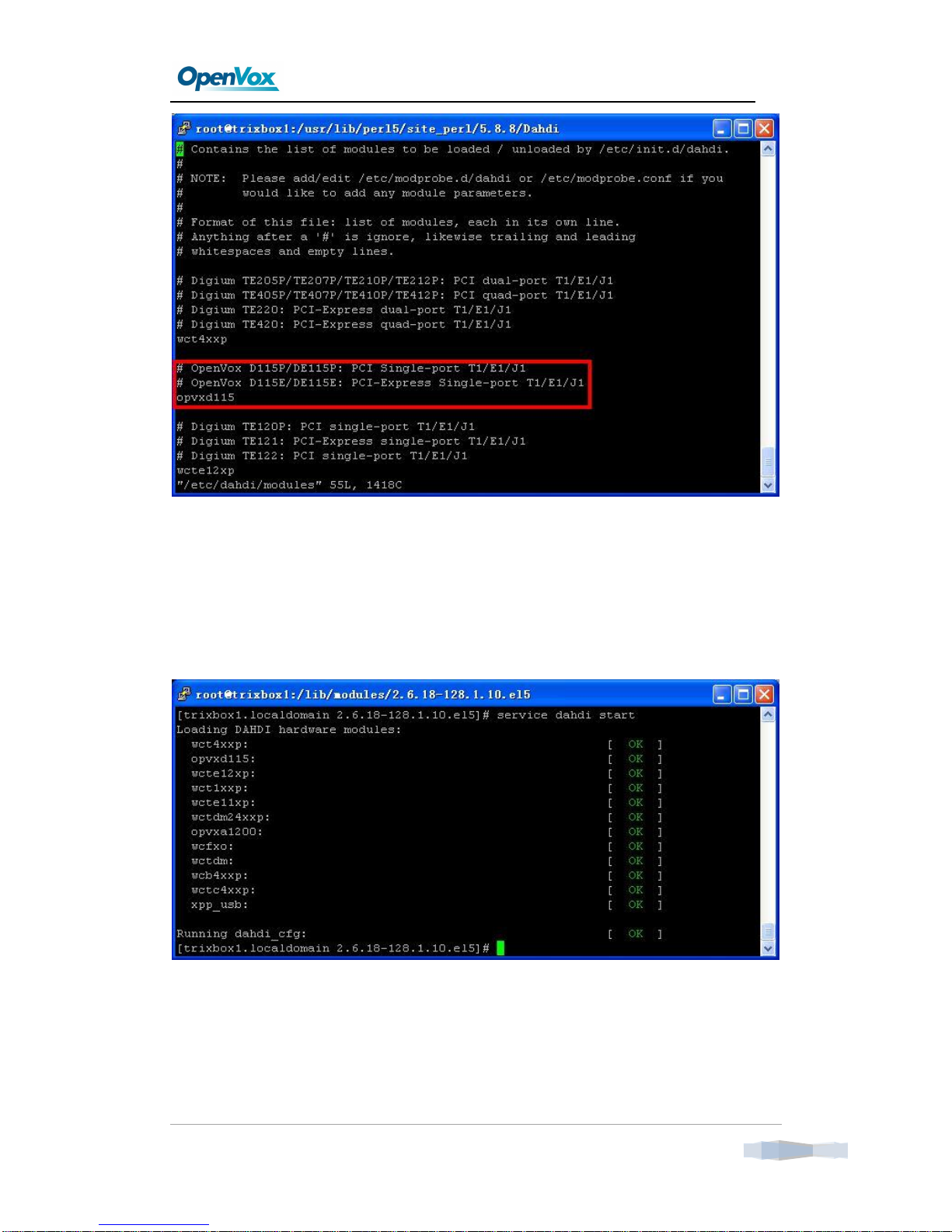

IV. Edit /etc/dahdi/modules

# vi modules

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

Chapter 4 Loading Driver

# service dahdi start

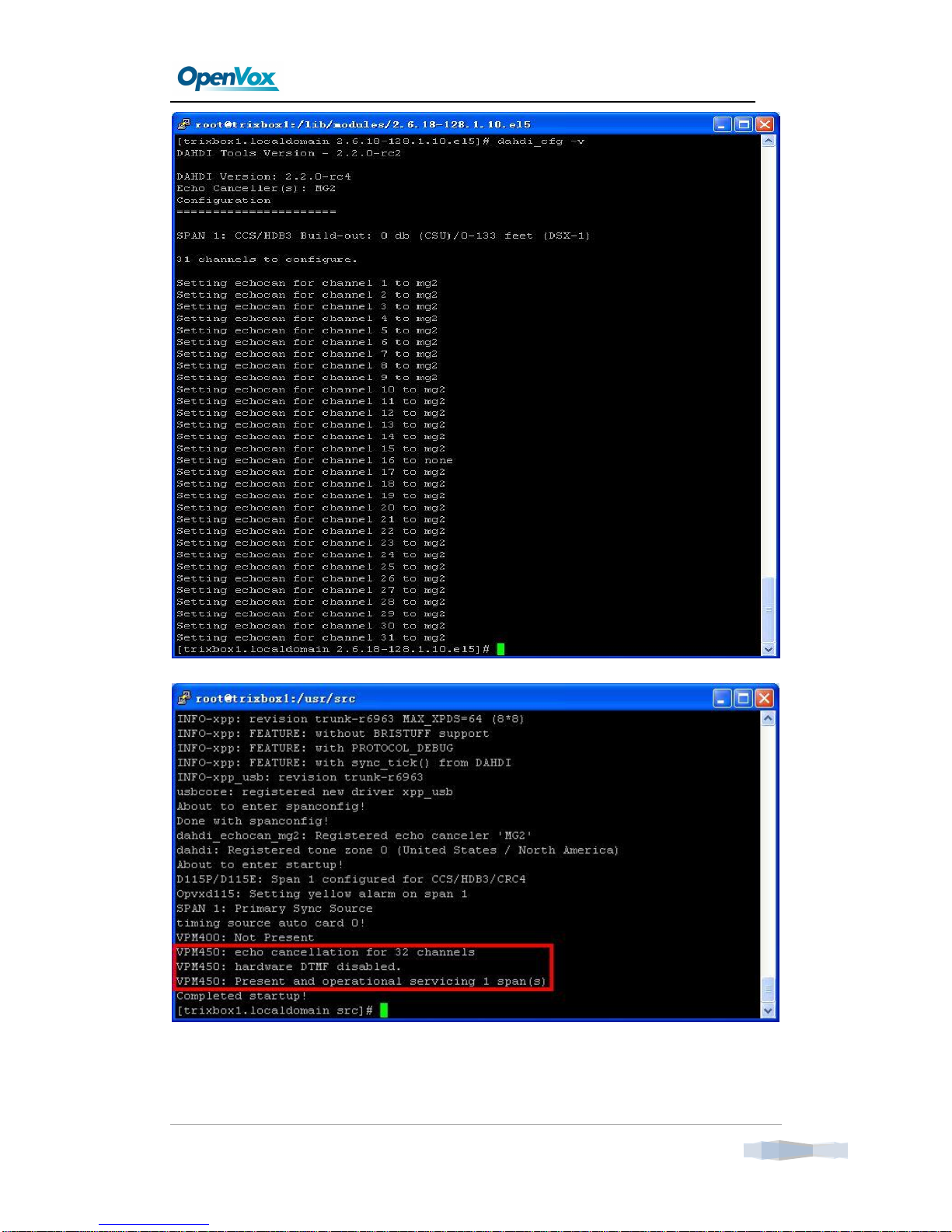

# dahdi_cfg -v

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

# dmesg

The picture above shows loading the EC-32 successfully.

DE115P/DE115E User Manual

OpenVox | www.openvox.cn Aug, 2009

Chapter 5 Technical Support

If you have any technical problems when using OpenVox products, please access the

related columns of the product in our website forum, and you can also contact us through

the following methods:

I。Submit your technical problem to our Forum.

You can submit your technical problems to our website Forum, we will reply you as soon

as possible.。

Click to enter our Forum

II。Email us

You can also send your technical problems via email to the following email address, we

will also offer you the solution in the shortest time.

support@openvox.com.cn

mark.liu@openvox.cn
