OpenVox DGW-100XR Manuale utente
DGW-100XR User Manual
Address:10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New
District, Shenzhen, Guangdong, China, 518048
Tel: +86-755-82535461, 82535095, 82535362
Fax: +86-755-83823074
Business Contact: sales@openvox.cn
Technical Support: support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL: www.openvox.cn
DGW-100XR User Manual
OpenVox Communication Co.Ltd
Version1.1 (2015-8-20)
Full text
The overall layout adjustment
DGW-100XR User Manual
OpenVox Communication Co.Ltd
1
Copyright
Copyright©2013 OpenVox Inc. All rights reserved. No part of this document may be reproduced without
prior written permission.
Confidentiality
Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox
Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than
the direct recipients without the express written consent of OpenVox Inc.
Disclaimer
OpenVox Inc. reserves the right to modify the design, characteristics, and products at any time without
notification or obligation and shall not be held liable for any error or damage of any kind resulting from the
use of this document.
OpenVox has made every effort to ensure that the information contained in this document is accurate and
complete; however, the contents of this document are subject to revision without notice. Please contact
OpenVox to ensure you have the latest version of this document.
Trademarks
All other trademarks mentioned in this document are the property of their respective owners.
DGW-100XR User Manual
OpenVox Communication Co.Ltd
2
Table of Contents
1.Overview.................................................................................................................................5
What is DGW-100XR? 5
Sample Application 5
Product Appearance 5
Main Features 7
Physical Information 7
Software 8
2. System ...................................................................................................................................9
Status 9
Time 10
Login Settings 11
General 12
Language Settings 12
Scheduled Reboot 12
Tools and Information 13
Reboot Tools 13
Update Firmware 13
Upload and Backup Configuration 14
Restore Configuration 14
Information 14
3. T1/E1 ...................................................................................................................................16
General 16
ISDN-PRI 17
Advanced: Interface Type 17
ISDN: Signaling 18
SS7 20
Link Set Settings 20
Link Settings 21
SS7 Config. File Backup and Restore 22
DGW-100XR User Manual
OpenVox Communication Co.Ltd
3
MFC/R2 22
Advanced: Interface Type 22
MFC/R2: Signaling 23
4.VOIP......................................................................................................................................25
VOIP Endpoints 25
SIP Endpoints 25
Main Endpoint Settings 25
Advanced: Registration Options 28
Call Settings 28
Advanced Timer Settings 28
Advanced: Signaling Settings 29
IAX2 Endpoint 30
Advanced SIP Settings 33
Networking 33
Advanced: NAT Settings 34
Advanced: RTP Settings 35
Parsing and Compatibility 35
Security 36
Media 37
Codec Settings 37
Advanced IAX2 Settings 38
Advanced Fax Settings 40
5. Routing ................................................................................................................................42
Call Routing Rule 42
Groups 45
6. Network...............................................................................................................................47
WAN/LAN Settings 47
DDNS Settings 48
Toolkit 49
7. Advanced .............................................................................................................................50
Asterisk API 50
Asterisk CLI 51
Asterisk File Editor 52
DGW-100XR User Manual
OpenVox Communication Co.Ltd
4
8. Logs......................................................................................................................................54
System 57
Statistics 58
DGW-100XR User Manual
OpenVox Communication Co.Ltd
5
1. Overview
What is DGW-100XR?
OpenVox T1/E1 Gateway is an open source asterisk-based VoIP Gateway solution for operators and
call centers. It is a converged media gateway product. This kind of gateway connects traditional
telephone system to IP networks and integrates VoIP PBX with the PSTN seamlessly. With friendly
GUI, users may easily setup their customized Gateway. Also secondary development can be
completed through AMI (Asterisk Management Interface). The DGW-100XR could support two
power supply and DGW-100X series gateway support one power supply.
It is developed with a wide selection of codecs and signaling protocol, including G.711A, G.711U,
G.729, G.722, G.723 and GSM. It supports PRI/SS7/R2 protocol. OpenVox T1/E1 Gateway has good
processing ability and stability and we provides 1/2/4 T1/E1 interface for your choice. The T1/E1
gateway will be 100% compatible with Asterisk, Elastix, trixbox, 3CX, FreeSWITCH SIP server and
VOS VoIP operating platform.
Sample Application
Figure 1-2-1Topological Graph
Product Appearance
The picture below is appearance of DGW-1004.
DGW-100XR User Manual
OpenVox Communication Co.Ltd
6
Figure 1-3-1 Product Appearance
Figure 1-3-2 Front Panel
Table 1-3-1 Description of Front Panel
Interface
Function
Color
Work Status
1 Port 1-Port4
E1/T1 ports. The port numbers are different on different
models, from 1 to 4.
2 Reset
Reset button is used to restore the device.
3 RUN
Register indicator
Green
Slow blinking(Green 2s
and Flash 0.1s):Work
normally
Fast blinking(Green 0.5s
and Flash 0.5s): Work
abnormally
Fast blinking(Green 0.5s
and Flash 0.5s): Work
abnormally
No blinking: Dahdi Error
4 PWR
Power Status indicator
Green
On: Power is on
Off: Power is off
5 VGA
VGA monitor connector
DGW-100XR User Manual
OpenVox Communication Co.Ltd
7
6 Eth1
Network interface
7 Eth0
Network interface
8 USB
USB interface
Figure 1-3-3 Backup Panel
The OpenVox DGW-100X series gateways provides one or two power supply, one power named DGW-100X ,the
other is named DGW-100XR, ‘R’stands for Reduntant.
Main Features
Based on Asterisk○R
Editable Asterisk○Rconfiguration file
Wide selection of codecs and signaling protocol
Support unlimited routing rules and flexible routing settings
Stable performance, flexible dialing, friendly GUI
Codecs support: G.711A, G.711U, G.729, G.723, G.722,GSM
Support ports group management
Echo Cancellation
Connect legacy PBX systems to low-cost VoIP services
Connect legacy PBX systems to remote sites over private VoIP links
Connect IP PBX systems to legacy TDM services
Physical Information
Table 1-5-1 Description of Physical Information
Weight
4301g(VS-GW1600-20G)
Size
44cm*30cm*4.5cm
Temperature
-20~70°C (Storage)
0~40°C (Operation)
DGW-100XR User Manual
OpenVox Communication Co.Ltd
8
Operation humidity
10%~90% non-condensing
Max power
46W
LAN port
1
WAN port
1
Software
Default IP: 172.16.100.1
Username: admin
Password: admin
Notice: Log in

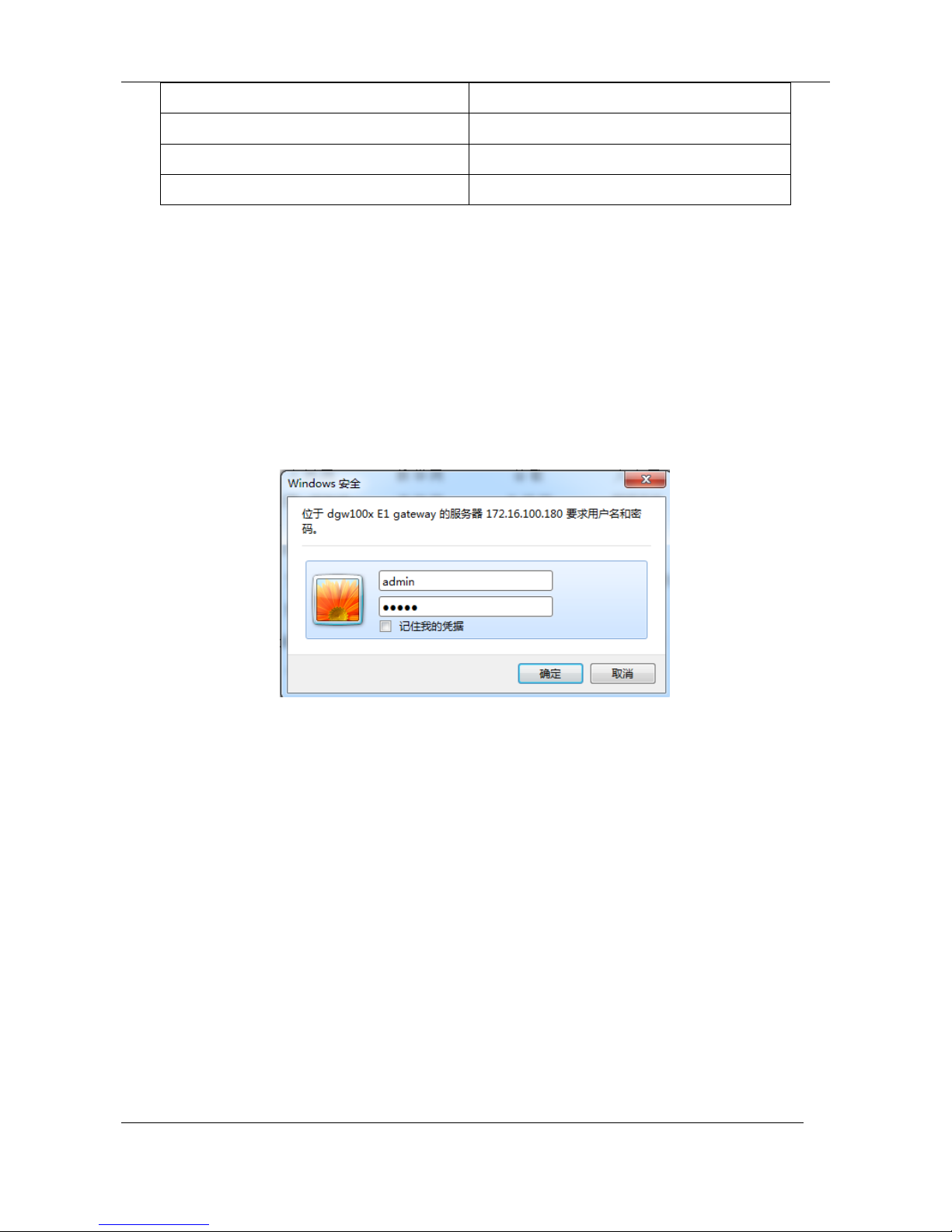

Figure 1-6-1 LOG IN Interface
