OPGAL EyeCGas 2.0 Manuale utente

The data contained in this document is proprietary. It is disclosed to the receiving

party only for the sole purpose stated herein, and shall not be disclosed by the

receiving party to any third party, and shall not be duplicated, used or disclosed in

whole or in part for any purpose other than the purpose specifically stated.

This publication, or any parts thereof, may not be reproduced in any form without the

express written permission of the owners.

QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

Always read the user manual for complete safety and operation

instructions before using this product.

Only use the camera in a temperature range between -20°C to +50°C

(-4°F to +122°F).

Do not connect or disconnect external devices to/from the camera

inside hazardous areas.

This product uses Li-Ion batteries. Always follow safety instructions

when using batteries.

Do not attempt to disassemble or modify this product in any way.

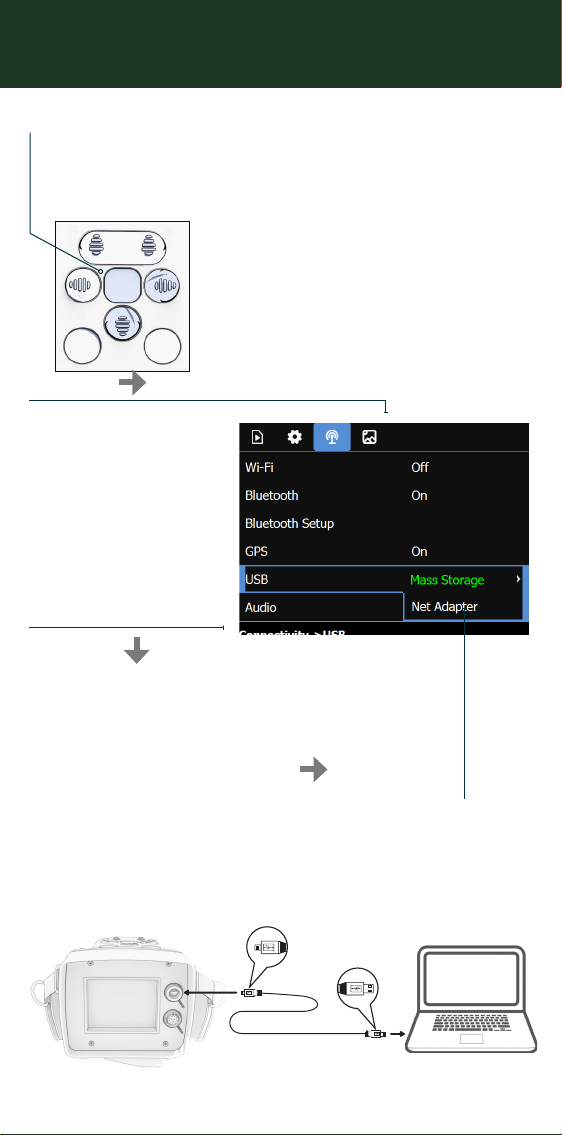

1. Press the menu

button to enter the

menu.

2. Press the right

navigation button

to navigate to the

connectivity tab.

4. Press the right

navigation button

to select Mass

Storage.

3. Press the down

navigation button

and select USB.

5. Connect the USB cable between EyeCGas® 2.0 and a

computer.

EyeCGas® 2.0 appears as a storage device on the computer,

from where files can be transferred.

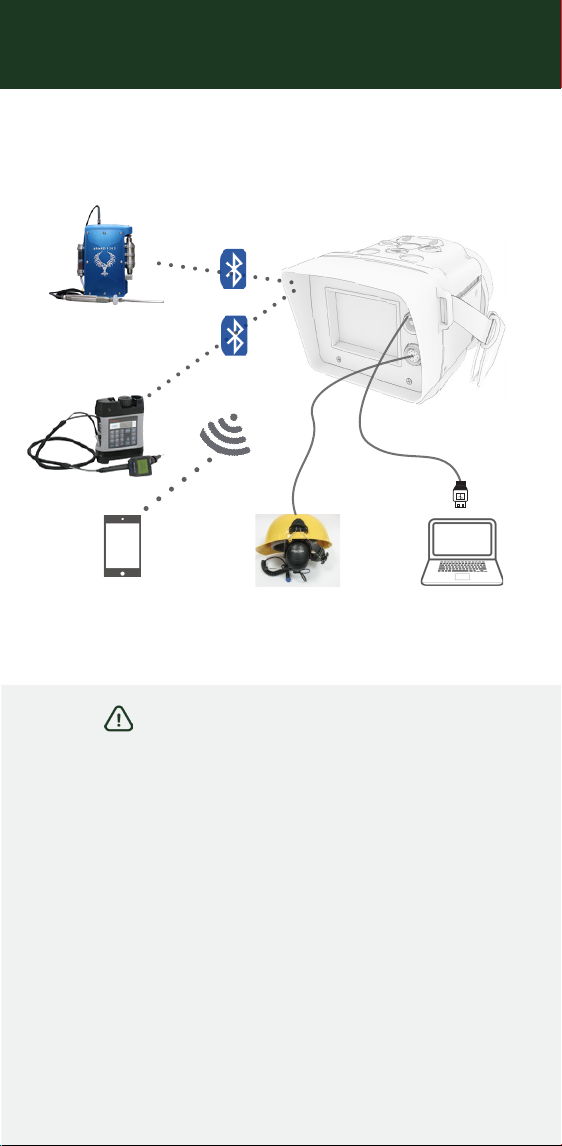

Connectivity

The following connectivity options are available.

For more information, refer to the user guide.

Bluetooth

connectivity

Audio headset

connectivity

USB

connectivity

Wi-Fi connectivity

(camera as hotspot)

Downloading Videos and Images

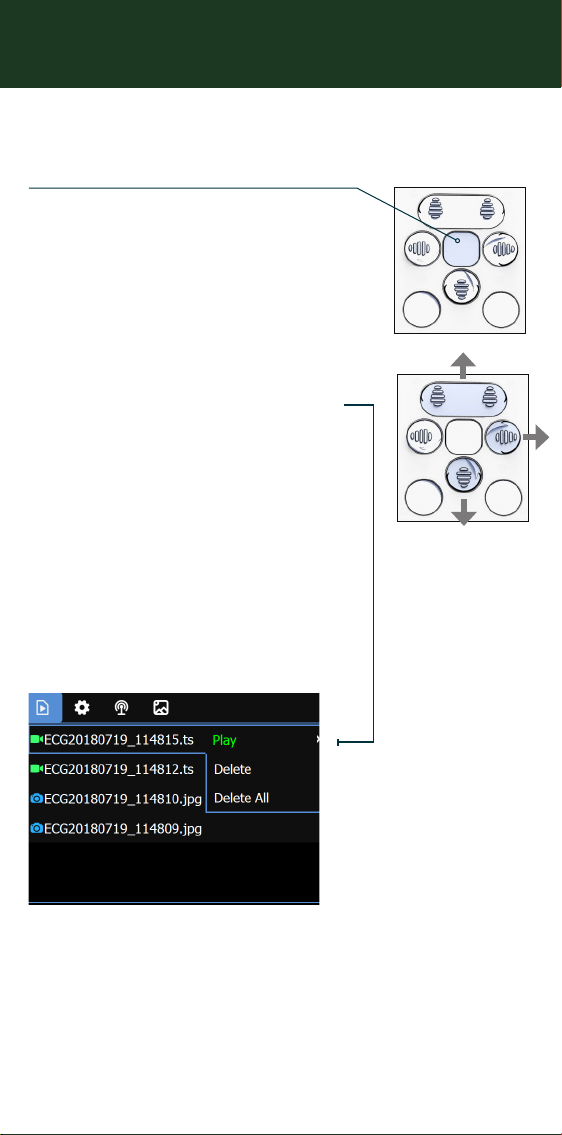

Video and Image Playback

To playback an image or video on the LCD display:

1. Press the menu button to enter

the menu.

2. Press the up/down navigation

buttons to navigate between

files.

3. Press the right navigation button

to select a video or image file.

4. Press the right navigation button

to select the relevant action.

5. Press the record keypad button

to return to the file menu.

Unclassified | commercial confidential | Doc P/N: QG-8G9A0000B | Rev 02

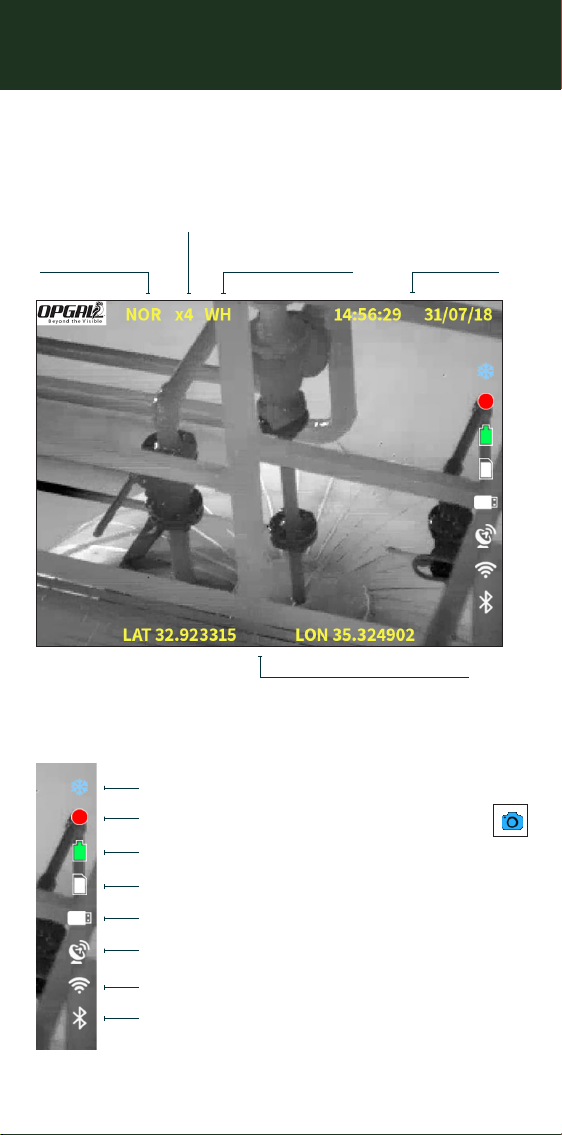

Screen Overlay

Starting EyeCGas® 2.0

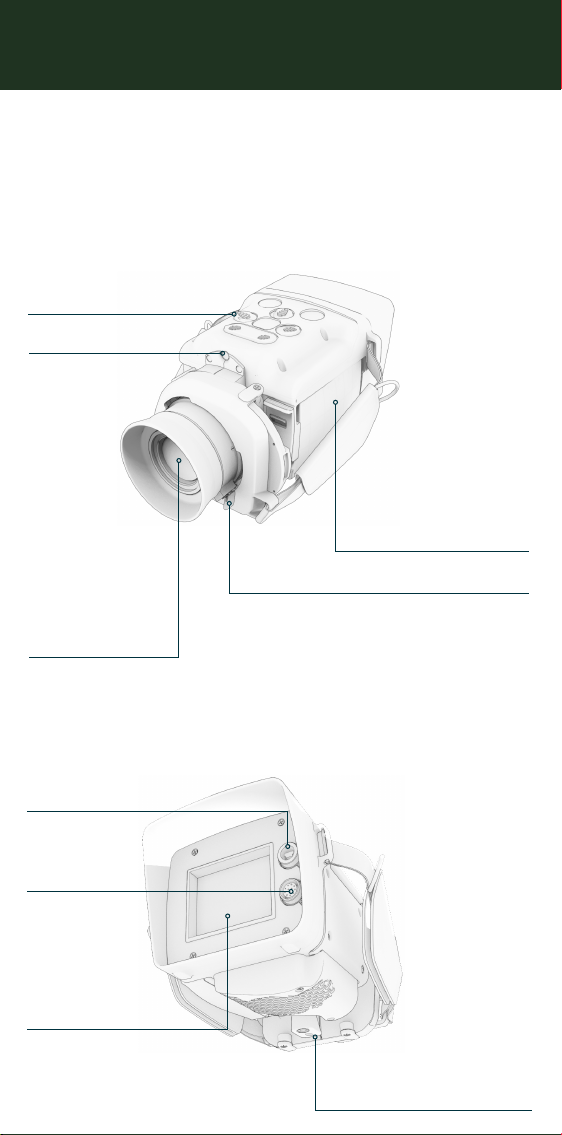

EyeCGas® 2.0 Overview

EyeCGas® 2.0 is a handheld infrared camera used

for the detection of gas leaks.

LCD display

Tripod mount

Battery

USB

connector

Audio

connector

Keypad buttons

HD camera

IR lens

Lens release latch

A.Charge the battery:

1. Plug battery charger into power outlet.

2. Remove tape from battery contacts.

3. Insert battery into charger until it

latches in place.

4. Battery fully charged on green led.

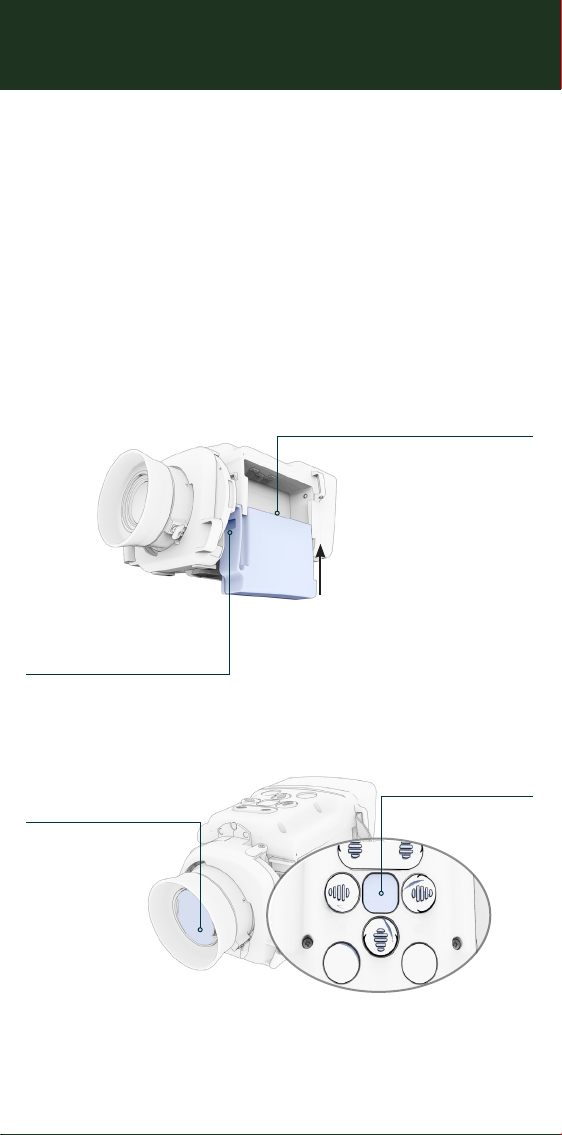

B. Insert battery into camera:

1. Ensure contacts are

facing up.

2. Slide battery up until

battery clip snaps in

place.

C.Power up

EyeCGas® 2.0

1. Ensure lens

cover is on.

Press the power button for

one second.

Power-up sequence: For 8-10 minutes, EyeCGas® 2.0 is in cool down state.

Only visible viewing mode is available during this time.

IMPORTANT: Keep lens cover on during the entire power-up sequence.

The following status indicators appear on the LCD

display:

Viewing mode Polarity

Zoom level

Time and Date

Cooler active (icon blinks during cool down)

Battery level status

Internal memory used

USB*

GPS*

Wi-Fi*

Bluetooth*

Recording in progress / Snapshot taken

GPS

coordinates

Perform NUC process

(hold for 3 seconds)

Record video

Zoom

Power off camera (hold

for 3 seconds)

Take snapshot

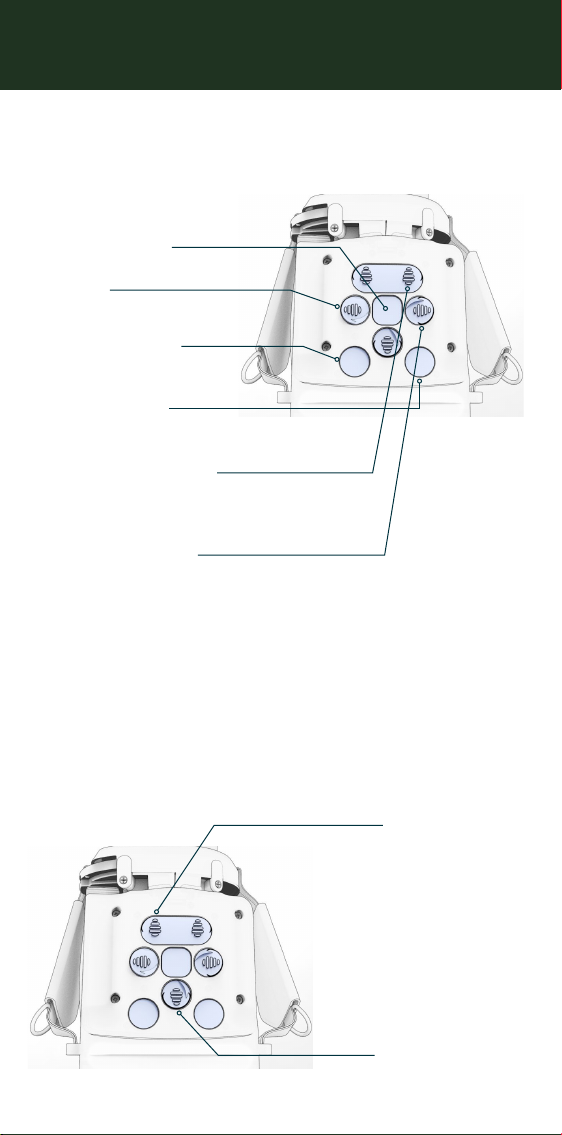

Use the keypad buttons to perform the following

operations:

Switch between the following

viewing modes:

Visible

Normal

Enhanced

Thermography

Normal mode:

Select polarity

Enhanced mode:

Select polarity

Thermography

mode:

Select color palette

Enhanced mode:

Select enhancement level

Thermography mode:

Select emissivity value

Routine Operations

The following two keypad buttons change

functionality based on the viewing mode selected:

(snapshot icon

appears over

recording icon)

Screen Overlay

Starting EyeCGas® 2.0

EyeCGas® 2.0 Overview

EyeCGas® 2.0 is a handheld infrared camera used

for the detection of gas leaks.

LCD display

Tripod mount

Battery

USB

connector

Audio

connector

Keypad buttons

HD camera

IR lens

Lens release latch

A.Charge the battery:

1. Plug battery charger into power outlet.

2. Remove tape from battery contacts.

3. Insert battery into charger until it

latches in place.

4. Battery fully charged on green led.

B. Insert battery into camera:

1. Ensure contacts are

facing up.

2. Slide battery up until

battery clip snaps in

place.

C.Power up

EyeCGas® 2.0

1. Ensure lens

cover is on.

Press the power button for

one second.

Power-up sequence: For 8-10 minutes, EyeCGas® 2.0 is in cool down state.

Only visible viewing mode is available during this time.

IMPORTANT: Keep lens cover on during the entire power-up sequence.

The following status indicators appear on the LCD

display:

Viewing mode Polarity

Zoom level

Time and Date

Cooler active (icon blinks during cool down)

Battery level status

Internal memory used

USB*

GPS*

Wi-Fi*

Bluetooth*

Recording in progress / Snapshot taken

GPS

coordinates

Perform NUC process

(hold for 3 seconds)

Record video

Zoom

Power off camera (hold

for 3 seconds)

Take snapshot

Use the keypad buttons to perform the following

operations:

Switch between the following

viewing modes:

Visible

Normal

Enhanced

Thermography

Normal mode:

Select polarity

Enhanced mode:

Select polarity

Thermography

mode:

Select color palette

Enhanced mode:

Select enhancement level

Thermography mode:

Select emissivity value

Routine Operations

The following two keypad buttons change

functionality based on the viewing mode selected:

(snapshot icon

appears over

recording icon)

Screen Overlay

Starting EyeCGas® 2.0

EyeCGas® 2.0 Overview

EyeCGas® 2.0 is a handheld infrared camera used

for the detection of gas leaks.

LCD display

Tripod mount

Battery

USB

connector

Audio

connector

Keypad buttons

HD camera

IR lens

Lens release latch

A.Charge the battery:

1. Plug battery charger into power outlet.

2. Remove tape from battery contacts.

3. Insert battery into charger until it

latches in place.

4. Battery fully charged on green led.

B. Insert battery into camera:

1. Ensure contacts are

facing up.

2. Slide battery up until

battery clip snaps in

place.

C.Power up

EyeCGas® 2.0

1. Ensure lens

cover is on.

Press the power button for

one second.

Power-up sequence: For 8-10 minutes, EyeCGas® 2.0 is in cool down state.

Only visible viewing mode is available during this time.

IMPORTANT: Keep lens cover on during the entire power-up sequence.

The following status indicators appear on the LCD

display:

Viewing mode Polarity

Zoom level

Time and Date

Cooler active (icon blinks during cool down)

Battery level status

Internal memory used

USB*

GPS*

Wi-Fi*

Bluetooth*

Recording in progress / Snapshot taken

GPS

coordinates

Perform NUC process

(hold for 3 seconds)

Record video

Zoom

Power off camera (hold

for 3 seconds)

Take snapshot

Use the keypad buttons to perform the following

operations:

Switch between the following

viewing modes:

Visible

Normal

Enhanced

Thermography

Normal mode:

Select polarity

Enhanced mode:

Select polarity

Thermography

mode:

Select color palette

Enhanced mode:

Select enhancement level

Thermography mode:

Select emissivity value

Routine Operations

The following two keypad buttons change

functionality based on the viewing mode selected:

(snapshot icon

appears over

recording icon)

Screen Overlay

Starting EyeCGas® 2.0

EyeCGas® 2.0 Overview

EyeCGas® 2.0 is a handheld infrared camera used

for the detection of gas leaks.

LCD display

Tripod mount

Battery

USB

connector

Audio

connector

Keypad buttons

HD camera

IR lens

Lens release latch

A.Charge the battery:

1. Plug battery charger into power outlet.

2. Remove tape from battery contacts.

3. Insert battery into charger until it

latches in place.

4. Battery fully charged on green led.

B. Insert battery into camera:

1. Ensure contacts are

facing up.

2. Slide battery up until

battery clip snaps in

place.

C.Power up

EyeCGas® 2.0

1. Ensure lens

cover is on.

Press the power button for

one second.

Power-up sequence: For 8-10 minutes, EyeCGas® 2.0 is in cool down state.

Only visible viewing mode is available during this time.

IMPORTANT: Keep lens cover on during the entire power-up sequence.

The following status indicators appear on the LCD

display:

Viewing mode Polarity

Zoom level

Time and Date

Cooler active (icon blinks during cool down)

Battery level status

Internal memory used

USB*

GPS*

Wi-Fi*

Bluetooth*

Recording in progress / Snapshot taken

GPS

coordinates

Perform NUC process

(hold for 3 seconds)

Record video

Zoom

Power off camera (hold

for 3 seconds)

Take snapshot

Use the keypad buttons to perform the following

operations:

Switch between the following

viewing modes:

Visible

Normal

Enhanced

Thermography

Normal mode:

Select polarity

Enhanced mode:

Select polarity

Thermography

mode:

Select color palette

Enhanced mode:

Select enhancement level

Thermography mode:

Select emissivity value

Routine Operations

The following two keypad buttons change

functionality based on the viewing mode selected:

(snapshot icon

appears over

recording icon)

The data contained in this document is proprietary. It is disclosed to the receiving

party only for the sole purpose stated herein, and shall not be disclosed by the

receiving party to any third party, and shall not be duplicated, used or disclosed in

whole or in part for any purpose other than the purpose specifically stated.

This publication, or any parts thereof, may not be reproduced in any form without the

express written permission of the owners.

QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

Always read the user manual for complete safety and operation

instructions before using this product.

Only use the camera in a temperature range between -20°C to +50°C

(-4°F to +122°F).

Do not connect or disconnect external devices to/from the camera

inside hazardous areas.

This product uses Li-Ion batteries. Always follow safety instructions

when using batteries.

Do not attempt to disassemble or modify this product in any way.

1. Press the menu

button to enter the

menu.

2. Press the right

navigation button

to navigate to the

connectivity tab.

4. Press the right

navigation button

to select Mass

Storage.

3. Press the down

navigation button

and select USB.

5. Connect the USB cable between EyeCGas® 2.0 and a

computer.

EyeCGas® 2.0 appears as a storage device on the computer,

from where files can be transferred.

Connectivity

The following connectivity options are available.

For more information, refer to the user guide.

Bluetooth

connectivity

Audio headset

connectivity

USB

connectivity

Wi-Fi connectivity

(camera as hotspot)

Downloading Videos and Images

Video and Image Playback

To playback an image or video on the LCD display:

1. Press the menu button to enter

the menu.

2. Press the up/down navigation

buttons to navigate between

files.

3. Press the right navigation button

to select a video or image file.

4. Press the right navigation button

to select the relevant action.

5. Press the record keypad button

to return to the file menu.

Unclassified | commercial confidential | Doc P/N: QG-8G9A0000B | Rev 02

The data contained in this document is proprietary. It is disclosed to the receiving

party only for the sole purpose stated herein, and shall not be disclosed by the

receiving party to any third party, and shall not be duplicated, used or disclosed in

whole or in part for any purpose other than the purpose specifically stated.

This publication, or any parts thereof, may not be reproduced in any form without the

express written permission of the owners.

QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

Always read the user manual for complete safety and operation

instructions before using this product.

Only use the camera in a temperature range between -20°C to +50°C

(-4°F to +122°F).

Do not connect or disconnect external devices to/from the camera

inside hazardous areas.

This product uses Li-Ion batteries. Always follow safety instructions

when using batteries.

Do not attempt to disassemble or modify this product in any way.

1. Press the menu

button to enter the

menu.

2. Press the right

navigation button

to navigate to the

connectivity tab.

4. Press the right

navigation button

to select Mass

Storage.

3. Press the down

navigation button

and select USB.

5. Connect the USB cable between EyeCGas® 2.0 and a

computer.

EyeCGas® 2.0 appears as a storage device on the computer,

from where files can be transferred.

Connectivity

The following connectivity options are available.

For more information, refer to the user guide.

Bluetooth

connectivity

Audio headset

connectivity

USB

connectivity

Wi-Fi connectivity

(camera as hotspot)

Downloading Videos and Images

Video and Image Playback

To playback an image or video on the LCD display:

1. Press the menu button to enter

the menu.

2. Press the up/down navigation

buttons to navigate between

files.

3. Press the right navigation button

to select a video or image file.

4. Press the right navigation button

to select the relevant action.

5. Press the record keypad button

to return to the file menu.

Unclassified | commercial confidential | Doc P/N: QG-8G9A0000B | Rev 02

The data contained in this document is proprietary. It is disclosed to the receiving

party only for the sole purpose stated herein, and shall not be disclosed by the

receiving party to any third party, and shall not be duplicated, used or disclosed in

whole or in part for any purpose other than the purpose specifically stated.

This publication, or any parts thereof, may not be reproduced in any form without the

express written permission of the owners.

QUICK START GUIDE

IMPORTANT SAFETY INSTRUCTIONS

Always read the user manual for complete safety and operation

instructions before using this product.

Only use the camera in a temperature range between -20°C to +50°C

(-4°F to +122°F).

Do not connect or disconnect external devices to/from the camera

inside hazardous areas.

This product uses Li-Ion batteries. Always follow safety instructions

when using batteries.

Do not attempt to disassemble or modify this product in any way.

1. Press the menu

button to enter the

menu.

2. Press the right

navigation button

to navigate to the

connectivity tab.

4. Press the right

navigation button

to select Mass

Storage.

3. Press the down

navigation button

and select USB.

5. Connect the USB cable between EyeCGas® 2.0 and a

computer.

EyeCGas® 2.0 appears as a storage device on the computer,

from where files can be transferred.

Connectivity

The following connectivity options are available.

For more information, refer to the user guide.

Bluetooth

connectivity

Audio headset

connectivity

USB

connectivity

Wi-Fi connectivity

(camera as hotspot)

Downloading Videos and Images

Video and Image Playback

To playback an image or video on the LCD display:

1. Press the menu button to enter

the menu.

2. Press the up/down navigation

buttons to navigate between

files.

3. Press the right navigation button

to select a video or image file.

4. Press the right navigation button

to select the relevant action.

5. Press the record keypad button

to return to the file menu.

Unclassified | commercial confidential | Doc P/N: QG-8G9A0000B | Rev 02

Altri manuali per EyeCGas 2.0

Indice

Altri manuali OPGAL Telecamera termica

OPGAL

OPGAL Therm-App MD Pro Manuale utente

Manuali Telecamera termica popolari di altre marche

Hikmicro

Hikmicro B20 Manuale utente

FLIR

FLIR E-EST Series Manuale utente

FLIR

FLIR M-Series Manuale utente

BST

BST BT-72 Manuale utente

FLIR

FLIR G300 pt Series Manuale utente

CBC

CBC EN7-S02T Manuale utente

Satir

Satir YRH600 Manuale utente

TESTO

TESTO 882 Manuale utente

TECPEL

TECPEL TIG-320 Manuale utente

SKF

SKF TKTI 21 Manuale utente

TESTO

TESTO 885 Manuale utente

InfiRay

InfiRay AT300 Series Manuale utente

InfiRay

InfiRay AT Series Manuale utente

FLIR

FLIR X6530sc Series Manuale utente

Videotec

Videotec MAXIMUS MVXT Manuale utente

Guide Sensmart

Guide Sensmart D384M Manuale utente

NBN

NBN FLIR A6 Series Manuale utente

WORKSWELL

WORKSWELL SAFETIS Manuale utente
