OPTEX FA CD5 Series Manuale utente

٨Read this Instruction Manual

before use for the safe and correct

operation.

٨Keep this Instruction Manual for

the future reference and refer to it

whenever necessary.

0560790

Table of Contents page

SAFETY PRECAUTIONS ............. 3

-EANINGSOF3AFETY3YMBOLS 

-ANDATORY2EQUIREMENTS 

0RECAUTIONSFOR)NSTALLATION 

/PERATING0RECAUTIONS

#AUTIONSFOR,ASER0RODUCT 

Speciﬁcations..................................... 8

BASIC INFORMATION BEFORE USE

.... 10

0ARTS)DENTIlCATIONSOF3ENSOR(EAD 

0ACKAGE$ESCRIPTIONS 

/PTION 

Sensor Head Installation .......... 12

)NSTALLING$IRECTION 

$ISTANCEINDICATOR 

3ENSORHEAD)NSTALLATION 

#ONNECTING#ONNECTORSFOR3ENSOR(EAD 

APPENDIX........................................... 17

Sensor Head Instruction Manual

Displacement Sensor CD5 Series

Laser Type

(CD5-L_25,CD5-_30,CD5-_85,CD5-W350,CD5-W500,CD5-W2000)

93, Chudoji Awata, Shimogyo-ku, Kyoto, 600-8815 Japan

Tel : +81-75-325-2920 Fax : +81-75-325-2921

9GDUKVGJVVRYYYQRVGZHCEQO

Manufactured and sold by :

Displacement sensor

FOREWORD

Thank you for purchasing the Displacement Sensor CD5 Series. We hope you

are fully satisﬁed with this product and enjoy its performance. To ensure your

satisfaction, please follow the instructions below.

٨Carefully read this instruction manual and keep it for future reference.

٨If you have any question about the instructions here or a request for replacing

the lost instruction manual, contact the sales office or store where you

purchased this product.

٨The contents in this instruction manual are protected by copyright and all

rights are reserved by OPTEX FA CO., LTD. The descriptions and information

included in this manual shall not be copied nor reproduced to any other form.

This products may be listed as articles to be regulated for export such as

strategic materials by the Foreign Exchange and Foreign Trade Control Act.

Therefore, if you intend to export these, be sure to follow the necessary

procedures, such as application for an export permit from the Government.

Warranty

Whereas all of our products are tested in accordance with the strict internal

standard, a faulty unit may unexpectedly be distributed. If this is the case with

your product, identify its status and contact the sales ofﬁce or store where you

purchased it.

٨The warranty period shall be one(1) year after its delivery to the customer.

٨If the failure results from a manufacturer' s fault, the manufacturer will replace

the product (by sending a substitute) without charge except the following

cases :

1. Failure due to any abuse or misuse

2. Failure due to a cause other than the product

3. Failure due to unapproved modiﬁcation or repair

4. Failure due to acts of God

This warranty is limited to the delivered product only.

This warranty shall not cover the secondary damage caused by the faulty

product.

CD5 Sensor Head

SAFETY PRECAUTIONS

Carefully read and understand the safety precautions before operation.

They provide the important information to protect your health and property. Strictly

follow this instruction manual, and do not apply any other installing/operating

procedure which is not described in this manual.

Meanings of Safety Symbols

Indicates a possible hazard that may result in death or serious

injury if the product is used without observing the stated

instructions.

Indicates a possible hazard that may result in personal injury or

property damage if the product is used without observing the

stated instructions.

Displacement sensor

Mandatory Requirements

࡮ This product cannot be used as a safety device to protect human

body.

࡮

Do not stare into laser beam or point laser beam at eyes since it may

damage the eyesight.

࡮ Do not disassemble or modify the product since it is not designed

automatically to stop the laser emission when it is opened.

Disassembling or modifying at customer’s end may cause personal

injury, ﬁre or electric shock.

࡮

Use only the special controller and an extension cable to connect the

sensor head. Other units/ cables may cause an accident or damage

the product.

࡮

Use the product following speciﬁcations such as the rated value and

environmental condition.

࡮

Use of controls or adjustments or performance of procedures

other than those speciﬁed herein may result in hazardous radiation

exposure.

࡮

Do not apply a shock to the glass cover of the emitting/ receiving

part. It may break the cover.

CD5 Sensor Head

Precautions for Installation

࡮

Do not install or use the product at the following places. It may lower

accuracy or cause a failure.

A place where;

The operating temperature or humidity exceeds the speciﬁed value;

The receiving part is directly exposed to sunlight or ambient light. (Use a tool like

a sun visor for improved accuracy);

Condensation occurs by temperature change;

There is much dust or iron powder;

Water, oil, agent or organic solvent scatters or attaches to the product.

The product receives too much vibration or shock.

࡮

Install the product away from noise generating devices such as high

voltage cable, power line or inverter drive motor. Noise may cause a

malfunction.

࡮

Do not pull or apply excess power to a cable. It may damage the

product.

Operating Precautions

࡮

Do not use the product just after turning on. A warm-up operation over 30

minutes is required before use.

࡮

The sensor performance may depend on the individual units.

࡮

Wipe off dirt on the cover (glass) of the emitting/receiving parts using a soft

cloth etc., at every operation since it may cause incorrect detection.

Displacement sensor

Cautions for Laser Product

This sensor emits visible laser beam compliant with JIS C6802/IEC/FDA, laser

safety standard Class 1, 2 ( Τ) or 3R ( Υa).

The warning and description labels are stuck on the side of the product.

Laser type of this product

Type Red Laser Diode

Wavelength 650 nm / 658 nm

Output 390 μW / 1 mW / 5 mW

This sensor is subject to the FDA laser standard when exported to U.S.A. The

report of this sensor has been submitted to Center for Devices and Radiological

Health (CDRH).

CD5 Sensor Head

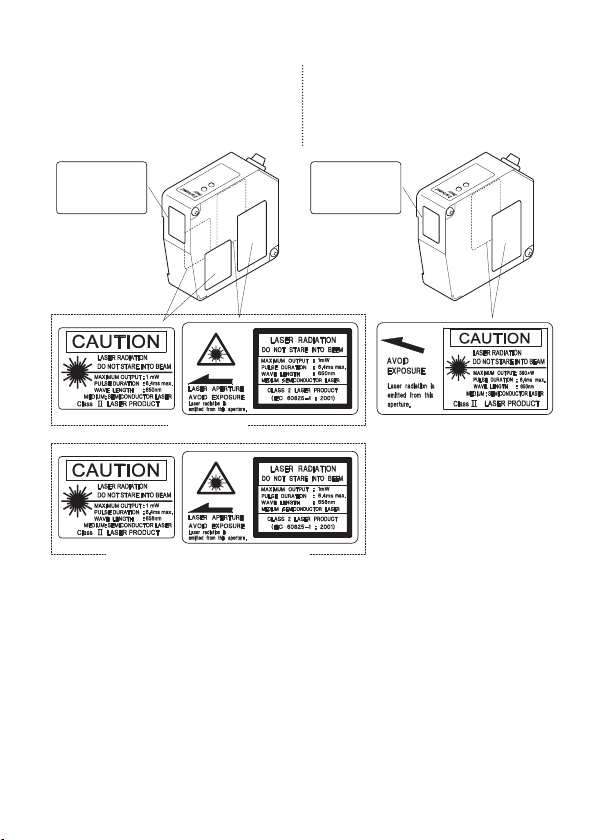

Label of each model

࡮CD5-30 / CD5-W30

࡮CD5-85 / CD5-W85

࡮CD5-W350

࡮CD5-W500

࡮CD5-L25 / CD5-LW25

$%.(.!-,-+ 0/),(%!.1%/$





$0 +&%1/$+$%)+#2+'0

2+/+,*

(!+")*0"/0-!



$%.(.!-,-+ 0/),(%!.1%/$





$0 +&%1/$+$%)+#2+'0

2+/+,*

(!+")*0"/0-!







Displacement sensor

Speciﬁcations

Model No. CD5-L25 CD5-LW25 CD5-30 CD5-W30

Optical method Specular reﬂection

Center 25mm 30mm

Measuring range ±1mm ±5mm

Light source

Red Laser Diode

Wavelength 650nm /

Maximum output 390μW

Wavelength 650nm /

Maximum output 1mW

Wavelength 658nm /

Maximum output 1mW

Laser

Class

IEC/JIS CLASS 1

FDA Class Τ

Spot size

Appx.25x35μm Appx.100x700μm Appx.30x100μm Appx.260x1,000μm

Light receiving

element Linear image sensor

Linearity

Resolution

0.02μm0.2μm

Sampling period 100μs

Temperature drift *3

±0.01% F.S. / ±0.05% F.S. / 

Supply voltage Supplied from special controller

Indicator

Laser emission indicator : Green (ON during laser emission)

Distance indicator : Orange (Lights around center)

Distance indicator : Red (Lights at the near side)

Distance indicator : Green (Lights at the far side)

Distance indicator : Alternative Red/ Green(Lights alternatively outside

Protection

category IP67 (Including connecting part)

Operating

temperature -10 to +50(Free from condensation or icing) / For storage : -20 to +60

Operating humidity 35% to 85%RH / For storage : 35% to 85%RH

Ambient light Max. 3,000lx (Surface illuminance, Incandescent lamp)

Vibration

resistance 10 to 55Hz Double amplitude 1.5mm 2 h per XYZ axes

Material Sensor Head housing : Diecast Aluminum Cover of Emitting/receiving part : Glass

Cable extension Up to 50 m using an optional extension cable (unbundled)

Weight Appx. 250 g (Including cable)

Unless otherwise designated, measurement condition is as follows. Using special controller/ operatin

(depending on models)/ 256 times in average/ center/ standard testing object (specular reﬂection: eva

*1 : Deﬁned with center strength 1/e2(13.5%) at the center. There may be leak light other than the speciﬁed spo

*2 : 4096 times in average. Other conditions are same as the above condition.

*3 : The typical value in the above condition.

±0.08%F.S.

CD5 Sensor Head

CD5-85 CD5-W85 CD5-W350 CD5-W500

Diffuse reﬂection

85mm 350mm 500mm

±20mm ±100mm ±200mm

avelength 650nm /

aximum output 1mW

Wavelength 658nm /

Maximum output 1mW

CLASS 2

Appx.70x290μm Appx.260x1,200μm Appx.700x2,400μm Appx.1,000x3,700μm

±0.05% F.S.±0.08% F.S.

1μm5μm10μm

800μs

±0.01% F.S. / 

he range)

temperature, 23 (ordinary temperature)/ supply voltage, 24 V DC/ sampling period, 100 μs or 800 μs

porated aluminum mirror, diffuse reﬂection: white ceramic)/ digital measured value.

t size. The sensor may be affected when there is a highly reﬂective object close to the detection area.

±0.08%F.S.

Displacement sensor

BASIC INFORMATION BEFORE USE

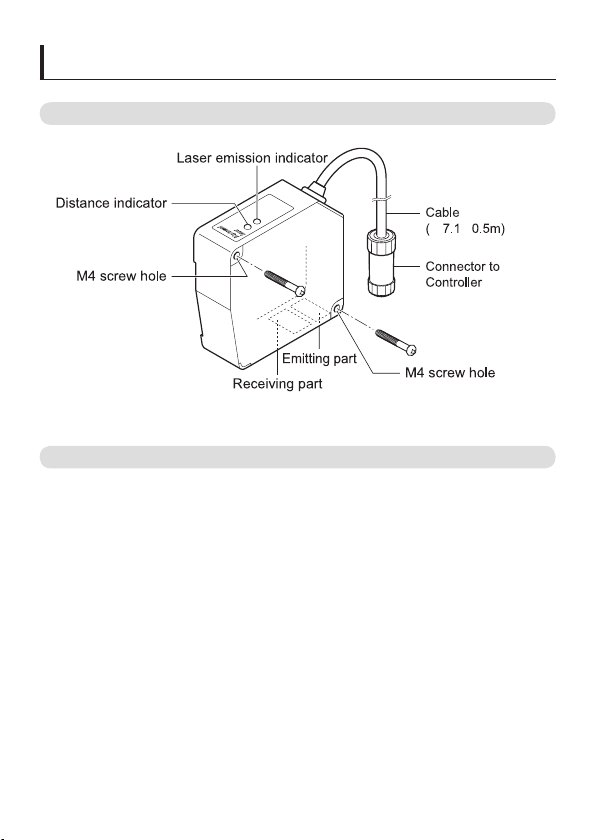

Parts Identiﬁcations of Sensor Head

Package Descriptions

٨Sensor Head Main Unit

٨Screw(3 pcs.)

٨Instruction Manual (This document)

٨Laser Label to stick on the device
