Optex AP-360B Manuale utente

AP-360B(C)

Indoor Recessed Mount PIR Detector

360°/Wired model

INSTALLATION INSTRUCTIONS

No.59-3221-0 2207-04

- Manufacturer’ s statement

- Parts identification

- Specifications

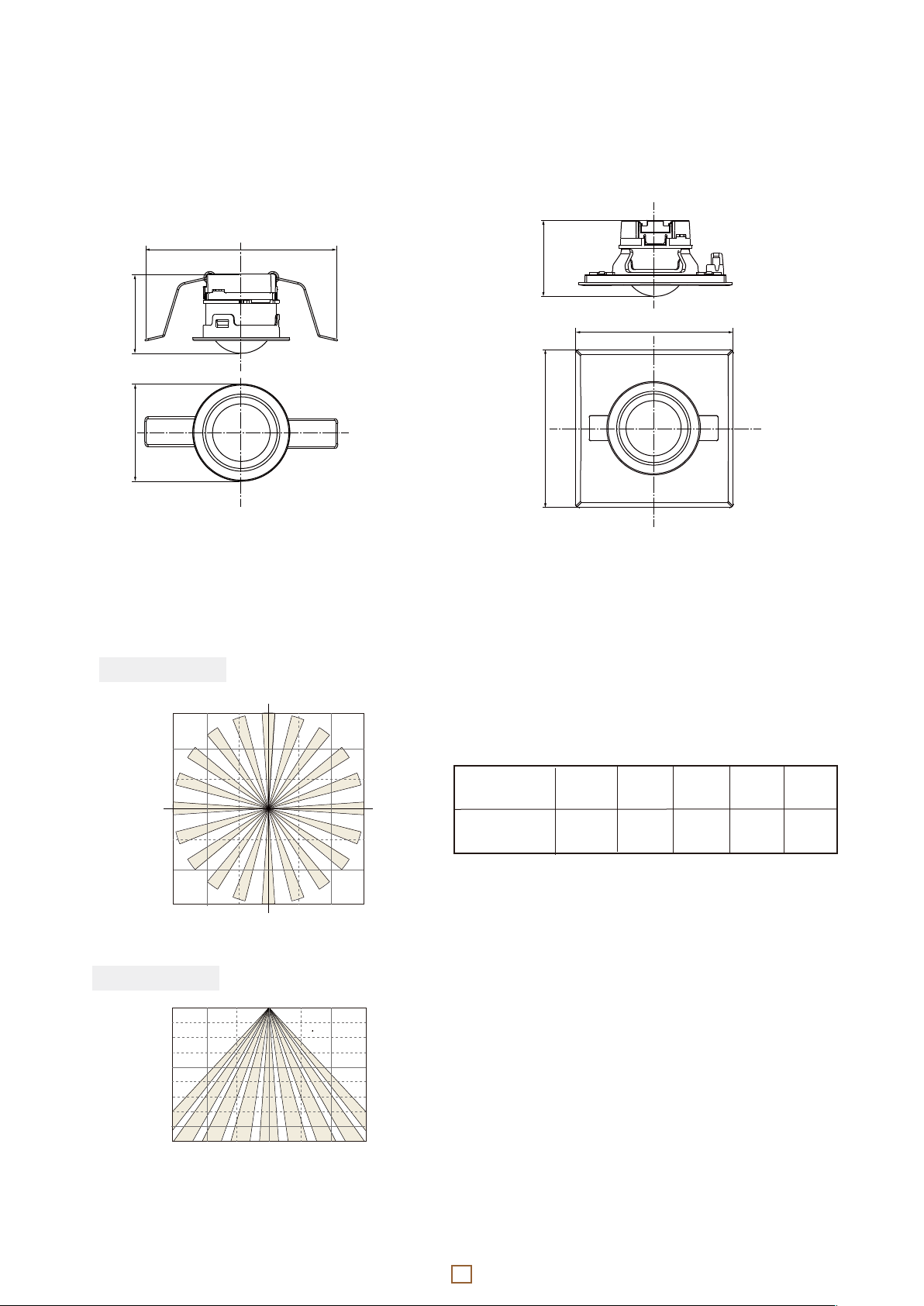

- Dimensions

- Detection area

- Troubleshooting

- Compliance

Before installation

Others

<< Contents >>

Page

Installation

Ceiling mount

without switch box

Wiring

Ceiling mount

with 86-type box

Checking3

360° ø6.0 m (20’ ) detection area at 4.5 m (14’ 9” ) mounting height

Settings1

Indoor Recessed Mount PIR Detector

AP-360B(C) EN

- Manufacturer’ s statement

NOTE

Failure to follow the instructions provided with this indication

and improper handling may cause death or serious injury.

Failure to follow the instructions provided with this indication

and improper handling may cause injury and/or property damage.

Check mark indicates recommendation.

Nix sign indicates prohibition.

Special attention is required to the

section of this symbol.

Mounting height

2.5 to 4.5 m (8’2” to 14’9”)

Symbol Meaning

Warning

Caution

Warning

Caution

Wetting with water

Symbol Meaning

Before installation

Destroy

modify Outdoor installation

Detection through glass

Follow to the Regulations

Partial/complete obscuration

of the detection area.

- Parts identifications

Top cover

Lens

Base cover

JP2

PIR sensitivity

JP1

Alarm output mode

SW1

Tamper switch

Accessories

Retaining spring x 2

Fixing screw

Mounting Bezel

for an 86-type box

Screw cap x 2

Disassemble

Settings

Open the base cover, and to set the detector.

N.C. (default) N.O. H (recommended) M (default) L

Mounting height: > 3.5 m 3.0 to 3.5 m < 3.0 m

(11’6”) (9’10” to 11’6”) (9’10”)

Turn the jumper PIN

by 90 degrees to prevent

interference with the casing.

Jumper pin settings

Assemble

Close the base cover, and fasten the screw to fix the cover.

JP1

Alarm output mode

JP2

PIR sensitivity

Light control mode settings

2 120

Time(s)

LUX

2 120

Time(s)

LUX

Security mode (default) Light control mode

2-1. Ceiling mount without switch box

Installation

Install a retaining spring on both sides.

(follow the illustrated arrow steps to complete the assembly of the retaining spring.)

Mount the detector on the ceiling.

(Be sure to arrange the wires with a downward slope to prevent water igress into the detector.)

2 3

Insert the detector into the hole with the retaining spring facing up.Make a ø45 mm (1.77”) hole in the ceiling for mounting.

ø45 mm

(1.77”)

Accessories

used in this installation

Retaining spring x 2

2-2. Ceiling mount with 86-type box

Install the detector into the 86-type box.

Accessories

used in this installation

Mounting Bezel

for an 86-type box

Screw cap x 2

Options

to procure in the market

86-type box x 1

Screw x 2

Prepare an 86-type box on the ceiling.

Align the bump with the triangle recess as illustrated in the figure.

NOTE

Fix the detector with two screws and cover their heads with two caps.

NOTE Be sure to arrange the wires with a downward slope

to prevent water igress into the detector.

WIRE GAUGE

AWG 22

(0.33 mm²)

AWG 20

(0.52 mm²)

AWG 18

(0.83 mm²)

12 V DC

520 m

(1,710 ft.)

820 m

(2,690 ft.)

1,320 m

(4,330 ft.)

14 V DC

1,130 m

(3, 718 ft.)

1,790 m

(5,870 ft.)

2,850 m

(9,350 ft.)

AP-360B(C)

Power cable length

The power cable should be limited to the following length.

2-3. Wiring

[1] Red

[2] Black

[3] White

[4] Yellow

[5] Green

[6] Blue

Power supply: Positice

Power supply: Negative

Alarm output

Tamper output





Power on. Wait for 60 seconds to complete the warm-up time.

Walk in the detection area to check the detecting performance.

3-1. Walk test

3Checking

3Start operation.

60 sec.

Power

• Specifications and designs are subject to change without prior notice.

• These units are designed to detect an intruder and activate an alarm control panel.

Being only a part of a complete system, we cannot accept responsibility for any

damages or other consequences resulting from an intrusion.

- Specifications

Others

Detection method

Detection area

Mounting height

Mounting type

Sensitivity

Detection speed

LED indicator

Alarm cycle

Illuminance

Alarm output

Tamper switch

Warm-up time

Power supply

Current

PIR sensitivity

Weight

Operation temprature

Operation humidity

Location

Dimensions

Passive infrared

ø6 m (ø20’) at mounting height 4.5 m (14’9”)

2.5 to 4.5 m (8’2” to 14’9”)

Recessed ceiling mount/86-type box mount

2.0℃at 0.6 m/s (3.6°F at 2’/s)

0.3 to 3.0 m/s (1’/s to 9’10”/s)

N.C. 28 V DC 100 mA max.

The contact opens once the casing is detached.

Approx. 60 s

H/ M/ L

50 g (1.76 oz)

-20 to +50℃(-4°F to +122°F)

< 95%

Indoors

86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box mount

ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box mount



Model AP-360B(C)

Warm-up upon power on: blinking

Stand-by: off

Alarm: solid on

2 s to 120 s (variable)

20 to 320 lux (variable/not detected)

N.O./N.C., 28 V DC 200 mA max.

9.5 to 16 V DC

12 V DC

Stand-by: 11mA, Max.: 13 mA

- Dimensions

- Detection area

2.0 (6’7”)

2.5 (8’2”)

3.0 (9’10”)

3.5 (11’6”)

4.0 (13’1”)

4.5 (14’9”)

Without switch box mount

  

With 86-type box mount

Side view

Top view

Unit: mm (inch)

86 (3.39)

86 (3.39) 42.5 (1.67)

3 2 1 0 1 2 3

(9’10” 6’7” 3’3” 0 3’3” 6’7” 9’10”)

3.0 (9’10”)

2.0 (6’7”)

1.0 (3’3”)

2.0 (6’7”)

3.0 (9’10”)

Mounting height

Detection area

Maximum detection area

2.5

(8’ 2’ )

ø3.3

(ø10’ 10” )

3.0

(9’ 10” )

ø4.0

(ø13’ 1” )

3.5

(11’ 6” )

ø4.6

(ø15’ 1” )

4.0

(13’ 1” )

ø5.4

(ø17’ 8” )

4.5

(14’ 9” )

ø6.0

(ø20’ )

Unit: m (ft., in.)

3 2 1 0 1 2 3

(9’10” 6’7” 3’3” 0 3’3” 6’7” 9’10”)

ø52 (2.05) 42.5 (1.67)

102 (4.02)
