opti-solar SP2500 Junior Manuale utente
SOLAR INVERTER
DC TO AC 2500W INVERTER
WITH BUILT-IN SOLAR CHARGER CONTROLLER
DC12V or 24V to AC220V~240V Instruction Manual
Please read user manual before use.
INVERTER USEFUL APPLICATIONS
RUN NOTEBOOK COMPUTERS, RADIOS, TVS, VCRS,
LAMPS, FANS, FAX, DRILL, . . . . . . ETC.
1
INVERTER SPECIFICATION
INPUT VOLTAGE RANGE : DC 10~15V (12V) // DC 20~30V (24V)
INPUT FULL LOAD CURRENT : 250A (12V) // 125A (24V)
STANDBY INPUT CURRENT : <0.8A (12V) // <0.6A (24V)
OUTPUT VOLTAGE (AC) : 220V~240V
OUTPUT WAVEFORM : MODIFY SINEWAVE
OUTPUT FREQUENCY : 50Hz or 60Hz
CONTINUE OUTPUT POWER : 2500W
PEAK OUTPUT POWER : 5000W
EFFICIENCY : 85~90%
BATTERY LOW PRE-ALARM : 10.5 ± 0.5V (12V) // 21 ±1V (24V)
BATTERY LOW SHUTDOWN : 10 ± 0.5V (12V) // 20 ±1V (24V)
THERMAL PROTECT : 60 ±5℃(MICROCONTROLLER )
AUTO-OPERATION FAN (TEMPERATURE OR LOAD)
OVERLOAD PROTECT : YES (MICROCONTROLLER )
OUTPUT SHORT PROTECT : YES ( MICROCONTROLLER )
BATTERY EX. 12V / 24V PROTECT : YES ( MICROCONTROLLER )
BATTERY POLARITY PROTECT : YES (BY FUSE )
FUSE : 20A*16PCS (12V) // 10A*16PCS (24V)
SOLAR CHARGER CONTROLLER SPECIFICATION
Standby current(A)︰< 30 mA
CHARGER CURRENT : 30A (12V // 24V)
Max Solar Array Voc (volt)︰50V
Max Solar Array Current(A)︰30A
Charge stage︰PWM →Float
Max Load Current(A)︰30A (12V // 24V)
Low Volt Protection︰10 ± 0.5V (12V) // 20 ±1V (24V)
Low Volt Reset︰12.5 ± 0.5V (12V) // 25 ±1 V (24V)
Over Load Protection︰Yes ( 120% of rated current )
Efficiency︰> 90%
DIMENTION ( L*W*H) mm : 420*169*152
WEIGHT : 7.6Kg
2

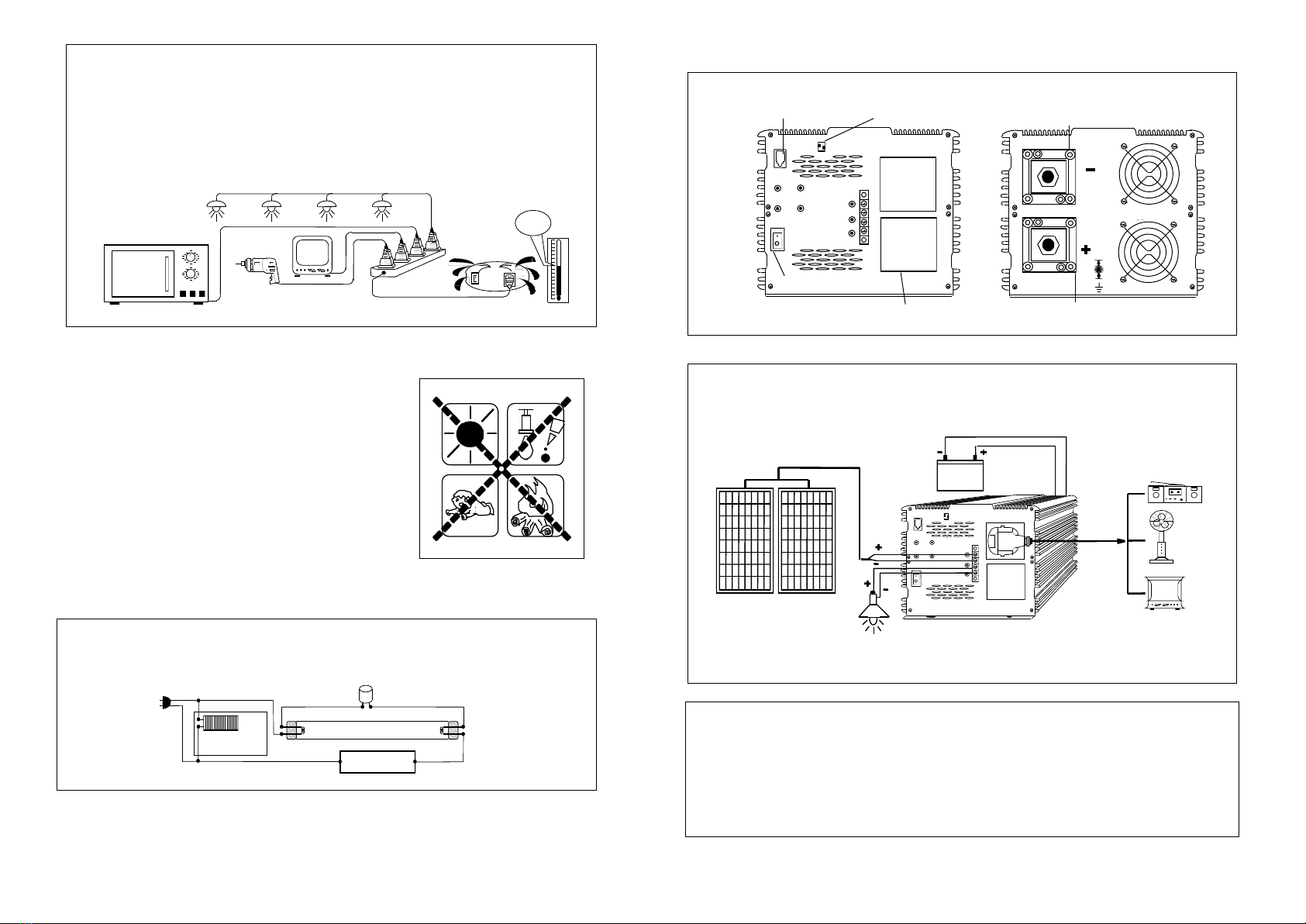

IF THE TOTAL WATTS OF ELECTRICAL APPLIANCES EXCEEDS
THE OUTPUT CAPACITY OF INVERTER. OR AFTER OPERATING
FOR A PERIOD OF TIME. IF THE TEMPERATURE OF THE
INVERTER REACHES 60℃, THE INVERTER SHALL BE REDUCED
AC OUTPUT BY THE PROTECTION CIRCUIT.
0
60 C
.
CAUTION
ALWAYS PLACE THE INVERTER IN AN
ENVIRONMENT WHICH IS:
(A) WELL VENTILATED
(B) NOT EXPOSED TO DIRECT SUNLIGHT
OR HEAT SOURCE
(C) OUT OF REACH FROM CHILDREN
(D) AWAY FROM WATER/MOISTURE,
OIL OR GREASE
(E) AWAY FROM ANY FLAMMABLE SUBSTANCE
※WARNING※FLUORESCENT LAMP
DO NOT USE THIS DEVICE WITH FLUORESCENT LAMPS.
BALLASTS
Glow switch
Lamp
AC IN
Power Factor
Capacitor
a
b
6
SOLAR INVERTER
DIP
SWITCH
FA
N
TERMINAL
TERMINA
L
(RED)
(BLACK)
AC OUTPUT SOCKET
REMOTE CONTROL
1
2
ON
CHARGER
FAULT
DC LOAD
OVER
TEMP
POWER SWITCH
ON
OFF
REMOTE
CONTROL
AC OUTPUT
AC
OUTLET
AC
OUTLET
NORMAL
OVER
LOAD
LOW
BATT.
CAUTION : DO NOT REVERSE Polarity of DC side. (+) of SOLAR PANEL and
BATTERY and DC LOAD should be connected to (+) of terminal as per the printing of
inverter . The connection of (-) is the same.
SOLAR PANEL
BATTERY
SOLAR INVERTER
DC LOAD
1
2
ON
ON
OFF
REMOTE
CONTROL
AC OUTPUT
AC
OUTLET
INVERTER WARNING SIGNAL
LOW BATTERY PRE-ALARM BI---------BI---------BI
OVER HEATING PRE-ALARM BI---BI---BI---BI---BI
OVER LOAD PRE-ALARM BI-BI-BI-BI-BI-BI-BI
3
※USE INVERTER
STEP1:
SET THE POWER SWITCH AT THE OFF
ON
OFF
1
2
ON
CHARGER
FAULT
DC LOAD
OVER
TEMP
ON
OFF
REMOTE
CONTROL
AC OUTPUT
AC
OUTLET
AC
OUTLET
NORMAL
OVER
LOAD
LOW
BATT.
STEP2:
WHEN CONNECTED TO ANY APPLIANCE, BE SURE TO TURN
ON INVERTER FIRST. AND THEN, TURN ON THE POWER
SWITCH OF THE APPLIANCE.
TURN ON
SECONDLY
TURN ON
FIRSTLY
AC
OUTLET
1
2
ON
CHARGER
FAULT
DC LOAD
OVER
TEMP
ON
OFF
REMOTE
CONTROL
AC OUTPUT
NORMAL
OVER
LOAD
LOW
BATT.
DO NOT USE THE INVERTER EXCEED ITS MAXIMUM OUTPUT POWER,
WHEN CONNECTED TO ANY APPLIANCE. MAKE SURE THE TOTAL
STARTING POWER CAPACITY DOES NOT EXCEED THE MAXIMUM
OUTPUT POWER OF THE INVERTER.
AC
OUTLET
BATTERY
1
2
ON
CHARGER
FAULT
DC LOAD
OVER
TEMP
ON
OFF
REMOTE
CONTROL
AC OUTPUT
NORMAL
OVER
LOAD
LOW
BATT.
4
※USE SOLAR CHARGER CONTROLLER
DON’T REVERSE POLARITY OF DC SIDE. PLEASE SET DIP SWITCH TO CORRECT
LOCATION ACCORDING TO THE BATTERY. THE DC LOAD WHICH YOU CONNECTED
CAN’T BE OVER THE RATING.
SOLAR PANEL
BATTERY
ON
2
1
DIP SWITCH
SOLAR INVERTER
DC LOAD
1
2
ON
CHARGER
FAULT
DC LOAD
OVER
TEMP
ON
OFF
REMOTE
CONTROL
AC OUTPUT
AC
OUTLET
AC
OUTLET
NORMAL
OVER
LOAD
LOW
BATT.
DIP SWITCH SETTING FOR BATTERY TYPE
DIP SWITCH
2 1
BULK FLOAT
(12V // 24V) (12V // 24V)
BATTERY TYPE
OFF OFF
15V // 30V 14.5V // 29V
NI-CAD
ON OFF
14V // 28V 13.8V // 27.6V
GLE/AGM
OFF ON
14V // 28V 13.5V // 27V
FLOODED
ON ON
14V // 28V 13.2V // 26.4V
SEALED/WET
SOLAR CHARGING STAGES
NIGHT
VOLTAGE
TIME
BULK
PWM
NIGHT
FLOAT
1
3
2
5
