OPTICOM BVC-120 - 2 Manuale utente

Opticom has served the security and surveillance industry since 1973 and specializes in solving the most

challenging projects with field proven products.

These “Everyday” Cameras are available to you for your customers day-to-day security solutions.

Plug and Play

High Quality

Factory Direct

Color

High Resolution

NIVD-162 NIVD-148 NIVD-635 IR-4714 IR-5648 IR-5755

HVC-100 HVC-120 HVC-150 NVD-120 NVD-120-S

NIVD-124/NIVD124V

BVC-120 BVC-150 DNR-584 WDR-594 SVC-100 SVC-120

Vandal IR Dome Vandal iR Dome Vandal IR Dome IR Bullet IR Bullet IR Bullet

Indoor Dome Indoor Dome Indoor Dome Vandal Dome Vandal Dome Vandal IR Dome

Box Camera Box Camera Box Camera Box Camera Indoor Dome Indoor Dome

Product Information Bulletin

Features

Specifications

High Res Day/Night Box Camera

BVC-120

“Everyday” Camera

1/3” Sony Super HAD CCD

560TVL

Dual Power

Day & Night

Low Light Sensitive

Sensor: 1/3” Sony Super HAD CCD

Resolution: 560 TV Lines

Scanning System: 2:1 Interlaced

Sync System: Internal

Illumination: 0.4 Lux (color) / 0.03 Lux (B/W)

Gamma: r=0.45

Video Output: BNC; 1.0Vp-p 75 ohmVideo Output: BNC; 1.0Vp-p 75 ohm

S/N: More than 48dB

Gamma: 0.45

Electronic Shutter: 1/60~1/100,000

Back Light Compensation: Bult-in On/Off Selectable

Auto Gain Control: On/Off Selectable

Flickerless Mode: On/Off Selectable

White Balance: ATW/AWC/Manual/FixedWhite Balance: ATW/AWC/Manual/Fixed

OSD Controls: Lens, Shutter, AGC, Sens-up, White Balance, BLC, D/N, Freeze, V-Rev, H-Rev, Sharpenss,

Camera ID, Sync, Motion Detection, Privacy, Language

Power: DC 12V / AC 24V

Power Consumption: 300mA / 1.8W

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 2”(W) x 2.25”(H) x 4.5” (L) / 50.8mm (W) x 57.15 (H) x 114.3 (W)

*Lens not included

Features

Specifications

High Res Day/Night Box Camera

BVC-150

“Everyday” Camera

1/3” Sony Super HAD CCD

560 TVL

Sens Up Technology

Dual Power

Built-In OSD

Sensor: 1/3” Sony Super HAD CCD

Resolution: 560 TVL

Scanning System: 2:1 Interlaced

Sync System: Internal

Sens Up: x128

Illumination: 0.002 Lux

Video Output: BNC; 1.0Vp-p 75 ohmVideo Output: BNC; 1.0Vp-p 75 ohm

S/N: 52dB (AGC Off, Weight On)

Gamma: 0.45

Electronic Shutter: 1/60~1/120,000

OSD Controls: Lens, Shutter, AGC, Sens-up, White Balance, BLC, D/N, Freeze, V-Rev, H-Rev, Sharpenss,

Camera ID, Sync, Motion Detection, Privacy, Language

Power: DC 12V / AC 24V

Power Consumption: 140 mAPower Consumption: 140 mA

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 5.6” x 4” (D) / 142 x 95mm (D)

*Lens not included

Features

Specifications

Digital Noise Reduction Camera

DNR-584

Everyday Camera

1/3” Sony Super HAD CCD

580 TVL

0.002 Super Low Lux

Sens-Up

OSD

Super Digital Noise Reduction

Auto Detect DC 12V or AC 24VAuto Detect DC 12V or AC 24V

Sensor: 1/3” Sony Super HAD CCD

Resolution: 580 TV Lines

Sensitivity: 0.002 Lux

S/N Ratio: 50dB

Scanning System: 2:1 Interlace

Video Output: BNC

White Balance: ATW / AWC / ManualWhite Balance: ATW / AWC / Manual

Electronic Shutter Speed: Auto / Manual, 1/60 ~ 1/120,000

OSD: Built-in

BLC: Low/Middle/High/Off Selectable

Gain Control: Low/Middle/High/Off Selectable

SDNR: Low/Middle/High/Off Selectable

Day & Night: Auto / On

Sync: Int / LL SelectableSync: Int / LL Selectable

Motion Detection: On / Off (4 Zone)

Privacy: On / Off (4 Zone)

Mirror: On / Off

Power Input Voltage: DC 12V or AC 24V

Power Consumption: Max 2.0 W

Operational Temp: 14 ~ 122 F / -10 ~ 50 C

* Lens not included

Features

Specifications

Wide Dynamic Range Camera

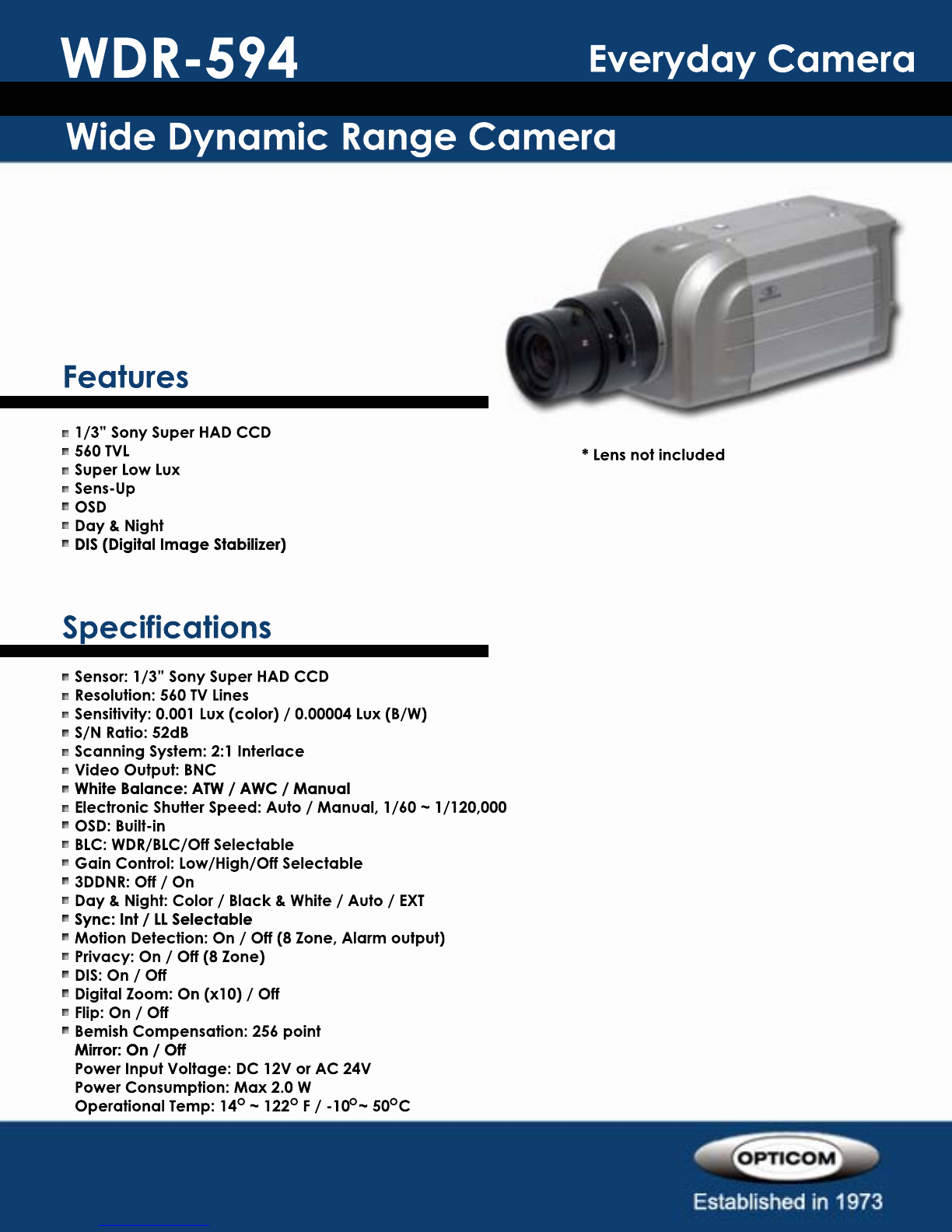

WDR-594

Everyday Camera

1/3” Sony Super HAD CCD

560 TVL

Super Low Lux

Sens-Up

OSD

Day & Night

DIS (Digital Image Stabilizer)DIS (Digital Image Stabilizer)

Sensor: 1/3” Sony Super HAD CCD

Resolution: 560 TV Lines

Sensitivity: 0.001 Lux (color) / 0.00004 Lux (B/W)

S/N Ratio: 52dB

Scanning System: 2:1 Interlace

Video Output: BNC

White Balance: ATW / AWC / ManualWhite Balance: ATW / AWC / Manual

Electronic Shutter Speed: Auto / Manual, 1/60 ~ 1/120,000

OSD: Built-in

BLC: WDR/BLC/Off Selectable

Gain Control: Low/High/Off Selectable

3DDNR: Off / On

Day & Night: Color / Black & White / Auto / EXT

Sync: Int / LL SelectableSync: Int / LL Selectable

Motion Detection: On / Off (8 Zone, Alarm output)

Privacy: On / Off (8 Zone)

DIS: On / Off

Digital Zoom: On (x10) / Off

Flip: On / Off

Bemish Compensation: 256 point

Mirror: On / OffMirror: On / Off

Power Input Voltage: DC 12V or AC 24V

Power Consumption: Max 2.0 W

Operational Temp: 14 ~ 122 F / -10 ~ 50 C

* Lens not included

Established in 1973

Features

Color Indoor Dome Camera

Specifications

SVC-100

“Everyday” Camera

420 TVL

DC 12V Power

Tinted Dome Cover

Day/Night

Black Housing

Sensor: 1/3” Sony Super HAD CCD

Resolution: 420 TVL

Lens: 3.6mm

Scanning System: 2:1 Interlaced

Sync System: Internal Only

Illumination: 0.3 Lux @ F1.2 / 0.03 Lux at F1.2

Video Output: BNC; 1.0Vp-p 75 ohmVideo Output: BNC; 1.0Vp-p 75 ohm

Gamma: r=0.45

S/N: 50dB

Gamma: 0.45

Electronic Shutter: 1/60~1/100,000

Back Light Compensations: Built-in

Gain Control: Built-in

Power Supply: DC 12V Power Supply: DC 12V

Power Consumption: 120 mA

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 5.6” x 3.7” (D) / 142 x 95mm (D)

Established in 1973

Features

Color Indoor Dome Camera

Specifications

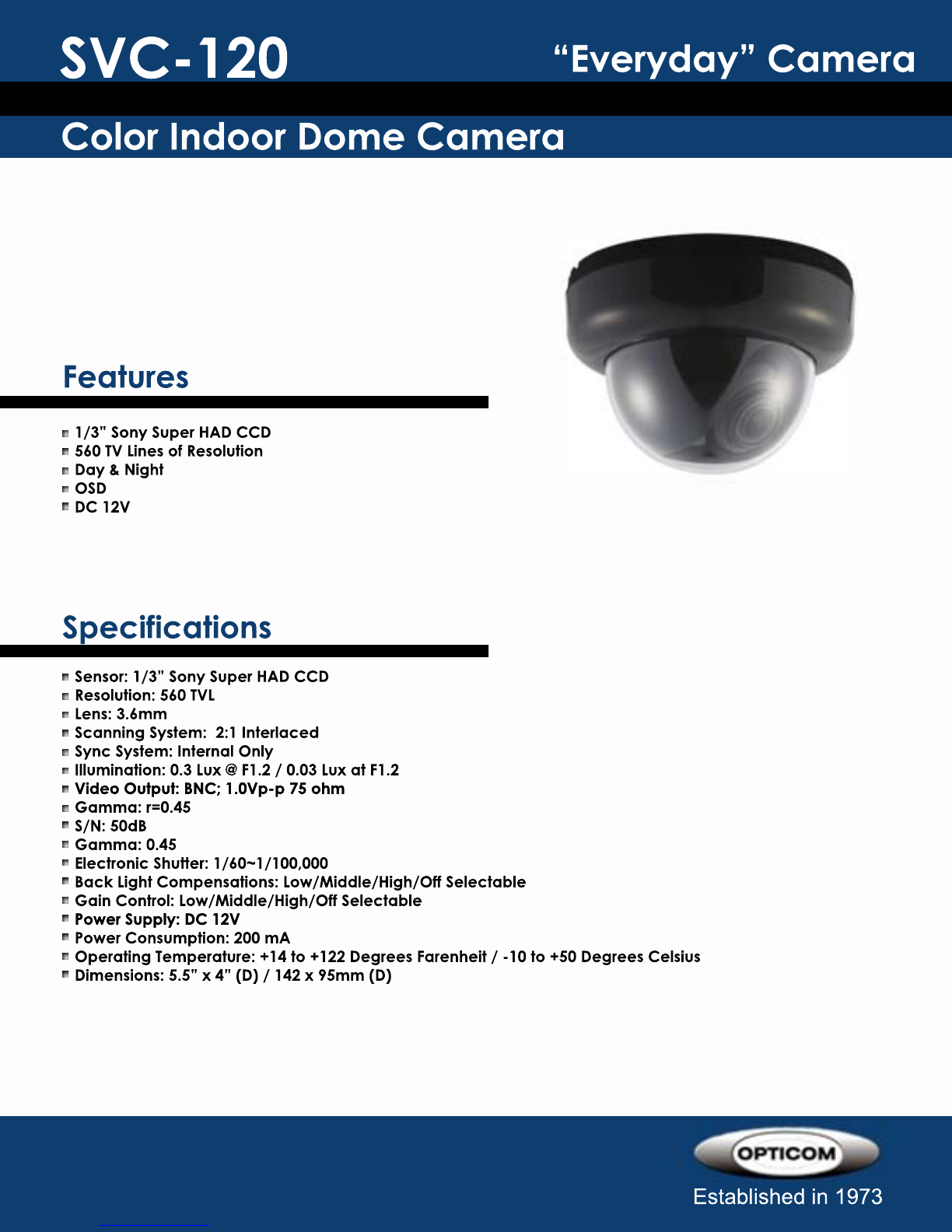

SVC-120

“Everyday” Camera

1/3” Sony Super HAD CCD

560 TV Lines of Resolution

Day & Night

OSD

DC 12V

Sensor: 1/3” Sony Super HAD CCD

Resolution: 560 TVL

Lens: 3.6mm

Scanning System: 2:1 Interlaced

Sync System: Internal Only

Illumination: 0.3 Lux @ F1.2 / 0.03 Lux at F1.2

Video Output: BNC; 1.0Vp-p 75 ohmVideo Output: BNC; 1.0Vp-p 75 ohm

Gamma: r=0.45

S/N: 50dB

Gamma: 0.45

Electronic Shutter: 1/60~1/100,000

Back Light Compensations: Low/Middle/High/Off Selectable

Gain Control: Low/Middle/High/Off Selectable

Power Supply: DC 12V Power Supply: DC 12V

Power Consumption: 200 mA

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 5.5” x 4” (D) / 142 x 95mm (D)

Color Indoor Varifocal Dome

Features

Specifications

HVC-100

“Everyday” Camera

1/3” Sony Super HAD CCD

420 TVL

Low Illumination

4-9mm Varifocal Auto Iris Lens

Day & Night

Black Housing

Sensor: 1/3” Sony Super HAD CCD

Resolution: 420 TVL

Scanning System: 2:1 Interlaced

Sync System: Internal

Illumination: 0.3 Lux

Video Output: BNC; 1.0Vp-p 75 ohm

S/N: More than 45dBS/N: More than 45dB

Gamma: 0.45

Backlight Compensation: Built-in

Gain Control: Built-in

White Balance: AWB

Electronic Shutter: 1/60~1/100,000

Power Supply: DC 12V

Power Consumption: 160 mAPower Consumption: 160 mA

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 5.6” x 3.7” (D) / 142 x 95mm (D)

Color Day/Night Dome

Features

Specifications

HVC-120

“Everyday” Camera

1/3” Sony Super HAD CCD

550 TVL (Color) / 680 TVL (B/W)

Tri-Axis

Service Video Out

OSD

Varifocal

Day & NightDay & Night

Dual Power

Sensor: 1/3” Sony Super HAD CCD

Resolution: 560 TVL (Color) / 580 TVL (B/W)

Lens: 2.8-12mm DC Auto Iris

Scanning System: 2:1 Interlaced

Sync System: Internal

Illumination: 0.4 Lux / 0.03 Lux

OSD: Built-inOSD: Built-in

Gamma: r=0.45

S/N Ratio: 50dB

Backlight Compenstion: Low / Middle / High / Off Selectable

Gain Control: Low / Middle / High / Off Selectable

White Balance: ATW/AWC/Manual/Outdoor

Video Output: 1 x BNC; 1.0Vp-p 75 ohm

Electronic Shutter: 1/60~1/100,000Electronic Shutter: 1/60~1/100,000

Power Supply: DC 12V / AC 24V

Power Consumption: 160 mA

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 5.5” x 4” (D) / 142 x 95mm (D)

High Res Color Day/Night Dome

Features

Specifications

HVC-150

“Everyday” Camera

1/3” Sony Super HAD CCD

550 TVL (Color) / 680 TVL (B/W)

Tri-Axis

OSD

Service Video Out

SDNR (Super Digital Noise Reduction)

Day & NightDay & Night

Dual Power

Sensor: 1/3” Sony Super HAD CCD

Resolution: 580 TVL (Color) / 580 TVL (B/W)

Lens: 2.8-12mm DC Auto Iris

Scanning System: 2:1 Interlaced

Sync System: Internal

Illumination: 0.3 Lux / 0.002 Lux

OSD: Built-inOSD: Built-in

Gamma: r=0.45

S/N Ratio: 50dB

Backlight Compenstion: Low / Middle / High / Off Selectable

Gain Control: Low / Middle / High / Off Selectable

SDNR: Low/Middle/High/Off Selectable

White Balance: ATW/AWC/Manual/Outdoor

Video Output: 1 x BNC; 1.0Vp-p 75 ohmVideo Output: 1 x BNC; 1.0Vp-p 75 ohm

Electronic Shutter: 1/60~1/120,000

Power Supply: DC 12V / AC 24V

Power Consumption: 160 mA

Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius

Dimensions: 5.5” x 4” (D) / 142 x 95mm (D)
