Optika Italy C-D Series Manuale utente
Model
C-D Series
Camera series C-D
INSTRUCTION MANUAL
Ver. 1.1 2022
Page 2
1. Warning 3
2. Safety Information 3
3. Package content 4
4. Unpacking 5
5. Intended use 5
6. Symbols and conventions 5
7. Instrument description 6
8. Assembling 7
8.1 Assembling on the microscope 7
8.2 Connecting camera to PC 7
8.3 Connect the cooling power supply 8
8.4 Parfocality adjustment 8
9. Use of camera 9
10. Micrometric Slide M-005 10
Equipment disposal 11
Table of contents
Page 3
1. Warning
This microscope is a scientic precision instrument designed to last for many years with a minimum of maintenance. It
is built to high optical and mechanical standards and to withstand daily use. We remind you that this manual contains
important information on safety and maintenance, and that it must therefore be made accessible to the instrument users.
We decline any responsibility deriving from incorrect instrument use uses that does not comply with this manual.
2. Safety Information
Avoiding Electrical Shock
Before plugging in the power supply, make sure that the supplying voltage of your region matches with the operation voltage
of the equipment and that the lamp switch is in o position. Users should observe all safety regulations of the region. The
equipment has acquired the CE safety label. However, users have full responsibility to use this equipment safely. Please
follow the guidelines below, and read this manual in its entirety to ensure safe operation of the unit.
Page 4
3. Package content
① Camera
② USB3.0 cable
③ Micrometric slide
④ Power supply + cable
⑤ Transport box
① ② ③
④
⑤
Page 5
4. Unpacking
The microscope is housed in a moulded Styrofoam container. Remove the tape from the edge of the container and lift the
top half of the container. Take some care to avoid that the optical items (objectives and eyepieces) fall out and get dam-
aged. Using both hands (one around the arm and one around the base), lift the microscope from the container and put it
on a stable desk.
Do not touch with bare hands optical surfaces such as lenses, lters or glasses. Traces of grease or other
residuals may deteriorate the nal image quality and corrode the optics surface in a short time.
5. Intended use
Standard models
For research and teaching use only. Not intended for any animal or human therapeutic or diagnostic use.
IVD Models
Also for diagnostic use, aimed at obtaining information on the physiological or pathological situation of the subject.
6. Symbols and conventions
The following chart is an illustrated glossary of the symbols that are used in this manual.
CAUTION
This symbol indicates a potential risk and alerts you to proceed with caution.
ELECTRICAL SHOCK
This symbol indicates a risk of electrical shock.
Page 6
7. Instrument description
EXTERNAL POWER
SUPPLY SOCKET
USB2.0
CABLE SOCKET
USB3.0
CABLE SOCKET
OPERATION LED
Page 7

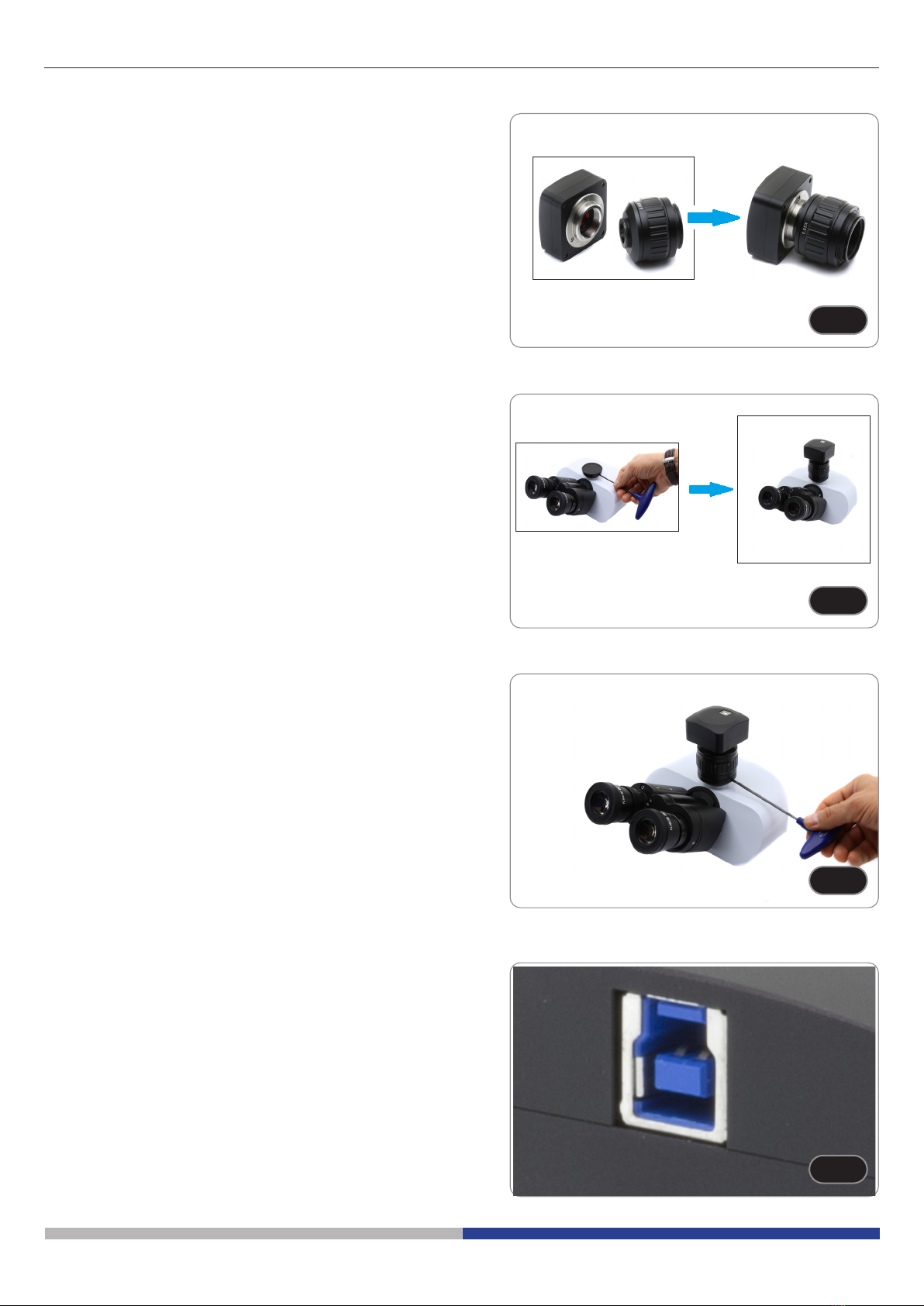

8.1 Assembling on the microscope
1. Remove the dust cover from camera and from “C” mount
adapter.
2. Screw the “C” mount adapter to the camera’s thread. (Fig. 1)
FFig. 1ig. 1
FFig. 2ig. 2
FFig. 3ig. 3
8. Assembling
3. Loosen the clamping screw on the trinocular port of the mi-
croscope, remove the dust cover and install the camera ”C”
mount unit previously assembled. (Fig. 2)
4. Tighten the clamping screw rmly. (Fig. 3)
8.2 Connecting camera to PC
1. Connect one terminal of the USB cable to the camera con-
nector and the other terminal to a USB port on the computer.
(Fig. 4)
• NOTE: USB3.0 cameras can be connected to a USB2.0 port.
The camera will operate normally, with some limitations due
to improper power supply to the camera.
• The software in any case will warn that the USB3.0 cam-
era works in 2.0 mode indicating next to the camera name
“(USB2.0)”
FFig. 4ig. 4
Page 8
8.3 Connect the cooling power supply
Connect the supplied power adapter to the connector ①to pow-
er the camera cooling system. (Fig. 13)
FFig. 5ig. 5
①
FFig. 6ig. 6
8.4 Parfocality adjustment
In order to have the same focus when observing the specimen
through the eyepieces and on the screen/monitor, please check
that the microscope is properly installed and follow the instruc-
tions below.
1. Use a low power objective and focus the specimen.
2. Switch to the highest dry objective available on the micro-
scope (40x or 60x) and focus the specimen again.
3. Turn on the live-view on the camera, without changing the
focus on the microscope.
4. While observing the image on the screen/monitor, adjust the
focus by turning the knurled knob on the C-mount adapter.
(Fig. 6)
• Correct parfocality adjustment is achieved when the same
focus is reached when observing at the eyepieces and on
the screen.
Page 9
9. Use of camera
The camera is driven by a software.
Two levels of software are available: PROVIEW and LITEVIEW.
Inside the package is enclosed a Function Table showing the several software functions.
It will be the user’s responsibility to decide which level of software best meets his needs.
The software can be downloaded from the site:
http://www.optikamicroscopes.com/optikamicroscopes/optika-support/download-drivers-softwares/
You will have to register to download the .zip le.
Once the le has been downloaded, you will have to run the setup.exe le.
At the end of the installation it is possible to start the software.
• NOTE: no driver installation is required for the cameras. The software setup procedure automatically installs
all the needed drivers for the correct operation of the camera.
The software’s User Manual is available in PDF format within the application itself and can be opened using the “F1” func-
tion key.
You must have Acrobat Reader installed to view the manual.
The manual contains all the operating instructions for using the camera and for the various functions of the software.
Page 10
10. Micrometric Slide M-005
For biological microscopes calibration
1 DIV=0.01mm
Micrometric slide, 26x76mm, with 2 scales
(1mm/100div. for biological microscopes / 10mm/100div. for stereomicroscopes)
For stereo microscopes calibration
1 DIV=0.1mm
0 1 2 3 4 5 6 7 8 9 10
