Optima Centoris EF6C Manuale utente
EF6C SERIES NOTEBOOK PC
USER’S MANUAL
Apr 2005
ENGLISH
2
ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO
CONTENTS
BEFORE YOU START ............................................................................................ 5
Make sure you have everything ................................................................................... 5
Familiarize yourself with the computer ....................................................................... 6
OPENING THE DISPLAY PANEL .............................................................................. 6
FRONT OVERVIEW .................................................................................................. 7
LEFT SIDE OVERVIEW ............................................................................................ 9
RIGHT SIDE OVERVIEW ........................................................................................ 10
BACK OVERVIEW ................................................................................................... 11
BOTTOM OVERVIEW .............................................................................................. 12
GETTING STARTED ............................................................................................ 13
Power Sources ........................................................................................................... 13
CONNECTING THE POWER ADAPTERS .............................................................. 13
RECHARGING THE BATTERY ............................................................................... 14
Starting Your Notebook .............................................................................................. 15
POWER ON ............................................................................................................ 15
Status Indicators .................................................................................................... 16
Using Function Keys .............................................................................................. 18
Using the TouchPad .............................................................................................. 19
Memory Module Upgrade ....................................................................................... 20
TROUBLESHOOTING ......................................................................................... 21
Identifying the Problem .............................................................................................. 21
APPENDIX .......................................................................................................... 22
Notebook Specifications ............................................................................................ 22
3
TAKING CARE OF YOUR NOTEBOOK PC
DO NOT place or drop objects on the computer
and DO NOT apply heavy pressure on it.
DO NOT subject the computer to magnetic
fields.
To prevent possible overheating of the computer's
processor, make sure you don't block the open-
ings provided for ventilation.
DO NOT press or touch the display panel.
DO NOT place on uneven or unstable work
surfaces.
DO NOT use your notebook computer under
harsh conditions.
DO NOT expose to direct sunlight. DO NOT use or store in extreme temperatures.
4
ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO
DO NOT expose to dust and/or corrosive
chemicals.
DO NOT spray water or any other cleaning fluids
directly on the display.
DO NOT slam your notebook shut and never
pick up or hold your notebook by the display.
If you are traveling with your computer, remem-
ber to carry it as hand luggage. Do not check it in
as baggage.
DO NOT place near fire or other sources of heat. DO NOT tamper with the batteries. Keep them
away from children.
Avoid sudden changes in temperature or humid-
ity by keeping it away fromA/C and heating vents.
DO NOT expose the computer to rain or
moisture.
5
BEFORE YOU START
Make sure you have everything
When you receive your notebook PC, unpack it carefully, and check to make sure you have all the
items listed below. For a pre-configured model you should have the following:
• Notebook Computer
• Lithium ion battery
• AC adapter with AC power cord
• Driver and Applications CD
• Quick Start Guide or User Guide
Depending upon the configuration of your notebook, you may also need following items:
• DVD / CD-RW Combo Application CD
• DVD+/- RW Application CD
Once you have checked and confirmed that your notebook system is complete, read through the
following pages to learn about all of your notebook components.
BEFORE YOU START
6
ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO
Familiarize yourself with the computer
OPENING THE DISPLAY PANEL
1. Slide the latch located at the top of the display panel to the right. This releases the locking
mechanism and raises the display slightly.
2. Lift the display backwards, being careful not to touch the screen, until it is at a comfortable
viewing angle.
BEFORE YOU START
7
Display Panel
Keyboard
TouchPad
Pointing Device
Stereo Speakers
Suspend/Resume/
Power On Button
Stereo Speakers Status Indicator
Lights
Infrared
(IrDA) Port
Status Indicator Lights

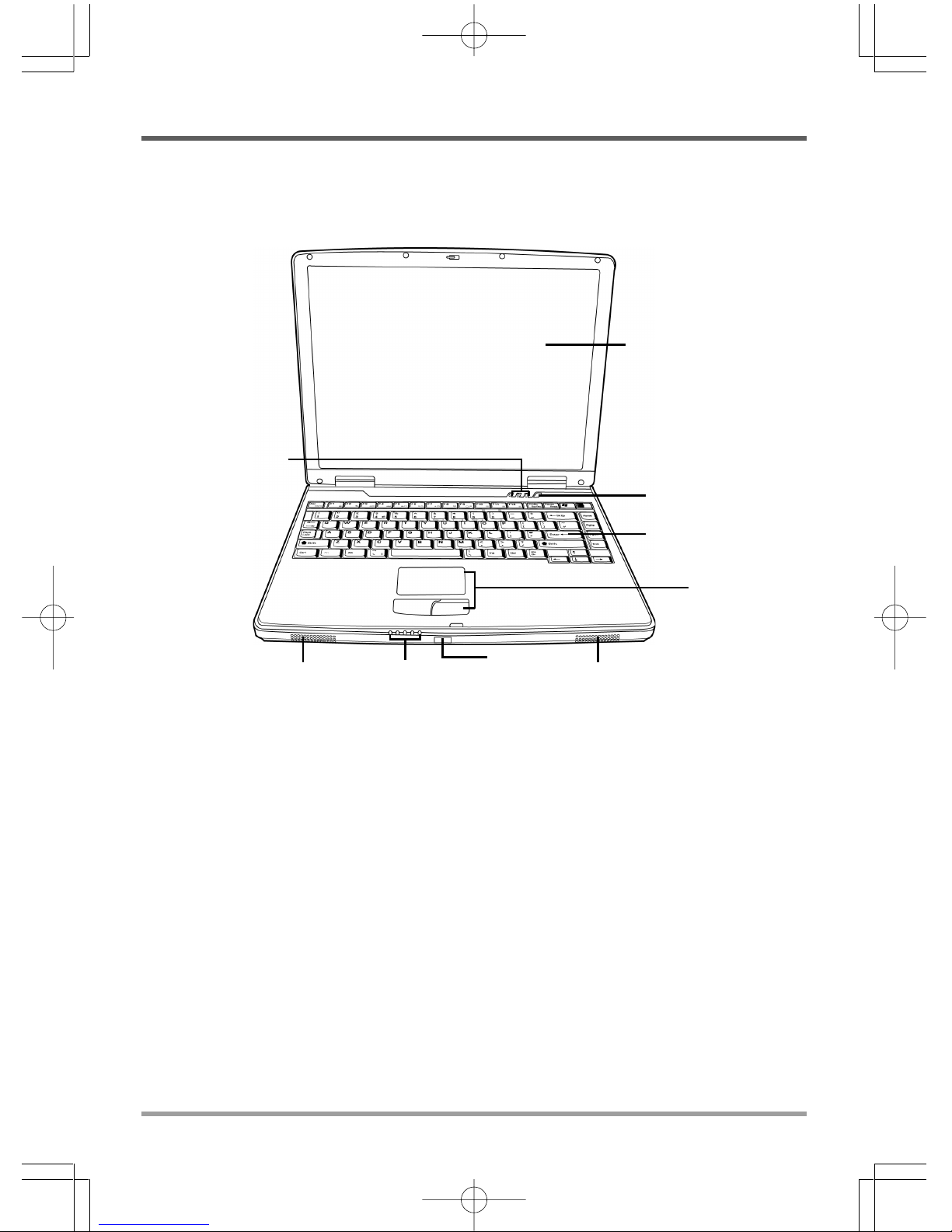

FRONT OVERVIEW
The following is an overview of the front of the notebook.
Display Panel
The display panel is a color LCD panel with back lighting for the display of text and graphics.
Keyboard
A full-size keyboard with dedicated Windows®keys.
Stereo Speakers
The built-in dual speakers allow for stereo sound.
BEFORE YOU START
8
ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO
Status Indicator Lights
The Status indicator lights correspond to specific operating modes. These modes are: Battery
Status, Power Status, Hard Drive (HDD) Activity; Optical Disc Drive (ODD) Activity; and
Wireless LAN status. Furthermore, at the top of the keyboard there are three additional status
indicator lights: Scroll Lock; Caps Lock; and Num Lock.
TouchPad Pointing Device
The TouchPad pointing device is a mouse-like cursor control with two buttons (left, and right
buttons).
Suspend/Resume/Power On Button
This button turns your notebook on and off as well as puts it to sleep. (See Suspend/Resume/
Power On Button in the Power On section for more information.)
Infrared (IrDA) Port
The infrared (IrDA) port allows you transfer data between devices (such as your computer and
IR-equipped printers) using infrared technology similar that found in common household remote
controls.
BEFORE YOU START
9
USB Port
S-Video/TV
Out Port PC Card Slot
IEEE 1394
Port
Memory
Card Reader
Power Adapter Port
LEFT SIDE OVERVIEW
The following is a brief description of the left side of the notebook.
Power Adapter Port
The power adapter port allows you to plug in the AC adapter to power your notebook and charge
the internal Lithium ion battery.
USB Ports
The three USB ports allow you to connect Universal Serial Bus devices. They support v2.0 of
the USB standard, which allows data exchange rates as high as 480 Mb/s.
IEEE 1394 Port
The 1394 port is used to connect between your and a peripheral such as a digital video camera.
Memory Card Reader
The memory card reader offers the fastest and most convenient method to transfer pictures, music
and data between your notebook and flash compatible devices such as digital cameras, MP3
players, mobile phones, and PDAs. The memory card reader supports the following: Memory
Sticks, MS Pro, Multi Media Cards, and Secure Digital cards.
S-Video/TV Out Port
The S-video/TV out port allows you to connect to video devices such as, a television, projector,
or a VCR, to your computer.
PC Card Slot
The PC Card Slot allows you to install one Type II PC Card.
BEFORE YOU START
10
ENGLISH FRANÇAIS DEUTSCH ESPAÑOL ITALIANO
Emergency
Tray
Release
Microphone
Jack
Optical Drive
Eject Button
Optical
Drive
Headphone
Jack
RIGHT SIDE OVERVIEW
The following is a brief description of the right side of the notebook.
Optical Drive
The Optical Drive allows you to play back a media discs, such as CDs and DVDs.
Optical Drive Eject Button
The Optical Drive Eject Button allows you to open the Optical Drive tray to remove or insert a
DVD or CD.
Emergency Tray Release
The Emergency Tray Release allows you to open the Optical Drive tray without powering on
your notebook.
Microphone Jack
The microphone jack allows you to connect an external mono microphone.
Headphone Jack
The headphone jack allows you to connect headphones or external speakers and amplifiers.
