Oracle Storage 6180 Array Manuale utente

This guide provides an overview of the hardware installation process for Oracle’s Sun Storage 6180 array. For

detailed information, have the Sun Storage 6180 Array Hardware Installation Guide available as you go through the

steps in this document.

Additional documentation is listed in the section “Documentation for This Product” and available at the Oracle

documentation web site:

http://www.oracle.com/technetwork/indexes/documentation/index.html

Review Ship Kit Contents

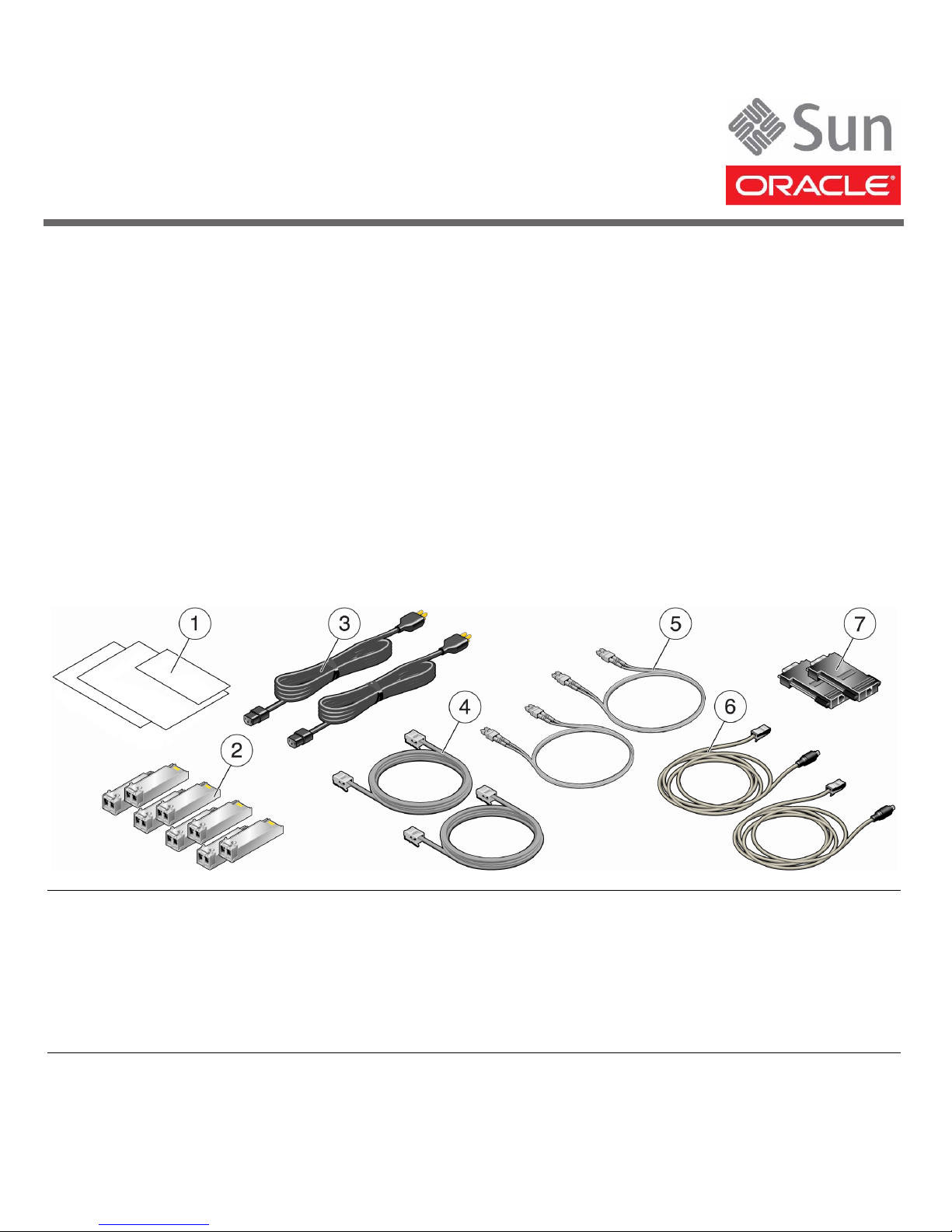

FIGURE 1 Ship Kit Items

Controller Tray Ship Kit

1. Documentation 5. Two Fibre Channel (FC) cables

2. Four or Eight Small Form-factor Pluggables (SFPs) 6. Two PS2 6-pin DIN to RJ45 serial cables (for service access)

3. Power cables*

* AC power cables are shipped in a carton separate from the array unit. Although not pictured, DC power cables are included for DC units.

7. Two RJ45-DB9 serial adapters (one straight through and one

null modem)

4. Two RJ45-RJ45 Ethernet cables

Sun Storage 6180 Array

Getting Started Guide

Before You Begin

Prior to starting installation, record the media access control (MAC) address for each controller (located on labels

affixed to the controller tray top and/or front), as MAC addresses are required during the installation and set-up

process and may not be accessible after installation is complete. Then, review the following documents:

Prepare the Rack

FIGURE 2 Install the PDUs and Rails

Note: If you are using a cabinet other than the Sun Rack II, see the

Installation Guide for universal rail kit installation instructions.

Install the Controller Tray and Expansion Trays

Each tray is installed in an empty 3RU slot in the cabinet. Consult the Installation Guide for further details.

FIGURE 3 Installing the Tray

• Important Safety Information for Sun Hardware Systems • Sun Storage 6180 Array Site Preparation Guide

• Sun Storage 6180 Safety and Compliance Manual • Sun Storage 6180 Array Release Notes

Step Task

1. Install the Sun Rack II as described in the Sun Rack II User’s Guide.

2. Install the PDUs in the Sun Rack II, as described in the

Sun Cabinet Power Distribution Unit (PDU) Installation Guide.

3. Install the rails for each tray in the Sun Rack II, as described in

the Sun Storage Modular Rail Kit Installation Guide.

Step Task

1. Using two people, carefully lift and rest the tray on the bottom ledge of the left

and right rails. Caution: Tray equipment can weight up to 95 pounds.

2. Carefully slide the tray into the cabinet until the front mounting flanges on the

tray touch the vertical face of the cabinet.

3. Install and tighten four screws (two per side, customer-supplied) to secure the

tray to the cabinet front. Note: Screw size will depend on the specific rack used.

4. Install and tighten two 6-32 screws (one per side, customer-supplied) at the back

of the tray to secure the back of the tray to the cabinet.

5. Verify that the controller power switches and cabinet circuit breakers are turned

off. Then, connect each tray power supply to separate cabinet power sources.

Review Controller Tray Front and Rear Panels

FIGURE 4 shows the locations of LEDs and components on the controller tray front panel. FIGURE 5 shows the

locations of ports and components on the controller tray rear panel.

FIGURE 4 Controller Tray Front Panel

FIGURE 5 Controller Tray Rear Panel

Callout Description

1. Disk drives

2. Grounding strap connector

3. Rate select switch

4. Drive LEDs

5. Alarm cancel button

6. Tray LEDs

Callout Description

1. Controller A

2. Battery backup compartment

3. Serial port (for diagnostics)

4. Ethernet management host ports

5. FC expansion ports

6. FC data host ports

7. ID/Diag display (Seven-segment readout)

8. Power supply A

9. Power supply B

10. Controller B

Connect the Intertray Cables

FIGURE 6 shows a configuration consisting of one controller tray and four expansion trays. Other configurations

are supported, as described in the Installation Guide. Note: In the below figure, black cables represent Drive

Channel 1 (Controller A), and green cables represent Drive Channel 2 (Controller B).

FIGURE 6 Connect the Controller Tray to the Expansion Trays

Prepare Management Connections

FIGURE 7 shows the ports used for an out-of-band network connection to a management host. The following

procedure describes a management host LAN connection. Other connection options are described in the

Installation Guide.

FIGURE 7 Management Host Connections

Note: To configure in-band array management, see the

Installation Guide.

Connect the Data Hosts

You can connect data hosts to the Sun Storage 6180 Array through FC switches or directly. FIGURE 8 illustrates a

connection through FC switches using a single host channel on each controller. More connection options are

discussed in the Installation Guide.

FIGURE 8 Data Host Connections

Step Task

1. Locate Ethernet port 1 for Controller A and

Controller B at the back of the controller tray.

2. Connect an Ethernet cable to Ethernet port 1 of

each controller.

3. Connect the other end of each Ethernet cable

to the LAN on which your management host

resides (preferably on the same subnet).

Step Task

1. Verify that data host OS requirements are met and that

host bus adapter (HBA) drivers and multipath software

are installed on the data hosts, as listed in the Sun Storage

6180 Array Release Notes.

2. Locate the data host ports at the back of the controller

tray and install an SFP into the Channel 1 port for each

controller.

3. Connect each fiber-optic cable to the host ports of

Controller A and Controller B.

4. Connect the other end of each cable to an external switch

as shown in FIGURE 8.

5. Connect the cables from each switch to the HBAs for

each data host.

Turn on Power and Install Management Host Software

1. Power on the array and configure controller IP addresses per the detailed information in the Installation

Guide. Note: IP addresses are auto-configured via DHCP by default, but can be changed manually using

each controller’s serial port (see FIGURE 5).

2. Download Sun Storage Common Array Manager software and install on the management host, as

described in the Sun Storage Common Array Manager Quick Start Guide.

Documentation for This Product

■Additional documentation for the Sun Storage 6180 array is available at:

http://download.oracle.com/docs/cd/E19373-01/index.html

■Documentation for the Sun Storage Common Array Manager software is available at:

http://www.oracle.com/technetwork/documentation/disk-device-194280.html

Oracle Contact Information

Review safety information Important Safety Information for Sun Hardware Systems

Sun Storage 6180 Safety and Compliance Manual

Review known issues and workarounds Sun Storage 6180 Array Release Notes

Prepare the site Sun Storage 6180 Array Site Preparation Guide

Install the cabinet Sun Rack II User’s Guide

Install the rails for each tray Sun Storage Modular Rail Kit Installation Guide

Install the power distribution units Sun Cabinet Power Distribution Unit (PDU) Installation Guide

Install the array Sun Storage 6180 Array Hardware Installation Guide

Install the management software Sun Storage Common Array Manager Installation Guide

Documentation http://www.oracle.com/technetwork/indexes/documentation/index.html

Support https://support.oracle.com

Training https://education.oracle.com

Part No.: E21495-01,

Mfg No.: 7012703

June 2011
