ORBILOC OUTDOOR DUAL Manuale utente
OUTDOOR DUAL
USER GUIDE
THE SAFETY LIGHT
MADE IN DENMARK
Register for your 3-year warranty
at www.orbiloc.com/warranty
UK
INTRODUCTION .................04
BASIC PRINCIPLES ...............06
WARRANTY .....................07
GETTING STARTED. . . . . . . . . . . . . . . 08
ON / OFF / STEADY / FLASH ......08
CHANGE MOUNT ................09
ORBILOC ACCESSORIES ..........10
ORBILOC SERVICE KIT............10
CHANGE BATTERY AND MAINTAIN. 11
ORBILOC MOUNTS. . . . . . . . . . . . . . . 12
QUICK MOUNT ADJUSTABLE .....14
ORBILOC BUCKLE MOUNT .......15
ORBILOC VELCRO STRAP .........15
ORBILOC RUBBER STRAP.........16
ORBILOC CARABINER MOUNT ....17
ORBILOC CLIP MOUNT ...........17
ORBILOC ARMBAND .............18
ADDENDUM ....................19
© 2017 Orbiloc. All rights reserved.
The Orbiloc™ name and logo are
among the trademarks of Orbiloc,
registred in the U.S., EU, NO and CN.
Our three-year warranty applies to the
Orbiloc Dog Dual. Please visit:
www.orbiloc.com/warranty
To get the most out of your new high
quality Orbiloc Outdoor Dual
Safety Light™, please read the
User Manual carefully.
Congratulations on your new
Orbiloc Outdoor Dual™
Safety Light
4
INTRODUCTION

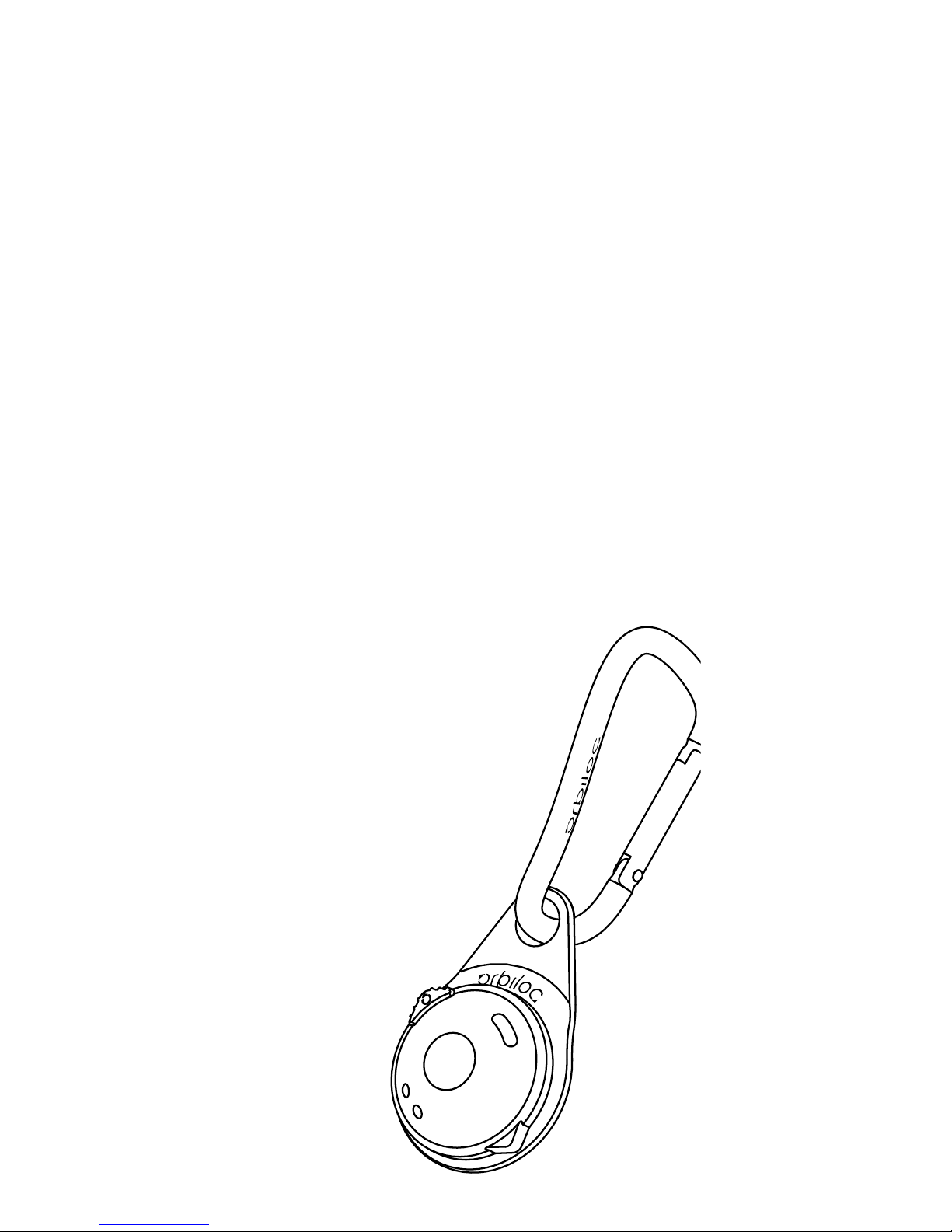

Orbiloc Outdoor Dual
Orbiloc Outdoor Dual is a high quality
lightweight LED Safety Light designed
to keep you safe.
The Orbiloc Outdoor Dual ensures that
you are visible to others when out and
about in the dark, whether you are in
the city, in the forest, or in/on the water.
Thanks to the Orbiloc Mounts you can
attach your Orbiloc Outdoor Dual to
almost anything. As a result, the Orbi-
loc Outdoor Dual keeps you safe and
sound.
Stay Safe and Visible
With Orbiloc Outdoor Dual, others will
be able to spot you from a distance
of up to ve kilometres, which leaves
them plenty of time to acknowledge
your presence. This drastically reduces
your risk of being involved in an acci-
dent or a dangerous situation.
NOTE! As a result of minor changes
made to the product after its initial
launch, the product’s packaging may
include other mounts than illustrated
in this Quick Guide. Please refer to
www.orbiloc.com/user-manual for the
most recent version of the User Manual.
5
LENS (1)
MODE SELECTOR
RING (2)
O-RING (3)
BATTERY
SHEET (4)
CARABINER
MOUNT (5)
BATTERY PACK
2 x CR2032 (6)
BASE (7)
CARABINER (8)
BUCKLE
MOUNT (9)
RUBBER
STRAP (10)
EXTRA MOUNTS INCLUDED
6
Please take care of your new Orbiloc
Outdoor Dual™ and accessories. Read
the specic recommendations for each
product in our User Manual, available at
www.orbiloc.com.
If the Orbiloc Outdoor Dual Light
gets muddy or exposed to sea water,
please rinse the outside of the Light
with running water while turning the
Mode Selector Ring (2). Do not open or
disassemble while rinsing.
Remove the Battery Pack (6) for long-
term storage of the Light, and store the
batteries in a dry, well-ventilated area,
out of direct sunlight.
Please note that unless your Orbiloc
Outdoor Dual Light is modied or re-
paired by Orbiloc, your warranty will
become invalid.
Orbiloc is not responsible for any injury
or damage, whether direct, indirect or
accidental, resulting from the use of its
Lights or Accessories.
BASIC PRINCIPLES
7
Orbiloc Outdoor Dual Lights are ma-
nufactured to the highest standards of
quality and technology, which is why
we oer a three-year warranty – abso-
lutely free!
Simply register your Orbiloc Outdoor
Dual within 30 days of purchase at:
www.orbiloc.com/warranty
Terms and conditions
The Orbiloc warranty does not aect
your statutory rights.
The warranty period applies to the
Orbiloc Outdoor Dual. Accessori-
es are not covered by the warranty.
The warranty of the Orbiloc Outdoor
Dual is only valid with the use of or-
ginal Orbiloc replacement parts. Use
of other accessories and replacement
parts will make the warranty of the
Orbiloc Outdoor Dual invalid. Other
exclusions include normal wear and
tear, oxidation, modications or altera-
tions, incorrect storage, poor mainte-
nance, negligence, and using the Light
for purposes for which it is not designed.
Warranty matters are always handled
according to our current conditions of
warranty. See the full warranty terms
and conditions at:
www.orbiloc.com/warranty
WARRANTY
8
GETTING STARTED
Remove the Battery Sheet (4).
Tighten the Base (7) and you are ready to
use your Orbiloc Outdoor Dual.
ON / OFF / STEADY / FLASH
The Orbiloc Outdoor Dual is very user-
friendly; just turn the Mode Selector Ring
(2) to the left or right.
The triangle indicates the desired
function.
Flashing ( ) and Steady-on ( ) symbols
are found on the top of the Lens (1).
9
CHANGE MOUNT
Unscrew the Base (7) of the Orbiloc Out-
door Dual and remove the Orbiloc Mount.
Make sure that the Mode Selector Ring (2)
is clicked rmly onto the Lens (1). Please
note that the part of the Mode Selector
Ring (2) with the small magnet has to be
placed in one of the four semi-circles on
the Lens (1).
Place the new Orbiloc Mount in the desig-
nated guide pins on the Lens (1).
Make sure that the Battery Pack (6) is
placed with the +symbol facing down in
the Base (7) of the Orbiloc Outdoor Dual.
Screw the top parts and Base (7) of the
Orbiloc Outdoor Dual back together again.
10
ORBILOC ACCESSORIES
Get the most out of your Orbiloc Safety
Light with the vast variaty of mounts,
replacement parts and Orbiloc Service Kit.
ORBILOC SERVICE KIT
The Orbiloc Service Kit makes maintaining
your Orbiloc Outdoor Dual quick and easy.
The Orbiloc Service Kit contains a Lithium
Battery Pack (6) (2 x CR2032) and an O-ring
(3) lubricated with silicone.
The silicone lubrication helps ensure
the waterproofness of the light, and it is
therefore important to throughly lubricate
the new O-ring (3) before replacing the
old one.
Should the light be in and out of water
often or exposed to sea water, the O-ring
(3) should be lubricated with silicone and
the light should be rinsed after each time
(please refer to page 6). Save the packaging
of the O-ring (3) in order to re-lubricate the
O-ring (3) in the excess silicone.
NOTE; The output and battery-lifetime of
the light can only be guaranteed with the
use of the orginal Orbiloc Lithium Battery
Pack (6).
NOTE; If using 2 single batteries make sure
that both batteries with the +symbol is
facing down. Sometimes it is also necessary
to pull the middle part of the battery spring
a bit towards yourself.
