Orbit OBB026 Manuale utente
OWNER'S MANUAL OBB026 POWER STATION
CAUTION: Exercise of a strenuous nature,as is customarily done on this equipment,
should not be undertaken without firstconsulting a physician. No specific health claims are
made or implied as they relate to the equipment. Measurements made by the equipment are
believed to be accurate, but only the measurements of your physician should be relied upon.
IMPORTANT: Read all instructions carefully before using thisproduct. Retain this product.
Owner's manual for future reference.
TOOLS REQUIRED
FOR ASSEMBLY
Adjustable Wrench
Pliers
Hammer
Warranty
Assembly
Parts
OBB026
Power Station
OBB026
Power Station
POWER STATION
TABLE OF CONTENT
Table of Content 1
Introduction 2
Safety Instructions 3
Hardware List 4
Parts Draw 5
Assembly Instructions 6-9
Stretching Exercises 10-11
Exploded Parts List 12
1
2
POWER STATION
INTRODUCTION
Thank you for selecting this Fitness product.
Orbit Fitness is proud of its tradition of providing
fitness equipment that meets the highest standards of quality.
We hope you will enjoy many years of health and fitness
from this product.
If you are not satisfied with your Orbit Fitness product for any reason,
Do Not Go Back To The store From Which It Was Purchased.
Instead, please allow our Customer Service Department to help you.
Contact the Orbit Fitness Customer Service Department at:
E-mail address: service@orbitfitness.com.au or phone 08-62413050
Orbit Fitness will gladly answer your questions, guide you through the
assembly steps,and quickly dispatch any replacement parts directly to your
home! We are ready to make your new Orbit Finess product the most used piece
of fitness equipment you own.
For information about other Orbit Fitness products,
contact us at:
Orbit Health & Fitness Solutions
28 Fellowship Road
Gnangara, Western Australia 6077
POWER STATION
INTRODUCTION
Safety Instructions:
Failure to follow the instructions and warnings below could result in serious
injury or death:
Before beginning any exercise program, consult with your doctor or health
physician.
This machine is for home use only. The warranty does not cover this machine if
it is used commercially
Refer to the manual whenever you have a question.
Inspect the machine before each use.
Keep your fingers, body parts, children and pets away from moving parts.
Warm up before each workout and cool down after each workout.
Rest adequately between repetitions.
Always wear comfortable, loose-fitting clothing.
Use a companion as a safety spotter.
IMPORTANT: THE MAXIMUM RECOMMENDED WEIGHT CAPACITY
FOR YOUR POWER STATION IS 115 KGS.
3
Please do not tighten nuts and bolts until you have installed all hardware in their proper places.
POWER STATION
Before Asssembly:
Tools Required:
Before assembling your Power Station , please take the time to make sure your assembly kit has All
of the parts listed on the Machine Parts List. Each part has been illustrated for proper location and
numbered for east identification.
Compare your contents against the parts list. If any parts are missing or unusable, please Do Not
Return The product To The Store From Which It Was Purchased. Our Dedicated Customer
Service Staff is standing by to help you at: 7:030a.m. Through 4:30 p.m. Any parts you need Will be
happily mailed to you at your home.
For assembly, your Power Station will require two adjustable wrenches.

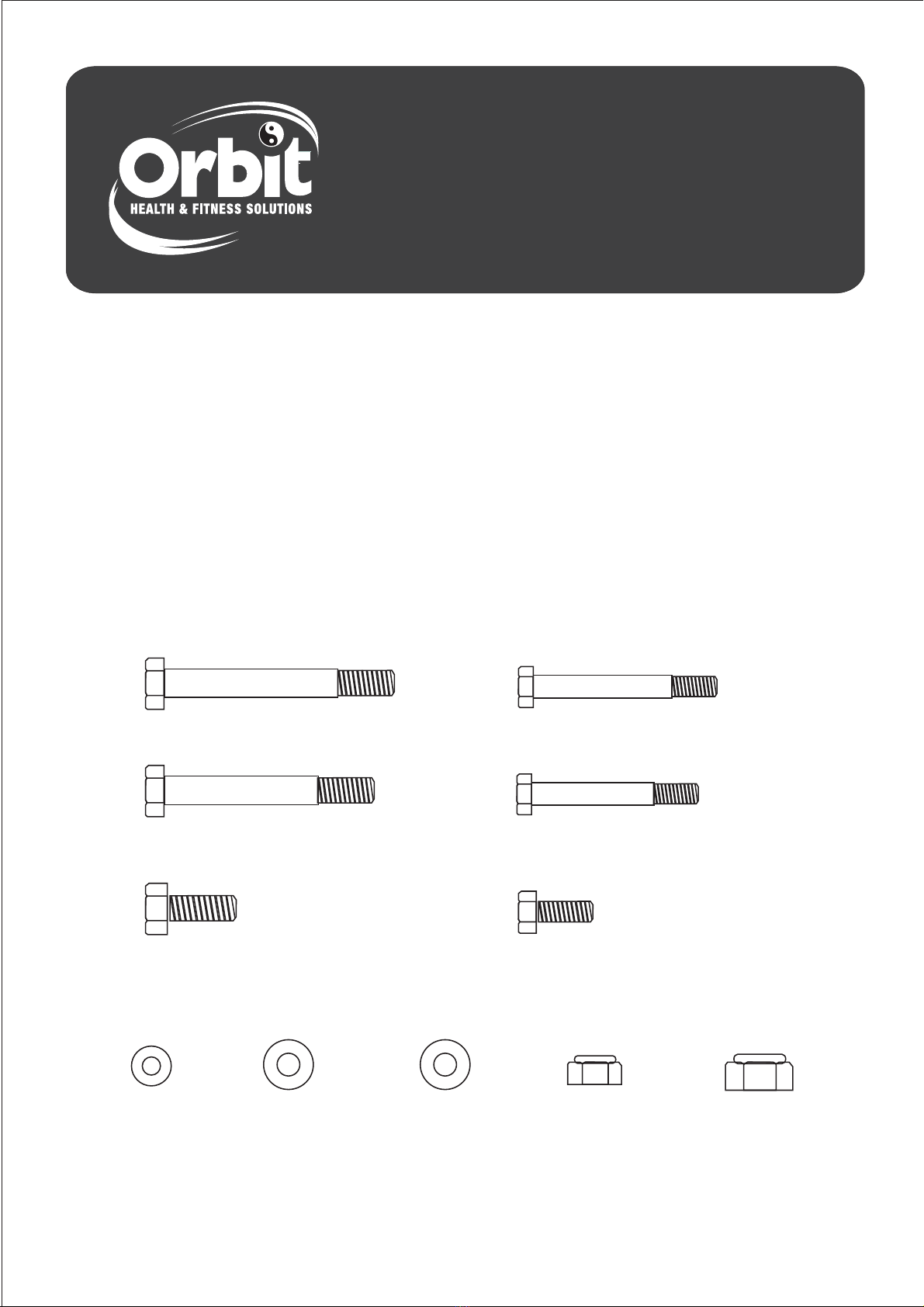

HARDWARE
(18) M10 X 75 HEX BOLT 1PC
(19) M10 X 65 HEX BOLT 24PCS
(120) M10 X 20 HEX BOLT 2PCS
(22) M8 X 90 HEX BOLT 2PCS
(21) M8 X 65 HEX BOLT 7PCS
(23) M8 X 20 HEX BOLT 1PC
(26)M8 ARC WASHER 2PCS (24)M10 WASHER 52PCS
4
(25)M10 LOCK NUT 25PCS(27)M8 WASHER 9PCS (28)M8 LOCK NUT 2PCS
Please do not tighten nuts and bolts until you have installed all hardware
in their proper places.

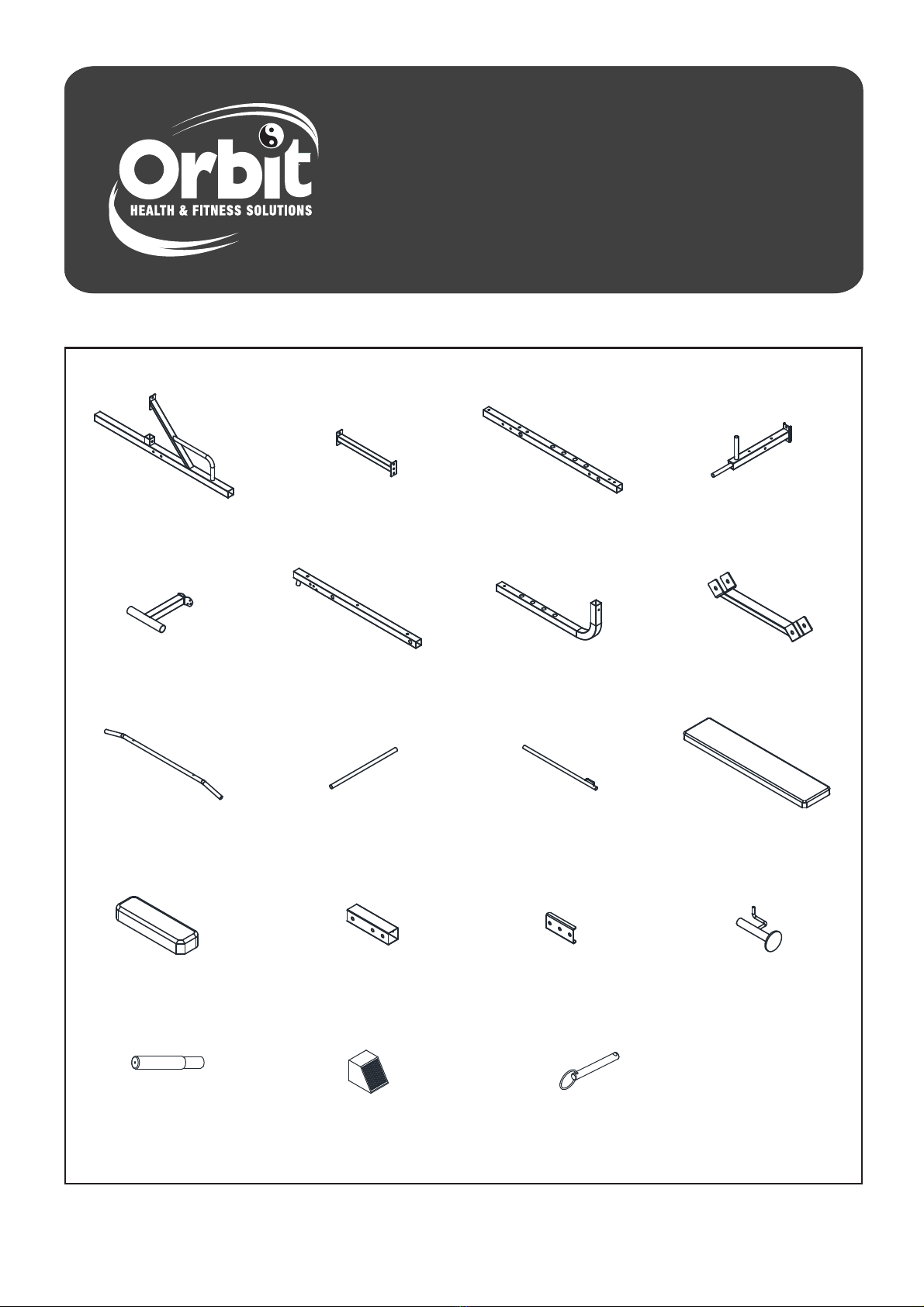

POWER STATION
PARTS LIST
5
(1) Base Frame
C)2( rossing Frame (3) Below Upright Frame (4) Arm Rest Frame
(7) Top Upright Frame troppuSmrA)8(esaBraeR)5(
(9) Lat Bar
(13) Arm Cushion (14) Support Tube
(29)(30)End Cap
(17)Handle Bar (Φ10 pin
(15)Connection Plate )61( Bar Holder
(6) Back Cushion Frame
(10) Back Cushion Support tube (11) Back Adjustable tube noihsuCkcaB)21(

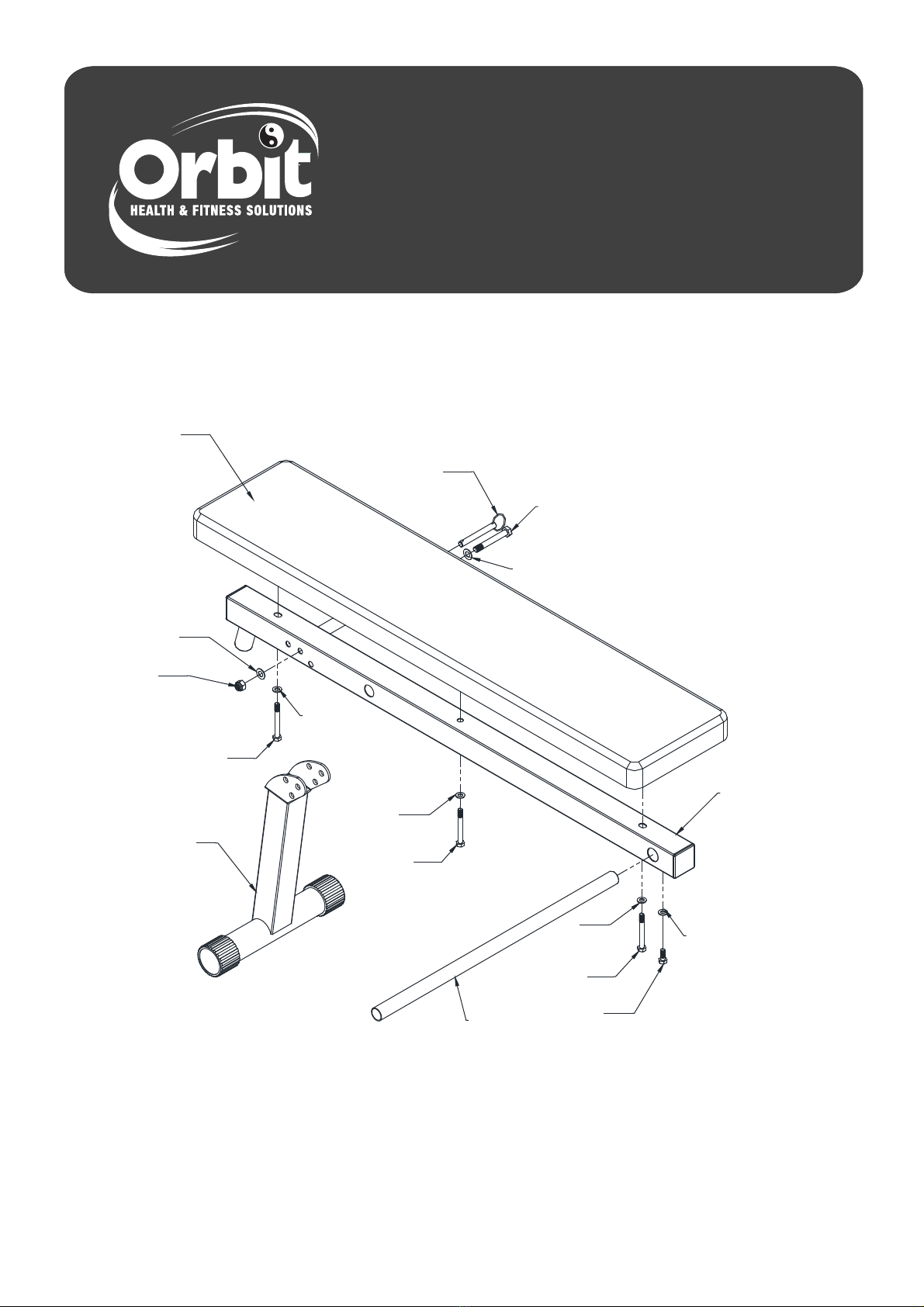

POWERSTATION
ASSEMBLY INSTRUCTIONS
STEP 1
6
12
6
5
10
18
21
23
27
30
21
27
21
24
24
27
25
27

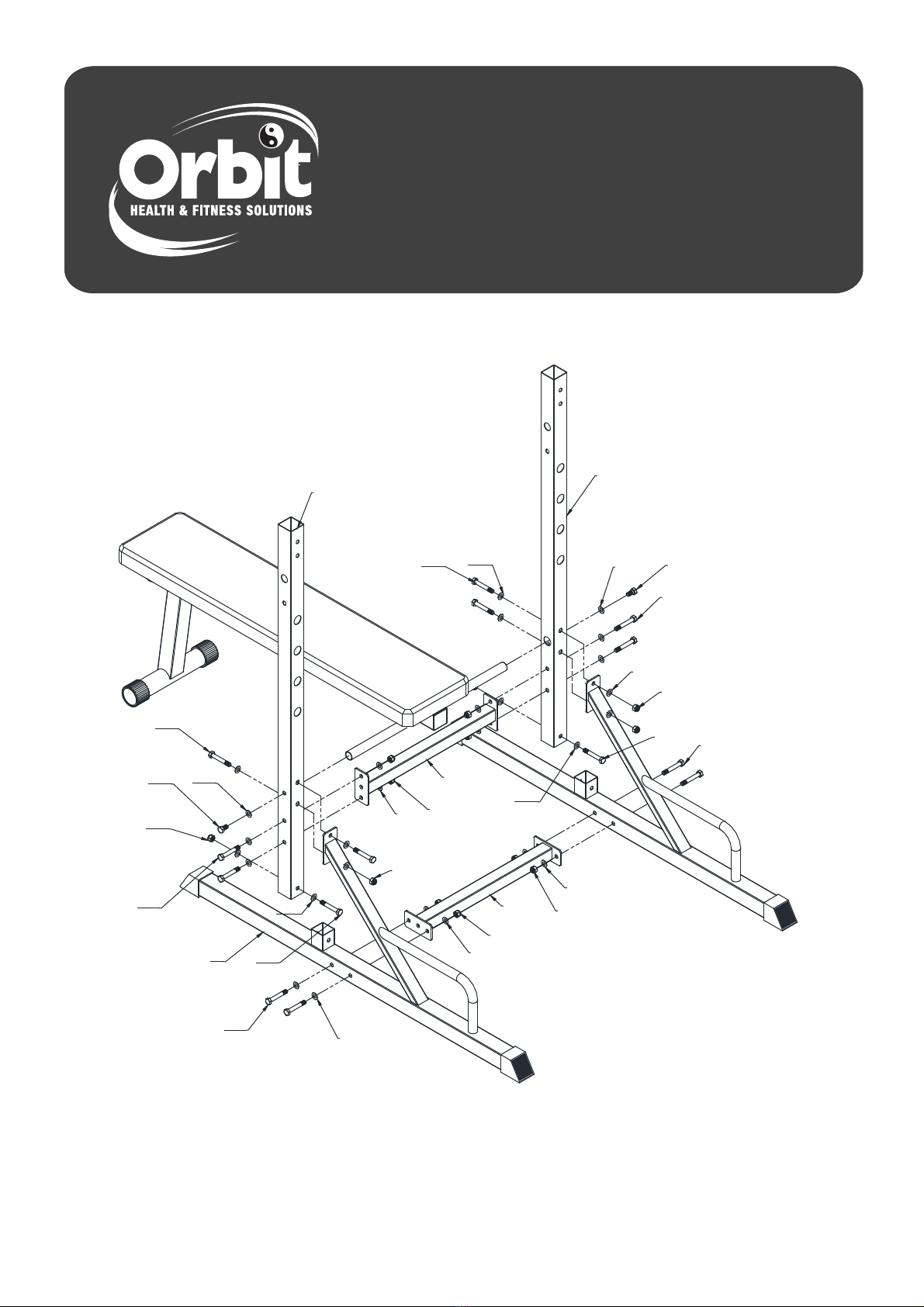

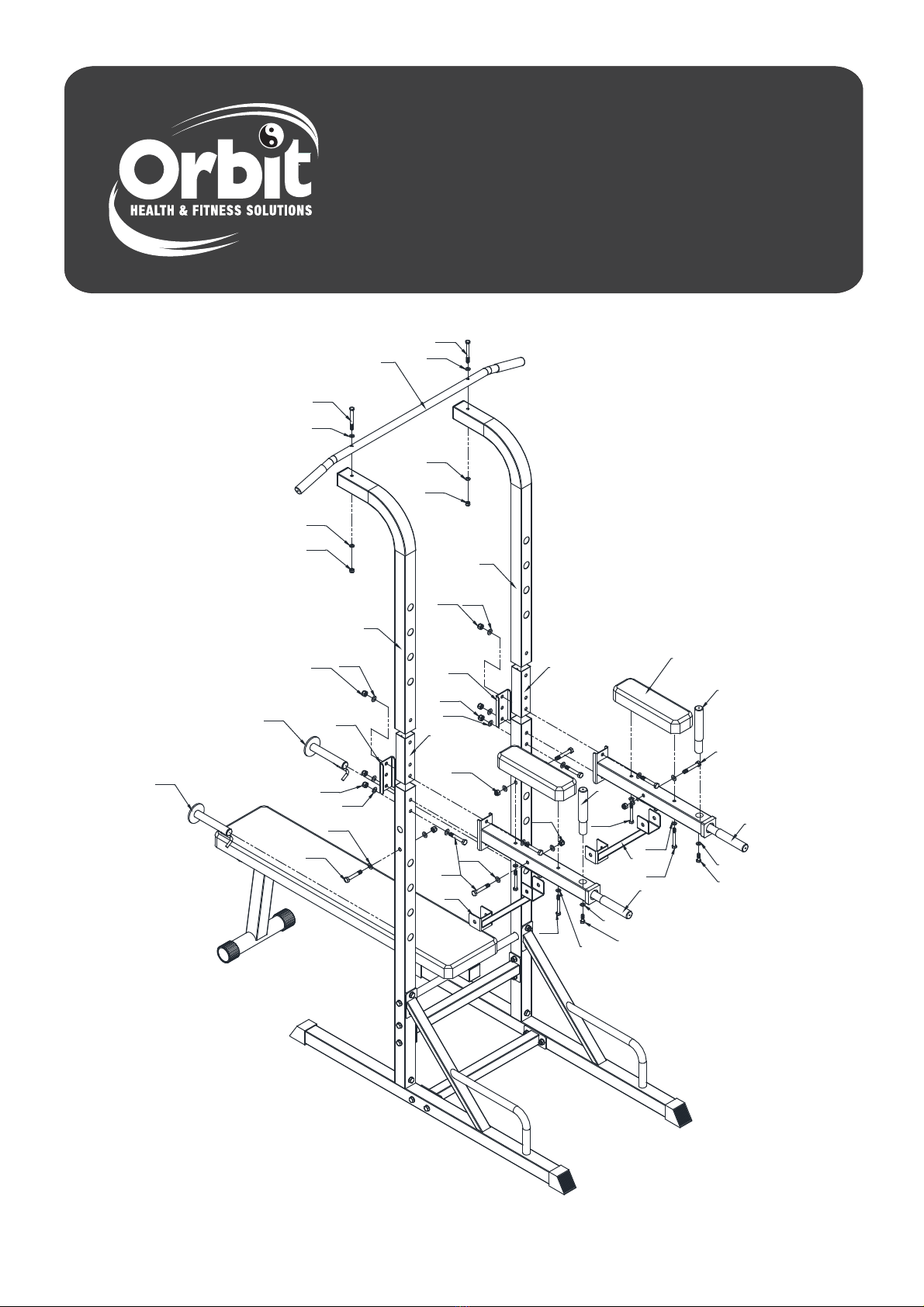

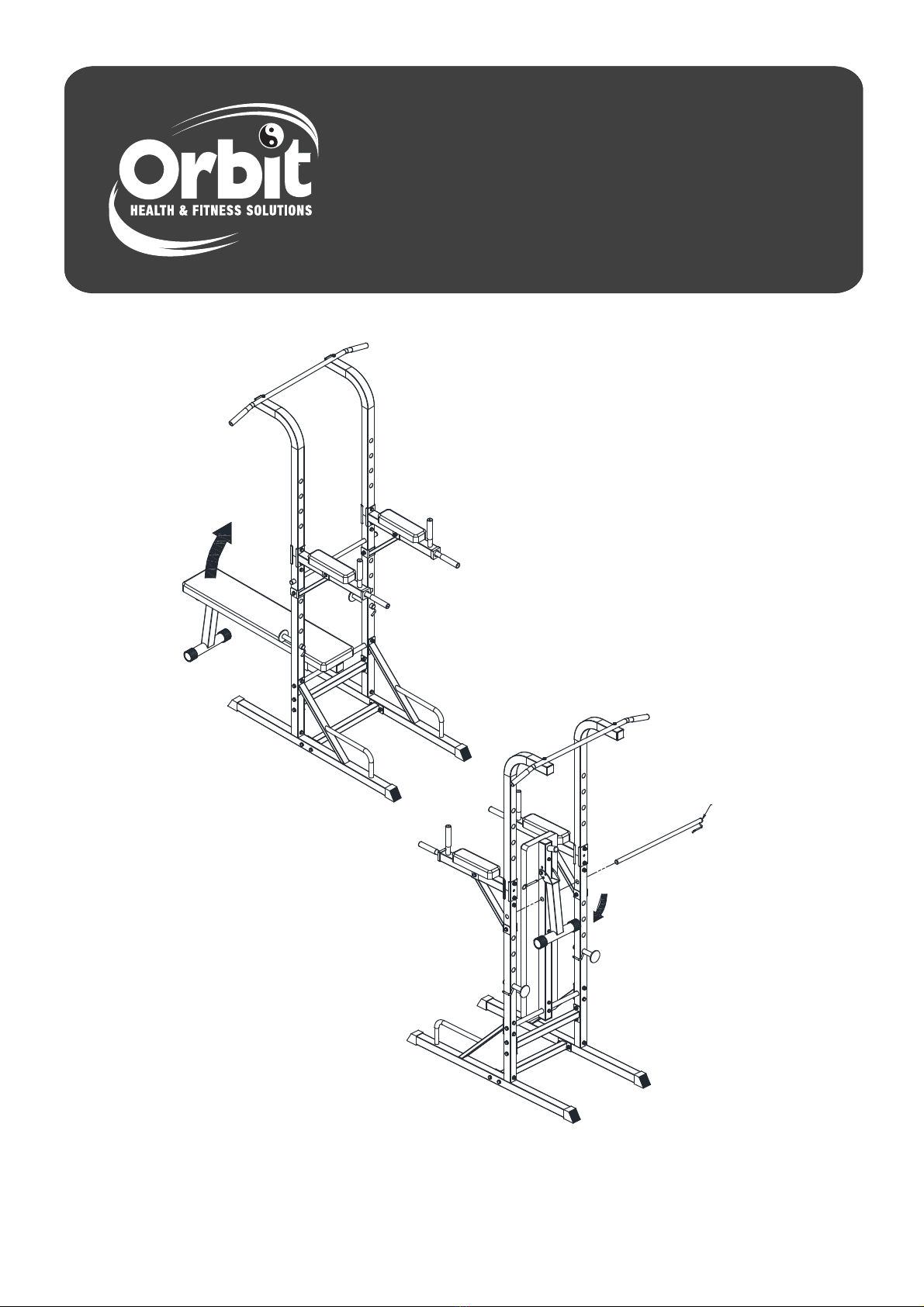

POWER STATION
ASSEMBLY INSTRUCTIONS
STEP 2
7
19
24
19
24
19
19
24
24
25
25
24
19
25
24
20
25
24
25
2
2
1
19
19 24 24
24
25
20
19
3
3
POWER STATION
ASSEMBLY INSTRUCTIONS
STEP 3
8
28
24
27
19 24
4
8
8
19
21
24
21
27
20
20
24
13
14
15
25 24
4
14
15
16
16
19
21
24
25
25
24
17
17
25
25
7
7
27
28
24 24
27
9
22
22
26
26
POWER STATION
ASSEMBLY INSTRUCTIONS
STEP 4
9
Tighten up all nuts and bolts using wrenches.
11
