Service Instructions

Oreck® ELEVATE Conquer™:

UK30300PC, UK30300, UK30300COM

Oreck® ELEVATE Command™:

UK30200PC, UK30200, UK30200COM

Technical Service –April 2016

2 | P a g e

Table of contents

Base Assembly - Section 1 –Page 4

Belt / Brushroll - Section 2 –Page 4

Motor / PCB - Section 3 –Page 4

Motor Assembly / Intake Pivot Assembly / Joint Assembly - Section 4 –Page 5

Handle Detent - Section 5 –Page 6

LED PCB - Section 6 –Page 6

Power PCB - Section 7 –Page 7

Cord Assembly / Power Cord - Section 8 –Page 7/8

Bag Assembly - Section 9 –Page 8

Carry Handle - Section 10 –Page 8

Wiring Diagram - Section 11 –Page 10

Electrical Troubleshooting - Section 12 –Page 11

3 | P a g e

Exploded View

4 | P a g e

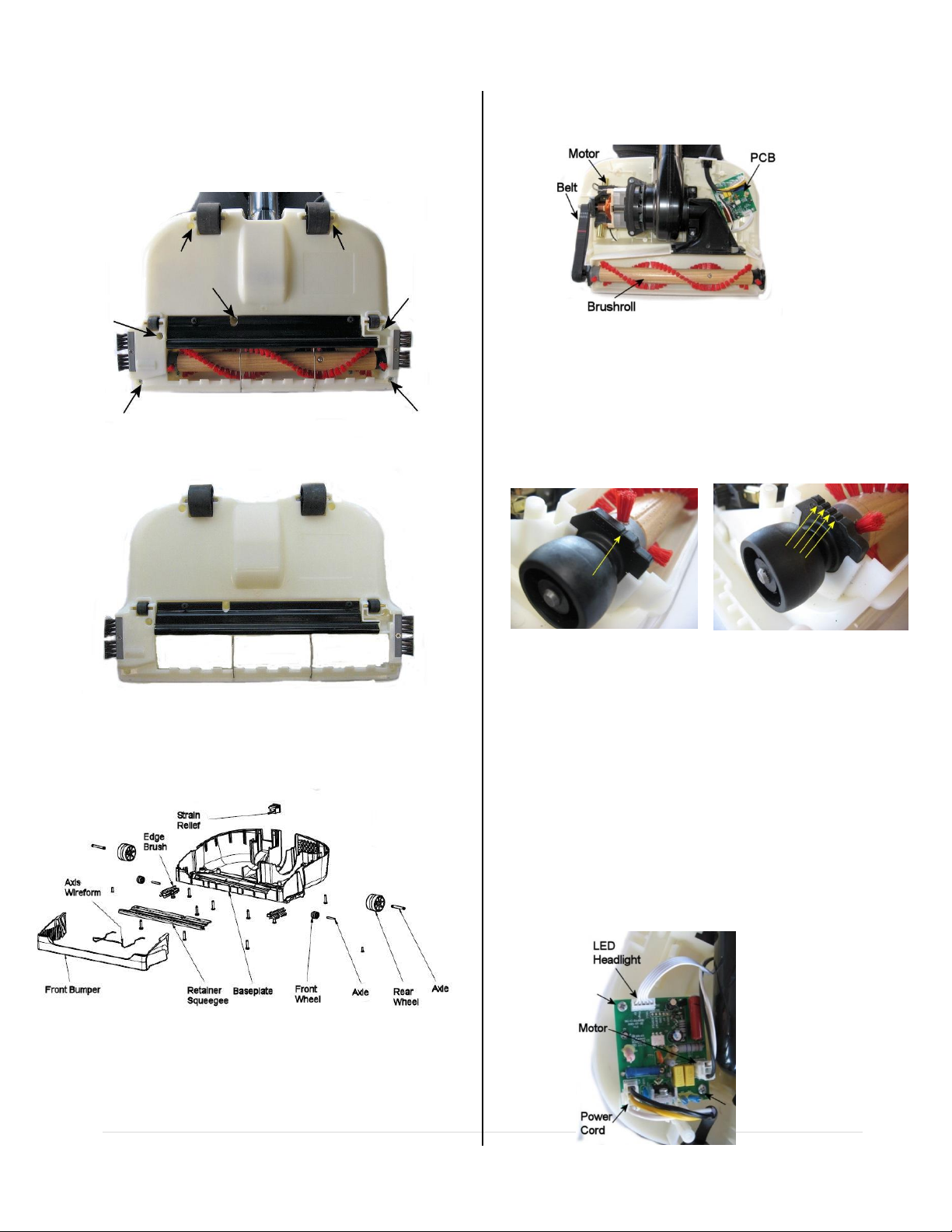

1. Base Assembly

a. Remove 7 screws and lift base assembly off

of unit. This requires a T20 torx driver.

b. The base is stocked as an assembly as

shown.

c. Individual parts of the base are also

stocked.

Once the base assembly is removed the

internal components can be accessed.

2. Belt / Brushroll

a. Remove belt by sliding it off of the motor

shaft and brushroll pulley. Brushroll seats into

the main body as shown. Slide out of position

to remove.

Position brushroll with one notch upward for

new brushroll and four notches upward for

worn brushroll. Each end of brushroll must be

set the same.

3. Motor PCB

a. Motor PCB is held in position by two

screws. Terminals connections are noted.

5 | P a g e

4. Motor Assembly / Intake Pivot Assembly

/Joint Assembly.

a. Remove base assembly –section 1.

b. Separate lower handle from fan housing

assembly –Rotate lower spine connector

CCW to remove.

c. Remove four screws that secure motor and

intake pivot assembly.

d. Lift motor / fan housing assembly out of

position.

e. Disconnect motor lead wires. Connector

may have a locking tab that must be

disengaged to allow removal.

f. To separate motor and fan chamber

assembly locate and remove fan nut by

securing the armature shaft and turning the

nut clockwise –LH Thread.

g. Slide fan chamber assembly off of motor.

(UK30200 pictured).

Joint Pivot Assembly –UK30300

a. Remove clamp assembly –one screw.

b. Separate joint assembly halves –two

screws.

6 | P a g e

Motor lead wire connections

Black lead wire connects to motor terminal as

shown –single terminal side of motor.

White lead wire connects to motor terminal

as shown –dual terminal side of motor.

(Note –The 2nd top terminal and ground

terminal are open)

Intake Pivot Assembly

a. Intake pivot assembly stocked as shown.

Felt inlet seal is also carried separately.

5. Handle Detent

Located under the Motor / Fan Chamber

Assembly.

a. Remove base assembly –section 1.

b. Remove motor / fan chamber assembly.

c. Remove handle detent –1 screw.

6. LED PCB

a. Remove base assembly –section 1.

b. Disconnect LED PCB connection at main

PCB.

c. Remove two screws located in brushroll

cavity.

d. Turn unit over and lift upward on fascia to

remove.

e. Remove headlight lens –lift up slightly on

cosmetic strip to allow clearance and remove

headlight lens.

7 | P a g e

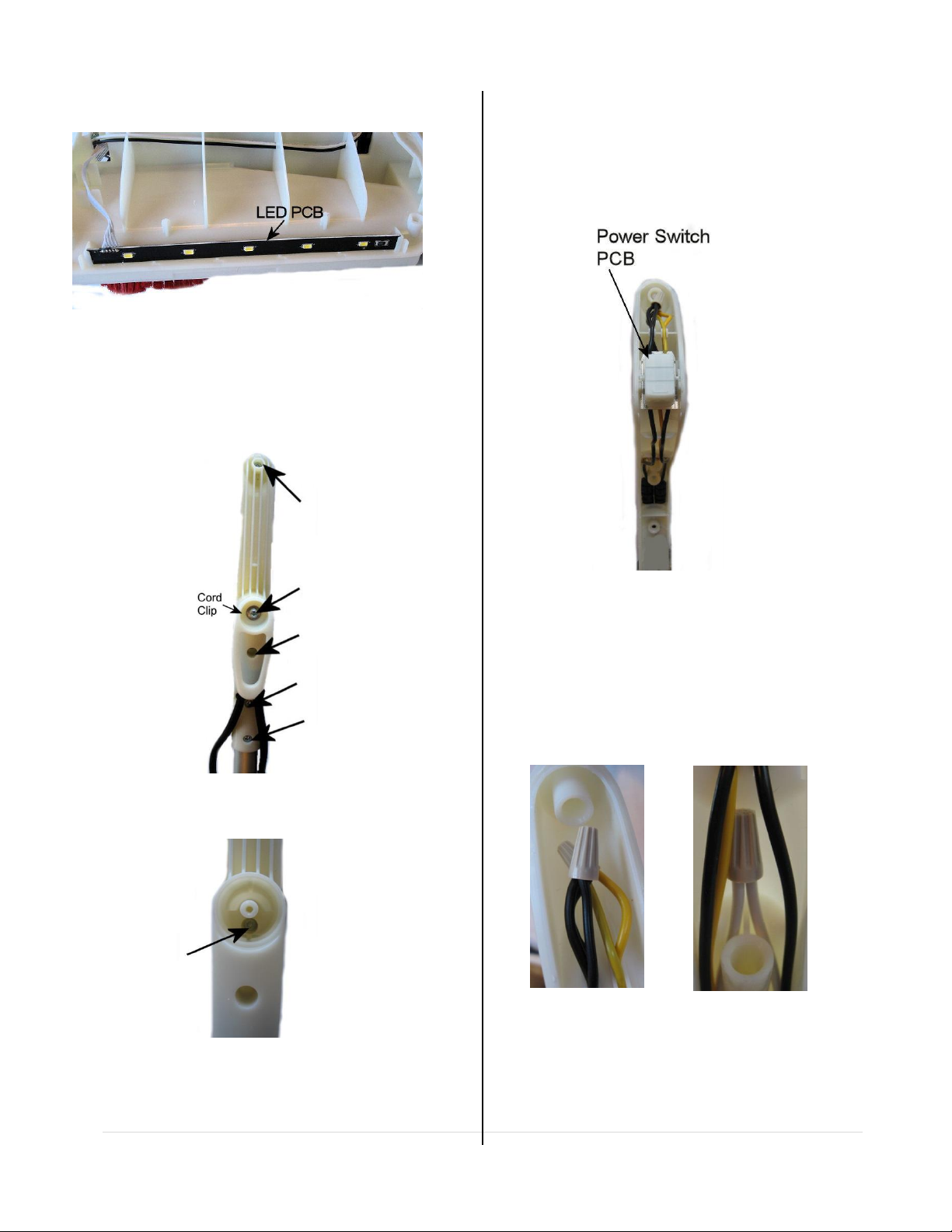

f. Remove LED PCB.

7. Power PCB

a. Remove five screws shown in upper handle

–one holding the cord clip.

b. Remove cord clip to access sixth screw and

remove.

c. Lift off handle cover.

d. Remove switch button –snap fit.

e. Disconnect yellow and black lead at

terminal connections in top of handle and

slightly spread handle seat to remove Power

PBC.

8. Cord Assembly / Power Cord

a. Remove handle cover –section 7.

b. Locate and remove cord assembly lead

wires at applicable terminals - black at top of

handle and white at midpoint of handle.

c. Feed cord strain relief out of handle to

remove Cord Assembly.

8 | P a g e

Power Cord

a. Remove lead wires at yellow, black, and

white terminals and feed power cord out of

handle.

b. Remove base assembly –section 1.

c. Disconnect power cord connector at PCB.

d. Remove strain relief from main body and

feed power cord out of position.

9. Bag Assembly

a. Pull bag cardboard collar down to release

plastic bag dock from connector. Remove

paper bag.

Note: A boss was added to the rear bag dock

to prevent usage of unauthorized bags. A

notch was added to the bag assembly to

allow the bag to be locked into position.

b. Separate bag dock and bag dock rear by

pressing inward on bag dock rear to unhinge.

c. Carefully spread forks on bag dock rear and

work bag dock rear upward and off of bag

duct.

d. Slide bag assembly off unit.

9 | P a g e

10. Carry Handle

a. Remove screw in carry handle retainer.

b. Spread handle retainer apart and slide it off

of the connector assembly.

c. Remove carry handle –trapped in position

by the handle retainer.

10 | P a g e

11. Wiring Diagram
