Oregon®91VX saw chain features top performing Chamfer Chisel™ cutters.

The twin corners of the cutters on 91VX chain deliver superior performance

on the many popular saws which use low-profile 3/8"-pitch chain.

91VX .050”

91 VX is intended for use with elec-

tric saws and smaller gasoline-pow-

ered saws up to 2.5 cu. in. (41cc)

10 in. to 18 in. (25 to 46 cm)

3/8”

Ramp-shaped

depth gauges

on each cutter

Commercial

CHAIN PITCH AND GAUGE

KICKBACK – ANSI CLASSIFICATION

RECOMMENDED TYPES OF USE

RECOMMENDED SAW SIZES

RECOMMENDED BAR LENGTHS

KICKBACK-REDUCING FEATURES

PITCH

GAUGE

91VX saw chain may be capable of

kickback that could result in serious

injury to the saw operator or bystand-

ers. Do not use this saw chain unless

you have experience and specialized

training for dealing with kickback.

Saw chain with reduced kickback

potential is available.

91VX F&B A107040 AB 0807

Standard sequence: 91VX

CUTTER SEQUENCE

91VX SAW CHAIN

Advanced geometry grind Improved out-of-box grind•

Dramatic speed improvements in all cut-•

ting modes

Extreme cutting efﬁciency, less feed force•

required

Chamfer Chisel™ cutters with

special shaped low-vibration

heels

Twin cutting corners offering outstanding•

performance, durability and easy mainte-

nance

Less vibration than competitive chains•

Ramp-shaped depth gauges The ramp-shape reduces kickback ener-•

gies without affecting performance

Blued cutters Superior corrosion resistance•

Base-cutter hardness consistency•

Sharpens with standard 5/32"

round file and file guide

Easy hand maintenance•

Vibe-Ban™ Reduces vibration 25% or more at the saw•

handle

LubriLink™ Help keep oil where it’s needed - on the•

chain

Directs oil to the critical rivet ﬂange/hole•

interface

Lubriwell™ Help carry oil around the full length of the•

guide bar’s groove

Enhances lubrication of the bar nose•

sprocket and bearings

Features Beneﬁts

For more information on these and other Oregon®products, contact your authorized Oregon®distributor, or:

OREGON CUTTING SYSTEMS DIVISION, BLOUNT, INC. PO Box 22127 · Portland, OR, U.S.A. 97269-2127

Phone: 503-653-8881 Fax: 503-653-4201 Web: http://www.oregonchain.com

IN CANADA: OREGON DISTRIBUTION LTD. 505 Edinburgh Rd. N., Guelph, Ontario, Canada N1H 6L4

Phone: 519-822-6870 Fax: 519-822-4999

Printed in USA 91VX F&B A107040 AB 1007

Oregon®91 VX saw chains may be capable of kickback that could

result in serious injury to the saw operator or bystanders.

Although these chains have features designed to reduce kickback energies, these

are NOT low-kickback chains. Do not use Oregon®91 VX chains unless you have experi-

ence and specialized training for dealing with kickback. Saw chain with lower kickback

potential is available.

Failure to follow filing instructions can

increase the level of kickback which

can result in severe injury to the saw operator or bystanders.

*Do not exceed the depth-gauge setting shown above

*Always file depth gauges back to their original rounded

or ramped shape after lowering

If you cut abrasive woods such as railroad ties, or if you cut in the following

kinds of locations: sandy areas, partially logged areas after skidder extrac-

tion, fire-damaged areas, or any place where the wood has become dirty

– then you may prefer the MultiCut™versions of Oregon

chains. MultiCut™

chains have extra-heavy-duty chrome plating applied with an advanced

plating process to withstand these kinds of tough dirty conditions. Contact

Oregon

or your authorized Oregon

distributor for further information on

MultiCut™chains.

DO YOU CUT WOOD IN DIRTY OR ABRASIVE CONDITIONS?

Chain Replacement Parts

Chain Type Left-hand Cutter Right-hand Cutter Tie Strap Preset Tie Strap Drive Link

91VX P21693 (25-PK) P21694 (25-PK) P24295 (25-PK) P25068 (25-PK) P21721 (25-PK)

Maintenance Tools

File Size Assembled File

Guide

Round Files Depth Gauge

Tool, .025"

Flat File Grinding Wheel

5 3/4" Diameter

Grinding Wheel

4 1/8" Diameter

5/32" (4mm) 37534 (EA.) 70504 (12-PK.)

40459 (2-PK.)

22290 (10-PK.) 12211 (12-PK.) OR534-18

1/8" Thick

OR4125-18

1/8" Thick

Standard

Chain Part No.

Multicut

Part No.

91VX M91VX

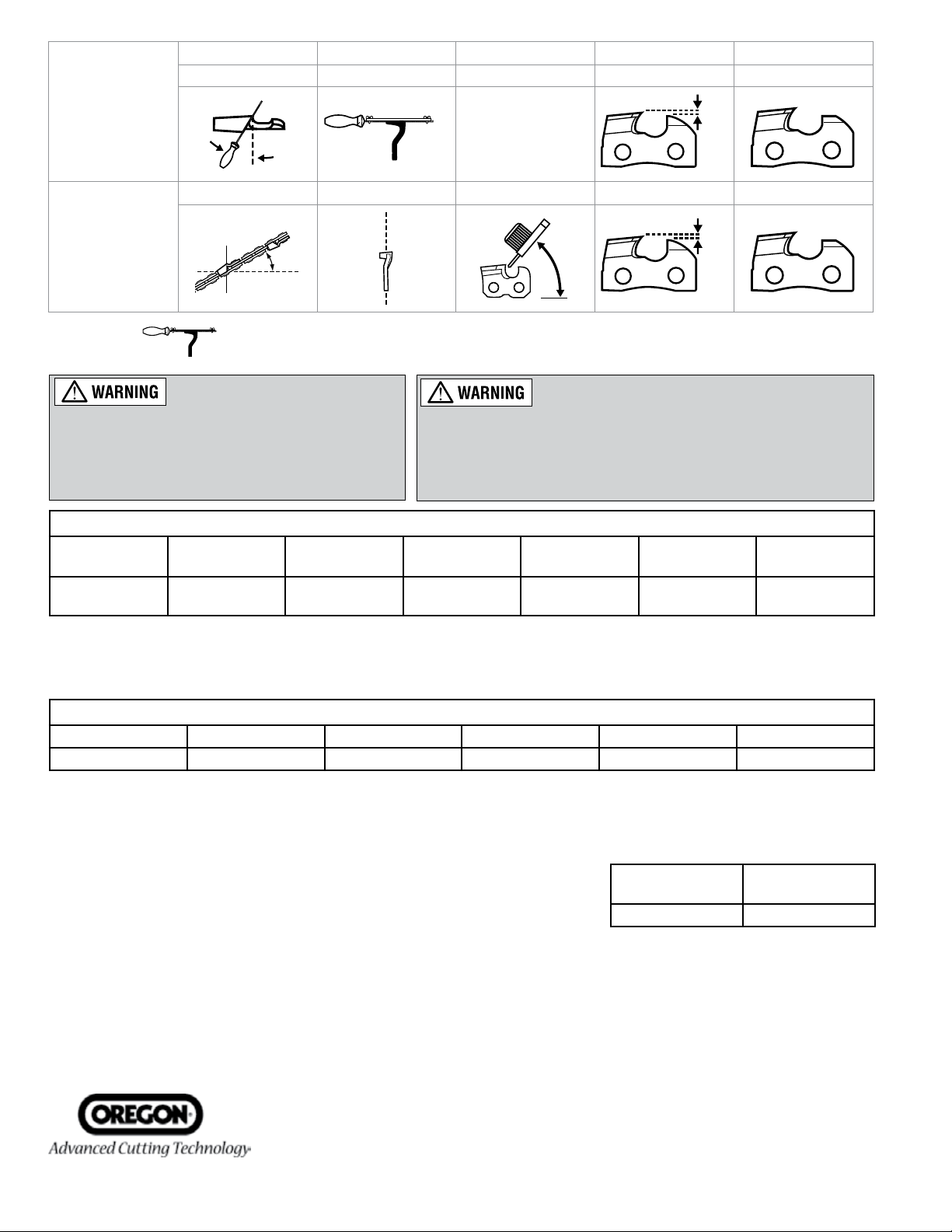

FILING

INSTRUCTIONS

A B C D

TOp pLaTe aNGLe DOWN aNGLe* DepTh GaUGe SeTTING FINISheD CUTTeR

GRINDING

INSTRUCTIONS

VISe ROTaTe aNGLe VISe TILT aNGLe heaD TILT aNGLe DepTh GaUGe SeTTING FINISheD CUTTeR

When using an Oregon®ﬁle guide, ALWAYS hold it level, 0°, ﬂat on the Top Plate.

30º

0º

.025"

55º
