Operating Instructions
For UHF100 and UHF200 40 Channel UHF
2-way Citizen Band Radio
UHF100
UHF200
Downloaded from www.cbradio.nl
3
Table of contents
This unit complies with all relevant Australian
and New Zealand approval requirements.
Table of contents ..........................................................................3
Safety Information and Warnings ..................................................4
Controls and Connectors...............................................................5
Installation..................................................................................10
Operations..................................................................................14
UHF channels and frequencies....................................................30
Warranty information (Australia)..................................................33
4
Safety Information and Warnings
Please read before installing or opearating Your
Oricom Radio
The operation of this radio in Australia and New Zealand is subject to conditions
in the following licenses. In Australia the ACMA Radio communications (Citizen
Band Radio Stations) and in New Zealand by MED General User Radio License
for Citizen Band Radio and operation is subject to conditions contained in those
licences.
Safety Information and Warnings
WARNING
Potentially Explosive Atmospheres
Turn your radio OFF when in any area with a potentially explosive
atmosphere. Sparks in such areas could cause an explosion or re
resulting in injury or even death.
NOTE: Areas with potentially explosive atmospheres are often, but
not always clearly marked. They include fueling areas such as below
deck on boats; fuel or chemical transfer or storage facilities; areas
where the air contains chemicals or particles, such as grain, dust,
or metal powders; and any other area where you would normally be
advised to turn off your vehicle engine.
Blasting Caps and Areas
To avoid possible interference with blasting operations, turn your
radio OFF near electrical blasting caps or in a “blasting area” or
in areas posted: “Turn off two way radios.” Obey all signs and
instructions.
Electromagnetic Interference/Compatibility
Nearly every electronic device is susceptible to electromagnetic
interference (EMI). To avoid the possibility of electromagnetic
interference and/or compatibility conicts, turn off your radio in any
location where posted notices instruct you to do so such as health
care facilities.
5

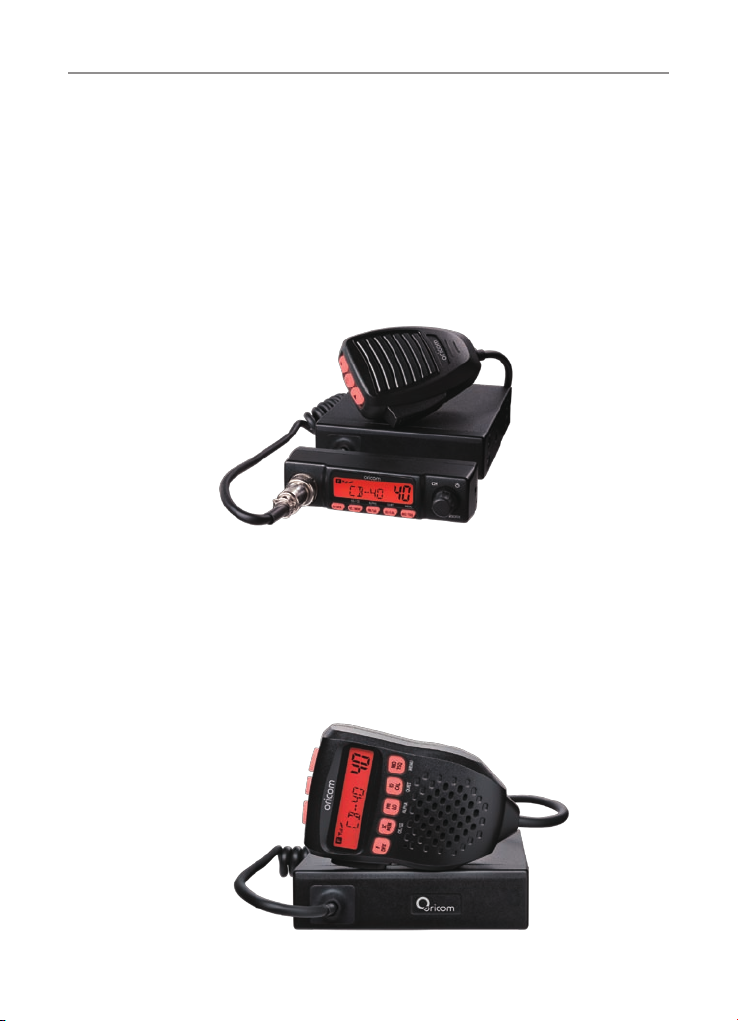

Box Contents
UHF200
1 x RF Radio
1 x Controller Speaker Micrphone
1 x DC Power Cord with inline fuse
1 x Mounting bracket with mounting
screws for RF Radio
1 x Microphone Hanger
1 x 2m long Extention cable
1 x Coupler for extention cable
1 x User Guide
UHF100
1 x RF Radio
1 x Remote Head Unit with 2m cable
1 x UHF100 Standard Microphone
1 x DC Power Cord with inline fuse
1 x Mounting bracket with mounting
screws for RF Radio
1 x Mount bracket with mounting screw
for Remote Head Unit
1 x Microphone Hanger
1 x User Guide
Controls and Connectors
6
Controls and Connectors

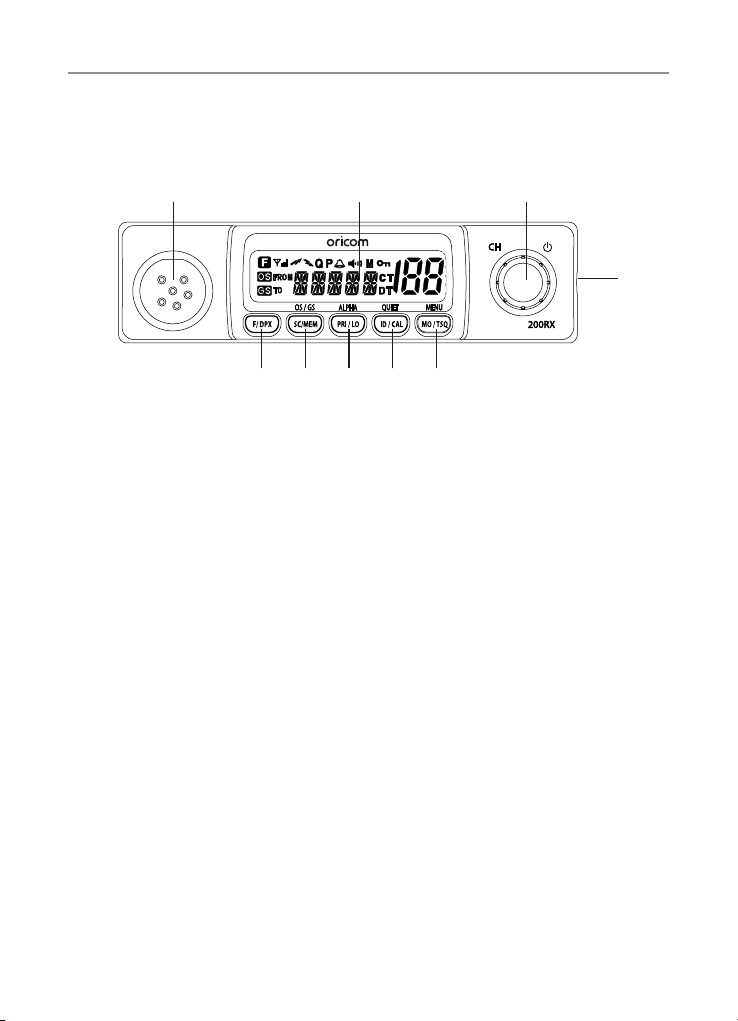

Front View Remote Head unit (UHF100)
1. Microphone connector
2. LCD Display
3. Power On/Off, channel & Volume
control
4. Function button by short push &
Duplex On/Off by long push
5. Open Scan, Memory On/Off, Group
Scan
6. Priority Channel On/Off, Key Lock
On/Off, Alpha-numeric display
7. ID setting, 5 tone SelCall, Quiet
8. Monitor, TSQ On/Off, Menu
9. External speaker Jack (3.5mm for
optional 8 ohm speaker)
1
45678
2 3
9
7
Controls and Connectors

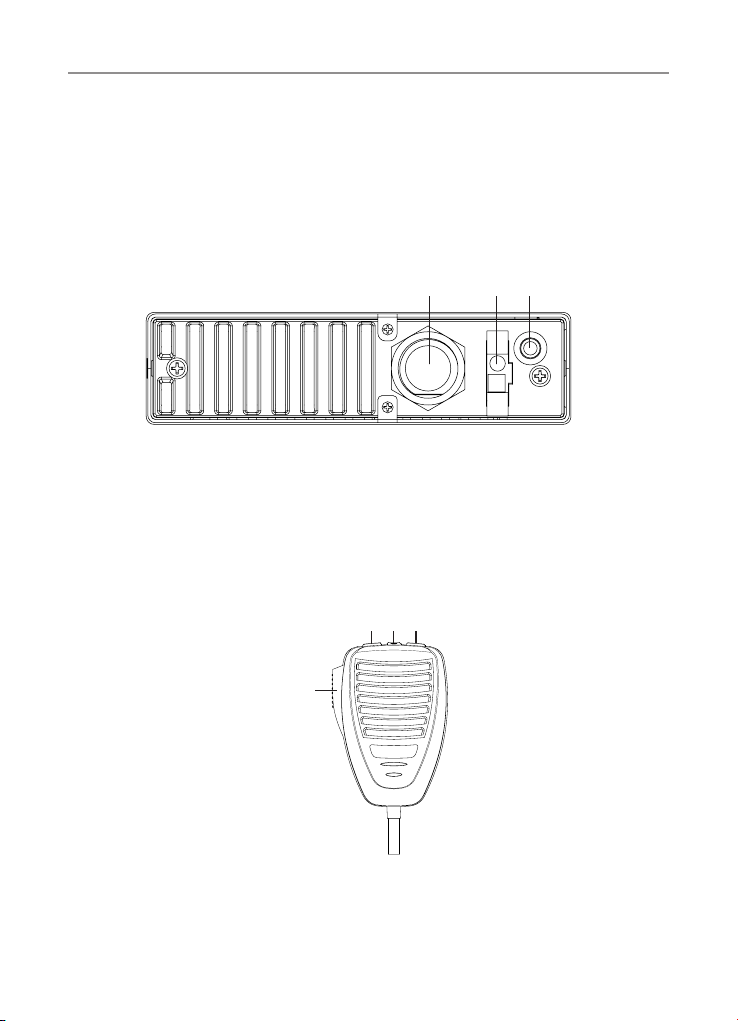

Rear View
Rear view of Radio (UHF100 & 200)
1. 3.5mm external jack for optional 8 ohm speaker
2. Power Supply connection
3. Antenna connection
Standard Microphone (UHF100)
1. Push To Talk (PTT) button
2. Volume Up, Channel Up
3. Volume Down, Channel Down
4. Power On/off, Volume and channel selector
3 2 1
1
243
8
Controls and Connectors
Top view of Contoller Speaker Microphone (UHF200)
1. Volume Down, Channel Down
2. Volume Up, Channel Up
3. Power On/Off
Front view of Contoller Speaker Microphone (UHF200)
4. LCD Display
5. Function button & Duplex On/Off
6. Open Scan, Memory On/Off, Group Scan
7. Priority Channel On/Off, Key Lock
On/Off, Alpha-numeric display
8. ID setting, 5 tone Selcal, Quiet
9. Monitor, TSQ On/Off, Menu
10. PTT Switch
1 3 2
200RX
CH
4
9
10
8
7
6
5
9
Controls and Connectors

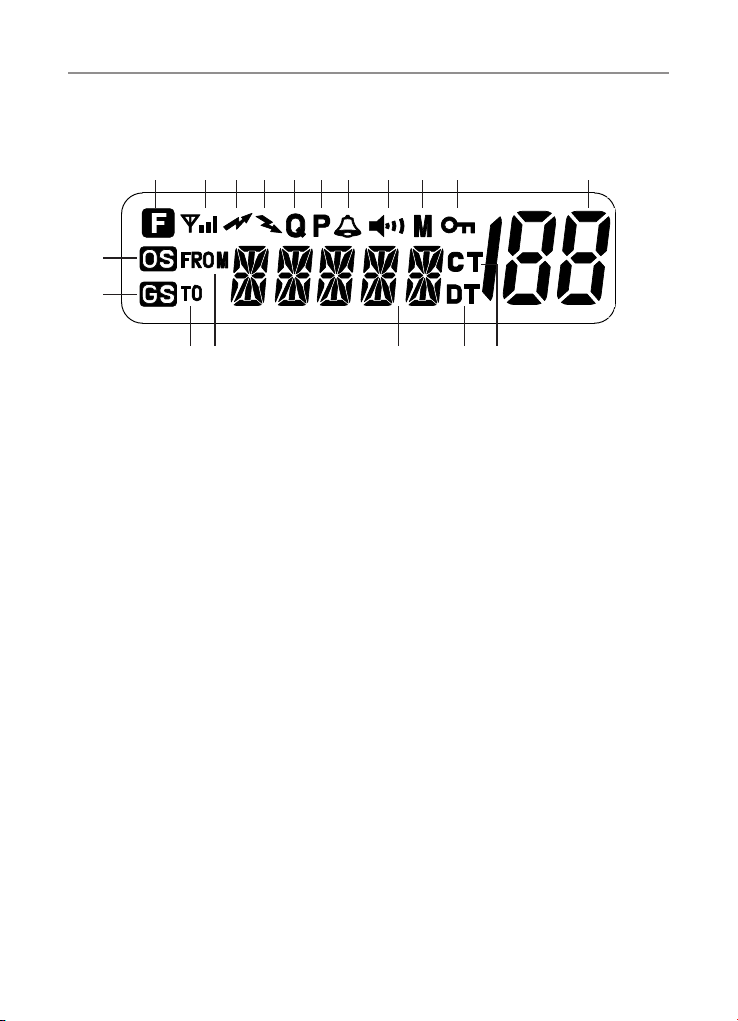

LCD Icons & Indicators (UHF100 and UHF200)
1. FUNCTION
2. RX or TX Signal strength
3. Transmitter Indicator
4. Receiver Indicator
5. Quiet mode
6. Priority On/Off
7. Monitor On/Off
8. Memory On/Off
9. Key Lock
10. Open Scan
11. Group Scan
12. Selelctive call Sending_to
13. Selective call Receiving from
14. 38 CTCSS Tone On/Off
15. DCS On/Off
16. Channel number
17. ALPHA/NUMERIC
18. Call Alarm
12 13 15 1417
1 2 3 4 5 6 18 7 8 9
10
11
16
10
Installation
INSTALLATION
CAUTION
When installing your radio in your vehicle, check that during installation you do
not damage any wiring or vehicle components that may be hidden around the
mounting position.
If you are unsure about how to install your radio, we suggest for optimum
performance you have your radio professionally installed by a UHF specialist or
Auto electrician. When installing the radio, avoid mounting it close to heaters or
air conditioners. Do not press the PTT or CALL button before installing the
antenna.
Screw the mounting bracket and the remote head bracket to rm surfaces.
To install the Radio;
1. Fix the radio bracket in a suitable location.
2. Then x the radio in the bracket using the thumb screws.
Note
The radio contains a built-in loud speaker, The radio can be installed ‘out of the
way’ and an external speaker can be used as an alternative (not supplied).

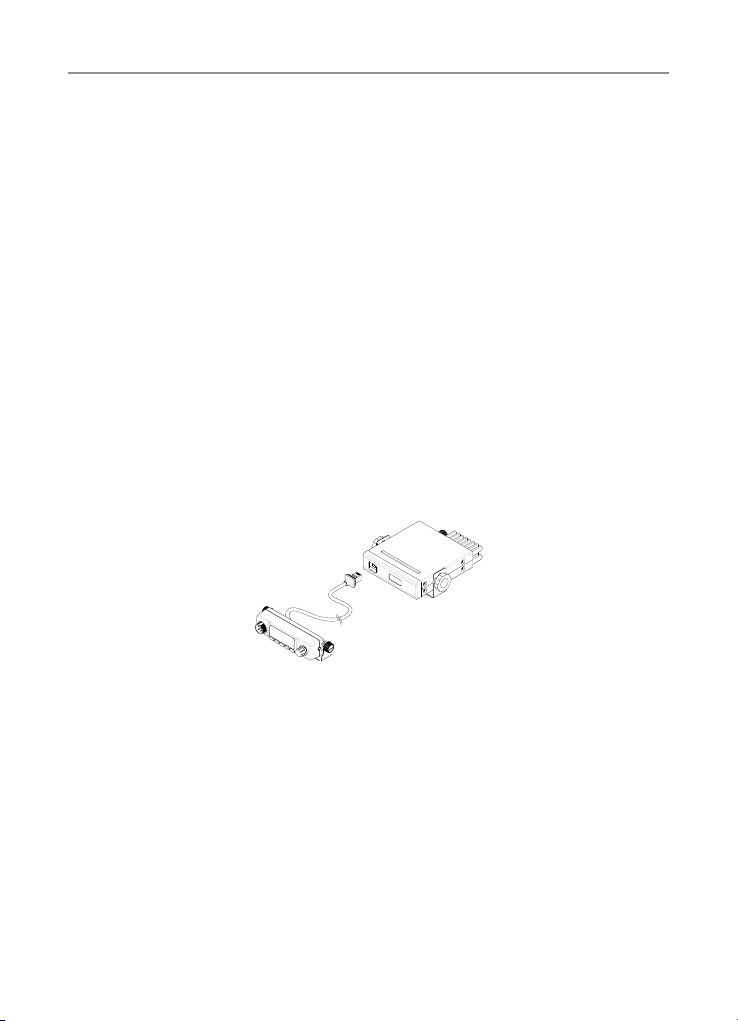

To mount the Remote Head (UHF100)
The remote head is supplied with a slim mounting bracket and thumb screws.
Its small size and light weight design allows it to be mounted in almost any
convenient position accessible to the driver.
