Origen ae S16T Manuale utente

Origen

S16T user guide

Thank you for purchasing this Origen htpc enclosure. We recommend

that you read this user guide thoroughly before installation.

Origen has rapidly grown to be one of the worlds leading HTPC enclosure manufacturers since

its inception in 2000. We were one of the first companies with the vision to produce high end

htpc enclosures that harmonise with mainstream audio visual equipment, allowing the pc to

leave the office and fit effortlessly into the living room environment.

We are driven by the passion to produce exceptional products that push technical and aesthetic

boundaries to new levels. For more information on all of our products, visit www.origenae.com

S16T overview

Opening the case

ODD cage removal

Optical disk drive installation

Metal sticker fitting instructions

Optical drive bezel installation

Hard drive installation

TFT controls / menu operation

Multi-format card reader & I/O ports

PCB/cable reference diagram

Touch panel software installation

VGA loop cable

Micro ATX standoffs

Origen is not responsible for any damages due

to external causes, including but not limited to,

improper use, problems with electrical power,

accident, neglect, alteration, repair, improper

installation or improper testing.

S16TUG.V1/09.07

Origen

S16T user guide

1598

4611

16 17 18 19 25

26 27 27

Power button

Blue LED ring

External TFT on/off (under chassis)

One piece aluminum chassis

7” TFT touch panel

Top panel

TFT menu controls

Optical disk drive (ODD) bezel

Soft-eject access panel

I/O ports/multi-format card reader

ODD eject button

IR receiver window

Door latch

Fixing point for HM100* (see 28)

IR receiver PCB

Intake vent

I/O ports/card reader PCB

ODD cage

TFT button PCB

4th HD mount bracket

Philips IR controller PCB

TFT module

Primary hard drive cage

Side intake vent

92mm low dB fan

Top panel fixing screw

80mm low dB fan

HM100* hard drive mount

(allows a 5th HD to be installed)

*optional accessory

S16T overview

These are the main features and

controls of the S16T htpc enclosure.

312 13

15 20 21 22 23 24

Opening the case

Remove the thumb screws

as indicated. Carefully raise

the p

and

anel as shown (about

30mm is enough) pull

out to remove. Reverse the

procedure to replace.

ODD cage removal

Remove the top fixing screw completely.

4 fixing

screws circled.

it to slide

back and be lifted out over the screw

heads, ready for ODD installation.

Loosen (no need to remove) the

Keyhole shaped holes

on the base of the cage allow

front I/O plate

DO NOT force upwards

as this could cause

damage to the top panel.

Optical disc drive installation

Unclip the existing plastic drive bezel from your

ODD. The disc tray should be ejected for this and

usually requires some upward force to the bezel.

Slide the optical disk drive through the front of

the cage. Before securing the drive screws,

check/adjust the ODD’s position in the chassis -

it should sit as close to the front I/O plate as

possible without the drive eject button becoming

depressed. Secure all fixing screws and double

check the eject button functions correctly.

ODD

cage

Optical

disk drive

Hard drive

mount

Optical disk drive (ODD) bezel installation

The aluminum ODD bezel matches the finish of the case. The installation procedure requires

that the plastic drive bezel that comes fitted to your drive, be removed prior to installation.

Metal sticker fitting instructions

Ensure the bezel

is free from dirt of grease. Peel and fold back the yellow backing sheet, revealing only the part you

wish to use. arefully position the icon as central as possible, then apply even pressure over the

entire area. Peel off the plastic film (and unused icons) to reveal you handy work!

The drive format icon should also be fitted to the bezel before installation. The metal sticker sheet

supplied has Blu-ray, HD-DVD or DVD icons, depending on the format being used.

TOP

foam

tape

Check that the drive has been aligned correctly and that the can eject and close freely.tray

Peel the back off the adhesive foam strip on the rear of the aluminium bezel. Fold a cardboard

spacer around each end of the bezel, holding your thumb against the flaps as shown. With the

tray closed, position inside the drive opening and press firmly against the front of the tray to

ensure good adhesion. Eject the tray to remove the spacers (a gentle tug may be required).

Hard Drive installation

The S16T supports 4 hard drives

as standard ; three in the primary

HD cage and one above the ODD.

. The mount

bracket is only needed for the drive

above the ODD and should be fitted

on the one side prior to installation.

Each HD requires four anti-vibration

mount screws, secured as shown,

which will isolate the drive from the

chassis once installed

mount

screw

mount

bracket

To install drives 1,2 and 3, begin by removing the two thumb screws...

To install the 4th drive above the optical drive...

*A fifth drive can be installed to the S16T using the HM100 hard drive mount (optional).

TFT controls / menu operation

OSD

[in orange]

The TFT controls are located behind

the chassis door. A second TFT on/off

button is discreetly located near the

power button on the underside of the

chassis. To configure the TFT, press

the button to bring up

the on screen display (OSD). Use the

buttons to navigate through

the 10 menu categories. Press the

button then where

appropriate use the and to increase

or decrease the value as desired.

Press the button again to confirm

the setting then repeat the process

until you have made all the required

adjustments. To

menu/set ( )

and

to select a category

exit the OSD, simply

locate the EXIT category and press the

button (after 10 seconds of inactivity

the OSD will exit automatically).

The screen shot guide below shows

the quickest route and the

adjustment sequence for

each of the OSD menu categories

(all assume you are not currently in the

menu, with the exception of EXIT).

[in grey]

TFT power on/off Value up

Menu/set Value down

Contrast.

Brightness.

Language

Phase.

V position.

H position.

Clock.

Exit.

Auto-adjust.

Factory reset.

1 BRIGHTNESS - adjusts the picture brightness.

2 CONTRAST - adjusts the picture contrast.

3 PHASE - adjusts the noise of the image.

4 CLOCK - adjusts video sampling clock.

5 H POSITION - adjusts the image horizontally.

6 V POSITION - adjusts the image vertically.

7 LANGUAGE - language selection.

8 AUTO - auto image adjust wizard.

9 RESET - resets to factory setting.

10 EXIT - exits the TFT menu.

14 7 8

1 Compact Flash Card TYPE I 20 Secure Digital Ultra II Plus Card 39 Memory Stick (Magic Gate / High

2 Compact Flash Card TYPE II 21 Secure Digital Card 45X Speed data transfer compatible)

3 Compact Flash Ultra Card TYPE I 45 X 22 Secure Digital PRO Card 66X 40 Memory Stick

4 Compact Flash Ultra Card TYPE I 80 X 23 Secure Digital Card 80X (Magic Gate / High Speed data transfer

5 Compact Flash Ultra Card TYPE I 120 X 24 Secure Digital Card 133X compatible with memory select function)

6 Compact Flash Ultra II Card TYPE I 25 Secure Digital Card 150X 41 Memory Stick Pro

7 Compact Flash Extreme Card 26 Mini Secure Digital Card 42 Magic Gate Memory Stick

8 Compact Flash Extreme III Card 27 Mini Secure Digital Ultra II Card 43 Magic Gate Memory Stick

9 Compact Flash ELITE PRO Card 28 Mini Secure Digital Card 80X 44 Memory Stick Pro HS

10 Compact Flash Ultimate Card 100X 29 Mini Secure Digital PRO Card 45 Memory Stick Pro Ultra II

11 Compact Flash Ultra-X Card 140X 30 Micro Secure Digital Card 46 Memory Stick Pro Extreme

12 IBM Micro Drive Card 31 Micro Secure Digital Ultra II Card 47 Memory Stick Pro Extreme III

13 Sony Micro Drive Card 48 Memory Stick Pro

32 Multi Media Card 49 Memory Stick Pro Duo

14 Smart Media Card 33 Multi Media PRO Card 50 Memory Stick Pro Duo HS

34 Multi Media Plus Card 51 Memory Stick Pro Duo

15 XD-Picture Card 35 Reduced Sized Multi Media Card 52 Memory Stick Duo (Magic Gate / High

36 Reduced Sized Multi Media Mobile Card Speed data transfer compatible)

16 Secure Digital Card 53 Memory Stick Pro Duo

17 Secure Digital Ultra II Card 37 Memory Stick 54 Magic Gate Memory Stick Duo

18 Secure Digital Extreme Card 38 Memory Stick 55 Magic Gate Memory Stick Duo

19 Secure Digital Extreme III Card (With memory select function) 56 Memory Stick ROM

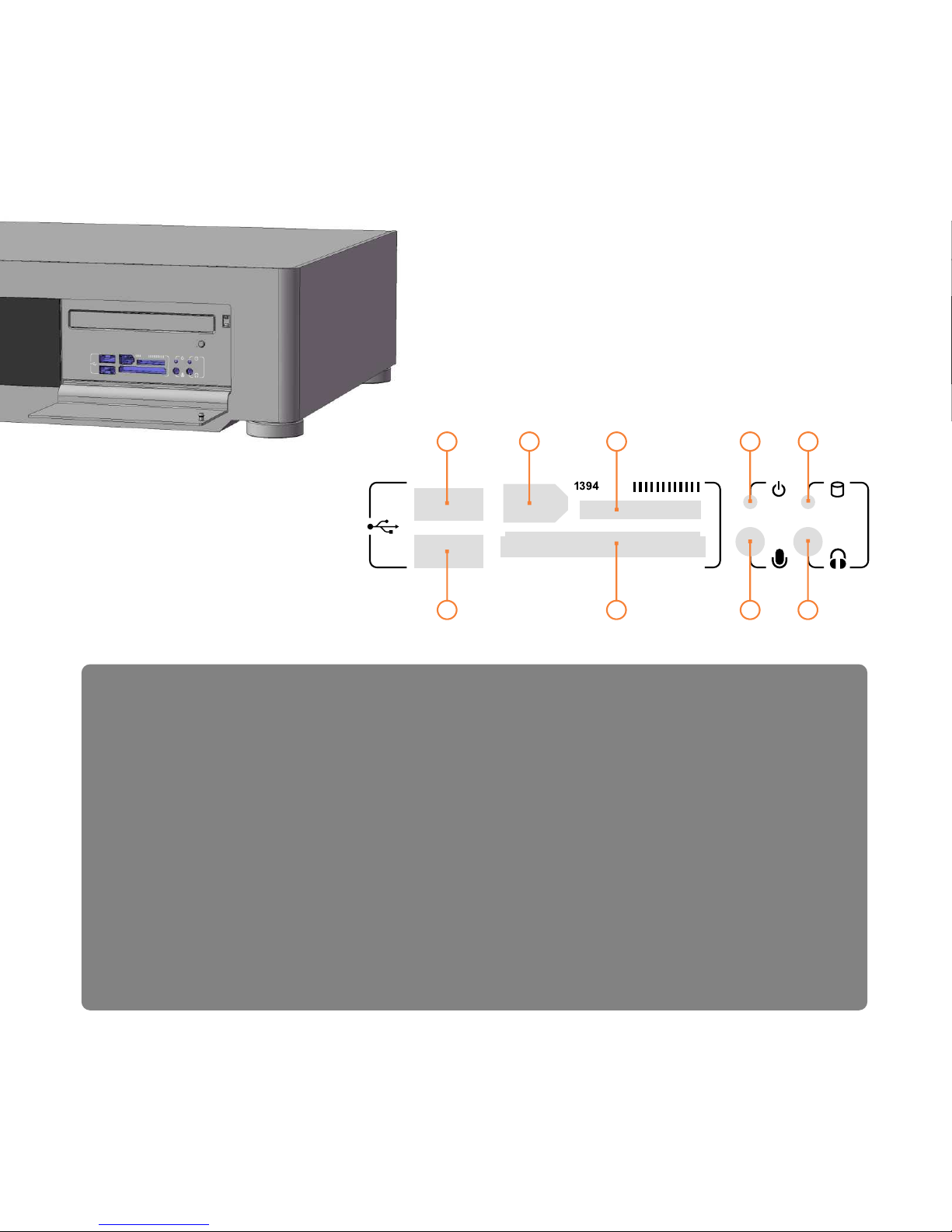

1 - USB port

2 - 1394 port

3 - Multi format reader

4 - Compact flash reader

5 - Card reader power LED

6 - Activity indicator LED

7 - Audio in socket

8 - Audio out socket

Multi-format card reader & I/O ports

All the S range cases come fitted with a multi-format

card reader and front I/O port PCB which consist of

audio in and out, 1394 and two ports. A built-

in USB hub powers the front USB ports as well as

2 internal connectors, which are used for the IR

controller, VFD or [TFT] touch panel, depending on

the model. The audio ports support both AC97 and

HD audio standards, while the card reader supports

all the card formats listed at the bottom of the page.

USB

NOTE: Card adapter required for some formats

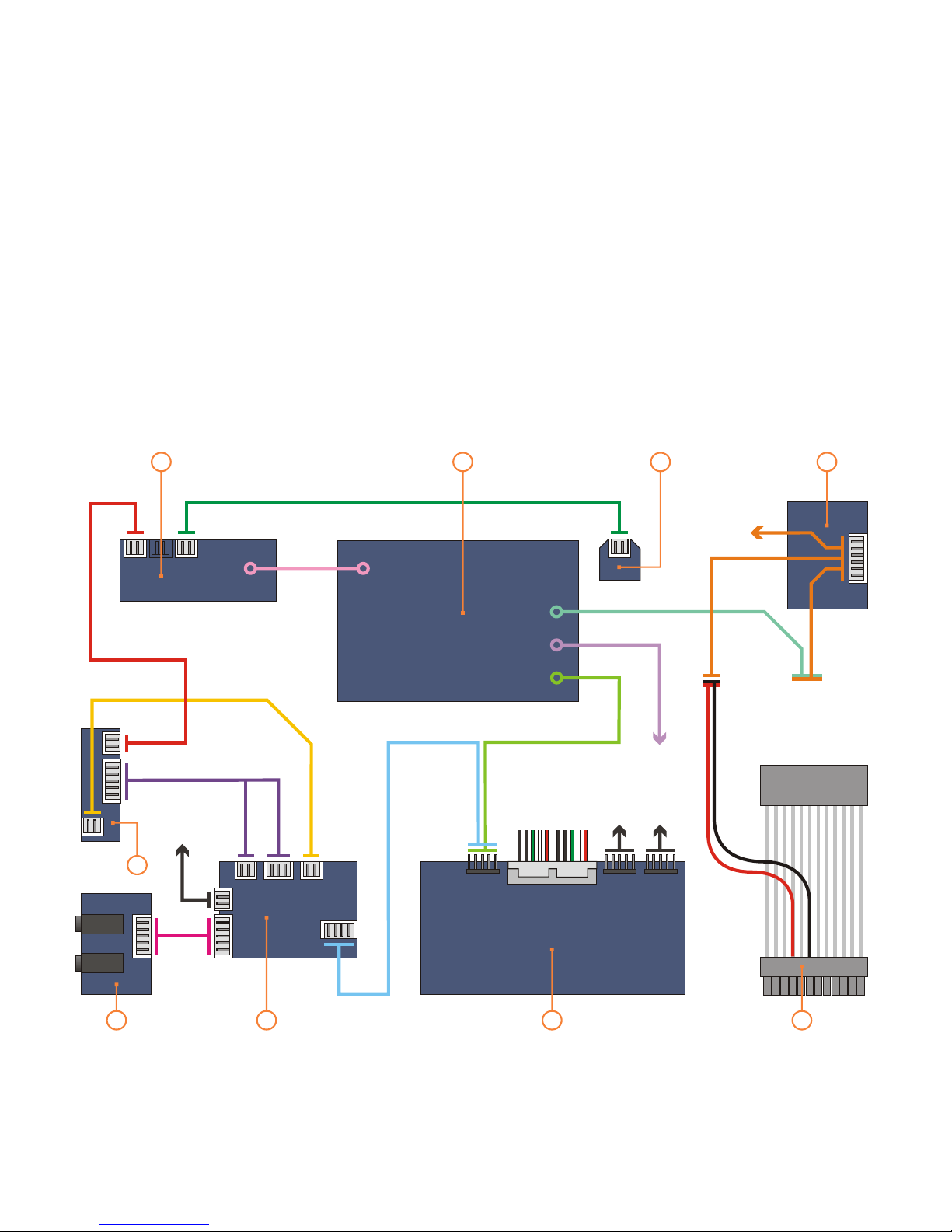

PCB/cable reference diagram

This is a general overview illustrating

how the internal PCBs in the S16T

interconnect. Please refer to your

motherboard manual for the location

of the correct ports and header pins.

1 - TFT control button PCB

2 - TFT control (AD) board

3 - TFT [external] power on/off

4 - Main power button PCB

5 - IR receiver PBC

6 - Philips IR blaster output

7 - Philips IR control PCB

8 - Card reader/USB hub PCB

9 - Standby ATX power cable

MOLEX

[to PSU]

M/B

[1394]

M/B

[audio]

M/B [2xUSB]

M/B

SWITCH

2 3 4

VGA

M/B [ACPI]

(optional)

12V

VGA

USB

Touch panel software installation

> >

In order to use the touch panel, you must first install the software

from either an install CD or downloaded from our website (www.origenae.com

and navigate to support downloads s-series). To begin installation, double

click on the setup.exe file located in the folder.

touch panel

1 After opening the setup.exe

file, the install will begin with

the above prompt. Click ‘Next’

to continue.

2 Ensure that ‘Install PS/2

interface driver’ is not

selected and click .‘Next’

3 Select ‘None’ and click .

After completing the install, the

software will perform

a 4 point calibration.

‘Next’

TouchKit

4 The touchscreen controller

should already be connected

if you have correctly

connected all cables inside

your chassis. Click ‘OK’.

5 If you intend to use spaning

mode with multiple monitors,

please select ‘Support Multi-

Monitor Systems’. Click

to continue.

‘Next’

6 Change the

software install folder if

required and click

to continue.

TouchKit

‘Next’
