MINIMAL OPENING SUBWOOFER•INSTALLATION MANUAL





1. Introduction 1

2. MOS36SUB Specications 2

3. What’s Included 4

4. Required Tools 4

5. MOS36SUB Trim Ring Kit Overview 5

6. Typical Parts Order 5

7. MOS36SUB Trim Ring Kit Specications 6

8. MOS36SUB Mounting Steps 10

9. Troubleshooting 22

10. Technical Assistance 23

11. Warranty Coverage - 5 Year Limited Warranty 24

12. Return Process 25

MOS36SUB INSTALLATION USER MANUAL

Thank you for choosing the Origin MOS36SUB Minimal Subwoofer, built to enhance the

listening experince of our Minimal Opening System™, a revolutionary fully in-ceiling

audio system that mimics the appearance of 4'' designer lighting.

Customized to match the unique appearance of home lighting, the custom nish blends

seamlessly into the ceiling alongside lights for a sophisticated uniform look.

The included Trim Ring Kit includes 6 dierent designs, oering the latest, invisible

ushmount trim-ring options, and both round & square grilles, allowing the ideal trim to

be selected to match any interior.

This instruction booklet cover the necessary information for a smooth installation,

including: the tools you will need, step-by-step instructions for installation,

troubleshooting tips for any errors that may occur, and all warranty information. If for

any reason you experience problems or if you have installation questions please call

us at (844) 674-4461. Hours of operation are 8:00am to 5:00pm (Pacic Time), Monday

through Friday.

1. Introduction

MOS36SUB INSTALLATION USER MANUAL

































































































MOS36SUB INSTALLATION USER MANUAL

*All product specifications are subject to change. Please refer to the dealer portal for the latest information.

MOS36SUB INSTALLATION USER MANUAL









Origin Acoustics



When you have decided on the location for the speaker, tracethis template

lightly in pencil where the hole should be. Punch out either the Round or

SquareTemplate, according to your preferred trim. If unsure on whether there

may or may not be obstructionsabove the planned location, use a keyhole or

drywall saw to drill a ⅛” hole in the center of the template,then insert a bent

coathanger through the hole to feel for obstructions.

MOS36K | MOS36SUB

Minimal Opening Collection

RoundTrim Cut-Out Template

324/32’’ (95mm)

www.originacoustics.com

[email protected]

844.674.4461

8:00AM- 5:00PM (PT) Mon - Fri

SquareTrim Cut-Out Template

330/32 x 330/32’’ (100x 100 mm)









4. Required Tools

123

678910 11 12





123

678910 11 12

 

SPKA-FMKT-IC6-IC8

SCALE:1:2

SPKA-FMKT-IC6-IC8

SCALE:1:2



MINIMAL OPENING COLLECTIONTM

MOS36SUB MINIMAL OPENING SUBWOOFER



































































MOS36SUBSPECIFICATION



 



MOS36SUB INSTALLATION USER MANUAL





B. TRIM RINGSA. SPACERS

.50in

12.70mm

3.74in

95.05mm

.25in

6.35mm

.125in

3.18mm

MOS36 spacers

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

D. GRILLES

Origin Acoustics

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

C1.

Origin Acoustics

B. TRIM RINGS

C. SQUARE TRIM ADAPTER RING

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

B3.

B2.

B1.A1.

A2.

A3.

B4.

B5.

B6.

D1.

D2.

Origin Acoustics

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

SPACERS [A]

TRIM RINGS [B]

GRILLE [D]

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

SQUARE TRIM ADAPTER RING [C]

SQUARE ROUND

MOS36SUB

Origin Acoustics

TRIM-RING

MOS36SUB INSTALLATION USER MANUAL



MOS36K INSTALLATION USER MANUALMOS36K INSTALLATION USER MANUAL

7. MOS36K Trim Ring Kit

FLUSH

The Trim Ring Kit includes the following pieces:

A. Spacer Options

A1. 1/8 IN. (APPROX. 3 MM)

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

A3.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

1/2 IN. (APPROX. 12 MM)

A2.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

1/4 IN. (APPROX. 6 MM)

B1.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

INVISIBLE

B. Trim Ring Options: Round Trim Rings

B4.

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

INVISIBLE

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

C1.

C. Square Trim Adapter Ring

D. Grille Options

D1.

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

ROUND GRILLE

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

D2.

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

SQUARE GRILLE

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

B6.

FLUSH

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

B5.

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

FLANGED

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

B3.

B2.

B. Trim Ring Options: Round Trim Rings

FLANGED

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

ROUND FLUSH TRIM RING

IS ALSO USED AS SQUARE

TRIM ADAPTER RING



MOS36K INSTALLATION USER MANUALMOS36K INSTALLATION USER MANUAL

7. MOS36K Trim Ring Kit

FLUSH

The Trim Ring Kit includes the following pieces:

A. Spacer Options

A1. 1/8 IN. (APPROX. 3 MM)

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

A3.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

1/2 IN. (APPROX. 12 MM)

A2.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

1/4 IN. (APPROX. 6 MM)

B1.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

INVISIBLE

B. Trim Ring Options: Round Trim Rings

B4.

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

INVISIBLE

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

C1.

C. Square Trim Adapter Ring

D. Grille Options

D1.

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

ROUND GRILLE

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

D2.

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

SQUARE GRILLE

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

B6.

FLUSH

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

B5.

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

FLANGED

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

B3.

B2.

B. Trim Ring Options: Round Trim Rings

FLANGED

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

ROUND FLUSH TRIM RING

IS ALSO USED AS SQUARE

TRIM ADAPTER RING

MOS36SUB INSTALLATION USER MANUAL



MOS36K INSTALLATION USER MANUALMOS36K INSTALLATION USER MANUAL

7. MOS36K Trim Ring Kit

FLUSH

The Trim Ring Kit includes the following pieces:

A. Spacer Options

A1. 1/8 IN. (APPROX. 3 MM)

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

A3.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

1/2 IN. (APPROX. 12 MM)

A2.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

[ 1/8 in ]

3.18 mm

1/4 IN. (APPROX. 6 MM)

B1.

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

INVISIBLE

B. Trim Ring Options: Round Trim Rings

B4.

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

INVISIBLE

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

C1.

C. Square Trim Adapter Ring

D. Grille Options

D1.

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

ROUND GRILLE

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

D2.

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

SQUARE GRILLE

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

B6.

FLUSH

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

B5.

Origin Acoustics

[ 3 13/16 in ]

97 mm

[ 3 15/16 in ]

100 mm

[ 5 1/8 in ]

130 mm

[ 4 7/8 in ]

124 mm

[ 3 15/16 in ]

100 mm

[ 3 15/16 in ]

100 mm

FLANGED

100.00

130.00

100.00

124.00

ULTIMATE IC3 square rings

SCALE:1:2

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

B3.

B2.

B. Trim Ring Options: Round Trim Rings

FLANGED

95.00

125.00

95.00

119.00

95.00

ULTIMATE IC3 round rings

SCALE:1:2

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 3 5/8 in ]

92 mm

[ 3 3/4 in ]

95 mm

[ 4 15/16 in ]

125 mm

[ 4 15/16 in ]

126 mm

[ 3 3/4 in ]

95 mm

ROUND FLUSH TRIM RING

IS ALSO USED AS SQUARE

TRIM ADAPTER RING

MOS36SUB INSTALLATION USER MANUAL





A. SPACERS

There are 3 included spacer pieces:

A1. Spacer: 1/8 in. (3.18 mm) Depth

A2. Spacer: ¼ in. (6.35 mm) Depth

A3. Spacer: ½ in. (12.70 mm) Depth

B. ROUND TRIM RINGS

B1. Round Invisible Trim: 4 15/16 in. (125 mm) Diameter

B2. Round Flanged Trim: 4 15/16 in. (126 mm) Diameter

B3. Round Flush Trim: 3 ¾ in. (95 mm) Diameter

D1. ROUND PLACEHOLDER SPONGE

E1. ROUND GRILLE

MOS36K INSTALLATION USER MANUALMOS36K INSTALLATION USER MANUAL

8b. MOS36K Square Trim SetUp:

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

B4.

B5.

B6.

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

C1.

D2.

3.94in

100.00mm

5.12in

130.00mm

3.94in

100.00mm

3.94in

100.00mm

4.88in

124.00mm

3.82in

97.00mm

MOS36 square trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

E2.

A. SPACERS

There are 3 included spacer pieces:

A1. Spacer: 1/8 in. (3.18 mm) Depth

A2. Spacer: ¼ in. (6.35 mm) Depth

A3. Spacer: ½ in. (12.70 mm) Depth

B. ROUND TRIM RINGS

B1. Round Invisible Trim: 4 15/16 in. (125 mm) Diameter

B2. Round Flanged Trim: 4 15/16 in. (126 mm) Diameter

B3. Round Flush Trim: 3 ¾ in. (95 mm) Diameter

D1. ROUND PLACEHOLDER SPONGE

E1. ROUND GRILLE

A1.

A2.

A3.

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

B1.

B2.

B3.

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

Origin Acoustics

[ 3 3/4 in ]

95 mm

[ 1/2 in ]

12.70 mm

[ 1/4 in ]

6.35 mm

D1.

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

E1.

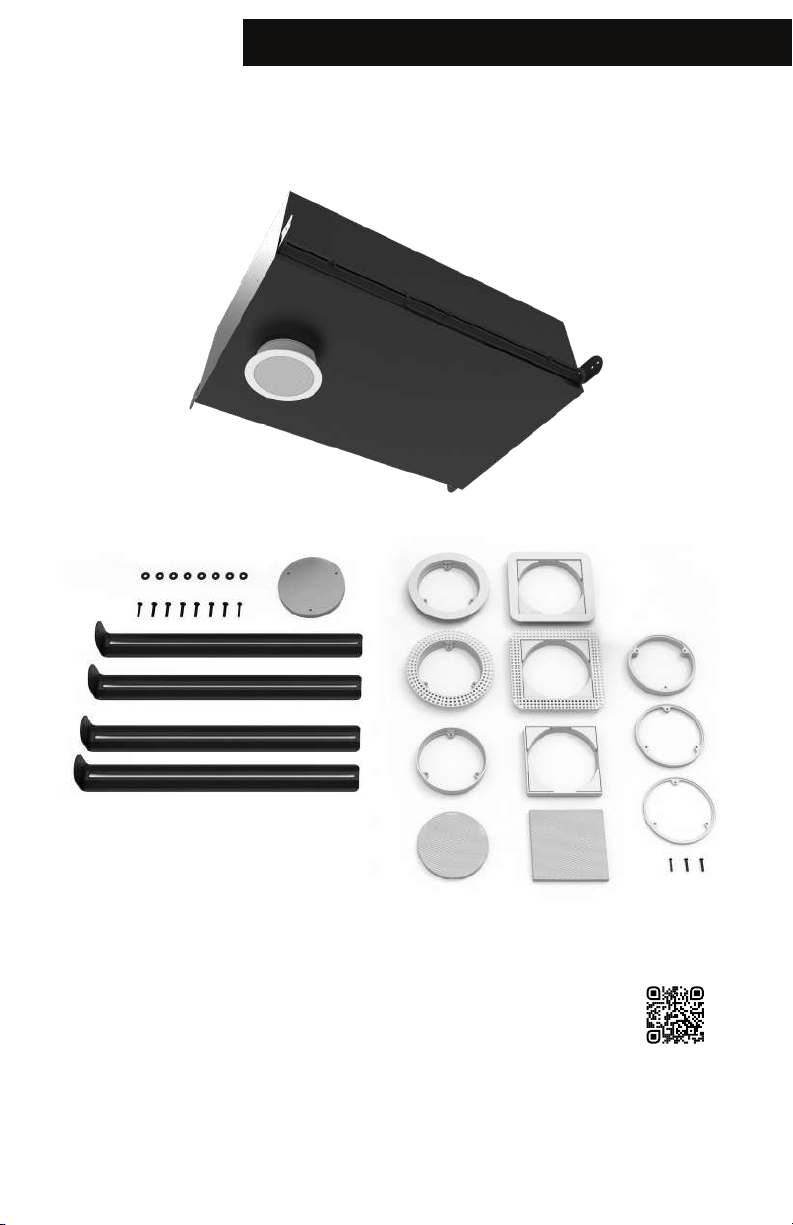

8a. MOS36K Round Trim SetUp

A. SPACERS

There are 3 included spacer pieces:

A1. Spacer: 1/8 in. (3.18 mm) Depth

A2. Spacer: ¼ in. (6.35 mm) Depth

A3. Spacer: ½ in. (12.70 mm) Depth

B. SQUARE TRIM RINGS

B4. Square Invisible Trim: 5 1/8 in. (130 mm) Width

B5. Square Flanged Trim: 4 7/8 in. (124 mm) Width

B6. Square Flush Trim: 3 15/16 in. (100 mm) Width

C1. MRM ADAPTER RING FOR SQUARE TRIM ATTACHMENT

Required for Square Trim Ring Installation:

3 ¾ in. (95 mm) Diameter

D2. SQUARE PLACEHOLDER SPONGE

E2. SQUARE GRILLE

3.74in

95.00mm

4.92in

125.00mm

3.74in

95.00mm

4.96in

126.00mm

3.74in

95.00mm

3.62in

92.00mm

MOS36 round trims

SCALE:1:2

Origin Acoustics

6975 S Decatur Blvd

Suite 140

Las Vegas, NV 89118

844-ORIGIN1 (674-4461)

www.originacoustics.com

A C O U S T I C S

O R I G I N

Altri manuali per MOS36SUB

Indice

Altri manuali Origin Acoustics Subwoofer

Origin Acoustics

Origin Acoustics Bassic V10 Manuale utente

Origin Acoustics

Origin Acoustics DSUB6 Manuale utente

Origin Acoustics

Origin Acoustics DSUB6F68K Manuale utente

Origin Acoustics

Origin Acoustics WSK200 Manuale utente

Origin Acoustics

Origin Acoustics Deep SUBDD12EQ Manuale utente

Origin Acoustics

Origin Acoustics EXPLORER CSUB10REX Manuale utente

Origin Acoustics

Origin Acoustics CSUB10N Manuale utente

Origin Acoustics

Origin Acoustics Bassic SUB Series Manuale utente

Origin Acoustics

Origin Acoustics MOS36SUB Manuale utente

Origin Acoustics

Origin Acoustics CSUB10N Manuale utente

Origin Acoustics

Origin Acoustics DBA10 Manuale utente

Origin Acoustics

Origin Acoustics SUBV10 Manuale utente

Origin Acoustics

Origin Acoustics SUBV12P Manuale utente

Origin Acoustics

Origin Acoustics CSUB10R Manuale utente

Origin Acoustics

Origin Acoustics SUBS10 Manuale utente

Origin Acoustics

Origin Acoustics DSUB6 Manuale utente

Origin Acoustics

Origin Acoustics DSUB8F8K Manuale utente

Origin Acoustics

Origin Acoustics EXPLORER DBA10EX Manuale utente

Manuali Subwoofer popolari di altre marche

Sony

Sony XS-AW8 Manuale utente

Sony

Sony XS-L836 Manuale utente

B&C Speakers

B&C Speakers 15 HPL 76W Manuale utente

Velodyne

Velodyne DD-18+ Manuale utente

Sonance

Sonance Cinema Series SUB 10-150 Manuale utente

Hifonics

Hifonics HW-12 Guida rapida

Magnat Audio

Magnat Audio ADR 130 BP Manuale utente

Blitz

Blitz BZP106 Manuale utente

Technics

Technics SB-AS500 Manuale utente

Lyngdorf

Lyngdorf BW-2 Manuale utente

Lyngdorf

Lyngdorf BW-3 Manuale utente

Pyle Pro

Pyle Pro PYLE PRO PDW15125 Manuale utente

REL Acoustics

REL Acoustics Q Series Manuale utente

Pioneer

Pioneer Elite S-W1EX Manuale utente

L-Acoustics

L-Acoustics KIVA SB15M Guida rapida

B&C Speakers

B&C Speakers Woofer 12 HPL 76 Manuale utente

KEF

KEF KUBE 200 Manuale utente

Yamaha

Yamaha SW500 Manuale utente
