ORiNG IR-710 Manuale utente

R-

-7

R-

-7

r’

’s

-n

ORing Industrial Networking Corp.

No part of this publication may be reproduced in any form without the prior written consent of

ORing Industrial Networking Corp.

TRADEMARKS

is a registered trademark of ORing Industrial Networking Corp.

All other trademarks belong to their respective owners.

REGULATORY COMPLIANCE STATEMENT

Product(s) associated with this publication complies/comply with all applicable regulations.

Please refer to the Technical Specifications section for more details.

WARRANTY

ORing warrants that all ORing products are free from defects in material and workmanship for

a specified warranty period from the invoice date (5 years for most products). ORing will repair

or replace products found by ORing to be defective within this warranty period, with shipment

expenses apportioned by ORing and the distributor. This warranty does not cover product

modifications or repairs done by persons other than ORing-approved personnel, and this

warranty does not apply to ORing products that are misused, abused, improperly installed, or

damaged by accidents.

Please refer to the Technical Specifications section for the actual warranty period(s) of the

product(s) associated with this publication.

DISCLAIMER

Information in this publication is intended to be accurate. ORing shall not be responsible for its

use or infringements on third-parties as a result of its use. There may occasionally be

unintentional errors on this publication. ORing reserves the right to revise the contents of this

publication without notice.

CONTACT INFORMATION

ORing Industrial Networking Corp.

3F., No.542-2, Zhongzheng Rd., Xindian Dist., New Taipei City 23148, Taiwan (R.O.C.)

Tel: +886-2-2218-1066 // Fax: +886-2-2218-1014

Website: www.oring-networking.com

Technical Support

E-mail: support@oring-networking.com

Sales Contact

E-mail: sales@oring-networking.com (Headquarters)

sales@oring-networking.com.cn (China)

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp.

Tables of Contents

Getting to Know your Router....................................................................... 1

1.1 Overview..............................................................................................................1

1.2 Software Features ................................................................................................1

1.3 Hardware Features...............................................................................................1

Hardware Installation.................................................................................... 2

2.1 DIN-Rail Installation..............................................................................................2

2.2 Wall-Mounted Installation......................................................................................3

2.3 SIM Card Installation (IR-710 only)........................................................................4

2.4 3G USB Modem Installation (IR-711UB only)........................................................4

Hardware Overview....................................................................................... 5

3.1 Front Panel...........................................................................................................5

3.2 Front Panel LEDs.................................................................................................6

Cables and Antenna...................................................................................... 7

4.1 Ethernet Cables....................................................................................................7

4.2 10BASE-T/100BASE-T(X) Pin Assignments..........................................................7

4.3 Wireless Antenna (IR-710 only).............................................................................8

Management Interface.................................................................................. 9

5.1 First-time Installation.............................................................................................9

5.2 Router Configuration...........................................................................................10

5.3 Main Interface.....................................................................................................11

5.3.1 Basic Setting..................................................................................................11

WAN.......................................................................................................................11

LAN........................................................................................................................13

DHCP.....................................................................................................................13

5.3.2 Advanced Settings..........................................................................................15

NAT Setting ............................................................................................................15

Security Setting.......................................................................................................18

VPN Setting............................................................................................................19

Routing Protocol (Routing Setting)..........................................................................26

Miscellaneous DDNS..............................................................................................29

Miscellaneous SNMP..............................................................................................30

5.3.3 System Tools..................................................................................................31

Date & Time............................................................................................................31

System Event .........................................................................................................32

Login Setting...........................................................................................................32

Router Restart ........................................................................................................33

Firmware Upgrade..................................................................................................33

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp.

Save/Restore Configurations ..................................................................................34

Remote management .............................................................................................35

Miscellaneous (Ping)...............................................................................................35

5.3.4 System Status ................................................................................................36

System Info.............................................................................................................36

System Log.............................................................................................................36

Traffic Statistics.......................................................................................................37

Technical Specifications...................................................................... 38

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp. 1

Getting to Know your Router

1.1 Overview

The ORing IR-710 / IR-711UB router is designed to operate in

industrial environment. The router provides a fast and effective

ways of communicating to the internet over wired LAN.

With built-in HSUPA WAN connection (IR-710) or an external

USB modem (IR-711UB), the ORing IR-710 / IR-711UB router

can be mounted in harsh environment easily to provide internet

access anytime and anywhere.

The ORing IR-710 / IR-711UB router's VPN capability creates encrypted "Virtual

Tunnels" through the internet, allowing remote or traveling users for secured connection

with the network in your office.

1.2 Software Features

Secured Management by HTTPS

Intuitive Web-based management user interface for simply and easily operation.

Functions of firewall provides many security features such as blocking attacks from

hacker, especially IP Spoofing, Ping flood, Ping of Death, DoS, DRDoS, Stealth Scan,

etc.

Advanced firewall configuration to extend the capability and security, such as Virtual

Server, Port Trigger, DMZ host, UPnP auto Forwarding, IP Filter and MAC filter.

Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper

1.3 Hardware Features

Built-in HSUPA Cellular Modem with SIM card slot included for WAN connection (IR-710)

USB port for installing user-selectable 3G USB modem for WAN connection (IR-711UB)

10/100Base-T(X) Ethernet ports for LAN connection individually.

Power Inputs: 12~48 VDC

Casing: IP-30

Operating Temperature: -10 to 55oC

Storage Temperature: -40 to 85oC

Operating Humidity: 5% to 95%, non-condensing

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp. 2

Hardware Installation

2.1 DIN-Rail Installation

IR-710 / 711UB has DIN-Rail Kit on rear panel. The DIN-Rail kit helps AP to fix on the

DIN-Rail. It is easy to install the router on the DIN-Rail.

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp.3

2.2 Wall-Mounted Installation

IR-710 / 711UB has another installation method to secure the router. A wall mount panel

can be found in the package.

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp. 4

2.3 SIM Card Installation (IR-710 only)

Important Notice: POWER DOWN THE IR-710 BEFORE INSTALLING SIM CARD.

2.4 3G USB Modem Installation (IR-711UB only)

With IR-710 POWERED DOWN :

1. Un-fasten the screws.

2. Remove the cover.

(NOTE : The cover removal

is only for SIM card

installation. DO NOT remove

the cover i

n normal

operation.)

3. Install SIM card into its slot.

4. Replace the cover.

5. Fasten the screws.

3G USB Modem

NOTE: USB modems (not included in the

package) that are tested to be

compatible with IR-711UB are listed

in the Technical Specifications

section.

IR-710 / IR-711UB User’s Manual

ORing Industrial Networking Corp.5

Hardware Overview

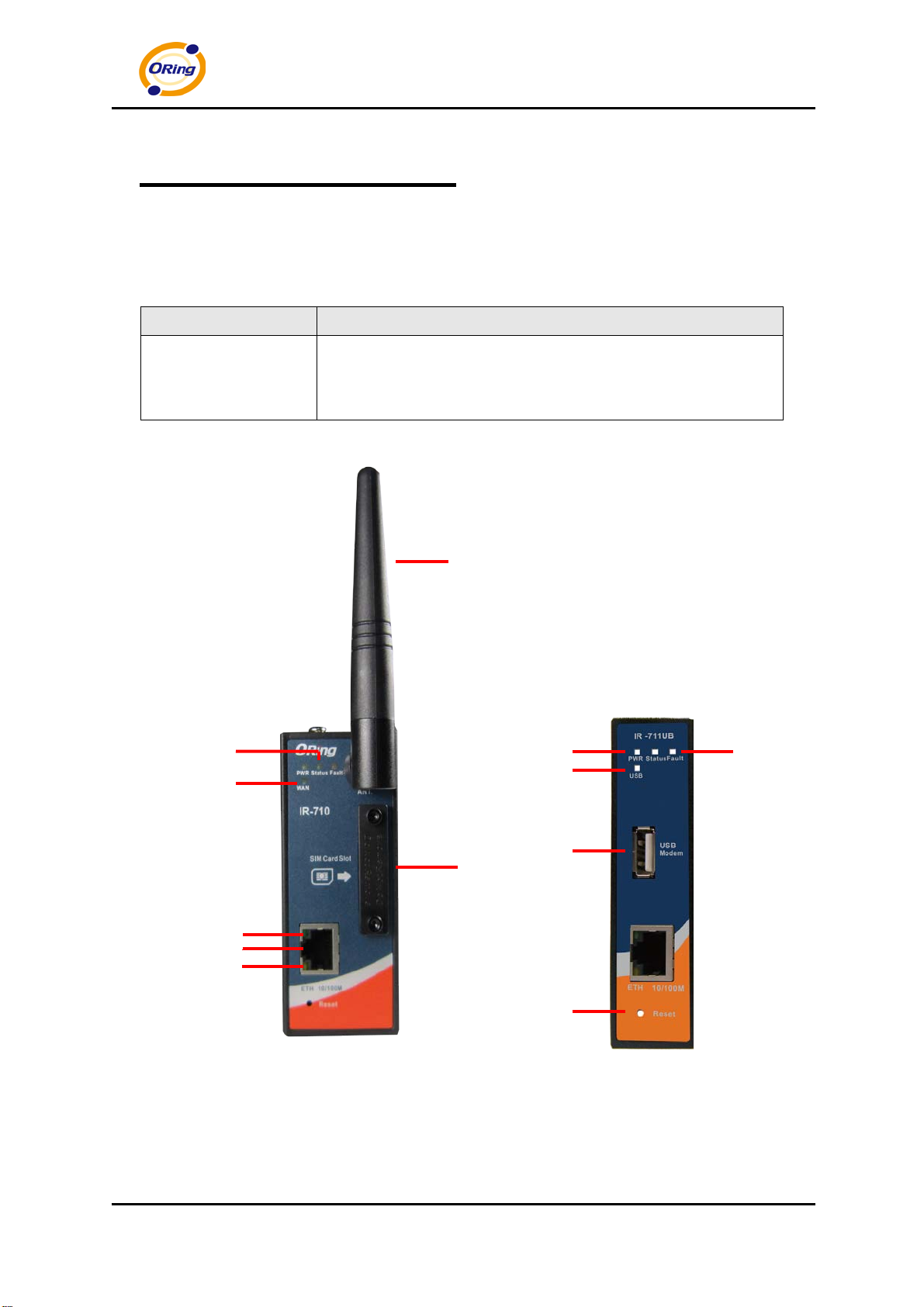

3.1 Front Panel

The following table describes the labels that stick on the IR-710 / IR-711UB

Port Description

10/100 Base-T(X)

Fast Ethernet Ports

10/100Base-T(X) fast Ethernet ports support auto-negotiation.

Default Setting :

Speed: auto
