Orion® 30mm Ultra-Mini Guide Scope
Included Items
• 30mm Ultra-Mini guide scope
• Dual-ring mounting bracket
• 5mm CS/C extension ring
• Aluminum objective cap
• Plastic camera-end cap
Your Ultra-Mini Guidescope (Figure 1) is designed for use with the Orion
StarShoot AutoGuider Pro Mono and StarShoot All-in-One cameras, or similar
eyepiece-sized cameras with female C or CS mount threads (cameras sold sep-
arately). The guide scope is ideal for astrophotographic guiding with short focal
length instruments.
The dual-ring bracket has a dovetail foot (see Figure 2) that is compatible with
Orion dovetail finder scope mounting shoes, as well as those of many other tele-
scope brands. Insert the guide scope into the rings from the back (threaded) end
and secure it with the two thumbscrews. Then insert the bracket foot into the com-
patible finder scope mounting shoe on your telescope or mounting plate.
#52053
IN 569 09/16
INSTRUCTION MANUAL
Figure 1. The 30mm Ultra-Mini Guide Scope and dual-ring bracket

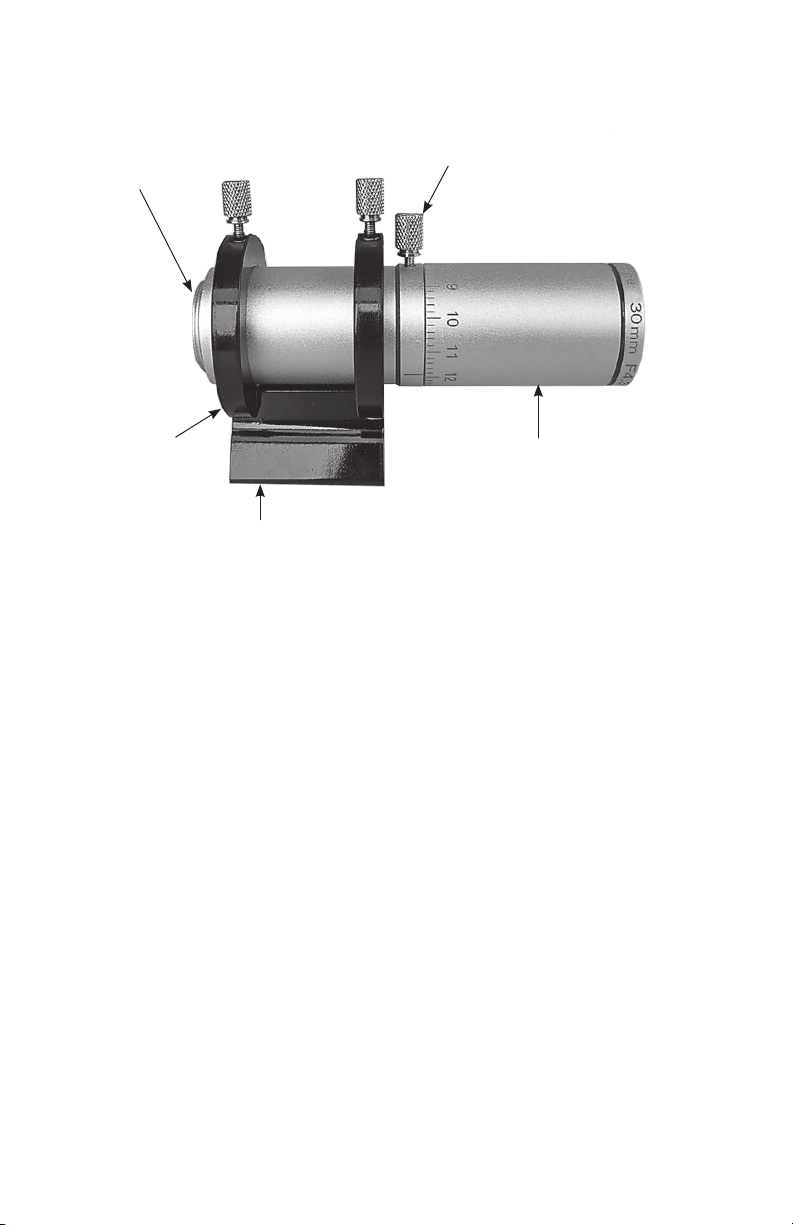

Figure 2. Parts of the 30mm Ultra-Mini Guide Scope
Attaching your AutoGuider Camera
To attach a camera equipped with C-mount threads, such as the Orion StarShoot
AutoGuider Pro and StarShoot All-in-One, just thread the camera onto the C-mount
threads of the guide scope until it’s firmly attached, as in Figure 3. You do not need
to install the included 5mm (length) extension ring when using a C-mount camera.
If your camera has a CS mount, (check your camera’s user manual for the mount
specification), then you will need to use the 5mm extension ring (Figure 4) to
achieve focus through the 30mm guide scope. Thread the extension ring onto the
guide scope until tight, then thread your camera onto the extension ring until tight.
The underside of the bracket foot has a single 1/4"-20 threaded hole to allow direct
attachment of the bracket to a universal dovetail plate. For this you will need a
1/4"-20 screw of the appropriate length to pass through your universal plate and
into the bracket foot.
Focusing
To focus the image displayed on your computer by the camera, rotate the front
of the guide scope’s housing (Figure 2), making sure to loosen the focus lock
thumbscrew first. Once the desired focus sharpness is achieved, gently retighten
the thumbscrew to lock the focus.
Focus lock
C–mount
threads
Rotate to focus
Dovetail foot
Bracket
SPECIFICATIONS
Aperture: 30mm
Focal length: 130mm
Focal ratio: 4.3
Camera interface: C mount (male)
Focuser: Helical; front housing rotates
Bracket: Dual ring, with dovetail foot, aluminum
Length: 4-7/16" (113mm)
Weight (guide scope and bracket): 7.5 oz. (213g)
Figure 4. The CS/C Extension Ring is needed to couple CS-mount cameras to
the 30mm Ultra-Mini Guide Scope, in order to achieve proper focus.

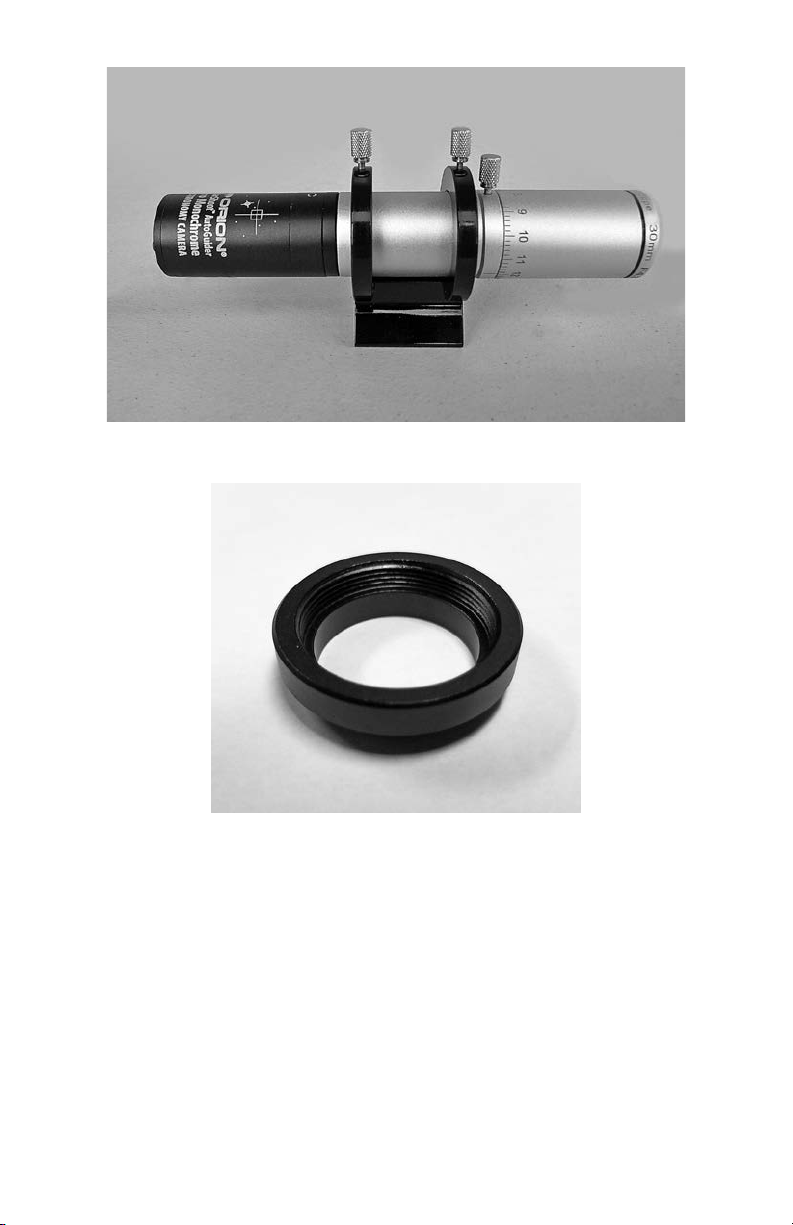

Figure 3. The 30mm Ultra-Mini Guide Scope shown with the StarShoot
AutoGuider Pro Monochrome camera attached.
One-Year Limited Warranty
This Orion product is warranted against defects in materials or workmanship for
a period of one year from the date of purchase. This warranty is for the benefit of
the original retail purchaser only. During this warranty period Orion Telescopes &
Binoculars will repair or replace, at Orion’s option, any warranted instrument that
proves to be defective, provided it is returned postage paid. Proof of purchase
(such as a copy of the original receipt) is required. This warranty is only valid in
the country of purchase.
This warranty does not apply if, in Orion’s judgment, the instrument has been
abused, mishandled, or modified, nor does it apply to normal wear and tear. This
warranty gives you specific legal rights. It is not intended to remove or restrict
your other legal rights under applicable local consumer law; your state or national
statutory consumer rights governing the sale of consumer goods remain fully
applicable.
For further warranty information, please visit www.OrionTelescopes.com/warranty.
Orion Telescopes & Binoculars
Corporate Offices: 89 Hangar Way, Watsonville CA 95076 - USA
Customer Support: www.OrionTelescopes.com/contactus
Copyright © 2016 Orion Telescopes & Binoculars
All Rights Reserved. No part of this product instruction or any of its contents may be reproduced,
copied, modified or adapted, without the prior written consent of Orion Telescopes & Binoculars.
