Orion XTREME 200 Manuale utente

XTREME 200/400.4

OWNER’SMANUAL

IGH

ERFORMANCE

UDIO

TABLE OF CONTENTS

INTRODUCTION 1

WARRANTY 4

SPECIFICATIONS 6

TECHNICAL DESIGN FEATURES 8

SYSTEM PLANNING 10

INSTALLATION 18

POWER CONNECTIONS 19

SPEAKER CONNECTIONS 20

OUTPUT CONFIGURATIONS 27

4-CHANNEL INPUT CONFIGURATIONS 28

INTERNAL CROSSOVER CONFIGURATION 28

SIGNAL INPUT AND OUTPUT LEVEL CONTROLS 29

CHOOSING MOUNTING LOCATIONS 30

STEP BY STEP INSTALLATION 32

TESTING THE SYSTEM 33

ADJUSTING THE SOUND OF THE SYSTEM 34

TROUBLESHOOTING TIPS 36

AUTOSOUND 2000 TROUBLESHOOTING TIPS 38

Thank you for your purchase of ORION’s XTREME amplifier. Each ORION amplifier is designed to be the leader in its class offering the

most power, advanced features and ease of use. The ORION XTREME amplifiers are designed as the best “affordable high end” car

audio amplifier money can buy. Listed below are the features of the new ORION COBALT amplifiers.

•XTREME 200 – 50 watts per channel, 2-channel amplifier with built-in continuously variable high-pass or low-pass 12dB/octave

crossover from 45 to 5kHz. The XTREME 200 is capable of 3, 2, or 1 channel operation.

•XTREME 400.4 – 50 watts per channel, 4-channel amplifier with dual built-in continuously variable high-pass or low-pass 12dB/octave

crossover from 45 to 5kHz. The XTREME 400.4 is capable of 6, 5, 4, 3, or 2 channel operation.

NOTE: The installation of all ORION XTREME amplifiers will determine the overall performance result. Improper installation will not

only limit the performance of your ORION system but also potentially compromise the reliability of this digital processor. To ensure

proper sonic results and component reliability, please refer to your Authorized ORION dealer for installation assistance or advice. If you

decide to perform the installation yourself, read the entire installation section of this manual before beginning the installation.

INTRODUCTION

page 1

ABOUT THIS MANUAL

This manual is divided into different sections for different needs. Whether you are the owner, salesperson or installer, we have devoted

sections of this manual to answer your questions. If you just purchased this amplifier and have yet to decide on a system configuration,

refer to the System Planning section of this manual for awesome system ideas.

We, at ORION, strive to give you the latest up to date information about our products. What we cannot give you is personal installation

or technical experience. If you have questions regarding the installation or the set-up or tuning of this product, please refer to your

nearest Authorized ORION Dealer for assistance. Additionally, you can call ORION’s Technical Support Hotline at 1-800-315-2052 or 602-

705-5600 for assistance.

PRACTICE SAFE SOUND™

Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered automotive sound systems

can generate sound pressure levels in excess of 130dB. When playing your system at high levels, please use hearing protection and avoid

long term exposure.

RECORD YOUR SERIAL NUMBER AND DATE:

Model: __________________________________________________________

Serial Number: __________________________________________________________

Date of Purchase: __________________________________________________________

Company Purchased From: __________________________________________________________

page 2

(1) XTREME amplifier

(1) 8 gauge power and ground connector

(1) 14 gauge speaker and remote connector

(4) #8 self-tapping black Phillips pan head screws

(1) XTREME installation and operation manual

WHAT’S IN THE BOX

page 3

WARRANTY

ORION Industries Inc. warrants this product to be free from defects in material and workmanship under the following terms:

Parts and Labor are warranted for a period of 3 years IF:

a. The product is purchased from an Authorized ORION Dealer

b. The product is installed by an Authorized ORION Dealer

Parts and Labor are warranted for a period of 1 year IF:

a. The product is purchased from an Authorized ORION Dealer

b. The product is NOT installed by an Authorized ORION Dealer

Parts and Labor are warranted for a period of 90 days IF:

a. The product is NOT purchased from an Authorized ORION Dealer

If you are uncertain as to whether your dealer is authorized, please contact ORION at 1-800-775-7150 or 602-705-5600. In countries

other than the USA, each distributor warrants the ORION product it sells.

The following conditions and situations are NOT covered by this warranty:

Any product on which the serial number has been defaced, modified or removed. Damage or malfunction resulting from:

a. Accident, misuse, abuse, unauthorized modification or failure to follow the instructions provided with this product

b. Repair by anyone NOT authorized by ORION

c. Damage due to shipping (these claims must be presented to the freight carrier)

d. Removal or installation of this product

e. Any failure that has NOT been caused by a defect in material or workmanship

page 4

This warranty is in effect for the original purchaser only. ORION will pay for labor and material expense for covered items. ORION does

not cover removal or installation charges, payment of shipping charges to ORION, payment of OUT-OF-WARRANTY shipping charges, or

damage to other property caused by any defects in this product.

For IN-WARRANTY service, you must include a copy of the original, dated sales receipt, including serial number, from an Authorized

ORION Dealer. Please also provide your name, return street address (No P.O. Boxes) and a detailed description of the problem.

For out-of-warranty products, please include ORION E-Z Repair Form. These are available by contacting ORION Repair at 1-888-362-5283

or 602-705-5600 and ask for the Repair Department.

• If you do not have the original packaging, the product must be packaged to prevent damage during shipment.

ORION Industries Inc.

ATTN: Repair Department

9235 South McKemy Street

Tempe, Arizona 85284 USA

Exclusion

1. This warranty is in lieu of all other warranties expressed or implied.

2. In no event will ORION be liable for any consequential damages resulting from the use of this product or any defect of this product.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

page 5

Amplifier Section XTREME 200 XTREME 400.4

Power output 4Ωstereo (watts)150 x 2 50 x 4

50 x 2, 200 x 1

Power output 2Ωstereo (watts)2100 x 2 100 x 4

Power output 4Ωmono (watts)1200 x 1 200 x 2

Distortion all channels driven <0.1% THD <0.1% THD

(from 20Hz to 20kHz)

Frequency Response 20Hz to 20kHz ±0.25dB 20Hz to 20kHz ±0.25dB

Linear Bandwidth 6Hz to 50kHz ±3dB 6Hz to 50kHz ±3dB

Signal-to-noise ratio full bandwidth >100dB >100dB

@ rated output power

Damping factor @ output connector >400 at output connector >400 at output connector

@ full bandwidth

Slew Rate >30Vµs >30Vµs

Input Sensitivity3200 mV to 5 Vrms 200 mV to 5 Vrms

Input Impedance 20kΩ20kΩ

Fuse Type 30 Amp ATC (2) 20 Amp ATC

SPECIFICATIONS

page 6

1All channels driven, continuous rated 4Ωload, 20Hz to 20,000Hz, >0.1% THD, per input voltage at 12.0VDC.

2All channels driven, continuous rated 2Ωload, 20Hz to 20,000Hz, >0.1% THD, per input voltage at 12.0VDC.

3XTREME amplifers are designed to accept full 9 Volts RMS input when set to the minimum gain position.

4All crossovers are with a slope rate of 12dB/octave and a “Q” of .0707.

Crossover Section3XTREME 200 XTREME 400.4

Low-Pass Crossover Continuously variable Continuously variable

Low-Pass Frequency Range 45Hz to 5kHz 45Hz to 5kHz

High-Pass Crossover Continuously variable Continuously variable

High-Pass Freqency Range 45Hz to 5kHz 45Hz to 5kHz

General

Dimensions 8”L x 10.25”W x 2.25”H 13”L x 10.25”W x 2.25”H

(305mm x 260mm x 57mm) (457mm x 260mm x 57mm)

page 7

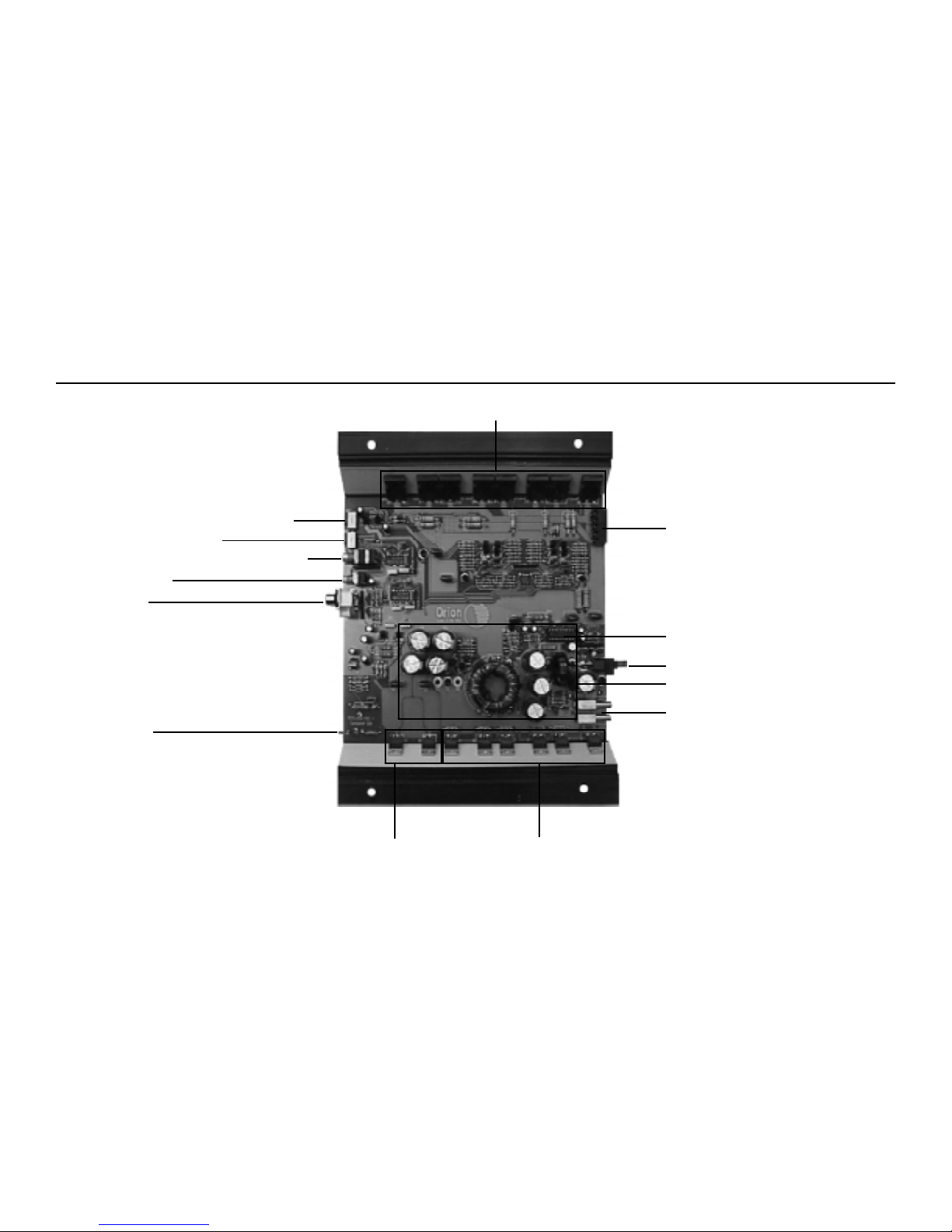

TECHNICAL DESIGN FEATURES

page 8

PRS Power Supply

Complementary Matched

Bipolar Outputs

16 Gauge Speaker

and Remote

ATC Fuse

Crossover Frequency Control

Stereo/SUM/MONO Switch

Gain Control

RCA Input

Crosssover Selector

8 Gauge Power &

Ground

Power Supply Controller

PRS Power supply

MOSFET switches

Power LED

Rectifier

Diodes

XTREME 200
